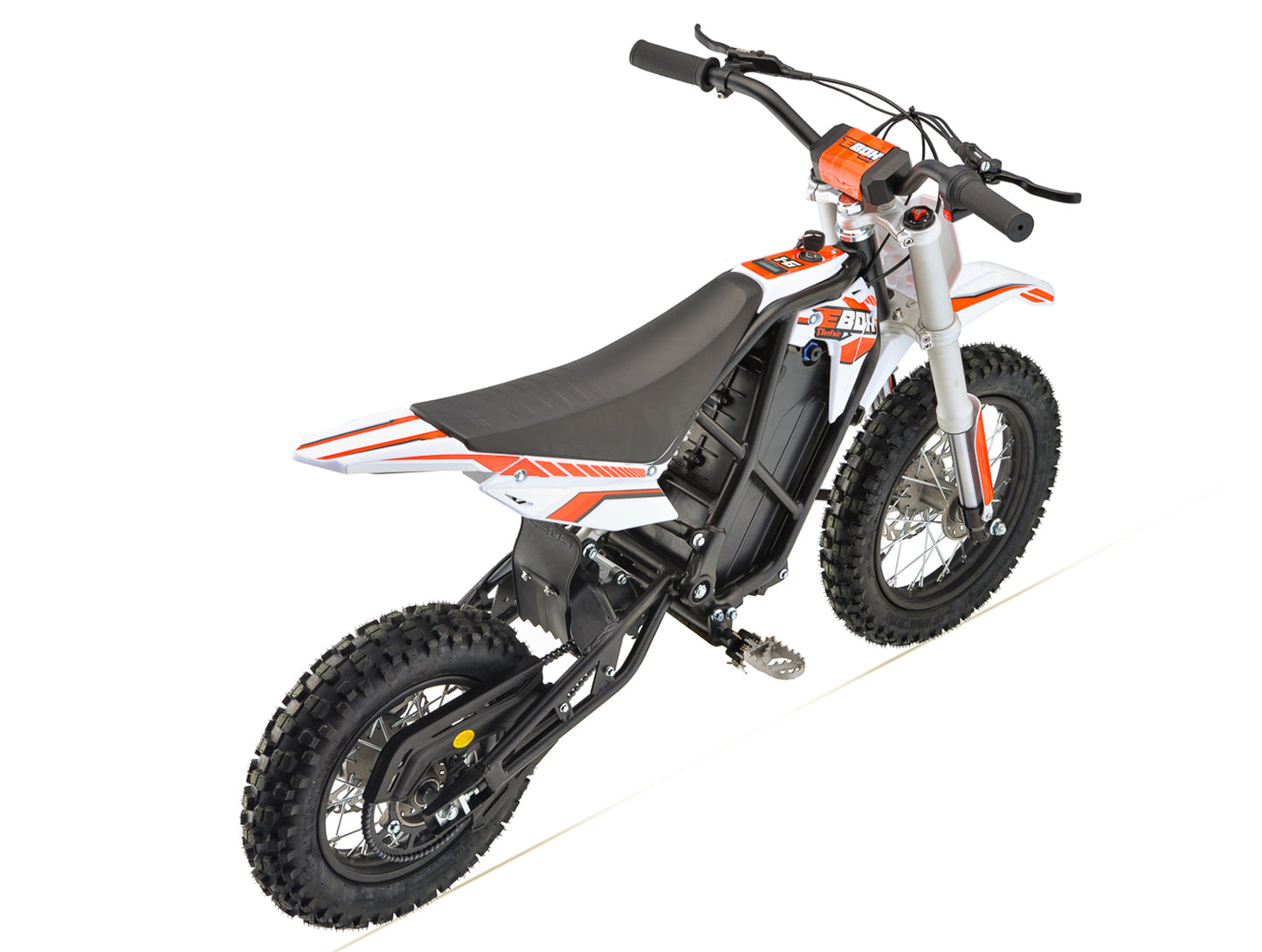

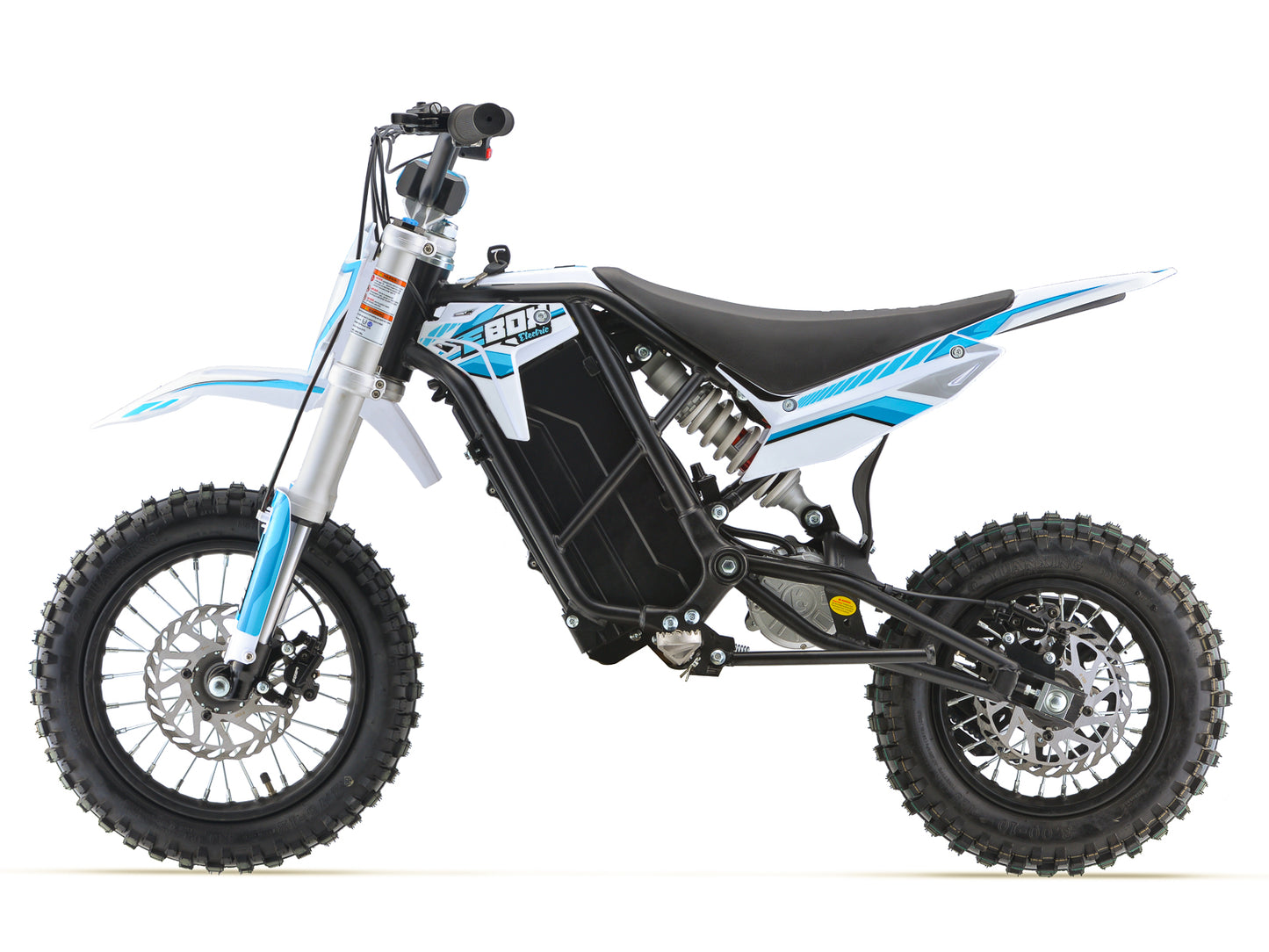

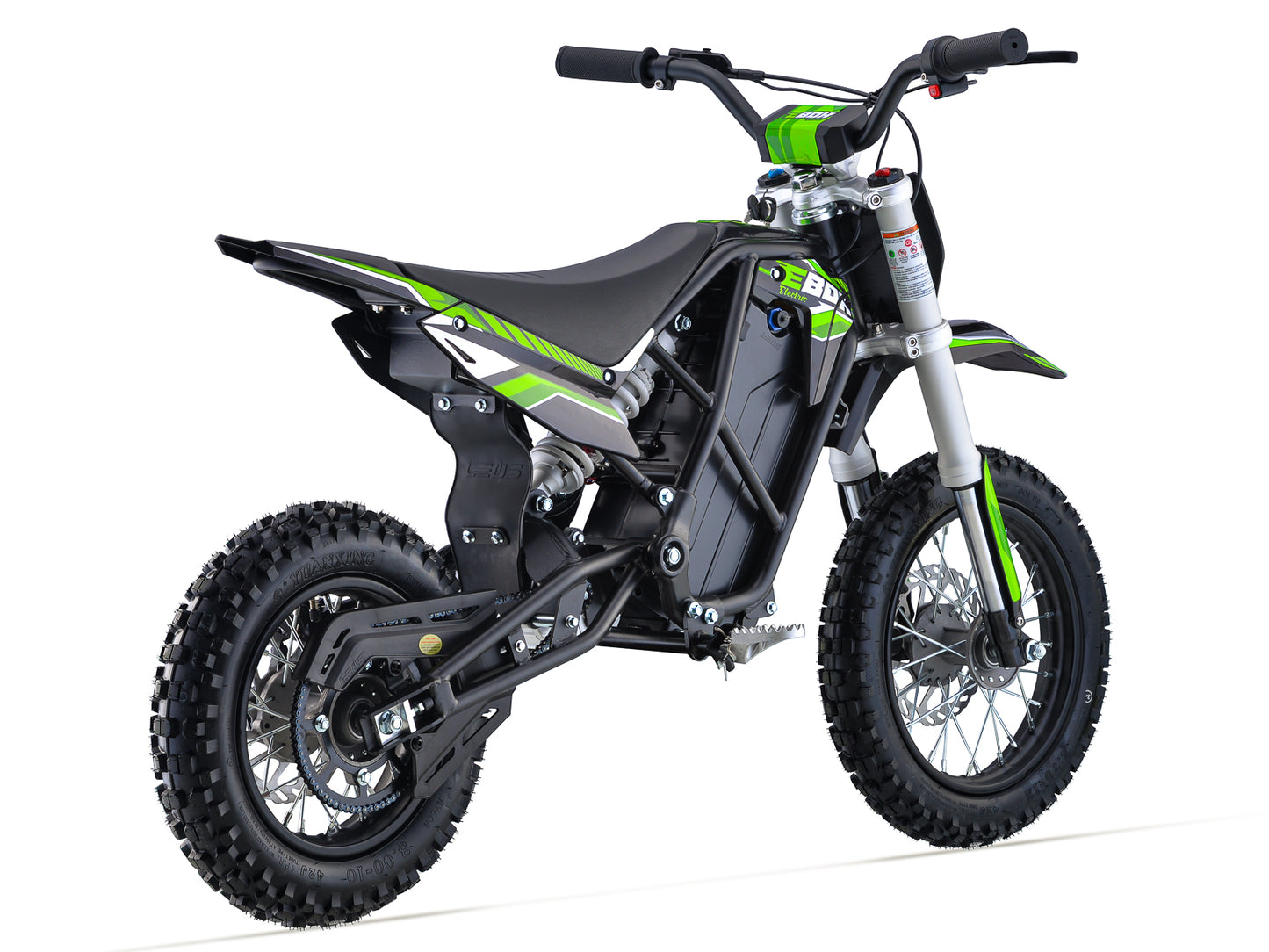

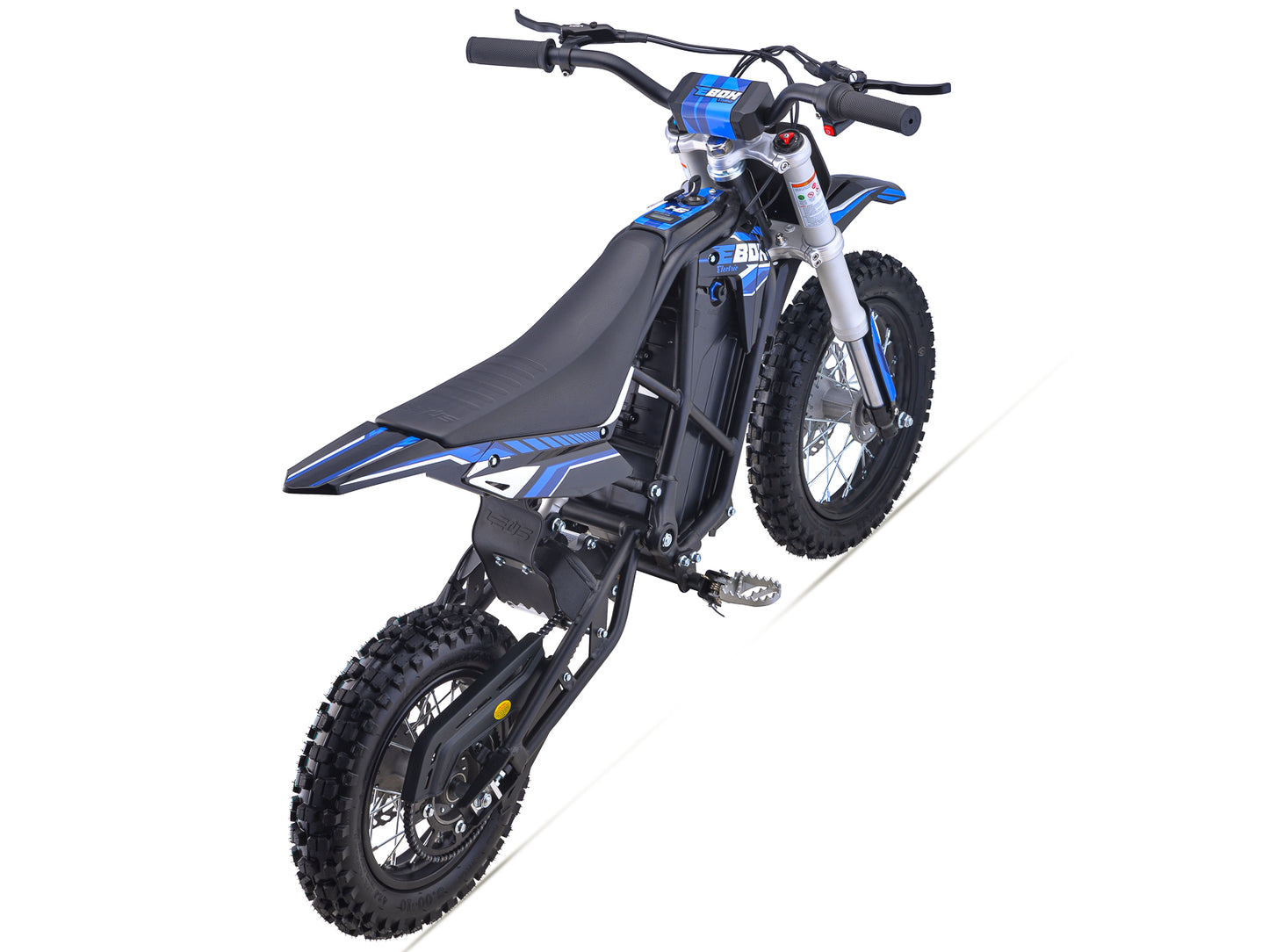

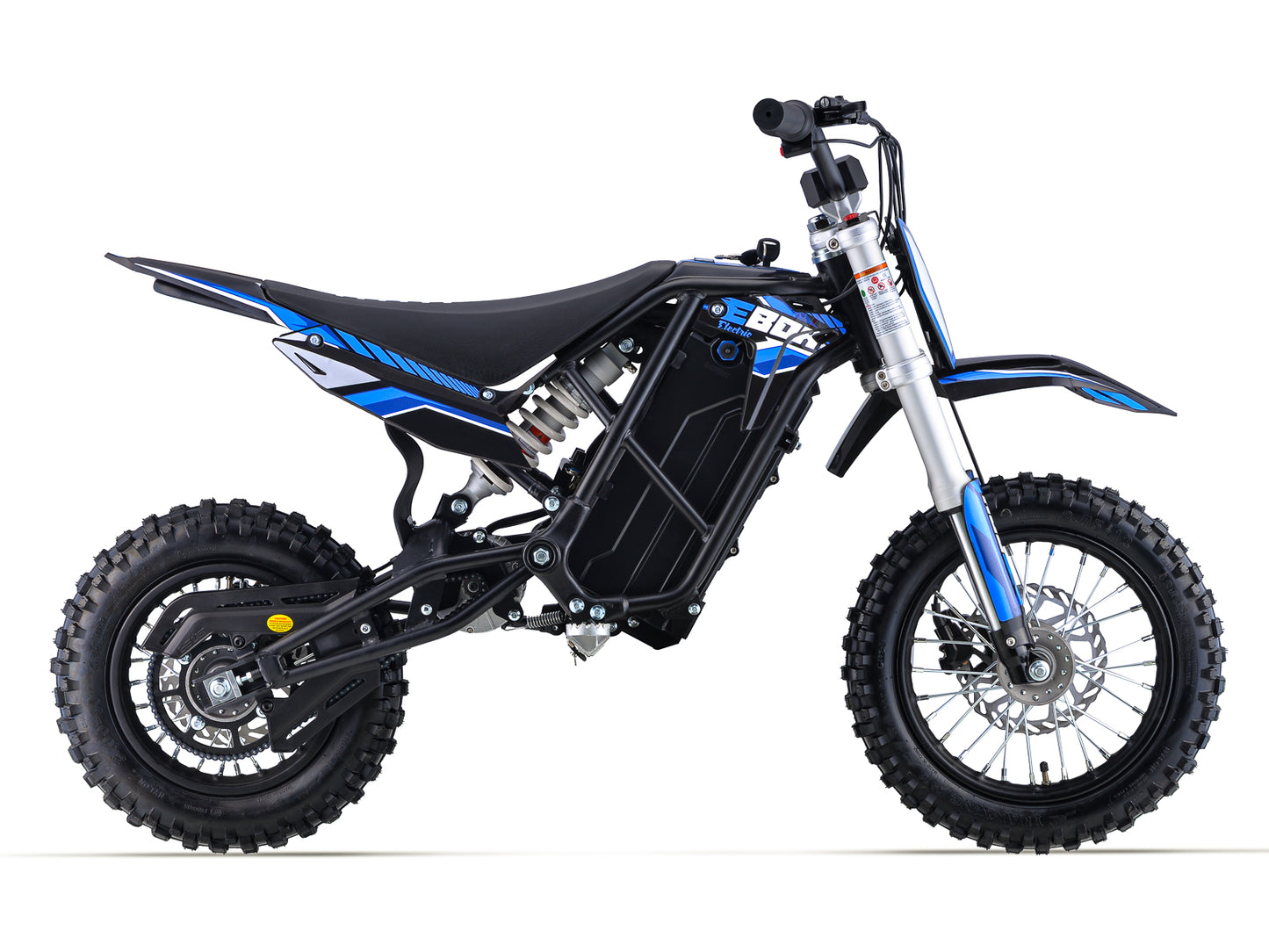

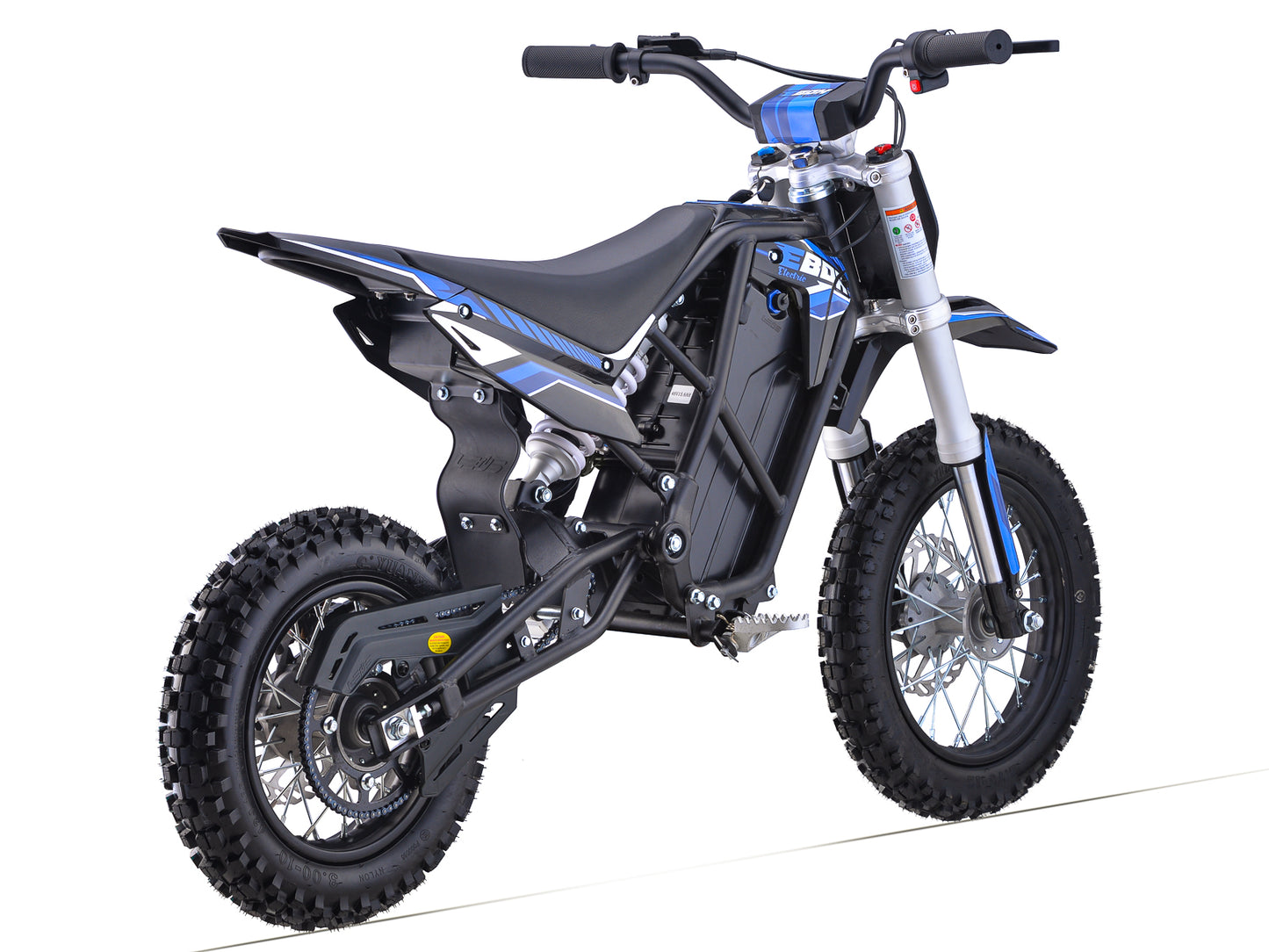

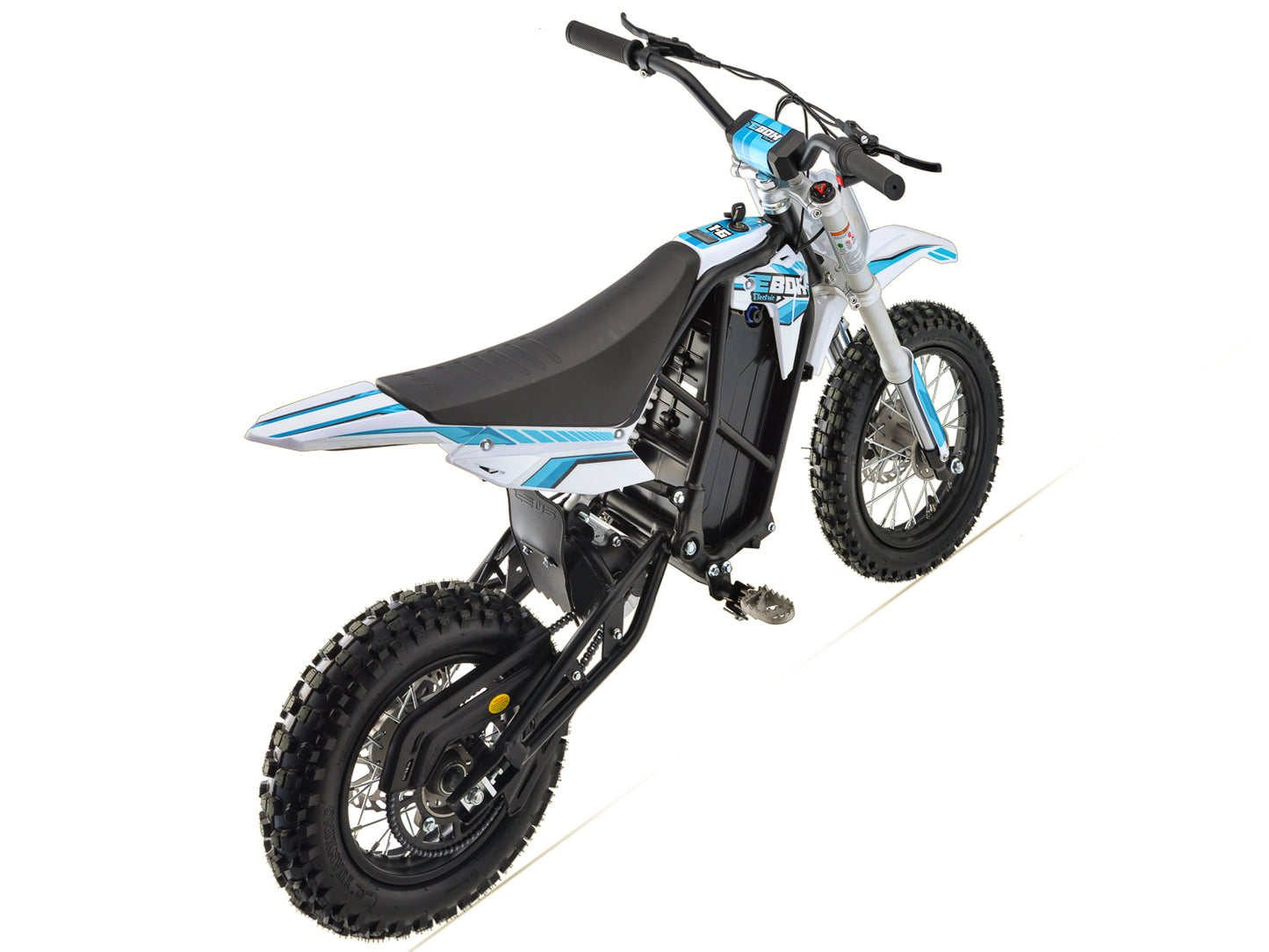

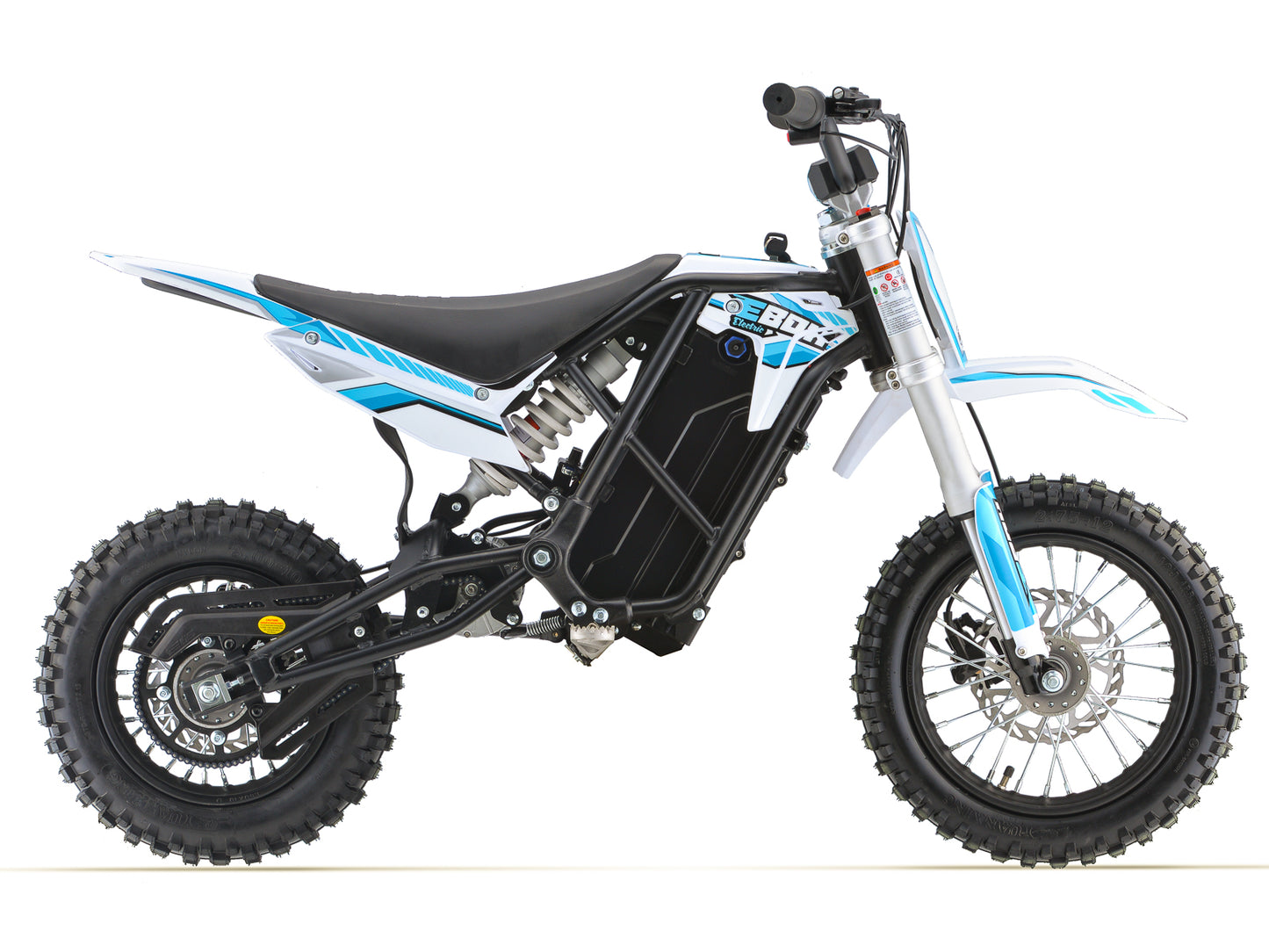

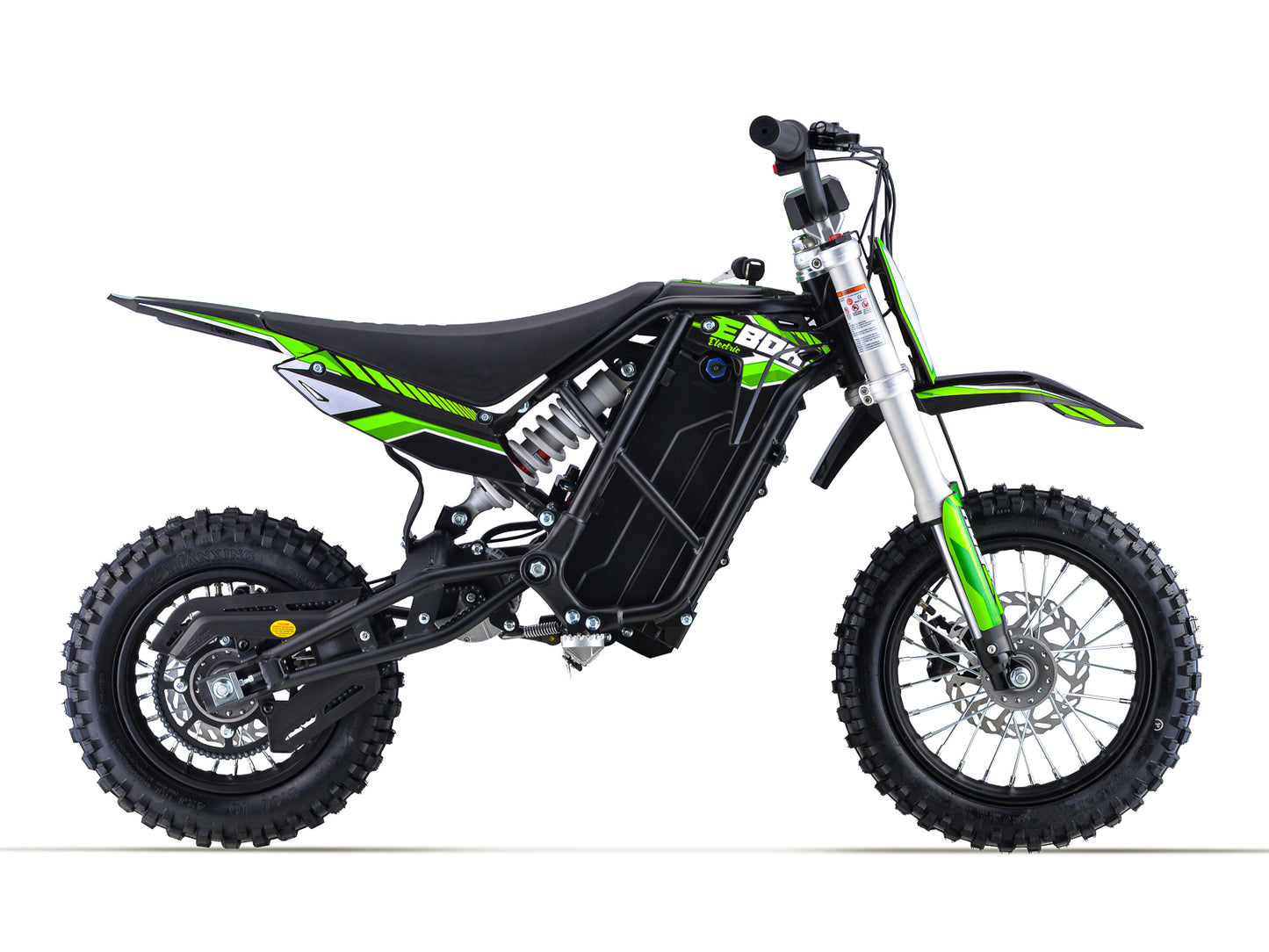

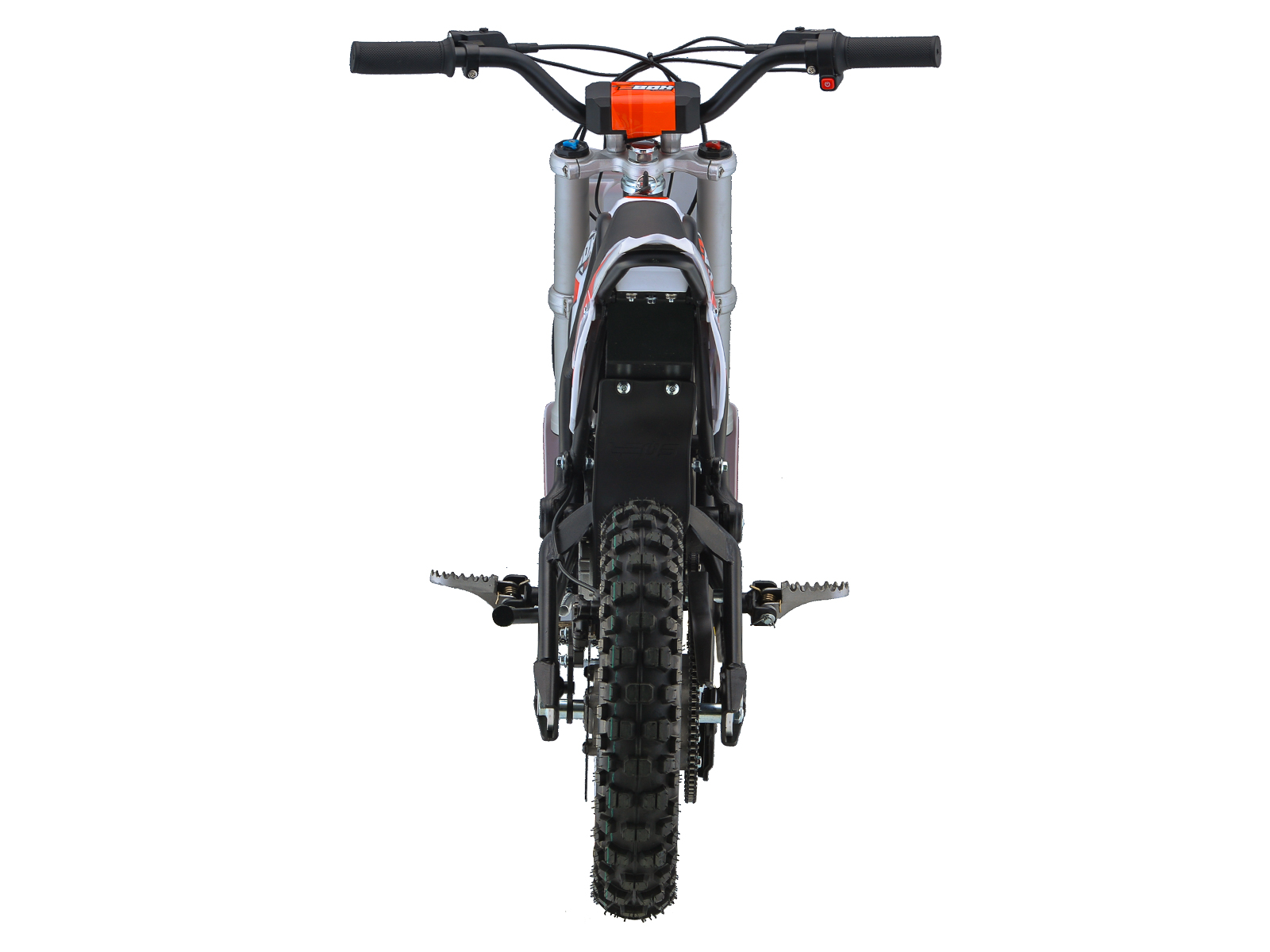

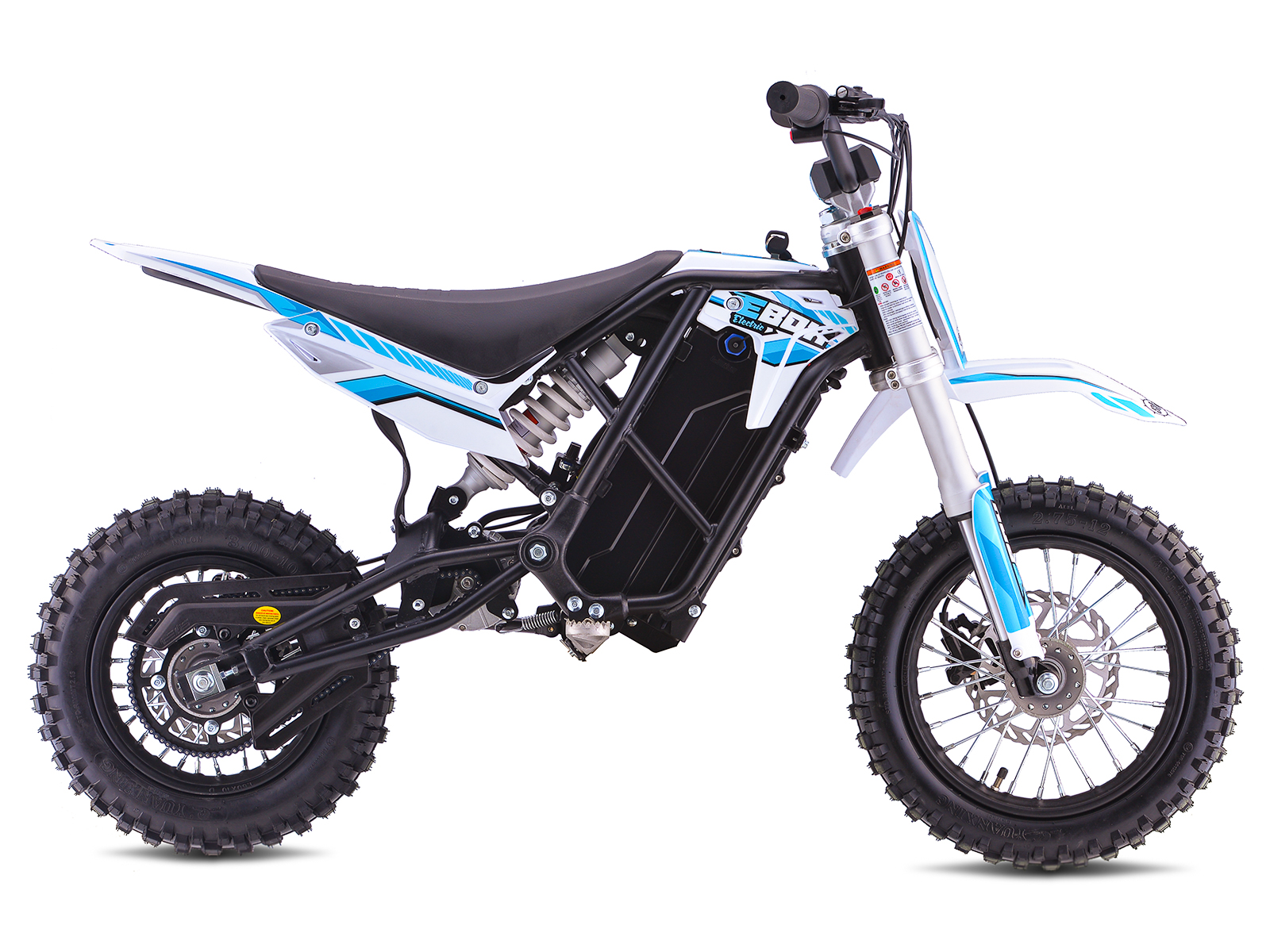

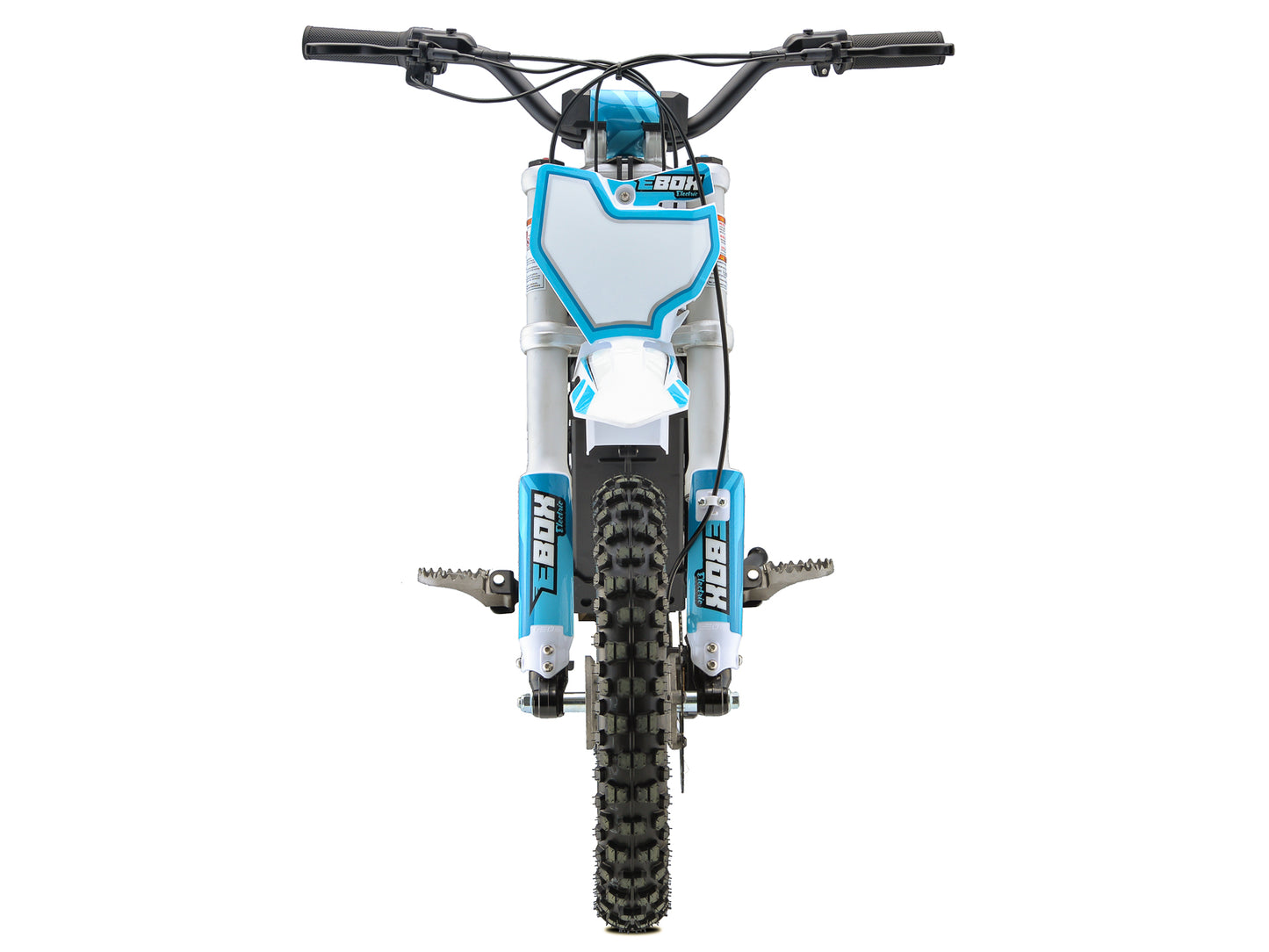

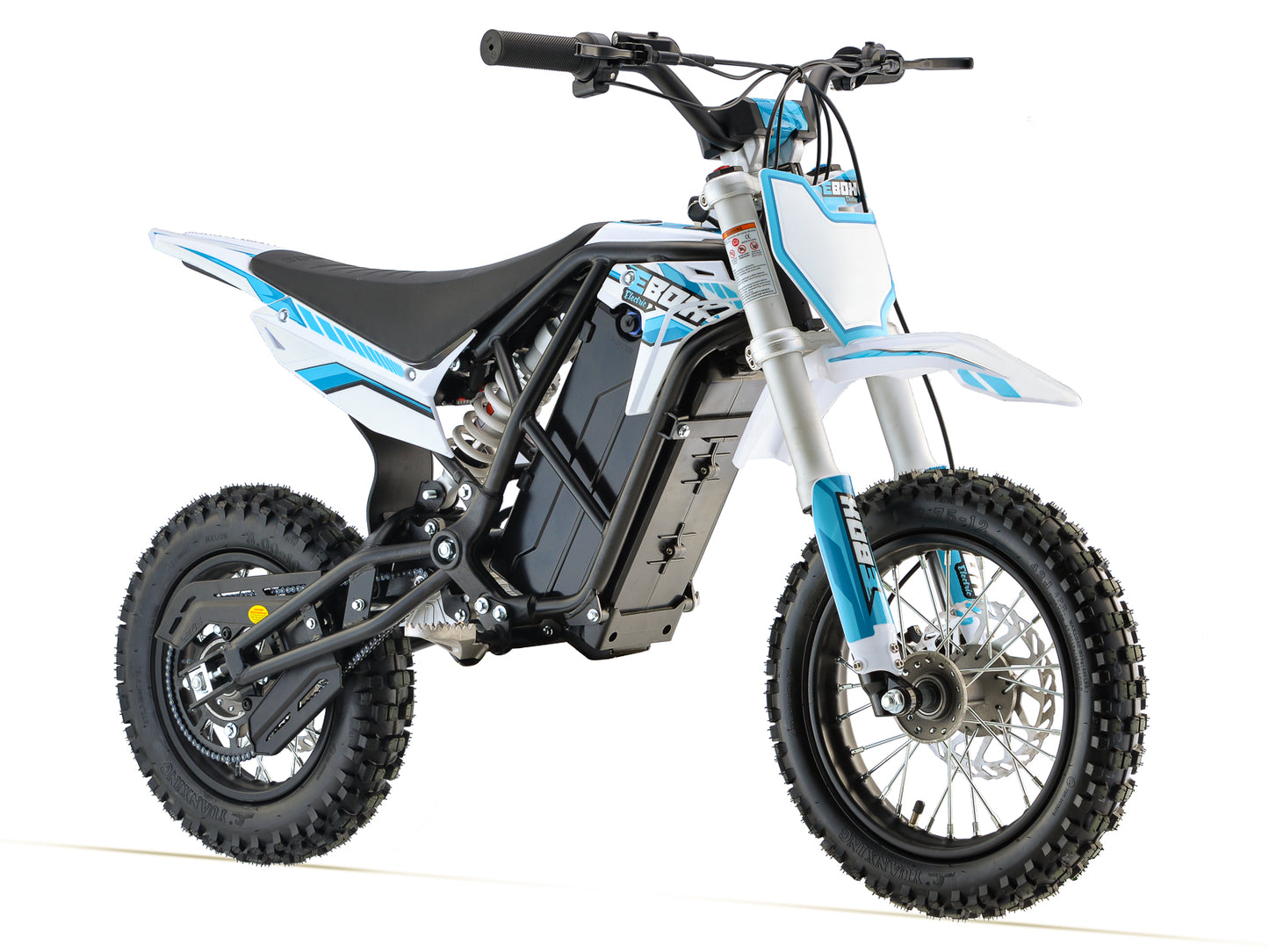

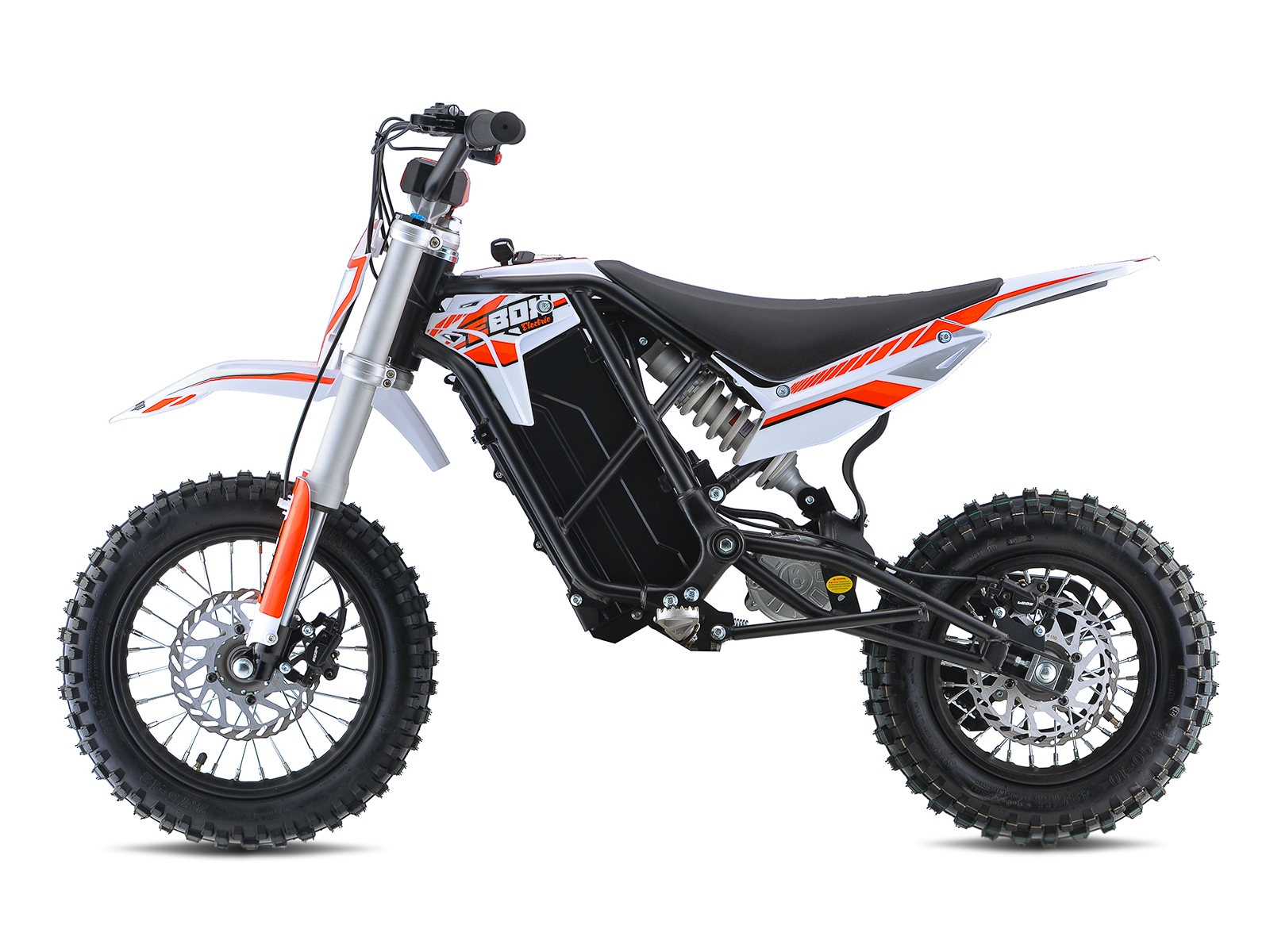

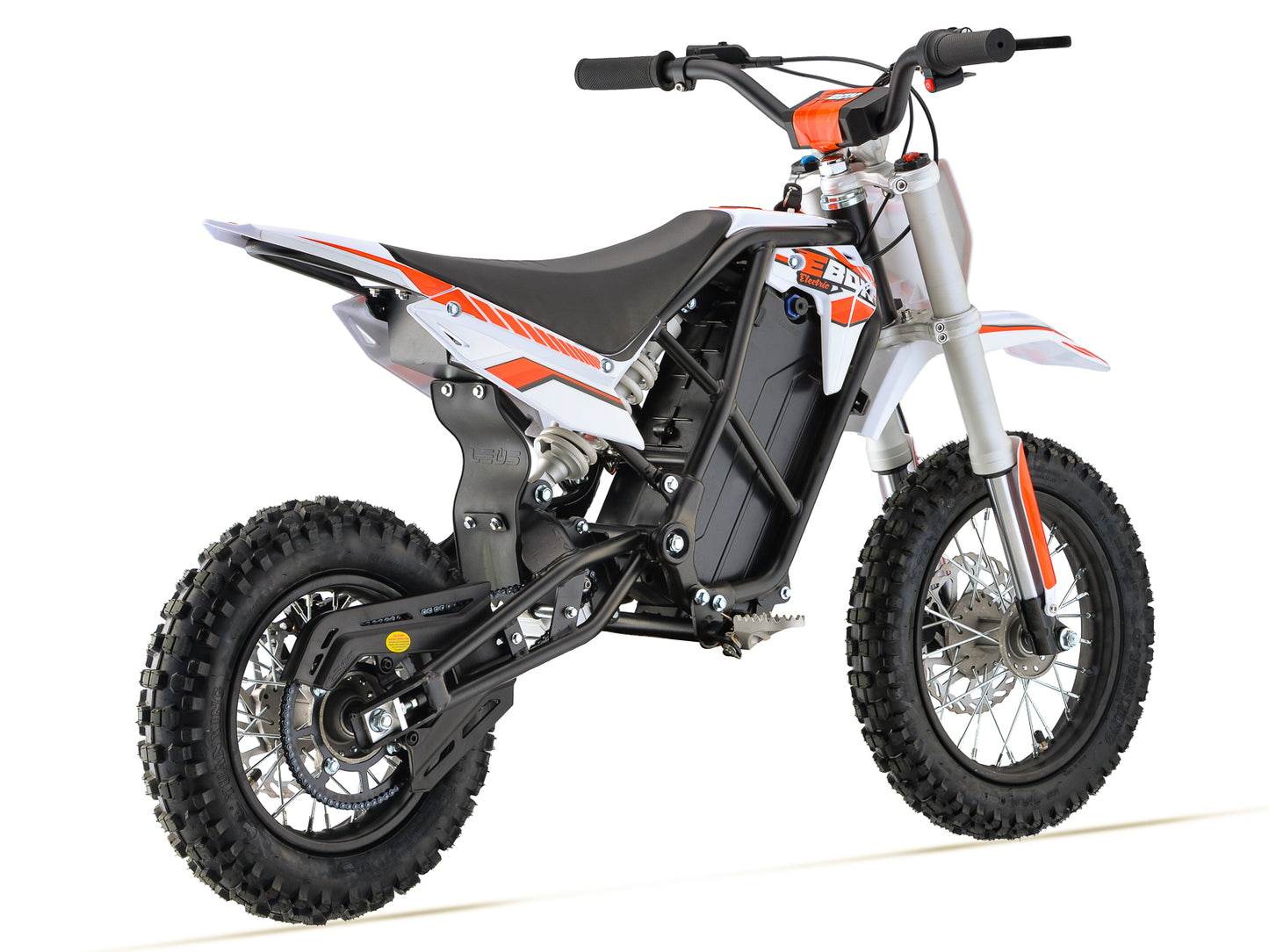

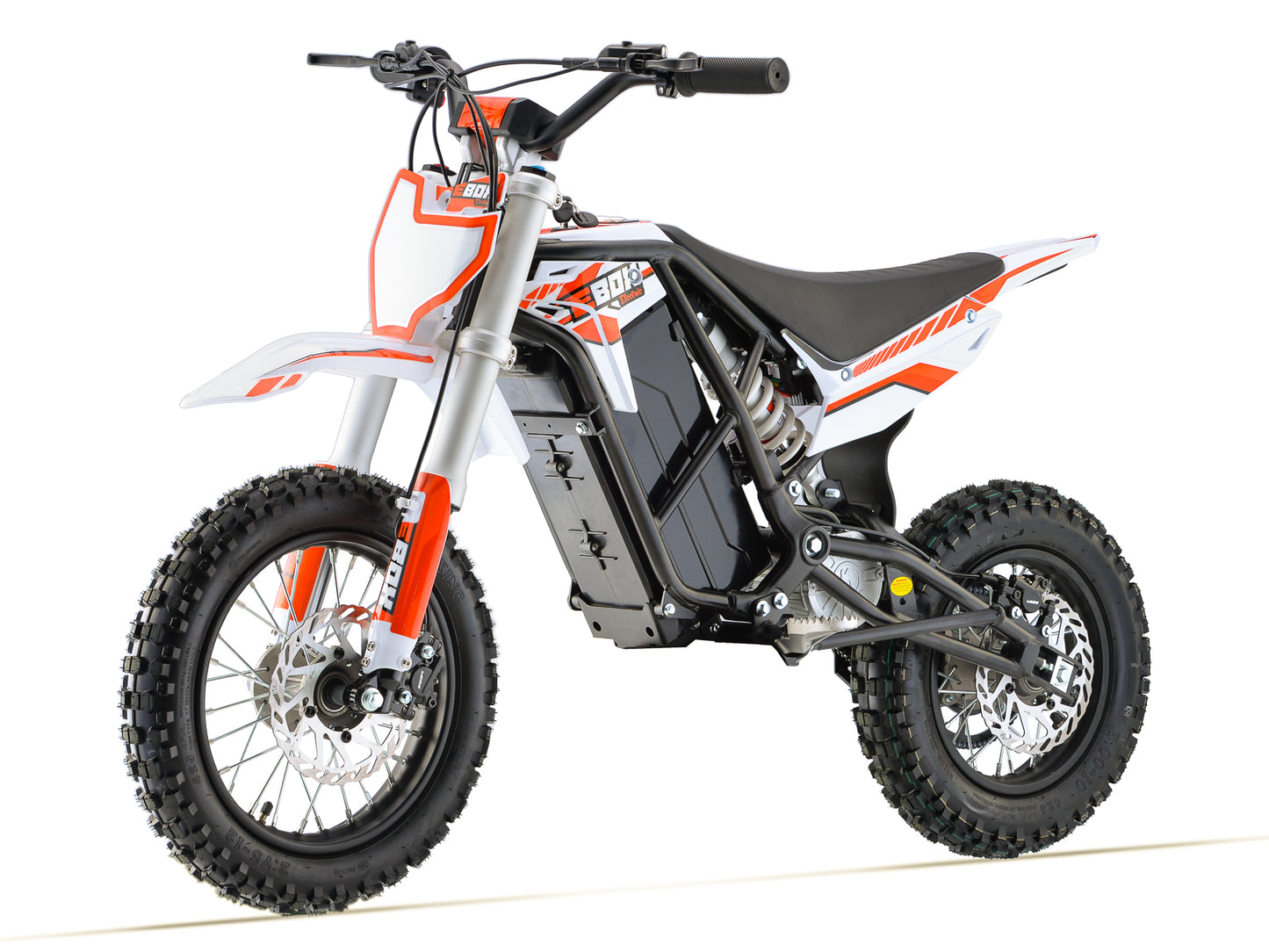

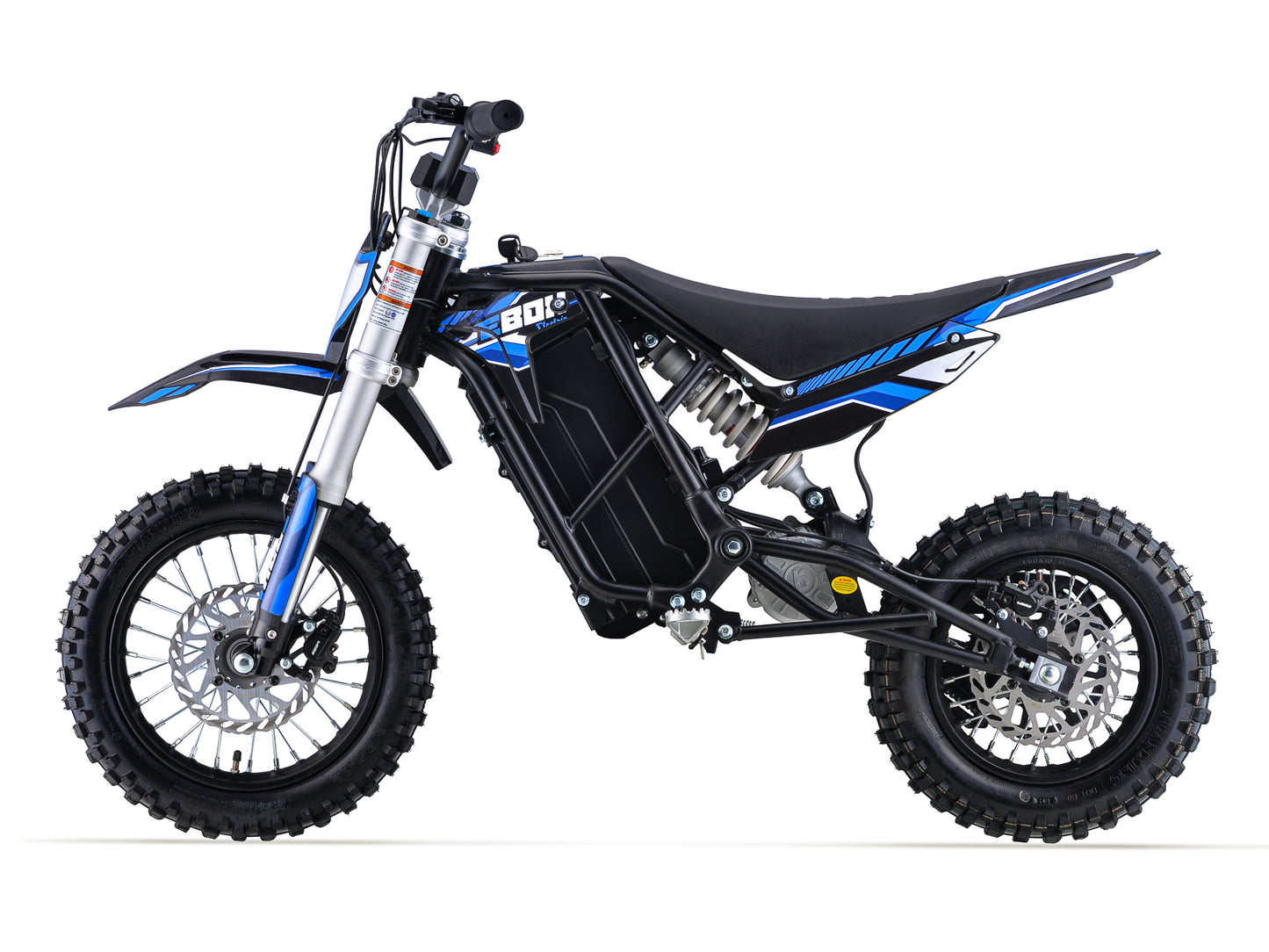

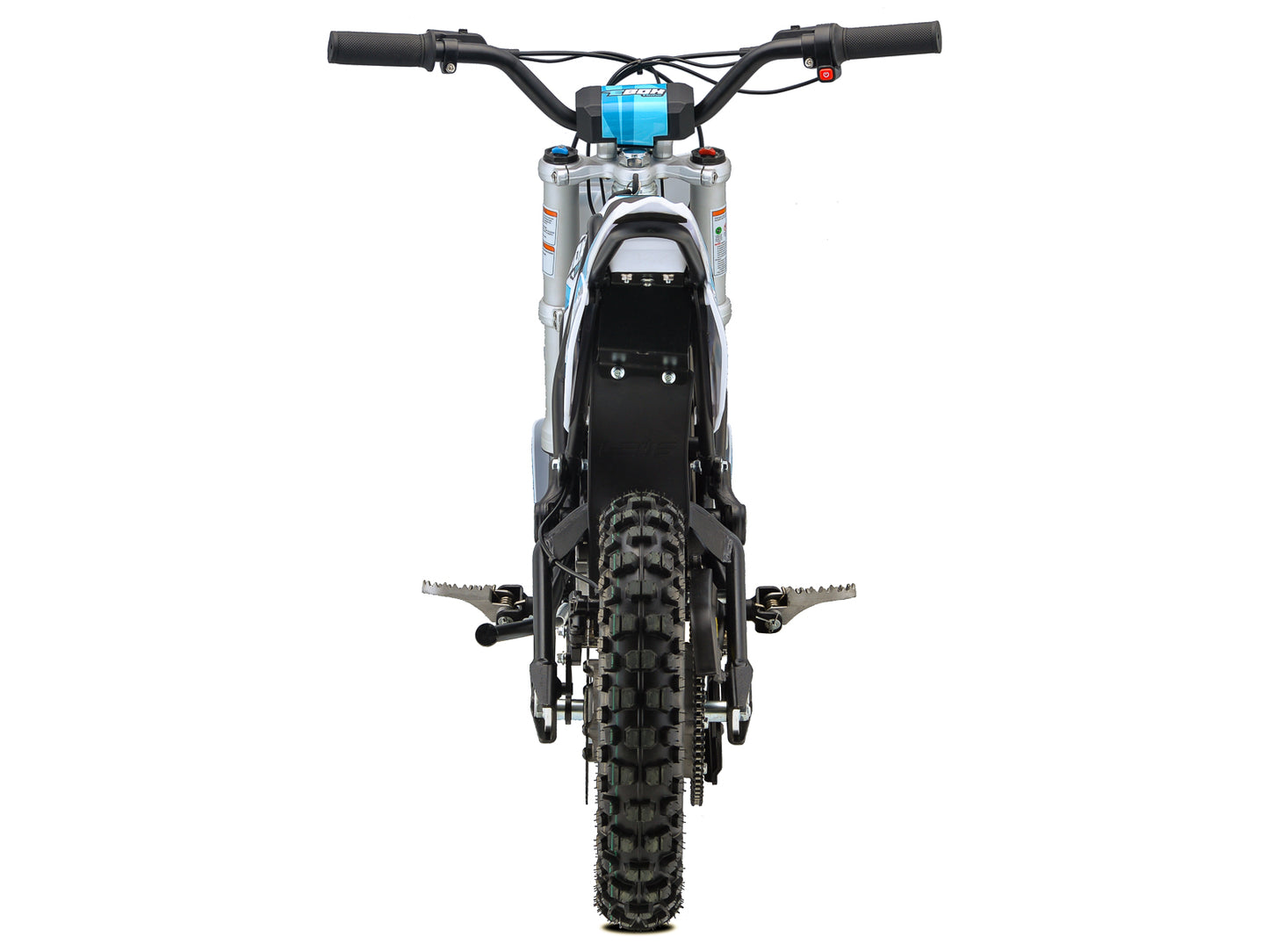

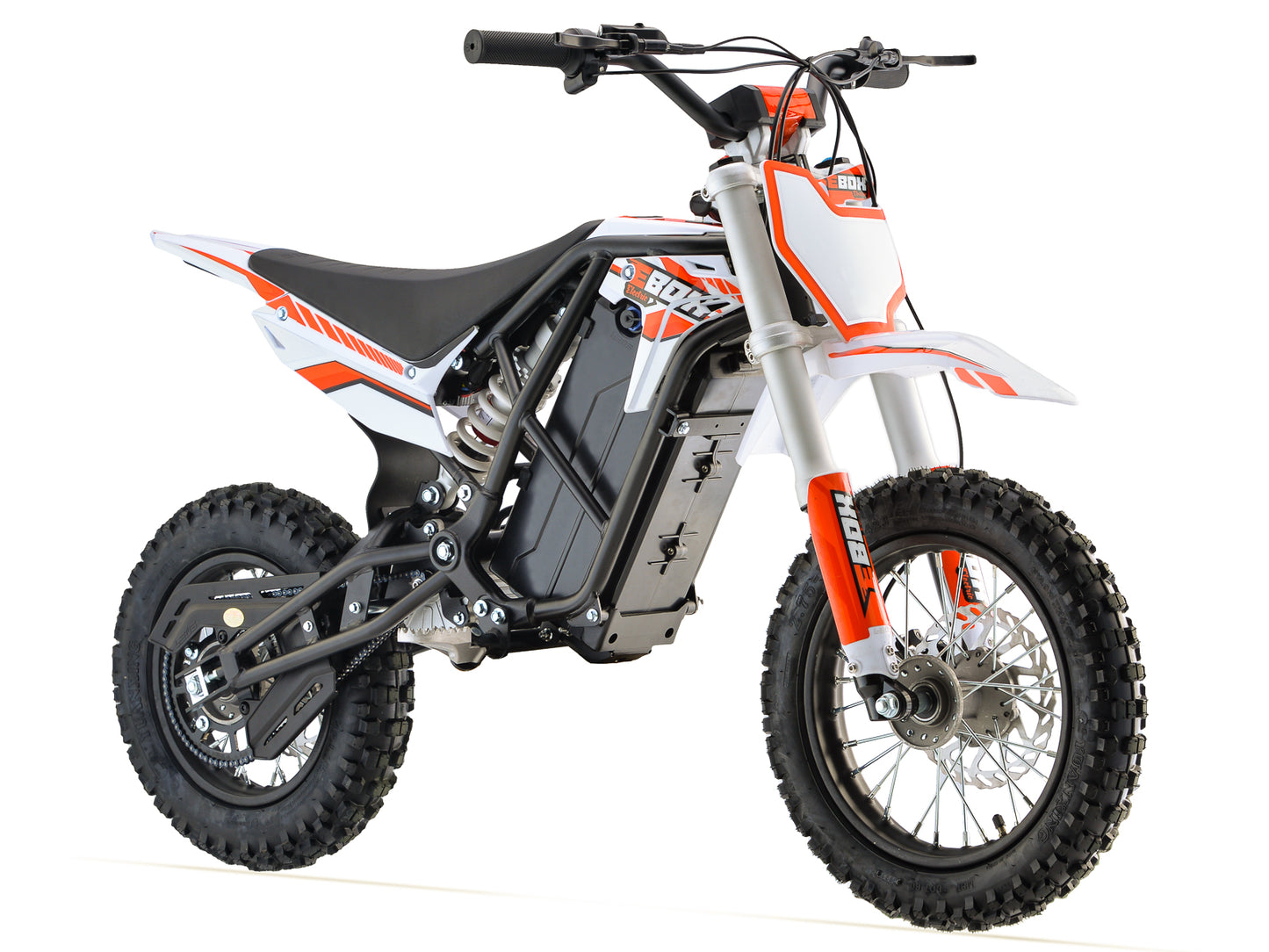

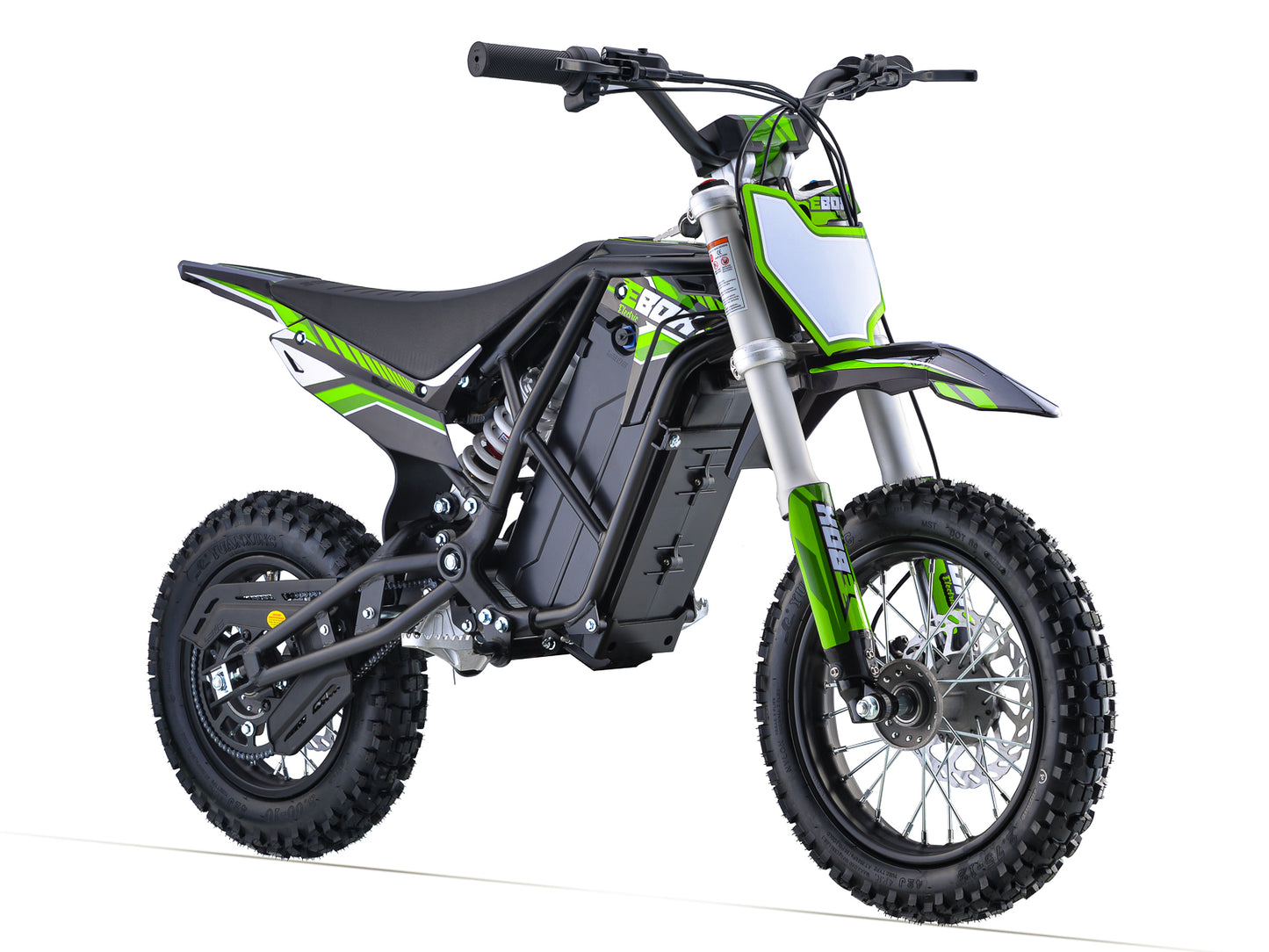

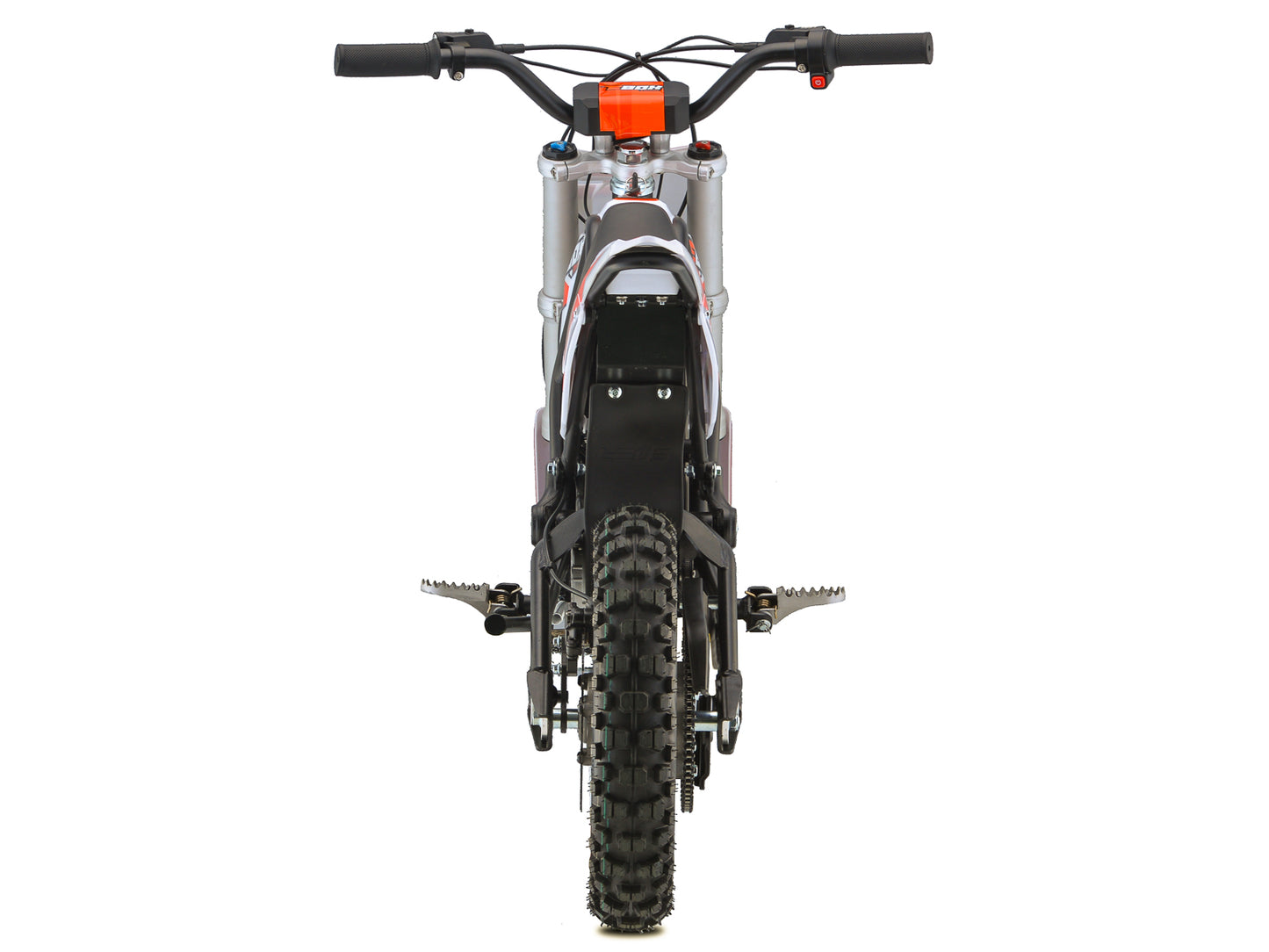

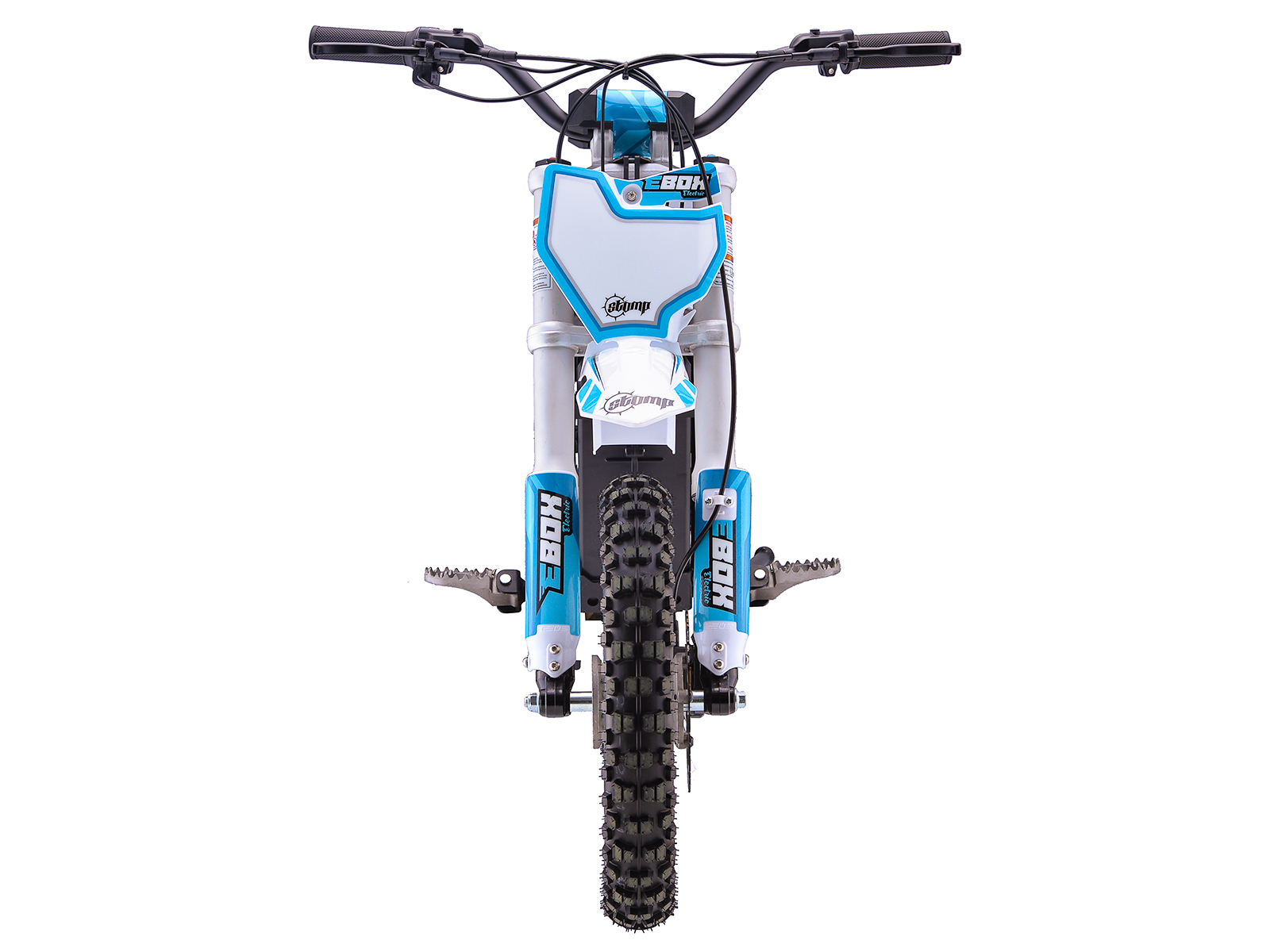

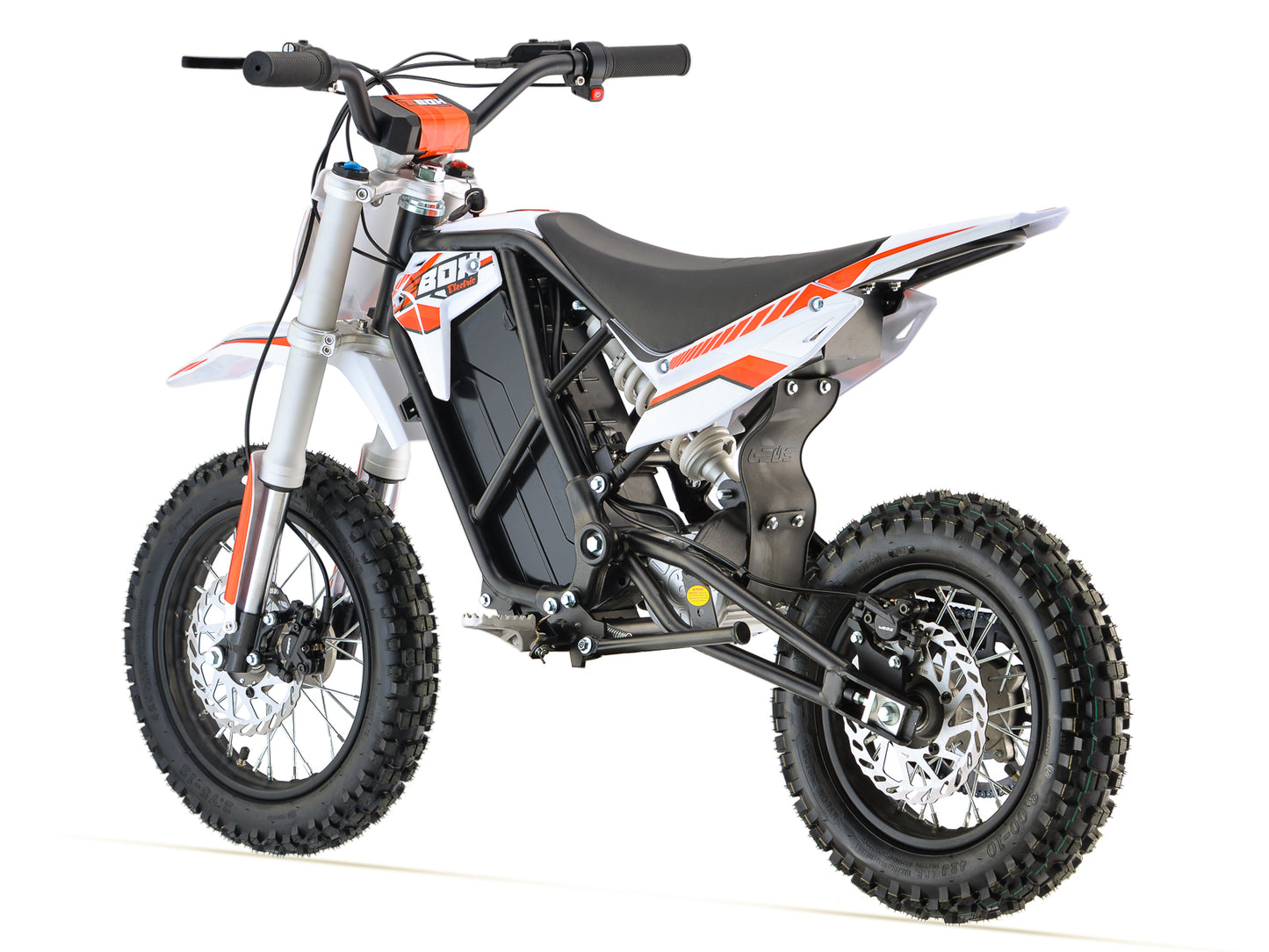

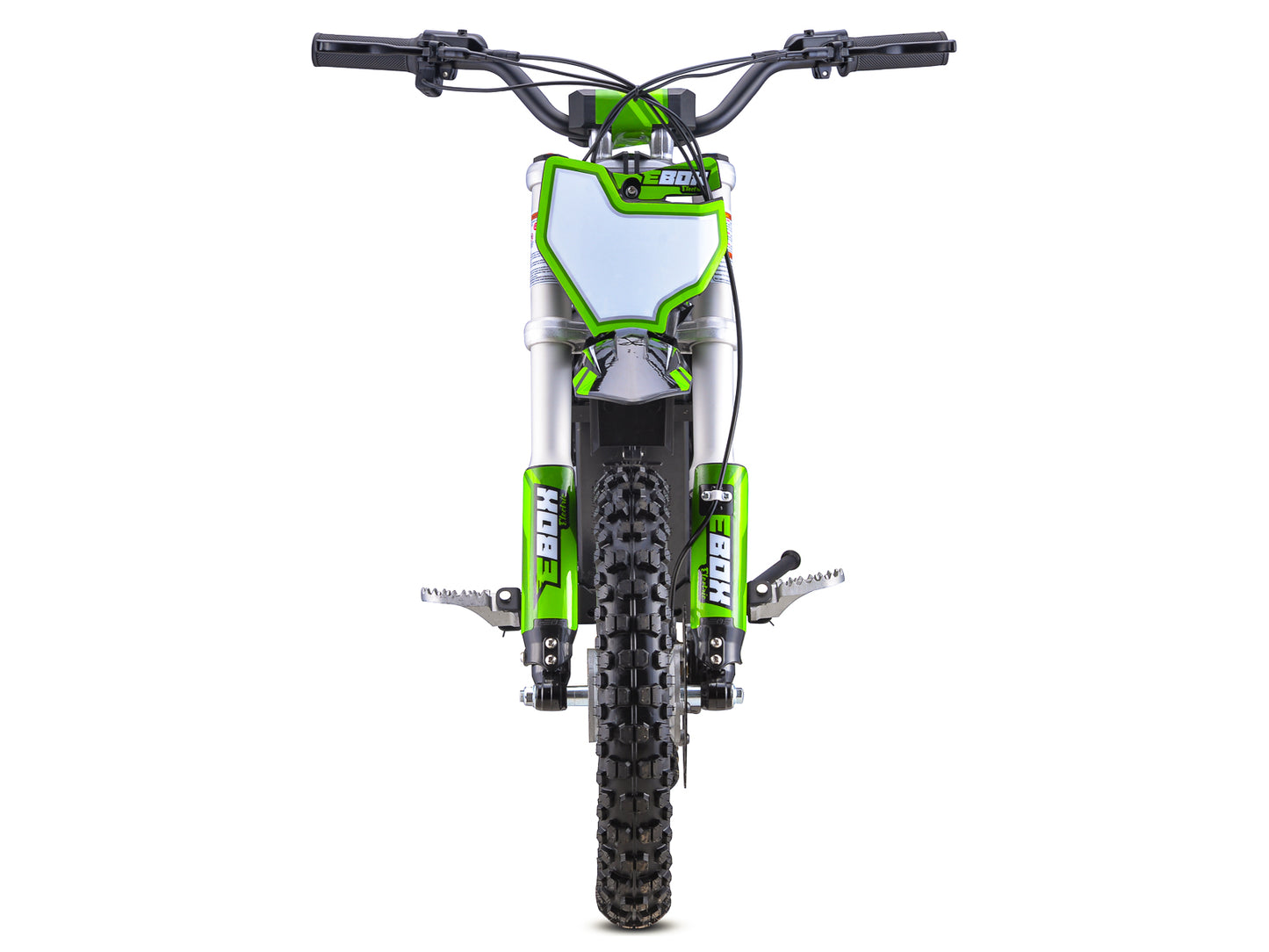

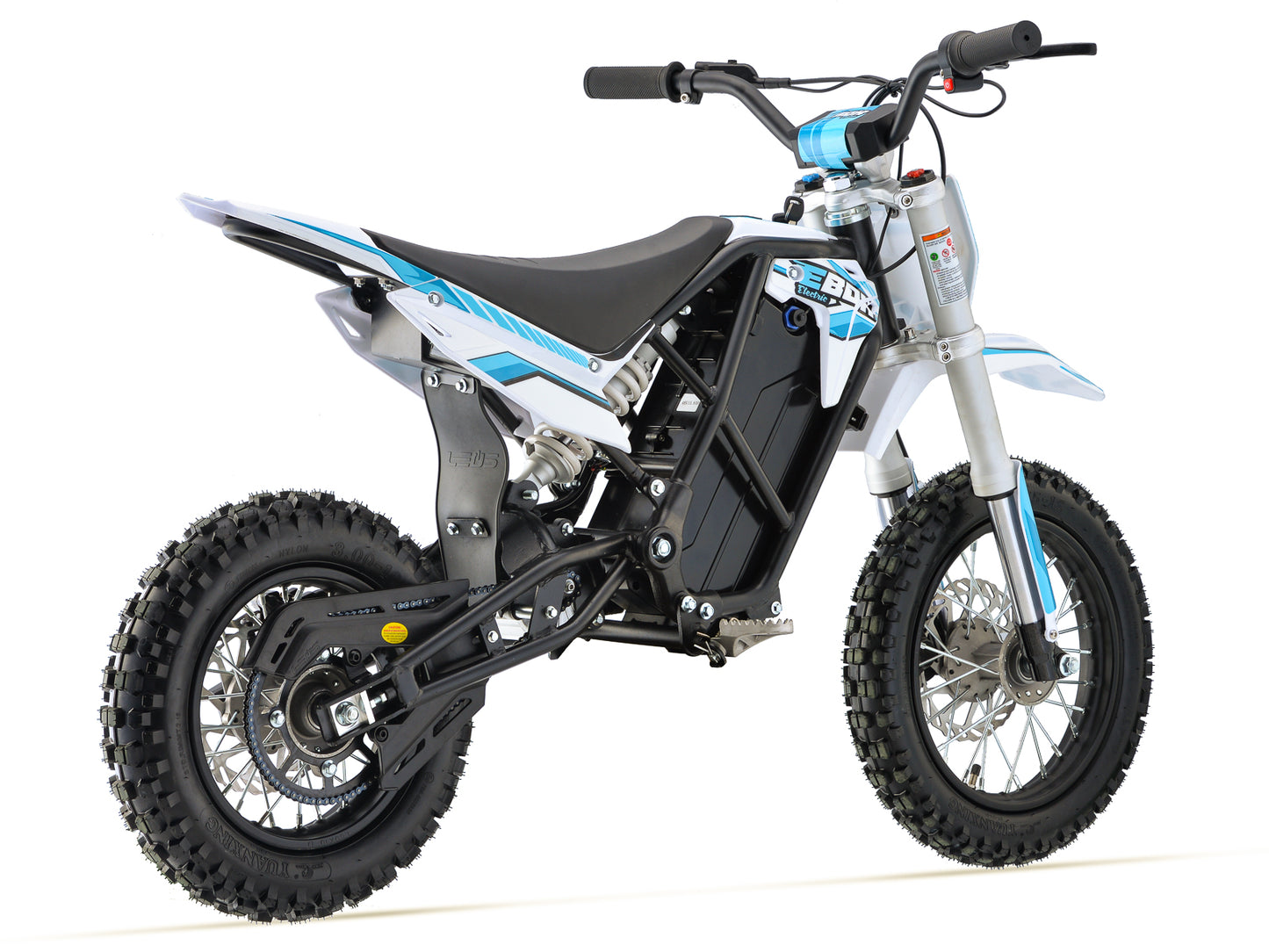

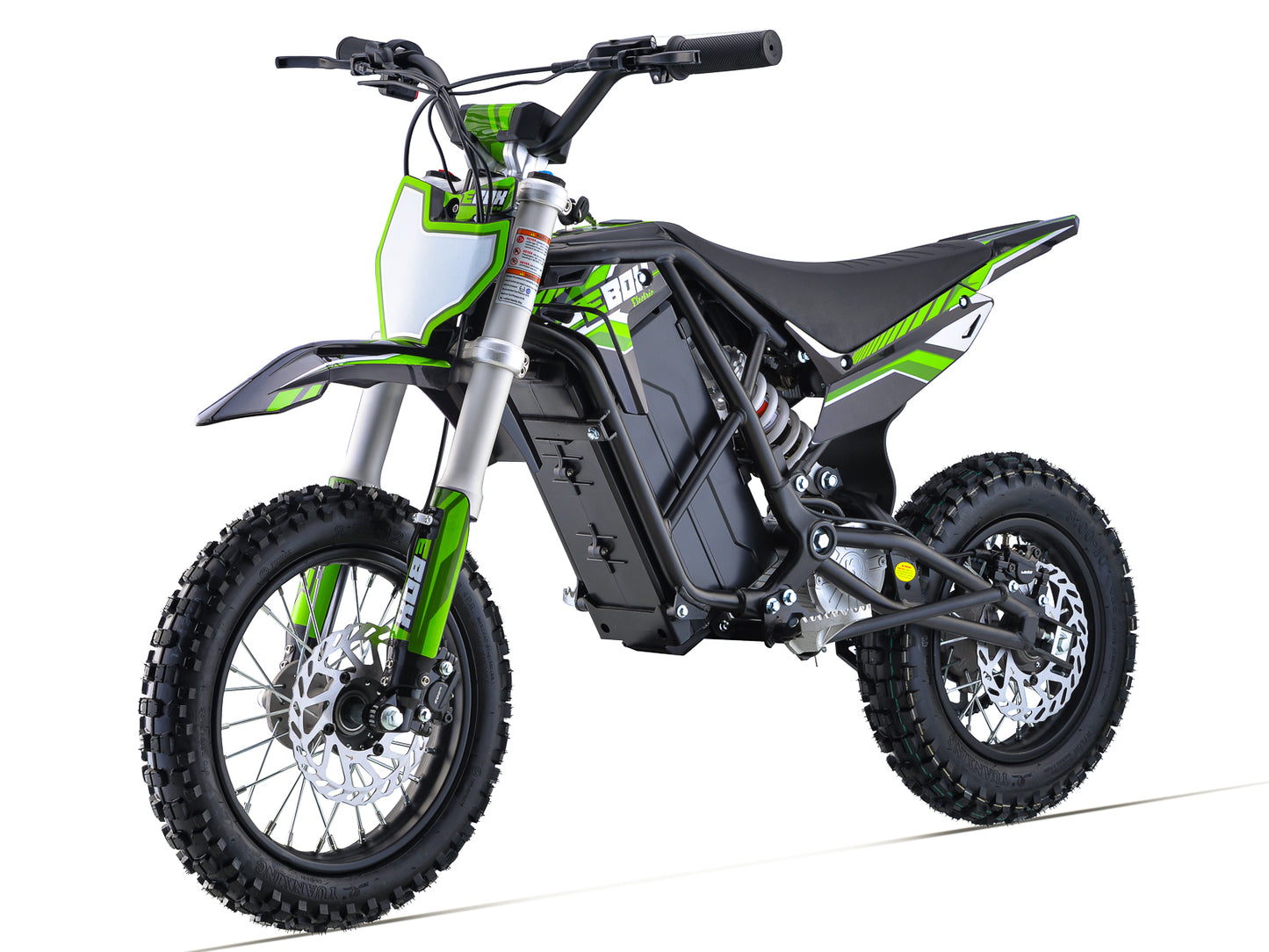

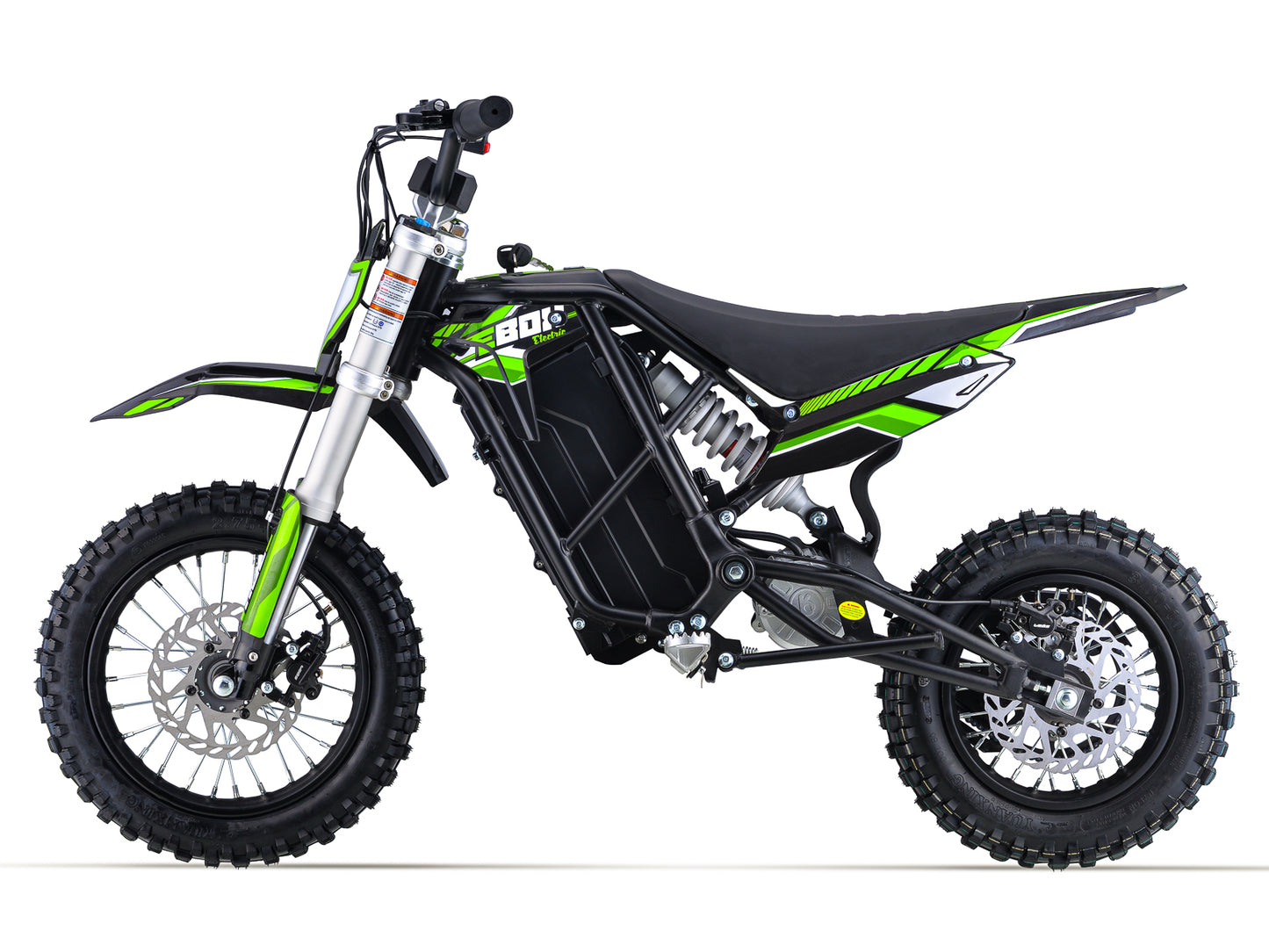

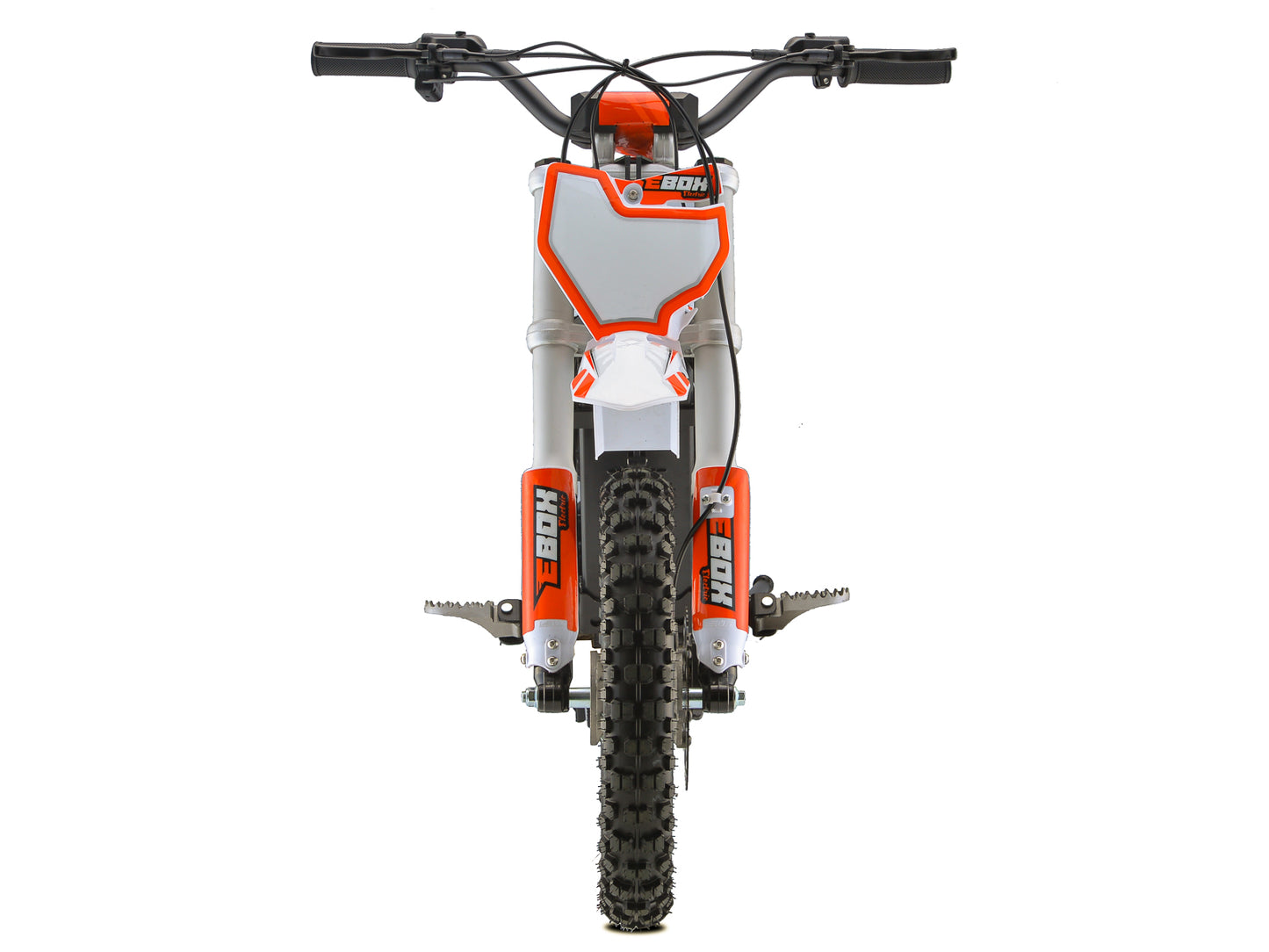

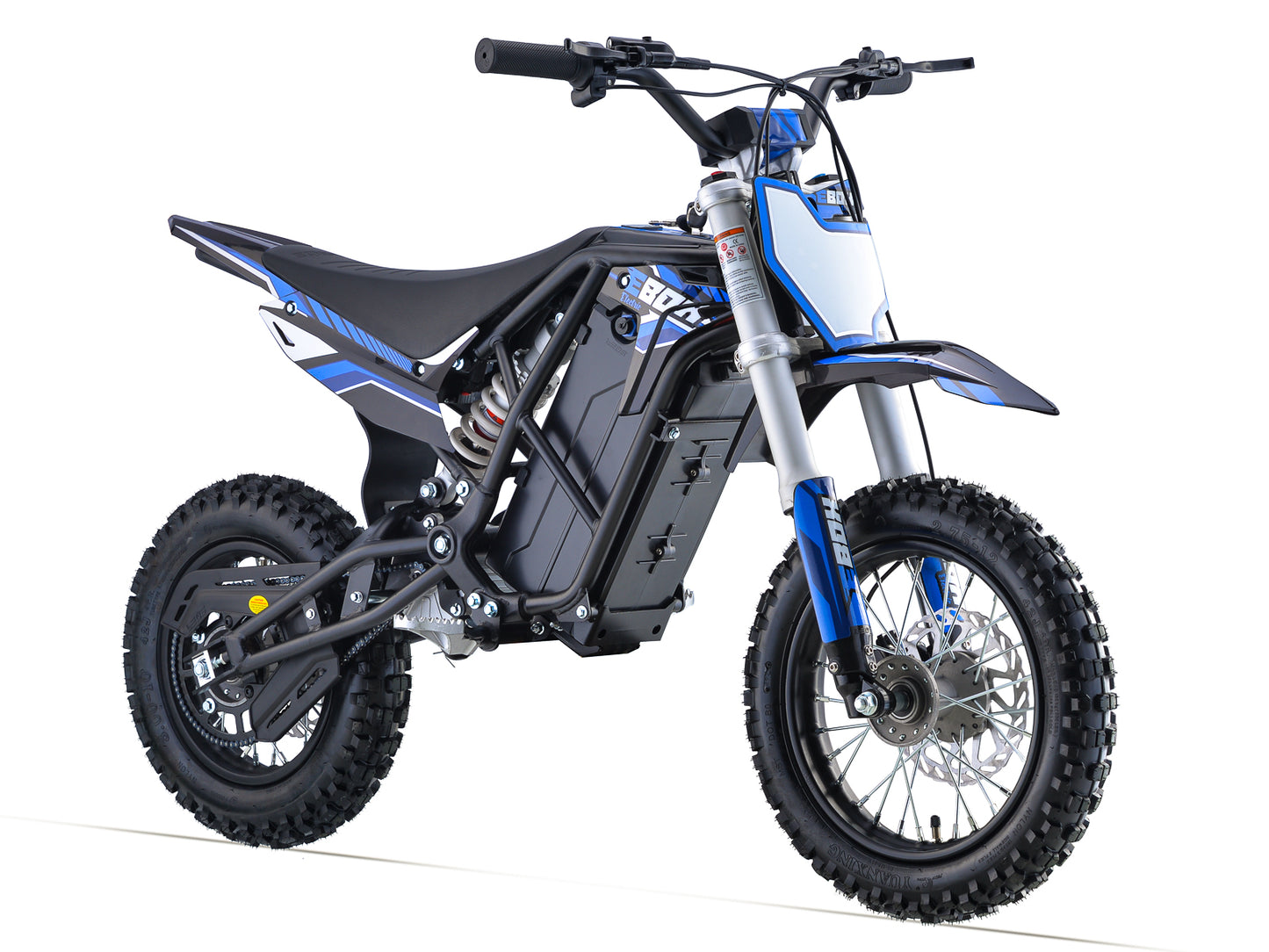

STOMP EBOX 1.6
Designed by our engineers and product designers from the ground up to be lightweight, powerful and outperform any other sub $3000, 12/10” bike on the market.
Arriving soon!
EBOX 1.6 is a 1.6 KW lithium battery / brushless motor combination that packs an astonishing punch. Top Speed 20mph (on road). So-much-so, during development we had to add speed-controller adjustment because it was just too powerful. The benefit is that EBOX 1.6 can be controlled to perfection, dialed down for entry level riding and turned up when you are ready to pin it to clear that table.
EBOX 1.6 will easily pull wheelies off the throttle with a 90 kg adult rider and top-out (quickly) at around 30 mph (more than enough for track use).
Aimed at entry level riders from 6 years up, the EBOX 1.6 is fully compliant with CE and UKCA testing standards. This is a proper bike for serious riders. The perfect, near-silent stepping-stone for every kid with motocross dreams!
A solid hours riding is easily achieved at full power settings and that can be extended by changing the battery should you need more track time.
Key features: charge level indicators, lightweight disk brakes, upside down forks, mono shock, 16.6 AH lithium battery and power delivery control.
FRAME TYPE | Double Cradle |
FRONT WHEEL SIZE | 12" |
REAR WHEEL SIZE | 10" |
FRONT BRAKE | Hydraulic Disc |
FRONT DISC | 180mm |
REAR BRAKE | Hydraulic Disc |
REAR DISC | 180mm |
FRONT TYRE | 12" x 2.27" |
REAR TYRE | 10" x 3" |
CHAIN | 219H |
GEARING | Front 10T, Rear 70T |
MAX LOAD | 85kg |
SHOCK TYPE | Mono shock |
FORK TYPE | USD |
HANDLEBAR | Alloy |
MOTOR VOLTAGE | 48v |
PEAK POWER | 1.6KW (2.1hp) |
MAX RPM | 4100 |
BATTERY | 48V 15.6Ah Lithium |
CONTROLLER OUTPUT | 42A |
CHARGER | AC 110-240V, output: 54.6V, 2A |
CHARGE TIME | 7-8 hours |
RANGE PER CHARGE | 17-19 miles |
TOP SPEED | 20mph |
EXTERNAL ADJUSTABILITY | Top speed, Acceleration |
FRAME CONSTRUCTION | High strength steel, powder coated, removable subframe, swing arm mounted motor, non linkage suspension |
WHEELBASE | 920mm |
GROUND CLEARANCE | 235mm |
SEAT HEIGHT | 63cm |
WEIGHT | 40.5kg |
AVAILABLE COLOURS |
|
AVAILABLE COLORS
*Top Speed Information
*Top Speed Information
Off-road Top Speed: 29 mph
NOTICE: This personal electric vehicle (PEV) comes factory set to “City Mode” with a maximum on-road speed of 20 mph, in compliance with common city and state regulations, making it suitable for use on public roads, sidewalks, bike paths, and city parks. Activating off-road or track mode will increase vehicle performance and top speed, but please note that your PEV may no longer be legal for street use in this mode. It’s essential to check and follow all applicable local laws and regulations when riding.
Warranty
Warranty
30 day warranty on all manufacture defects.
EBOX is a brand and trademark owned and operated by Stomp Distribution LTD in the United Kingdom.
Warranty claims will only be handled through the appropriate channel which is our online form. If you do not supply all of the requested information, your claim may be rejected. Please click here and fill out the warranty enquiry form in full. Stomp Distribution Ltd provides a 30 day parts warranty period from date of original retail purchase of the product.
Stomp Distribution Ltd, ensures that your pit bike or part will be free of parts defects under the following conditions:
Pit bike
Stomp Distribution Ltd provides a 30 day parts only warranty period from date of original retail purchase. Your bike has been supplied in a crate, it is entirely your responsibility to ensure a qualified motorcycle mechanic puts your bike together correctly. Failure to do so will invalidate the warranty supplied with your bike To claim for warranty, you will need a copy of the bike PDI.
Stomp Distribution extends the following trade warranty coverage for electric bike components:
1, Battery:
Coverage: 1 year from the date of purchase.
Stomp Distribution guarantees the battery, encompassing any defects in materials and workmanship. In the event of battery failure within the stipulated warranty period, a replacement will be provided (All depleted batteries should be returned to Stomp Distribution for recycling). Diagnosis of a fault must be conducted by an authorized EBOX dealer.
Batteries will not be eligible for coverage if brake kill switches are removed or if the instructions outlined in the EBOX user manual are not adhered to.
Specifically, during periods of vehicle inactivity, it is essential to recharge the battery at least once a month until regular use is reinstated. Failure to turn off the power switch or neglecting to charge the product for an extended duration may result in the battery reaching a state where it is unable to retain a charge.
2. Motor, Controller, and Other Components:
Coverage: 6 months from the date of purchase.
Stomp Distribution provides a trade warranty for the motor, controller, and all other electric bike components, excluding wear and tear parts. This warranty covers defects in materials and workmanship. In the event of a failure of any of these components within the specified trade warranty period, replacement parts will be sent to be fitted by a qualified mechanic.
Warranty invalid if EBOX modified or upgraded in any way. This includes but not exclusive to:
-Disconnecting brake switches
-Bypassing BMS
-Battery voltage changes or battery changes
-Motor/controller changes
-Other electrical modifications
-Mechanical hardware changes suspension etc.
Exclusions: This trade warranty does not cover the following wear and tear parts unless there is a factory defect:
• Tyres
• Brake pads
• Brake discs
• Chain
• Sprocket
• Plastics
• Wheels
• Bearings
• Suspension
• Grips
• Seat
