KKE 19/16 Off-Road Wheelset | For Sur-Ron Light Bee X 2019–2025

Stronger Hub Design, Upgraded Rear Spoke Support, Built for Hard Off-Road Riding

For riders pushing the Sur-Ron Light Bee harder on trails, jumps, and rough terrain, wheels become one of the first areas that start taking serious abuse. Hard landings, rock impacts, aggressive braking, and repeated trail use can all put stress on stock wheel components.

At REV Rides we see riders upgrade wheelsets not only because they want a different look, but because stronger wheel construction creates a more dependable bike overall. This updated KKE 19/16 wheelset introduces several design revisions focused directly on strength and durability improvements.

The front hub center bore has been enlarged for improved structural strength, while the rear wheel receives an upgraded 3.6mm spoke hole design for additional durability under repeated loads. KKE also revised the braking setup for improved performance and includes a front 220mm rotor package because the updated wheel design no longer accepts the stock Sur-Ron front disc.

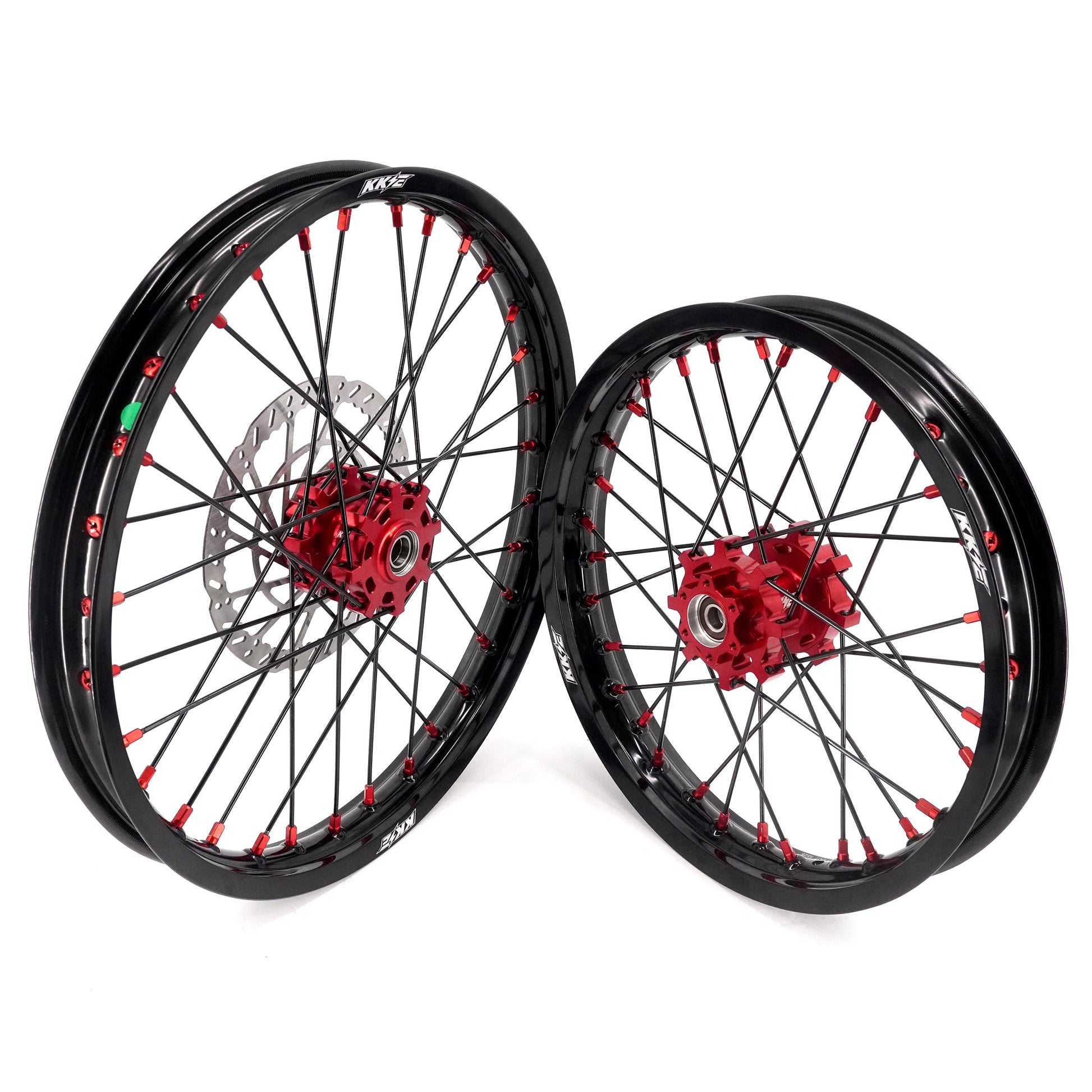

The 19-inch front and 16-inch rear combination maintains the familiar off-road feel riders love while opening up excellent tire options and keeping balanced handling characteristics.

What Makes This Wheelset Stand Out

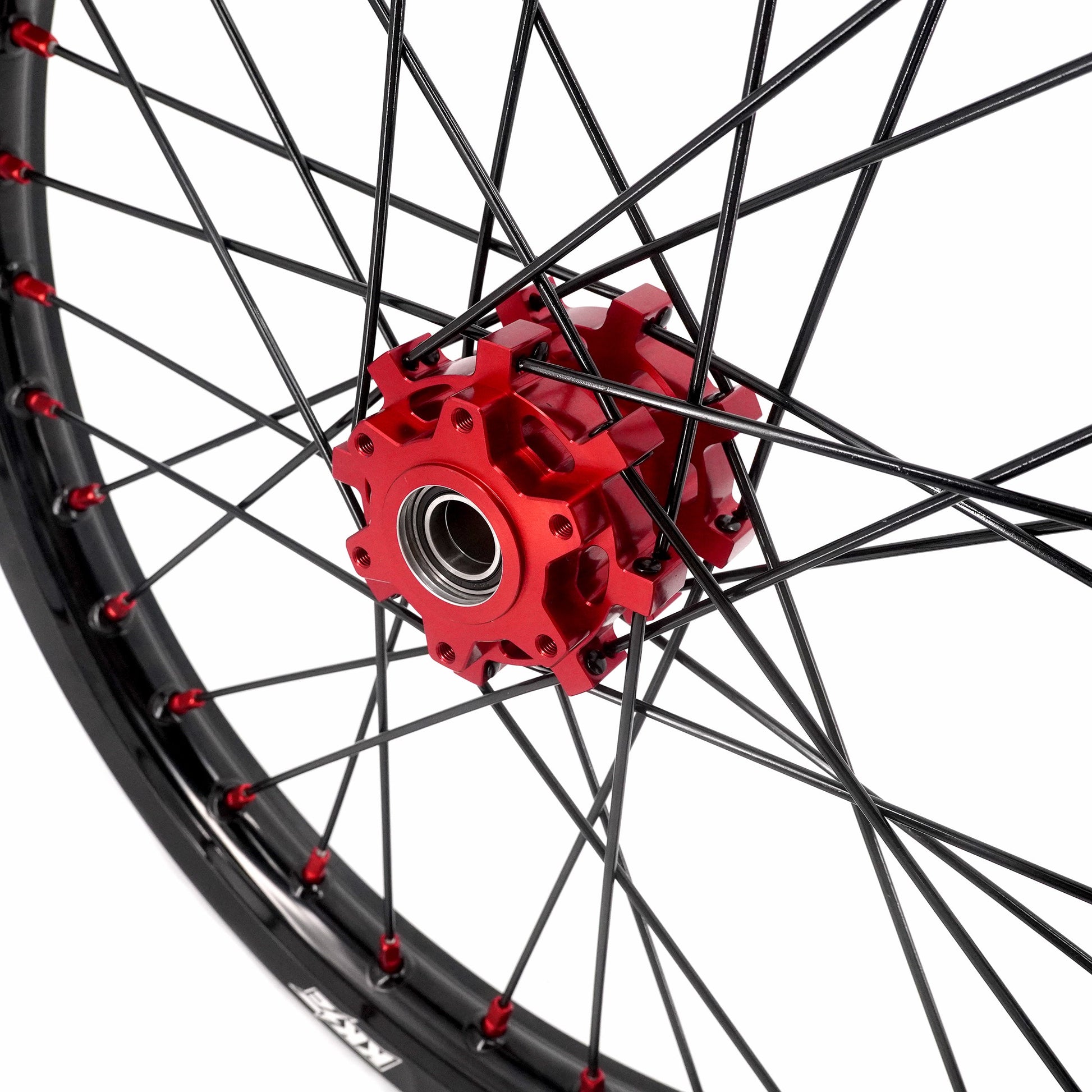

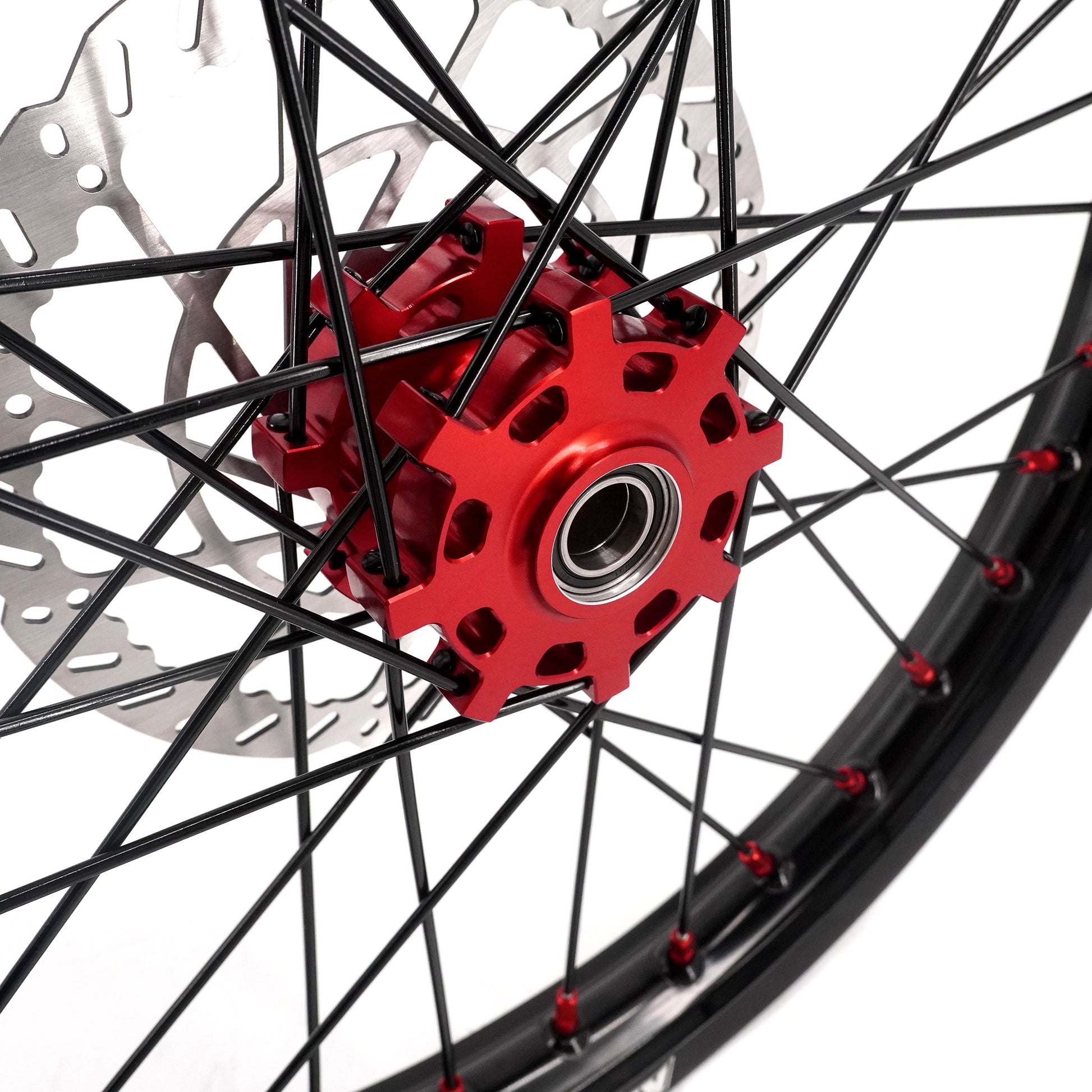

• Updated front hub design, enlarged center bore increases structural strength
• Upgraded rear spoke hole sizing, 3.6mm design improves durability during aggressive riding

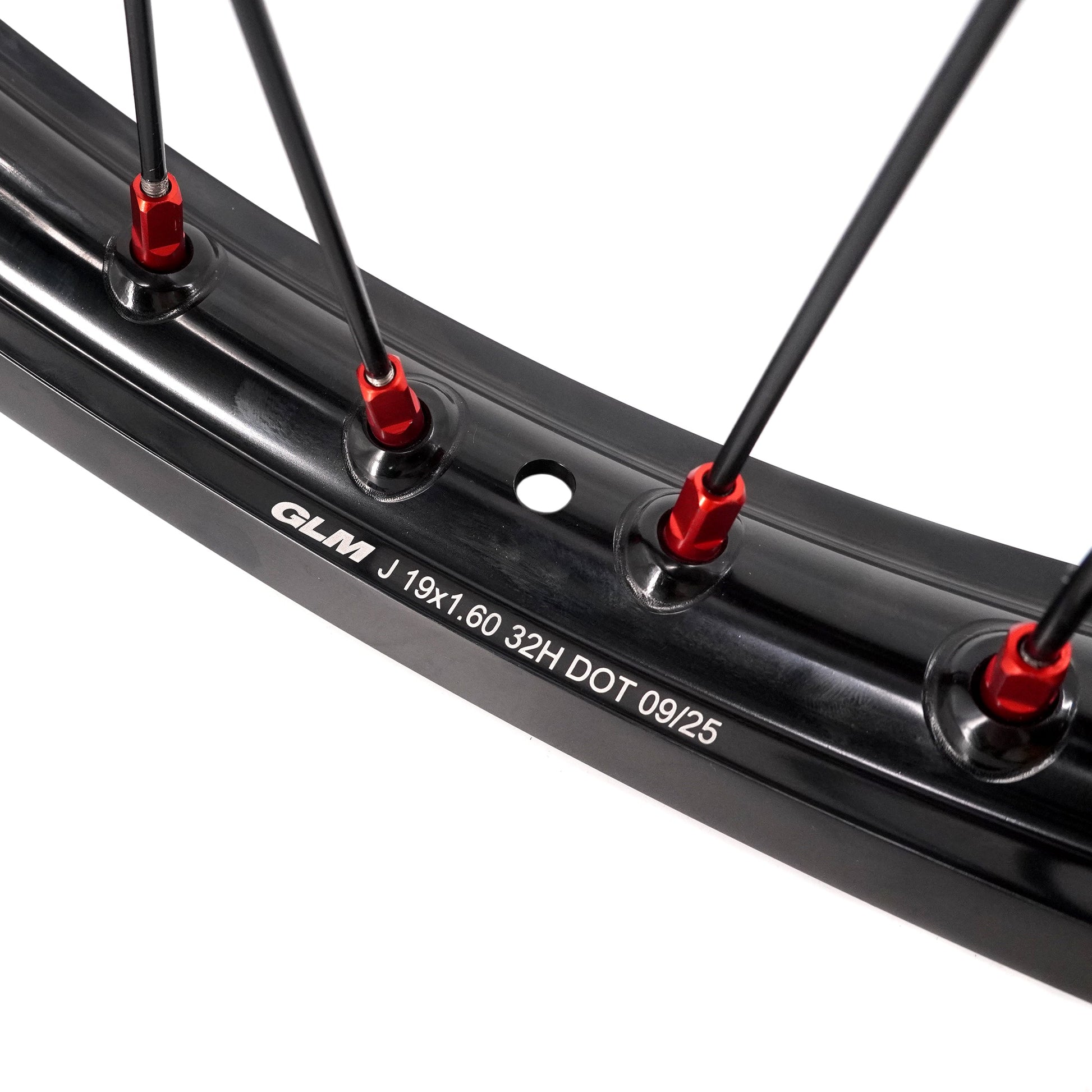

• 7050-T6 aluminum rims, lightweight construction with excellent strength characteristics

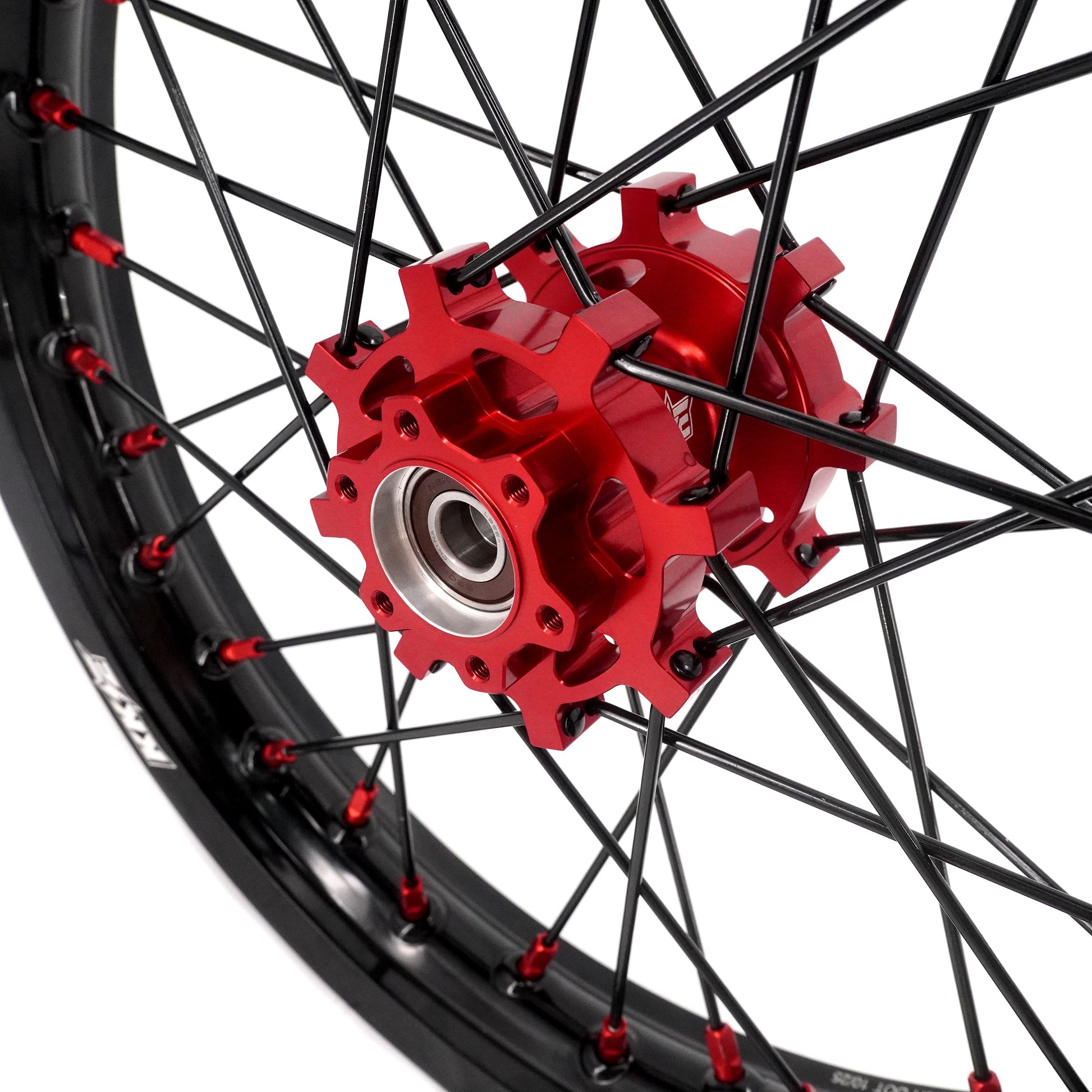

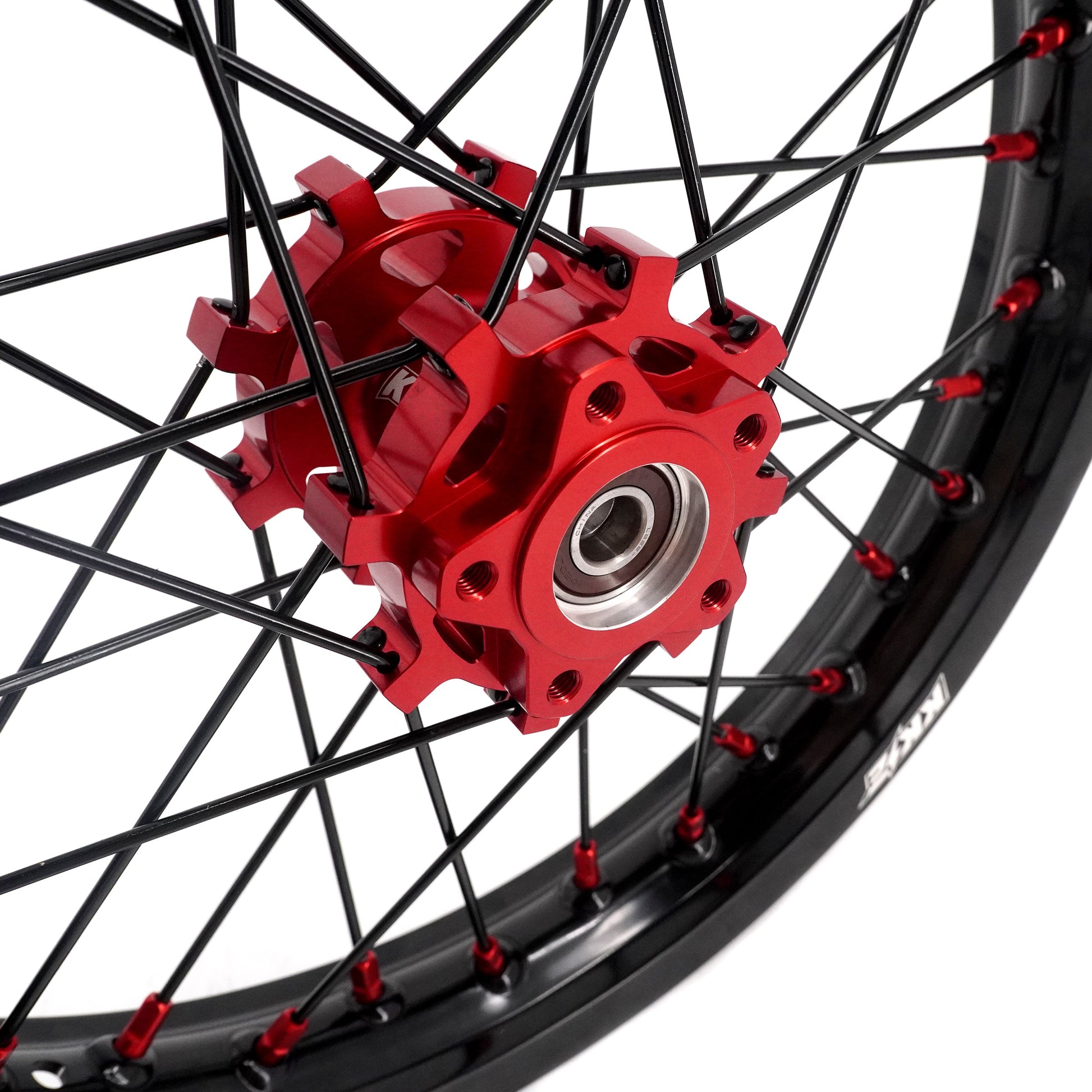

• 6082-T6 CNC billet hubs, precision-machined and anodized for long-term durability

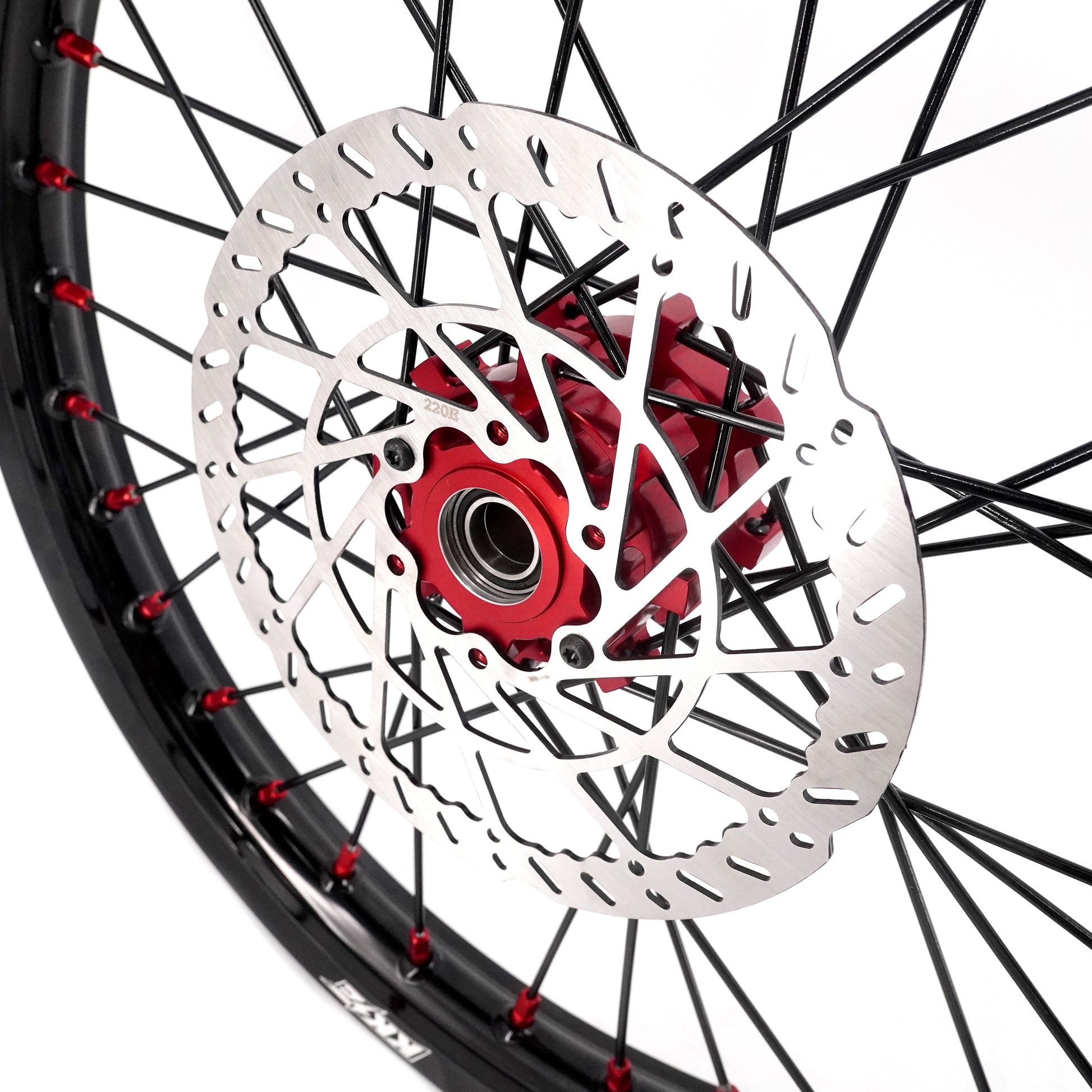

• Included front brake upgrade package, includes 220mm front rotor, mounting hardware, and adapter

Technical Specifications

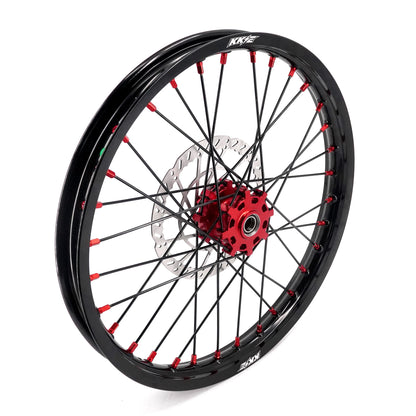

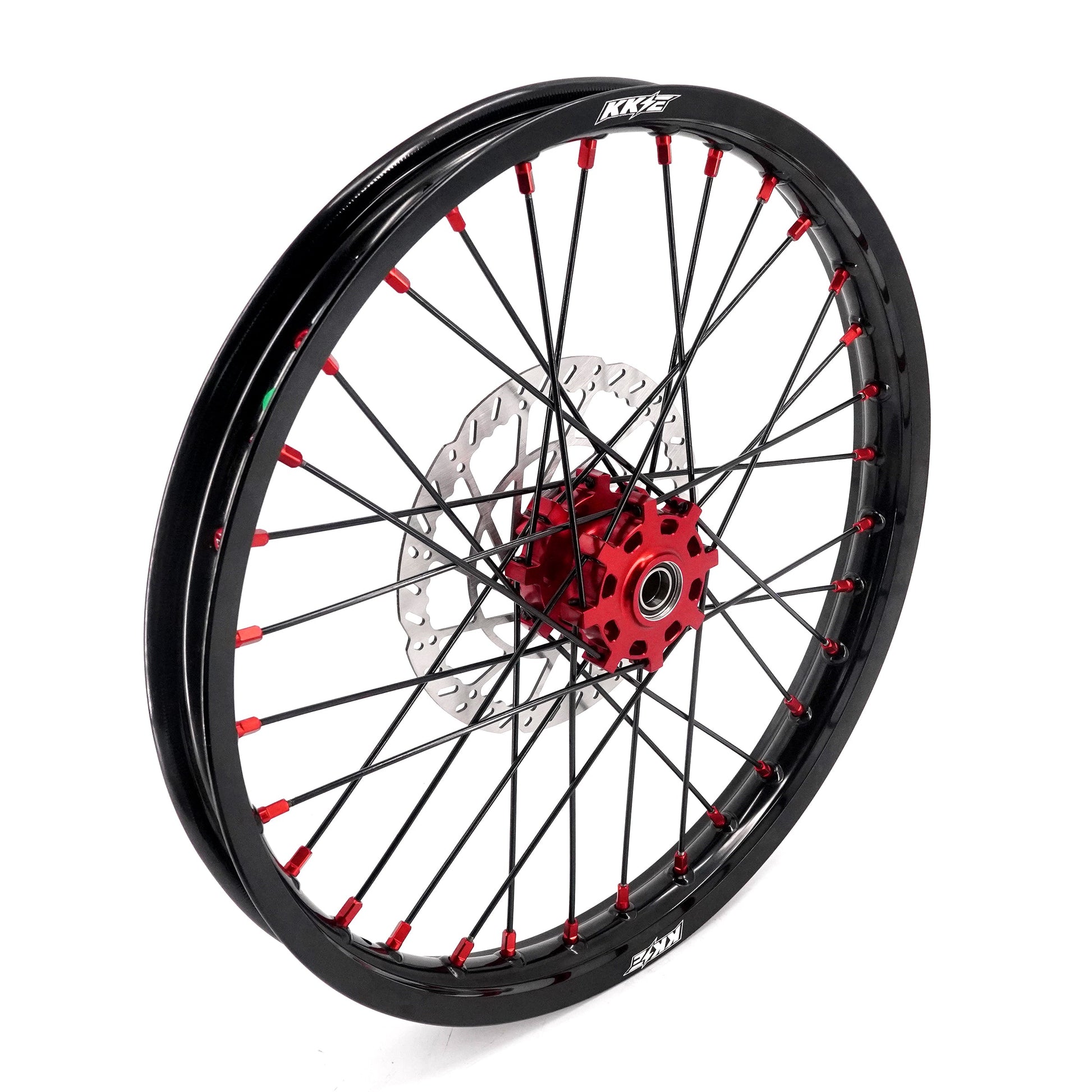

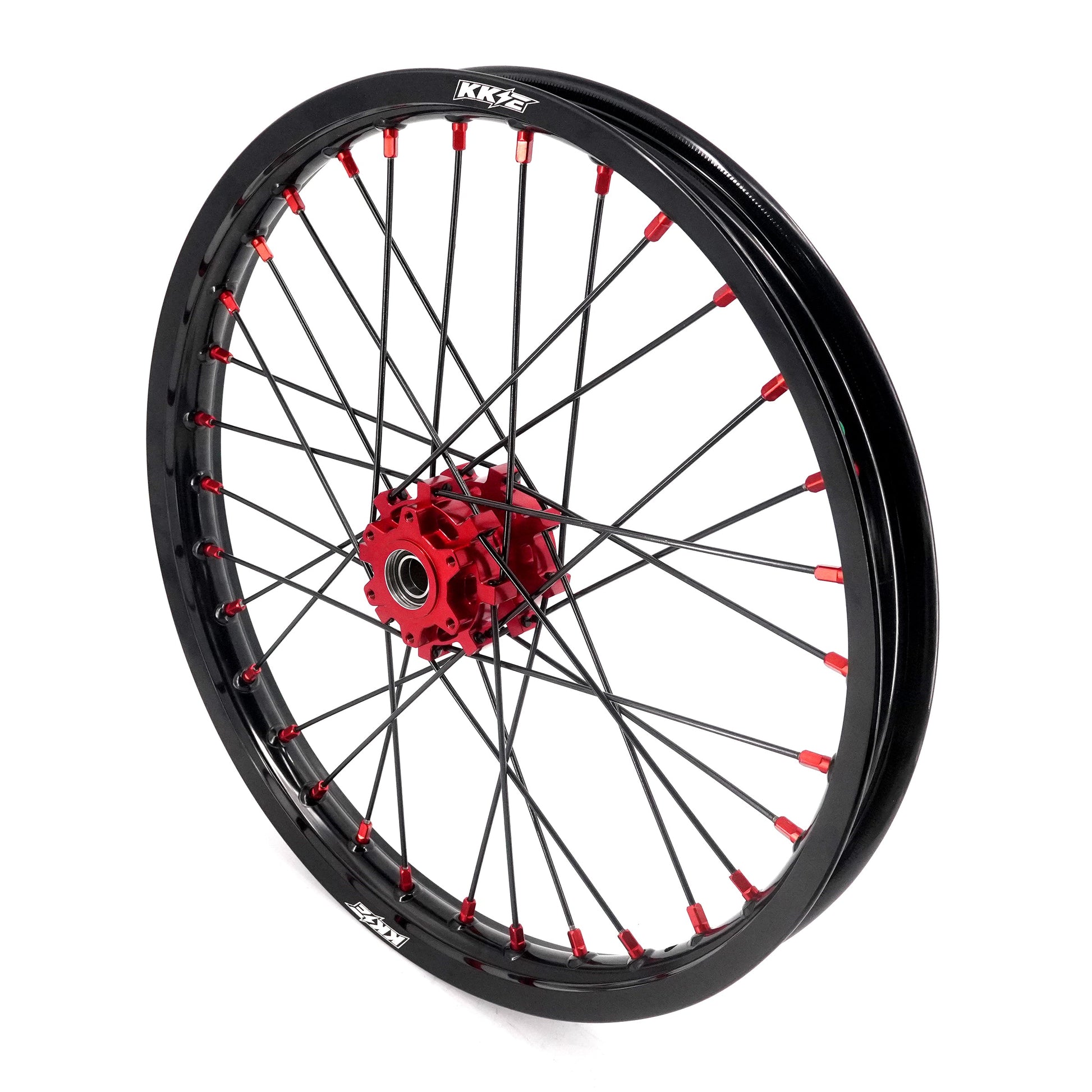

Front Wheel

• Size: 1.6 x 19"
• Hub Material: CNC 6082-T6 Aluminum
• Rim Material: 7050-T6 Aluminum
• Spokes: Chemically Blackened 304 Stainless Steel
• Nipples: Alloy

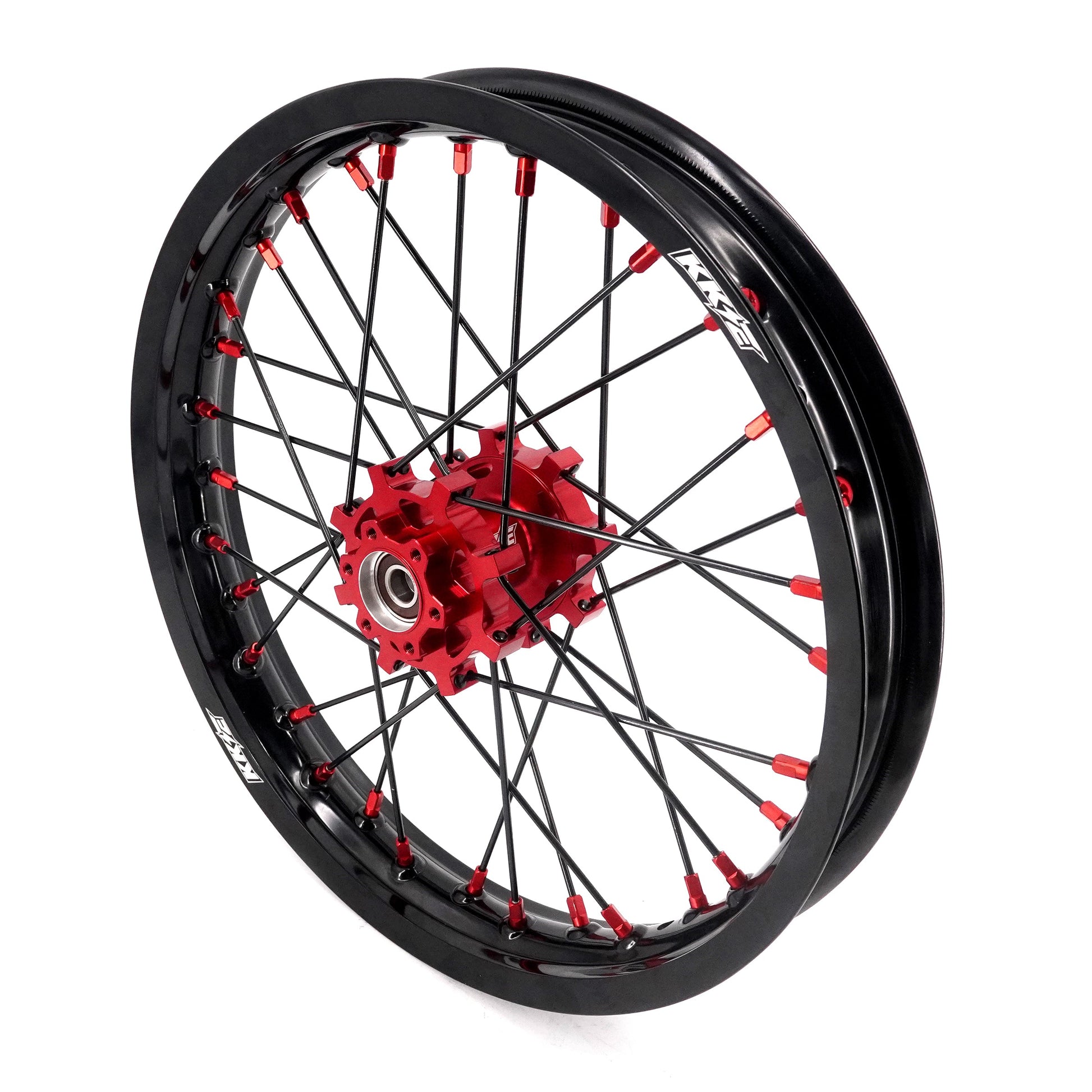

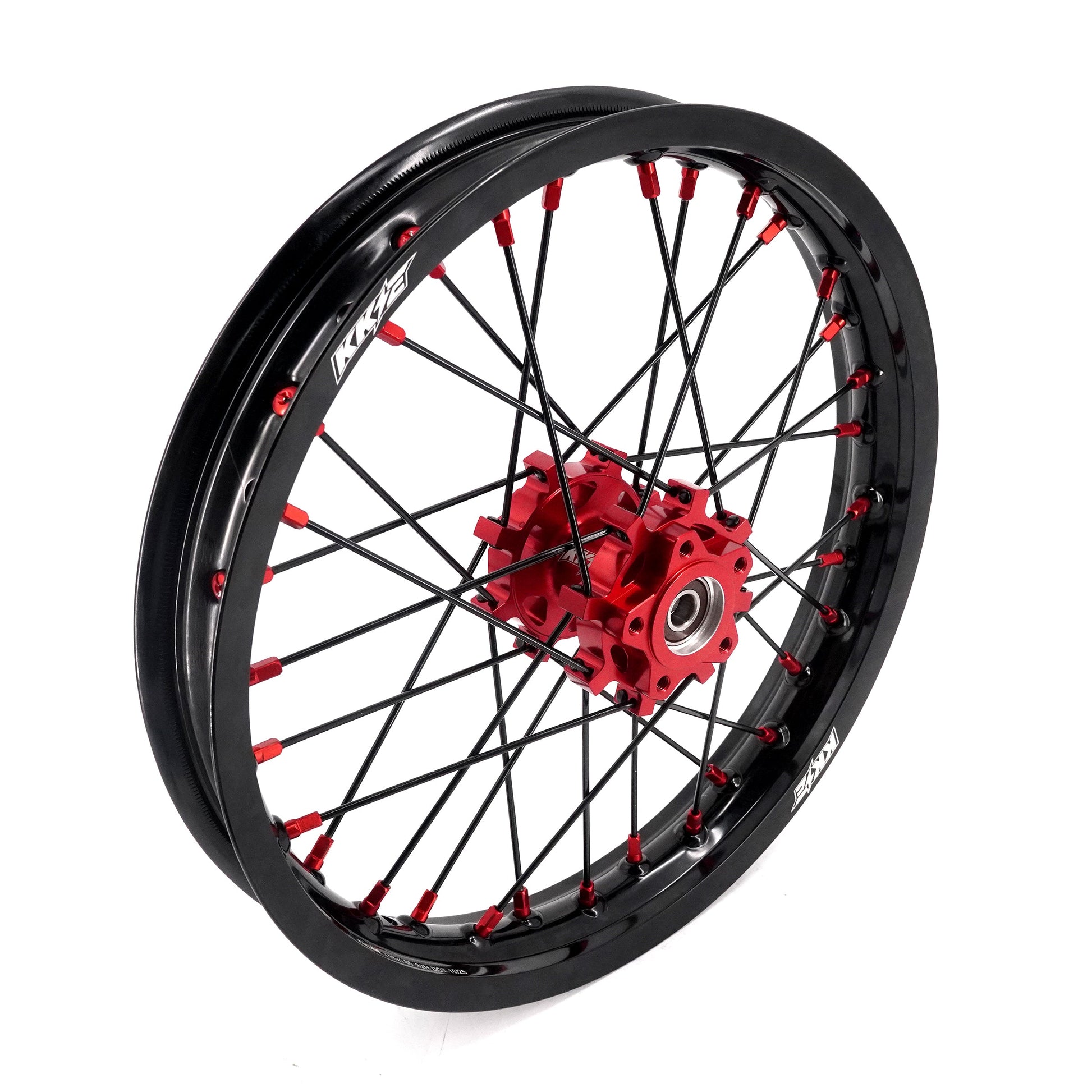

Rear Wheel

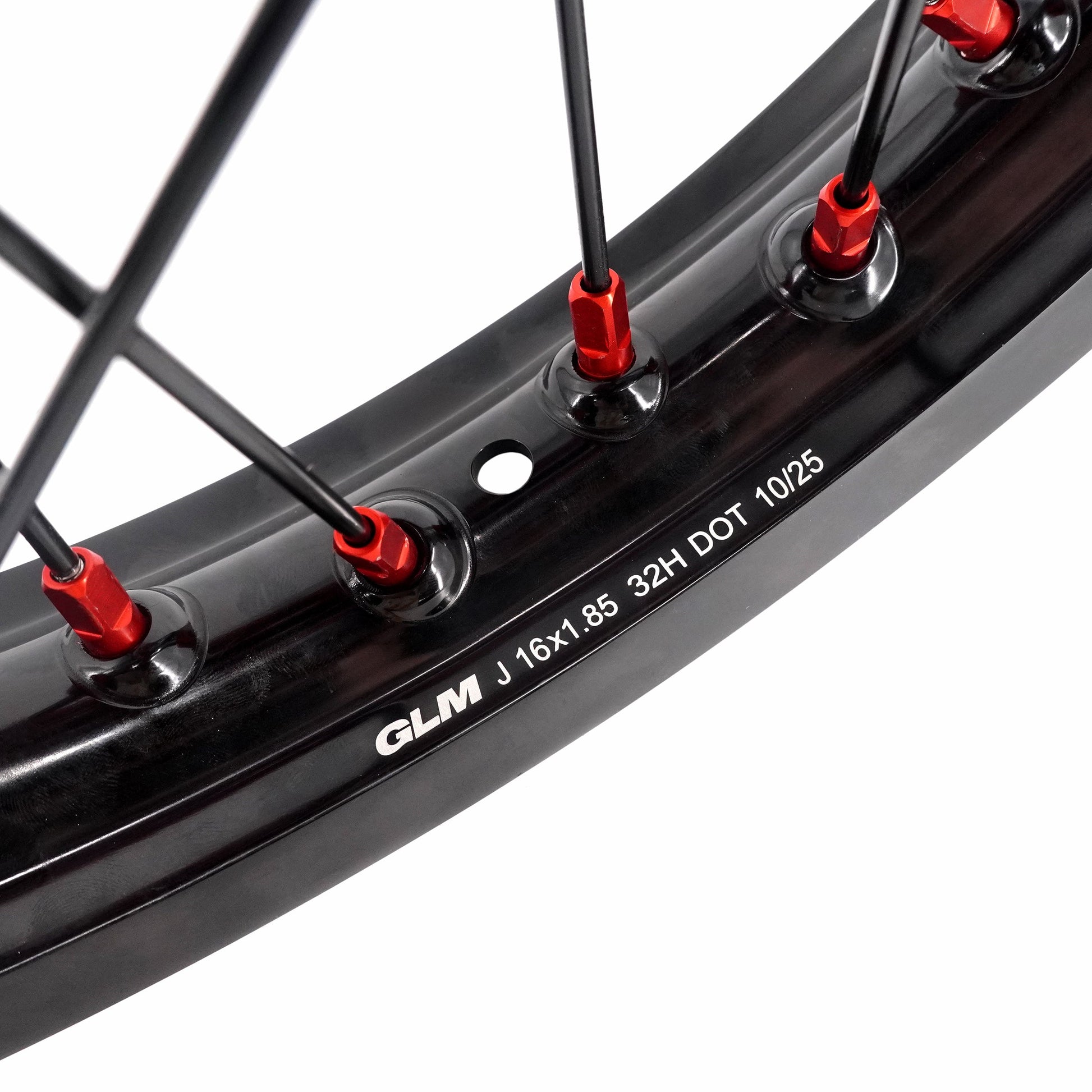

• Size: 1.85 x 16"
• Hub Material: CNC 6082-T6 Aluminum
• Rim Material: 7050-T6 Aluminum
• Rear Spoke Hole Diameter: 3.6mm upgraded design
• Spokes: Chemically Blackened 304 Stainless Steel
• Nipples: Alloy

Color Configuration

• Hub: Red
• Rim: Black
• Nipples: Red
• Spokes: Black

The red and black combination gives the bike an aggressive factory-race style appearance while keeping a clean overall look.

What's Included

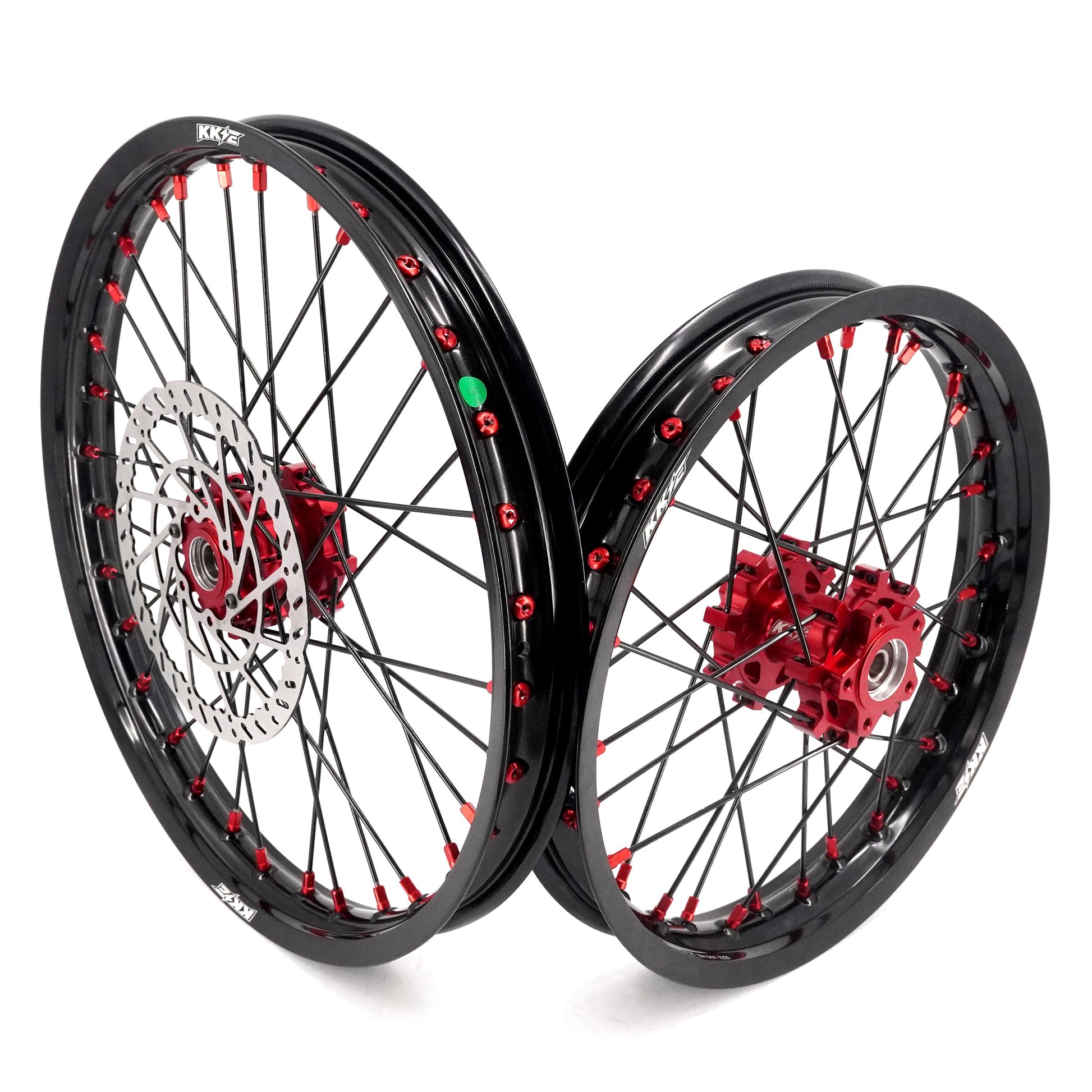

• Complete front wheel assembly
• Complete rear wheel assembly
• Pre-installed bearings
• Wheel seals
• Wheel spacers

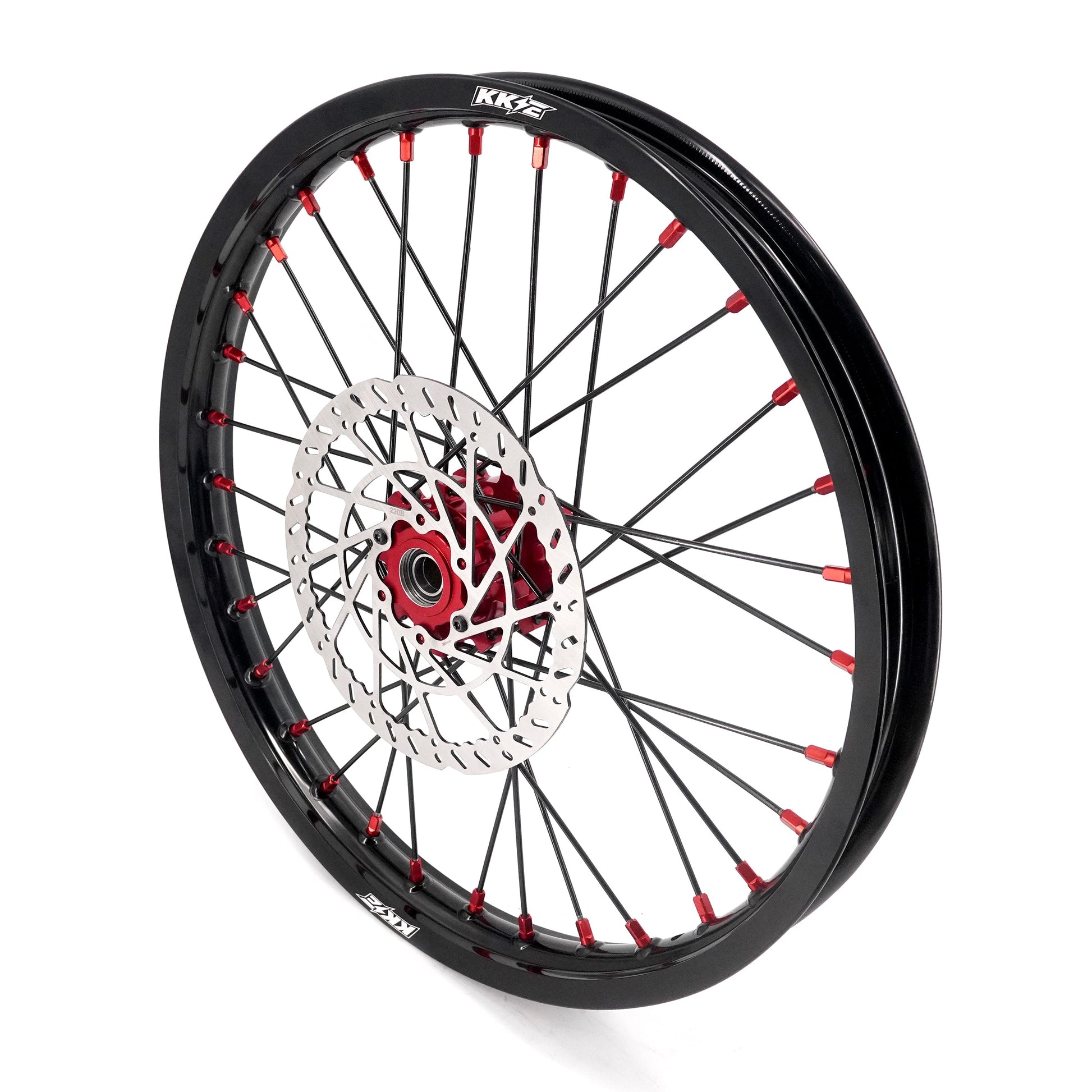

• 220mm front brake rotor
• Rotor mounting bolts
• Silver brake adapter

Important Notes

• Front wheel does not accept the stock Sur-Ron front brake disc
• Included 220mm brake rotor and adapter must be used
• OEM Talaria MX5 front brake disc is also compatible
• Bearings, seals, and spacers come pre-installed
• Wheels arrive fully assembled and ready for installation

Fitment

• Sur-Ron Light Bee X 2019
• Sur-Ron Light Bee X 2020
• Sur-Ron Light Bee X 2021
• Sur-Ron Light Bee X 2022
• Sur-Ron Light Bee X 2023
• Sur-Ron Light Bee X 2024
• Sur-Ron Light Bee X 2025

Ideal Riders For This Setup

• Trail riders looking for stronger wheel construction
• Aggressive riders hitting jumps and rough terrain regularly
• Sur-Ron owners wanting a stronger wheel package with upgraded braking performance
