PURE Racing TRAXION S TiAlN Fork | Surron Ultra Bee, SRPNT X8 and Z27

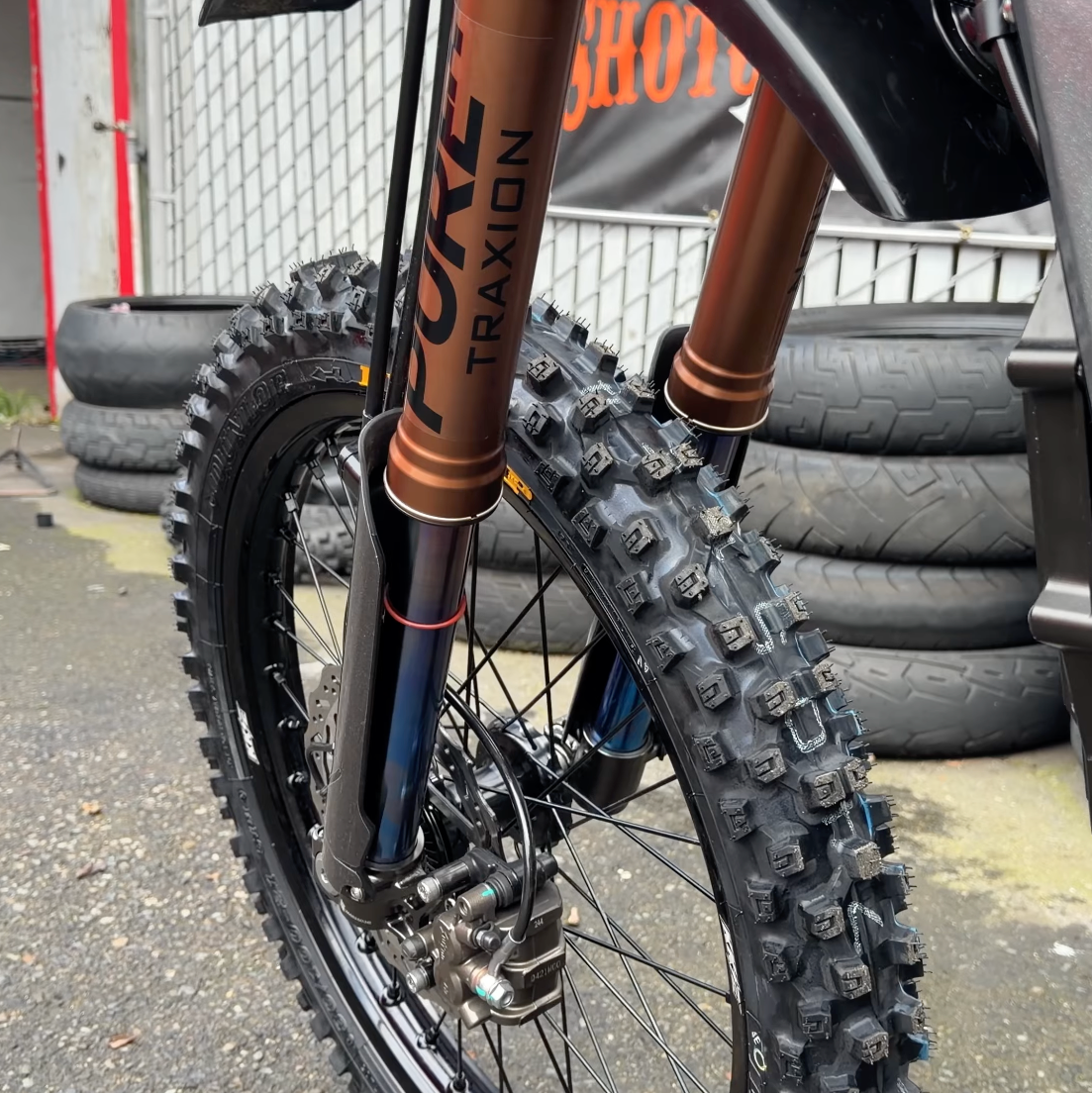

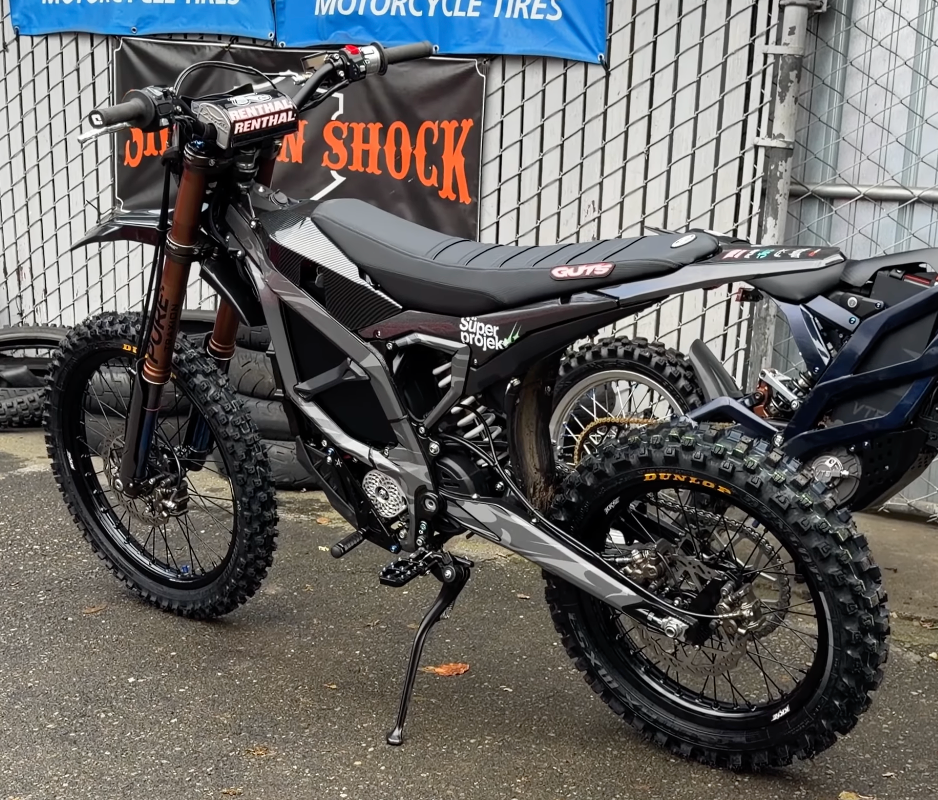

The PURE Racing TRAXION S is a high-performance electric dirt bike suspension fork with confirmed fitment for the Surron Ultra Bee, SRPNT X8, and Z27. It is built for riders who want better front-wheel traction, more tuning control, and stronger support when the terrain gets rough. With 260 mm of travel, dual sealed closed cartridges, hydraulic bottom-out control, and separate Trail and MX valve tunes, this fork can be configured for technical trails, enduro riding, jumping, and aggressive motocross use.

Both fork legs feature internal preload adjustment, while external compression and rebound adjusters provide 24 clicks of tuning. These adjustments let you control how the fork moves into its travel and how quickly it recovers after an impact, making it easier to match the suspension to rider weight, speed, terrain, and riding style.

Tuning and Performance

• Internal preload adjustment: Adjustable on both fork legs.
• Compression adjustment: 24 external settings for controlling impact response and front-end support.
• Rebound adjustment: 24 external settings for managing how quickly the fork returns after compression.
• Hydraulic bottom-out control: Used on both legs to manage hard landings and full-travel impacts.
• Spring tuning: Five spring-weight options are available separately.
• Valve tunes: Choose between Trail and MX configurations.
• Trail options: Light and Medium spring setups.
• MX options: Medium and Heavy spring setups.

The Trail tune is a strong choice for riders who want traction, comfort, and a more forgiving response over roots, rocks, braking bumps, and mixed terrain. The MX tune provides additional support for heavier riders, faster charging, larger jumps, hard braking, and repeated high-speed impacts.

Advanced Materials and Internal Design

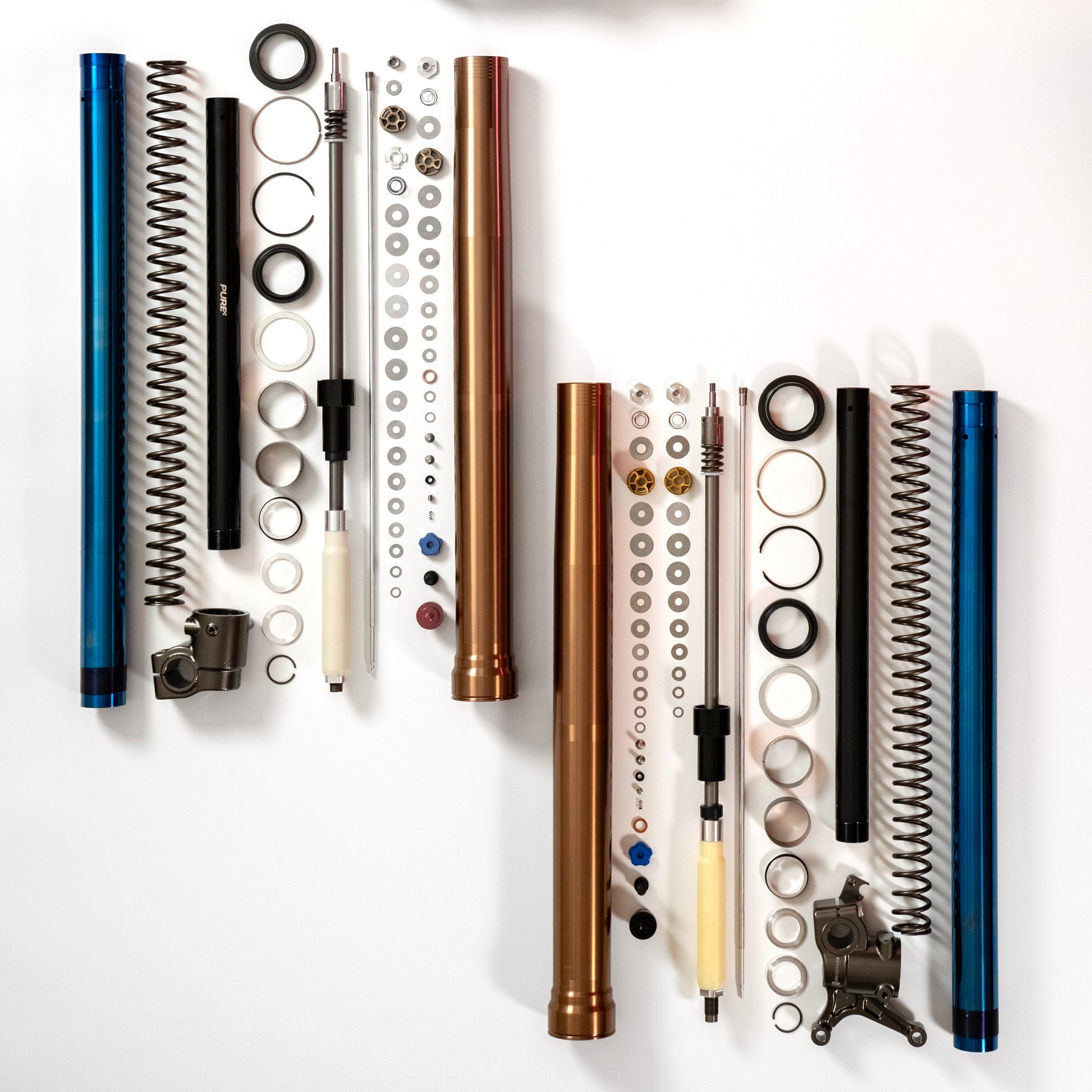

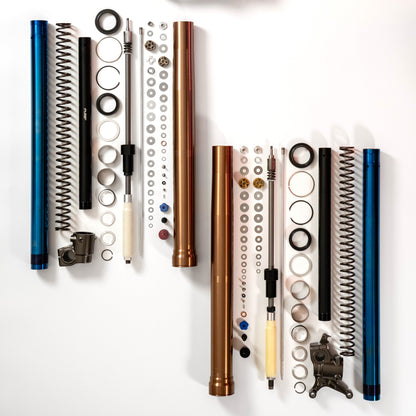

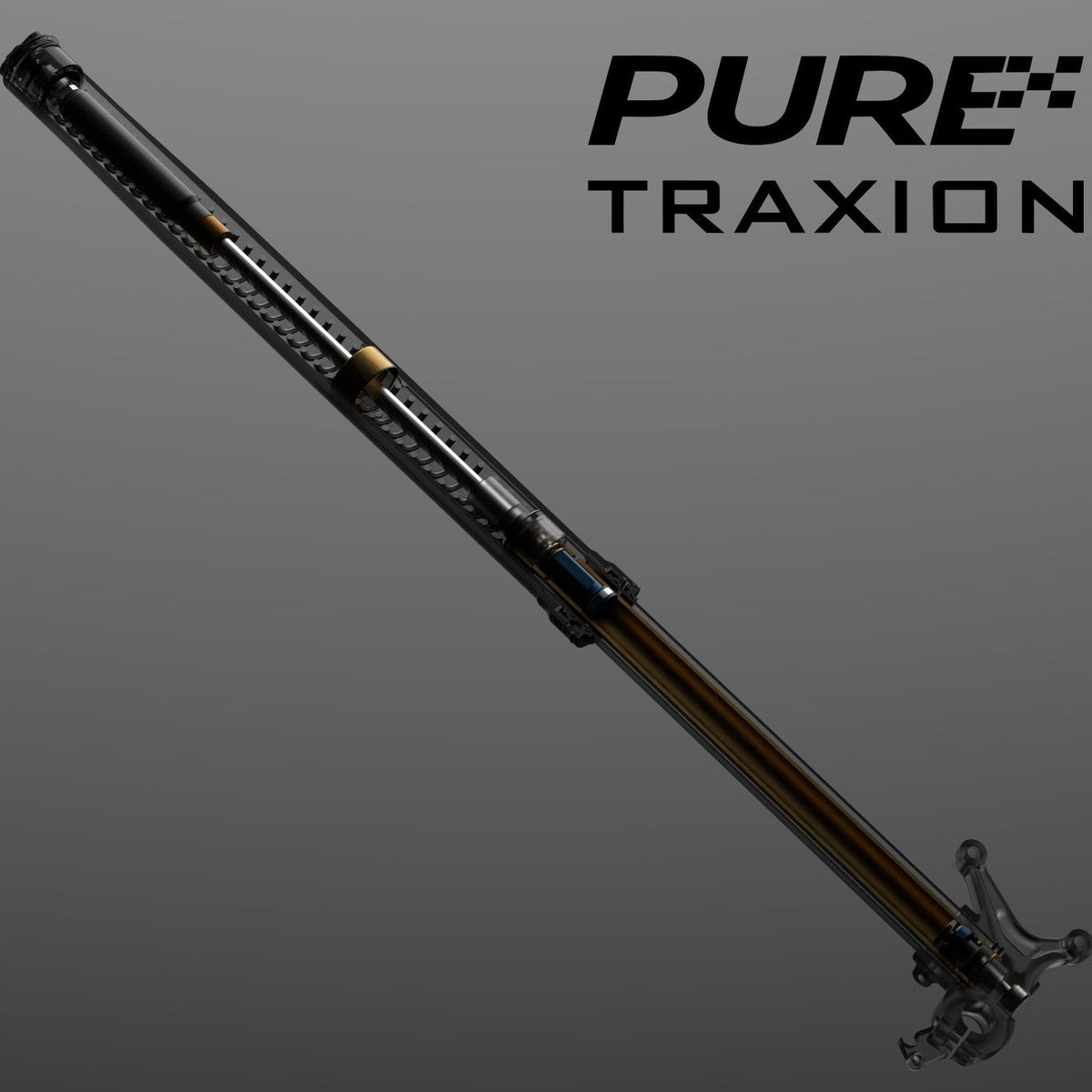

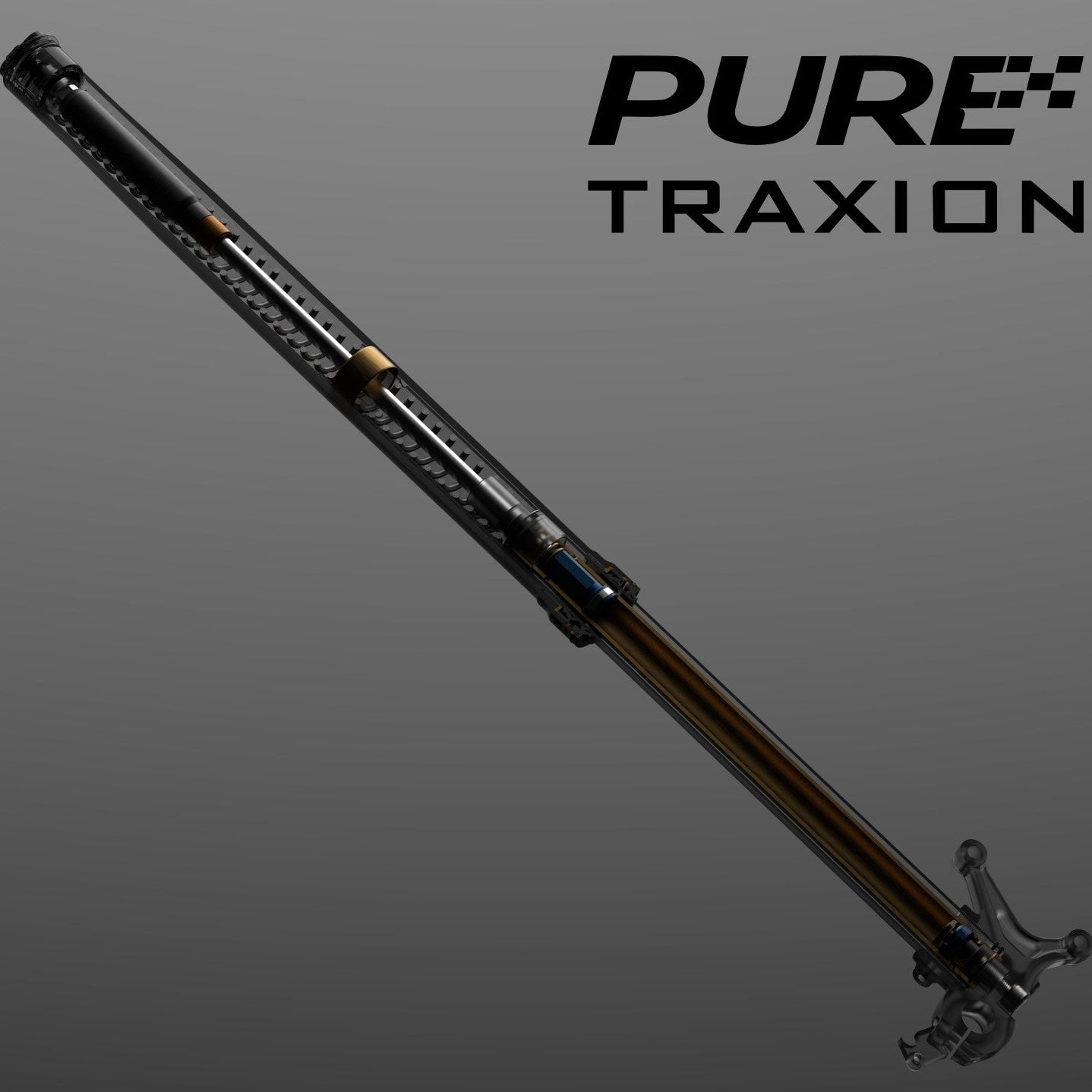

• 3D-printed Waffle Pistons: Installed in the upper and lower chambers of the internal cartridges on both the compression and rebound legs. Their design helps manage oil flow for a controlled and responsive damping feel.
• Blue TiAlN-coated stanchions: Titanium Aluminium Nitride coating provides micro-level smoothness, improved lubrication, excellent thermal stability, and strong resistance to wear and scratching.
• Precision-honed inner cylinders: Manufactured to a ±0.01 mm tolerance for smooth damping movement and improved front-wheel traction.
• Custom oil and dust seals: Designed to balance reliable sealing with low friction, helping maintain consistent oil flow through extended use.
• Advanced fluid dynamics: Produces progressive, quiet, and controlled damping throughout the fork travel.
• FEM-refined link plate: Engineered for high rigidity, fatigue durability, and strength without unnecessary weight.

The precision-honed cylinders, low-friction seals, and TiAlN-coated stanchions help the TRAXION S react to small trail chatter while remaining composed through larger hits. This balance gives the front tire a better chance to stay connected to the ground without allowing the fork to dive excessively under braking or move through its travel too quickly on hard landings.

Technical Specifications

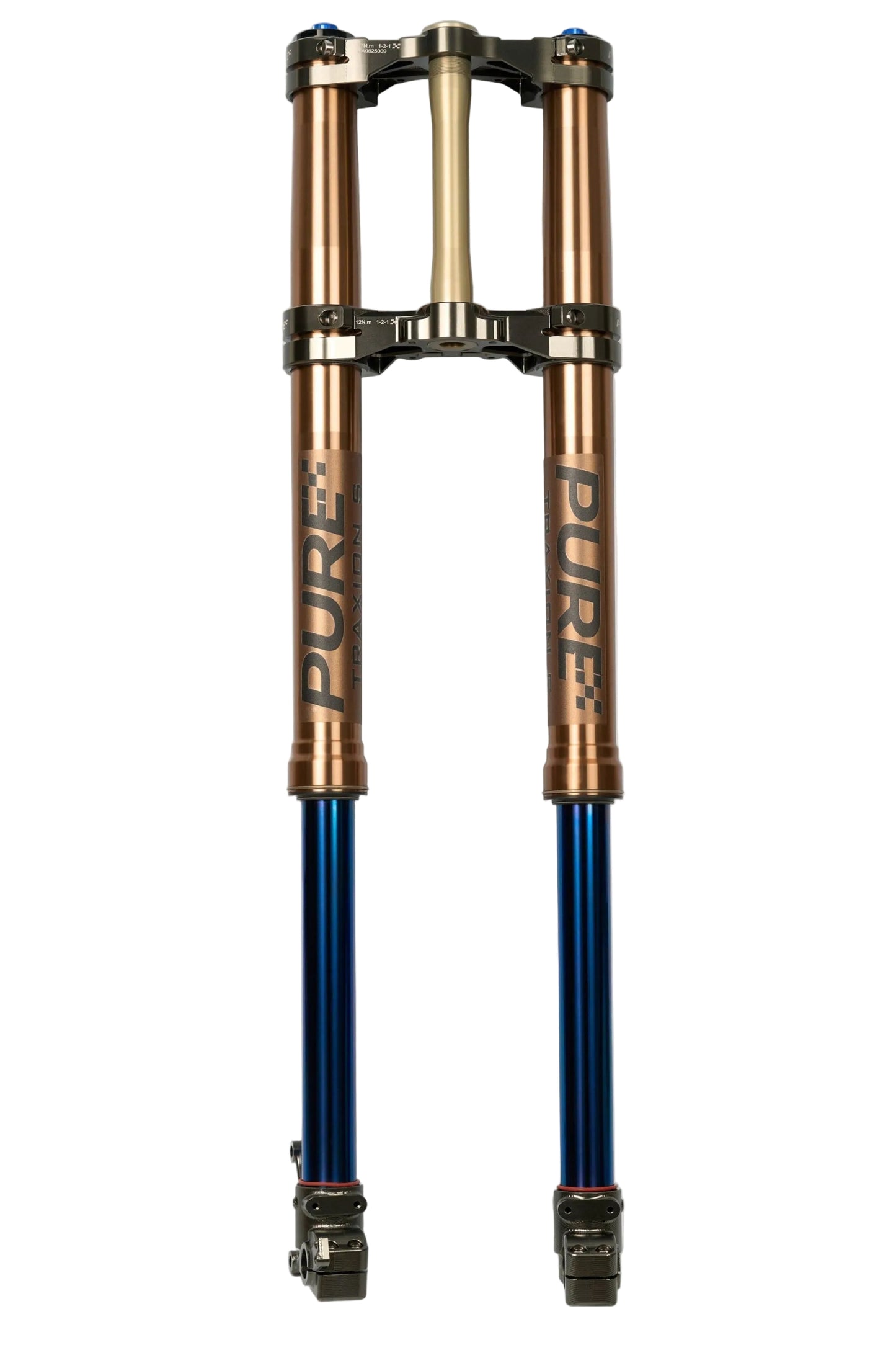

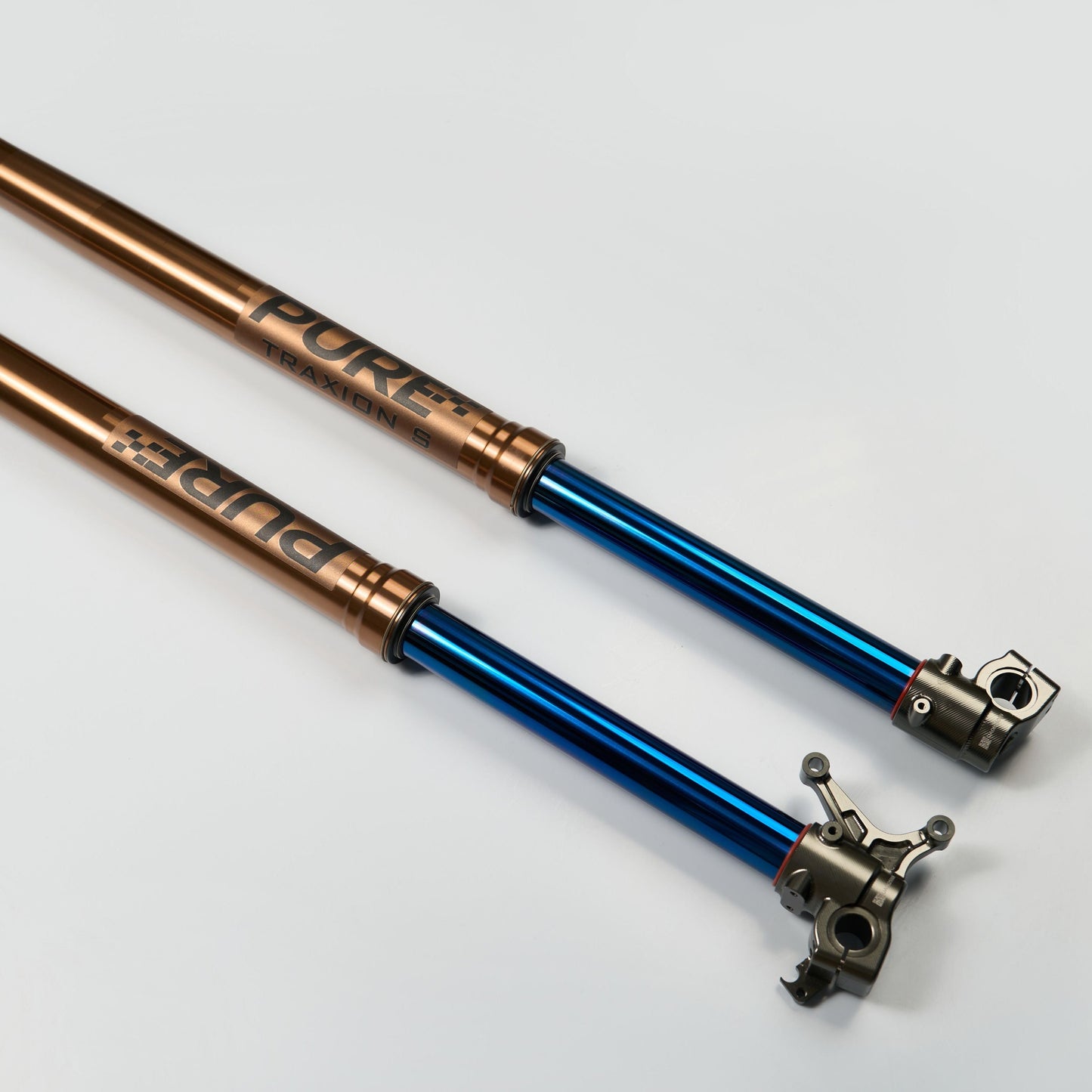

• Model: TRAXION S

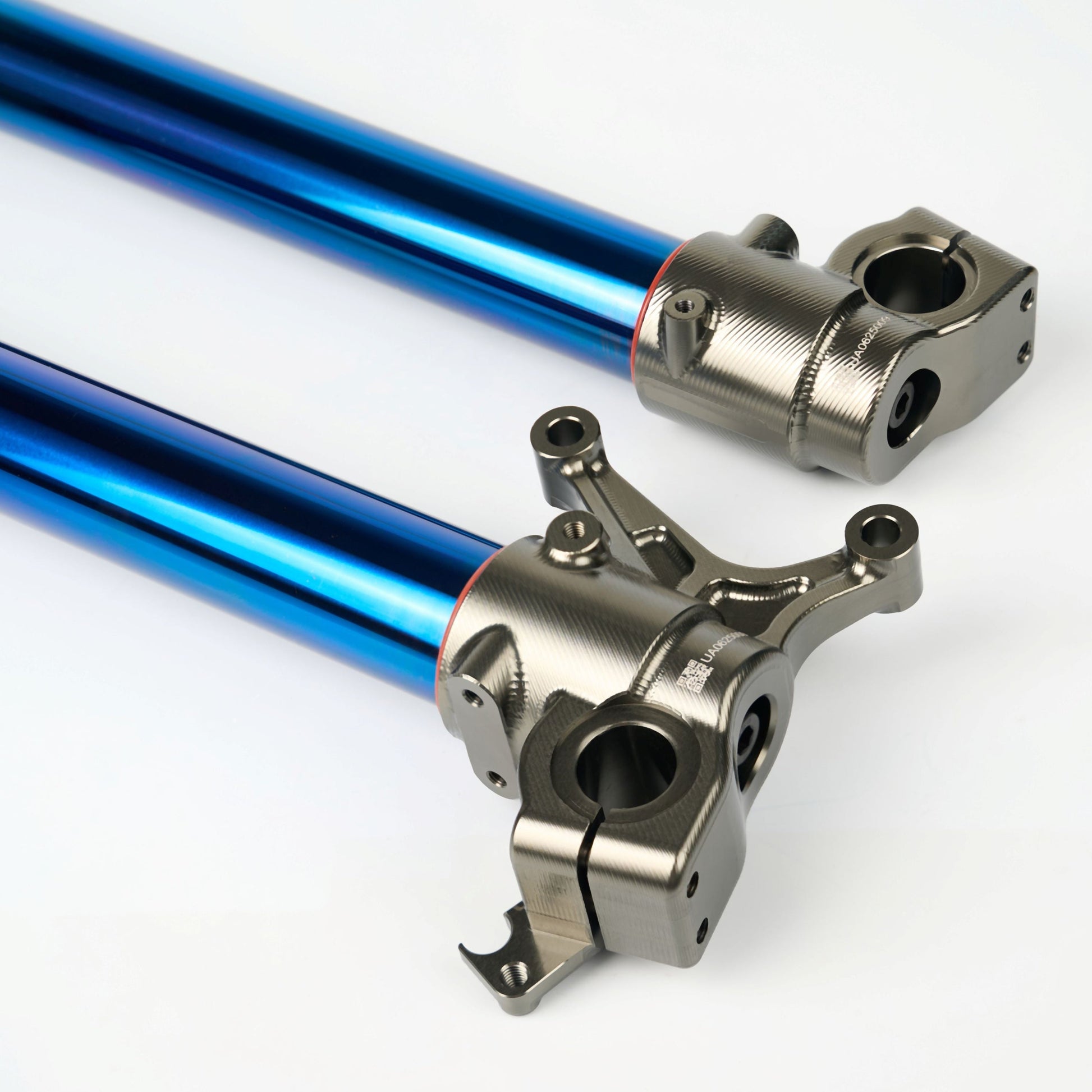

• Fork configuration: Surron Ultra Bee-style dropouts
• Inner tube diameter: 38 mm
• Outer tube diameter: 50 mm

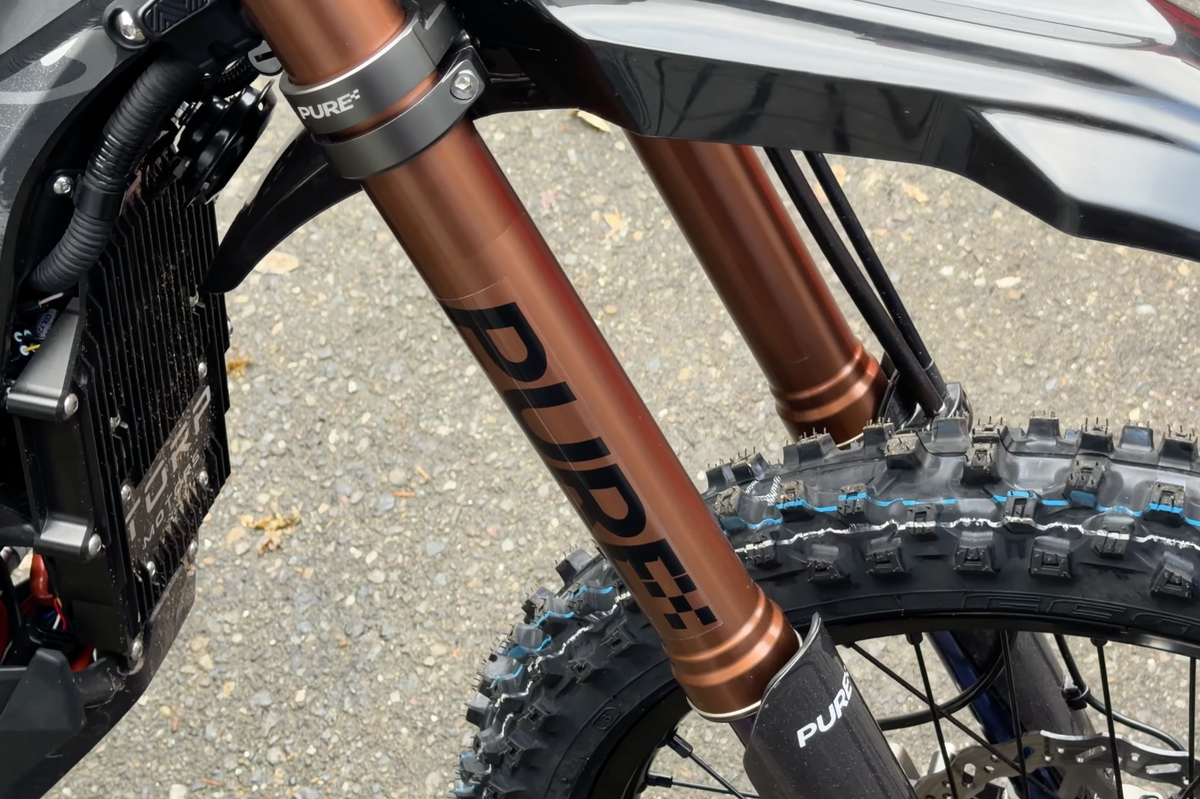

• Stanchions: Blue TiAlN Titanium Aluminium Nitride coating
• Travel: 260 mm
• Extended length: 850 mm

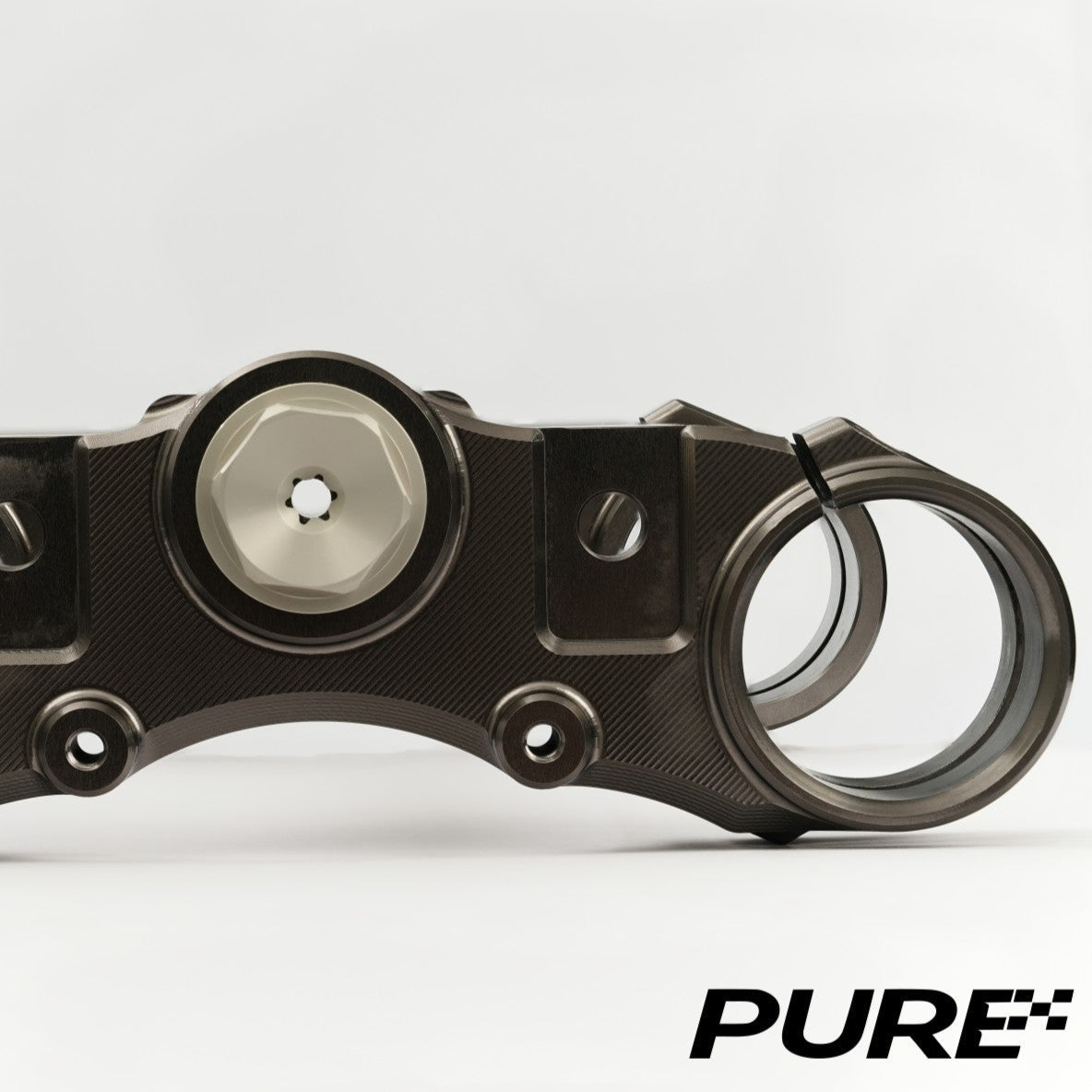

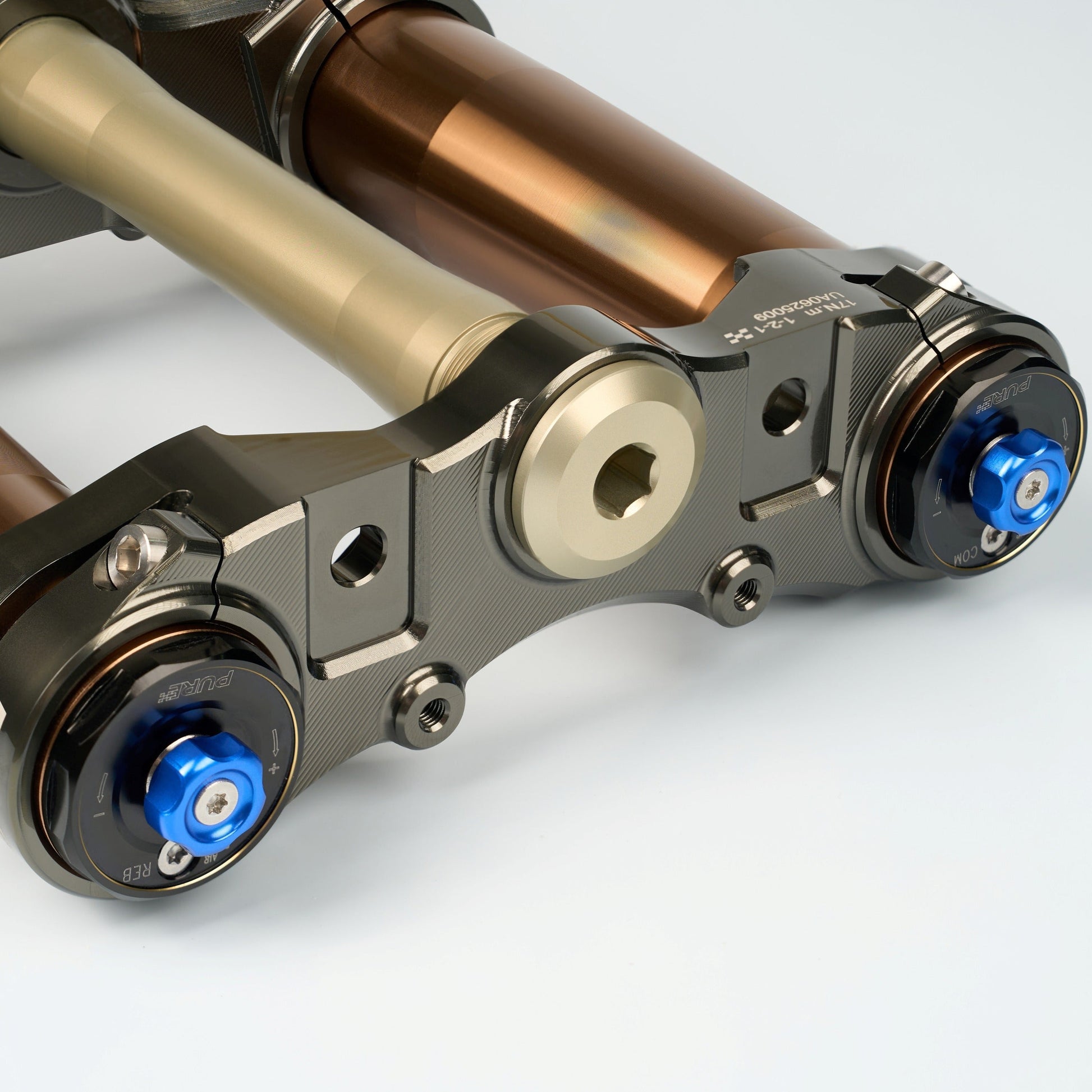

• Crown and stem: Billet aluminum with an anodized coating
• Damper: Dual sealed closed cartridges with a dual-spring design
• Compression damping: 24-stage adjustable
• Rebound damping: 24-stage adjustable
• Complete weight: 9.8 kg with oil, crown, and handlebar clamps

Confirmed Fitment

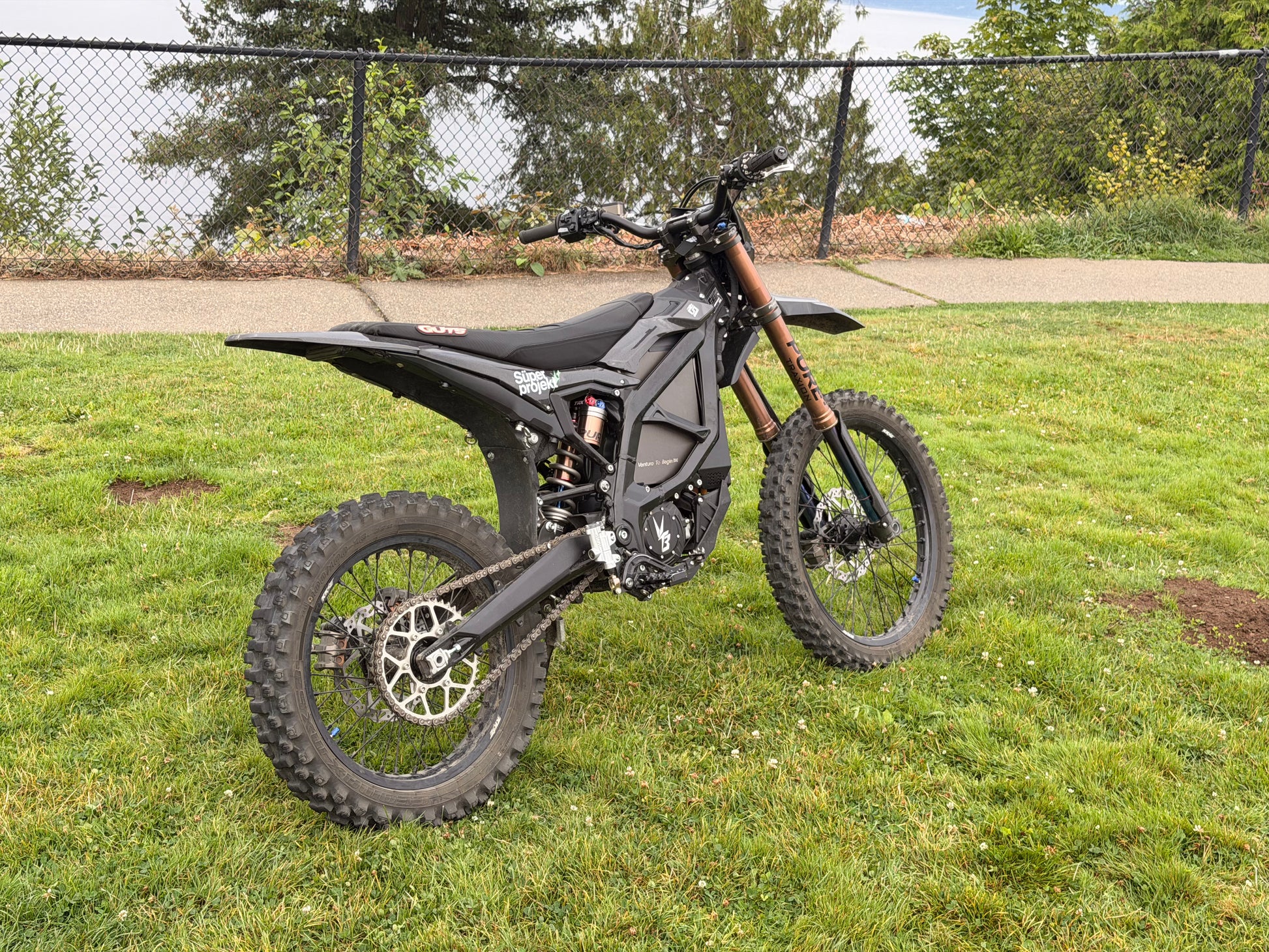

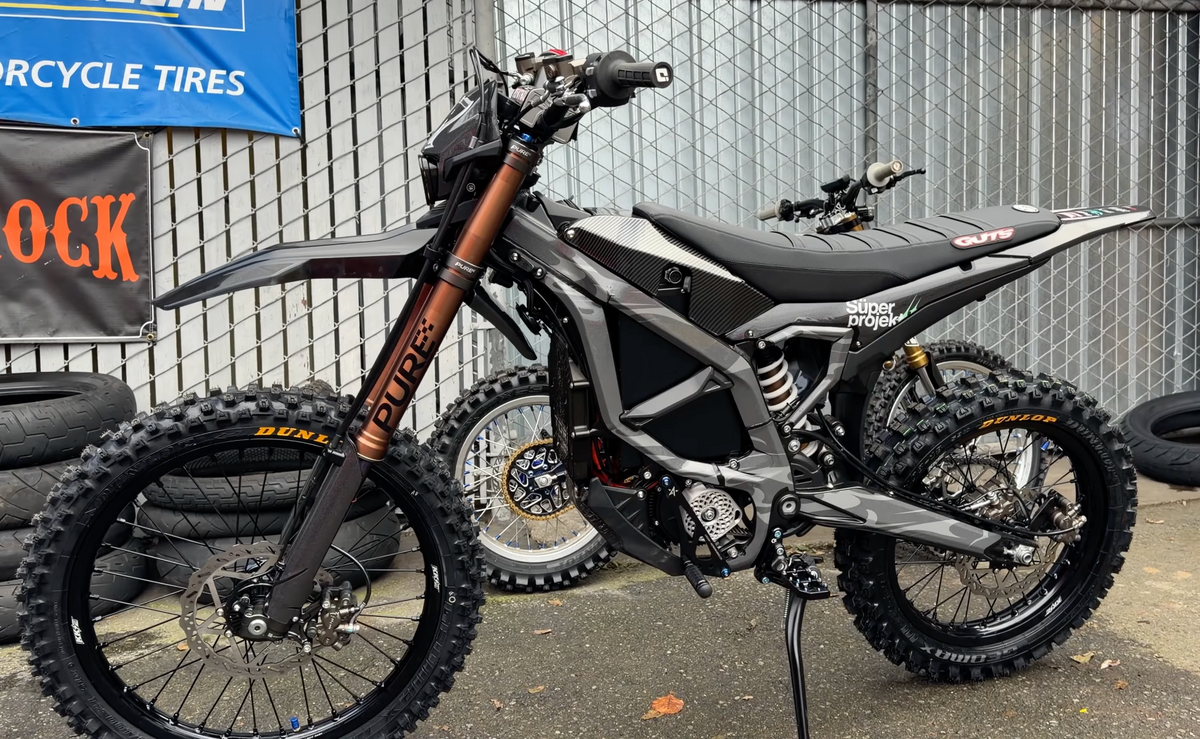

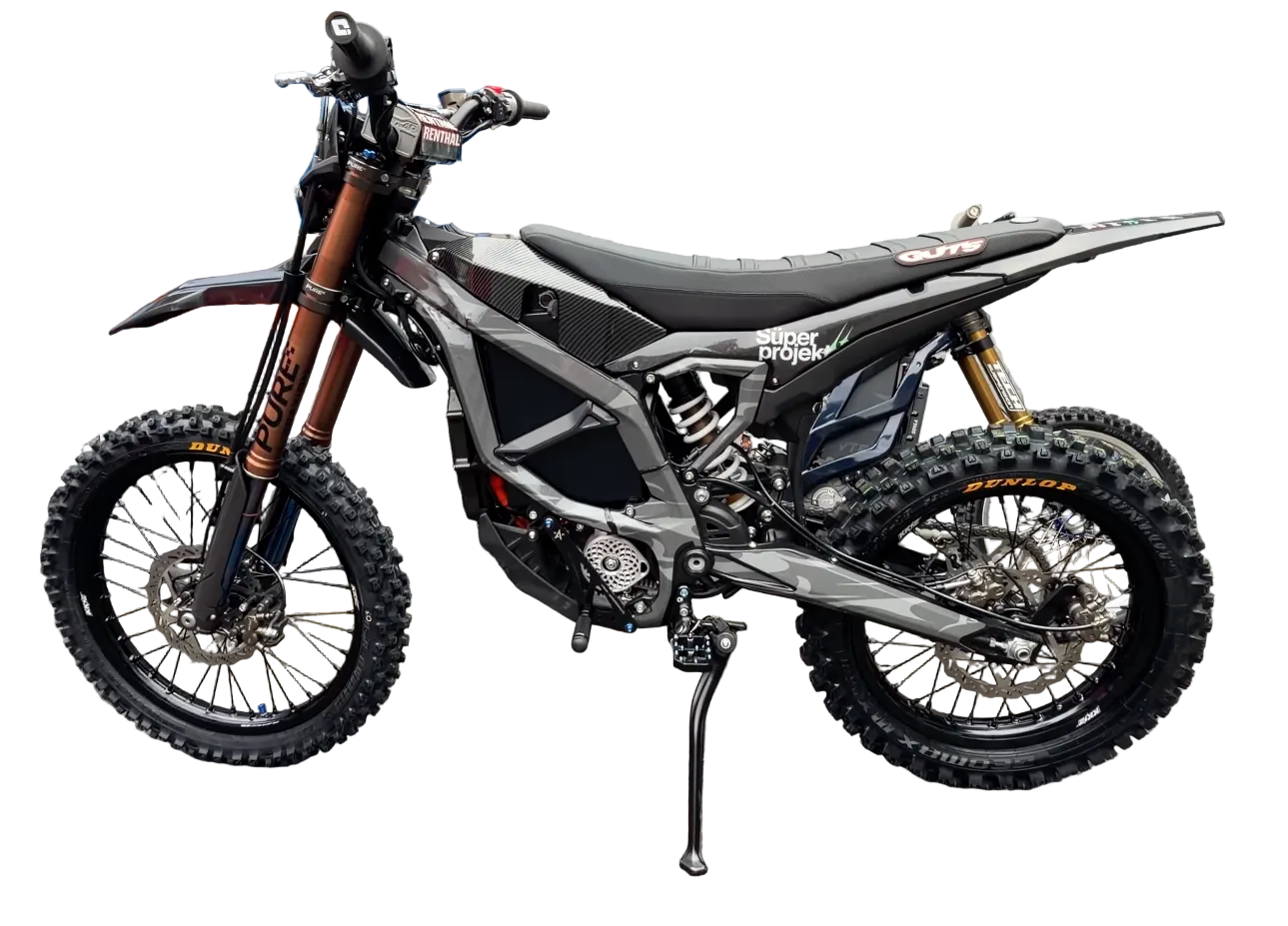

• Surron Ultra Bee
• SRPNT X8
• Z27

Guard note: Stanchion guards are not included. Original Surron Ultra Bee stanchion guards can be reused when installing the fork on an Ultra Bee.

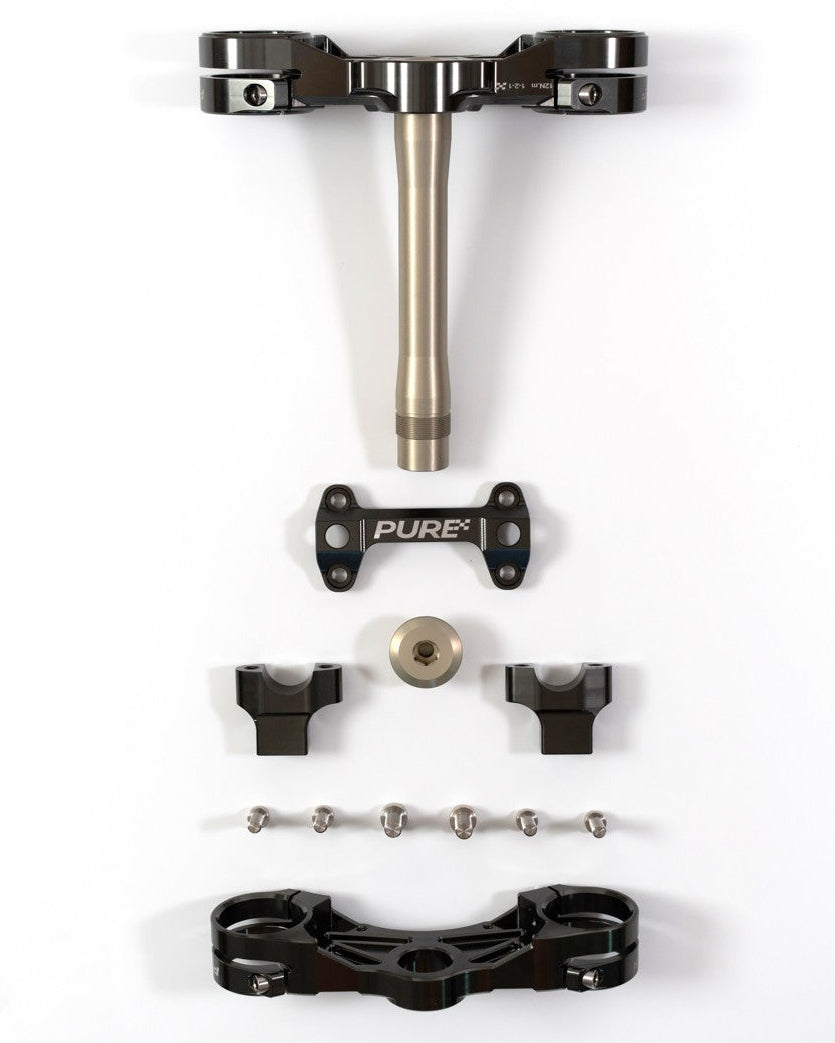

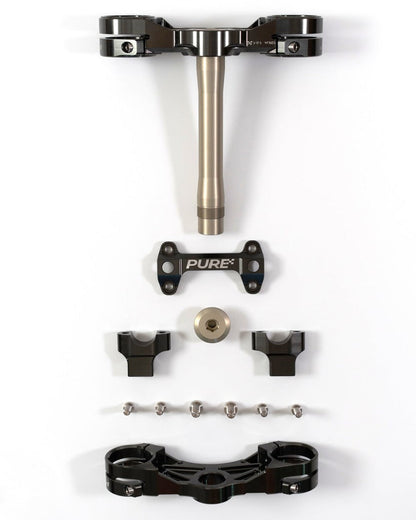

What Is Included

• PURE Racing TRAXION S fork
• CNC-machined crown
• CNC-machined stem

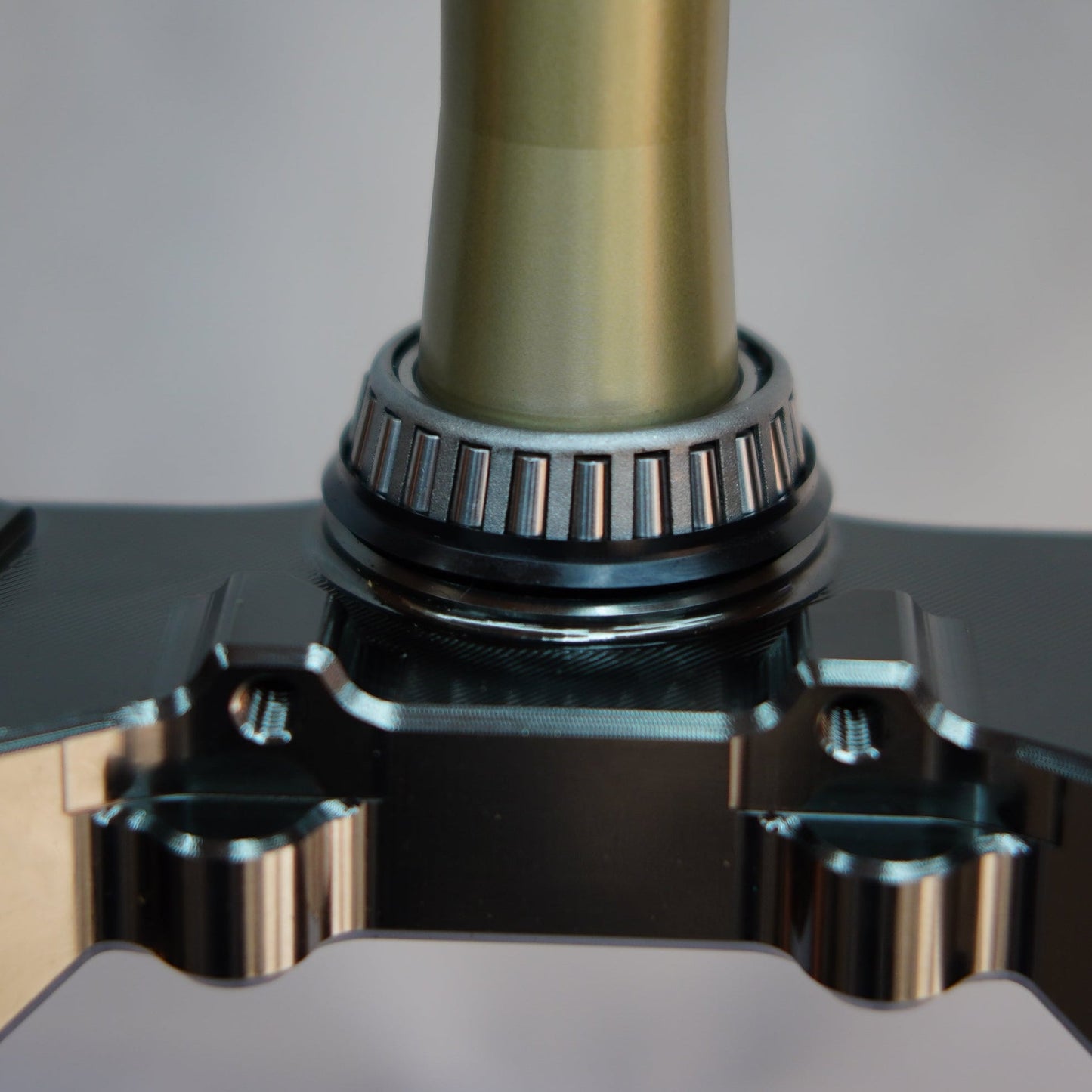

• Pre-installed lower bearing
• Headset spacers

Not included: Stanchion guards and separately available spring-weight options.

Who This Fork Is For

• Trail and enduro riders looking for better front-wheel traction, comfort, and adjustability.
• MX and jump-focused riders who need stronger support through hard landings and repeated impacts.
• Surron Ultra Bee, SRPNT X8, and Z27 riders who want spring and valve options matched more closely to their weight and riding style.

The PURE Racing TRAXION S stands out through its wide tuning range, dual closed-cartridge damper, TiAlN stanchion coating, and hydraulic bottom-out control. It is a serious suspension upgrade for riders who want their Surron Ultra Bee, SRPNT X8, or Z27 to feel more planted, predictable, and capable when the pace picks up.
