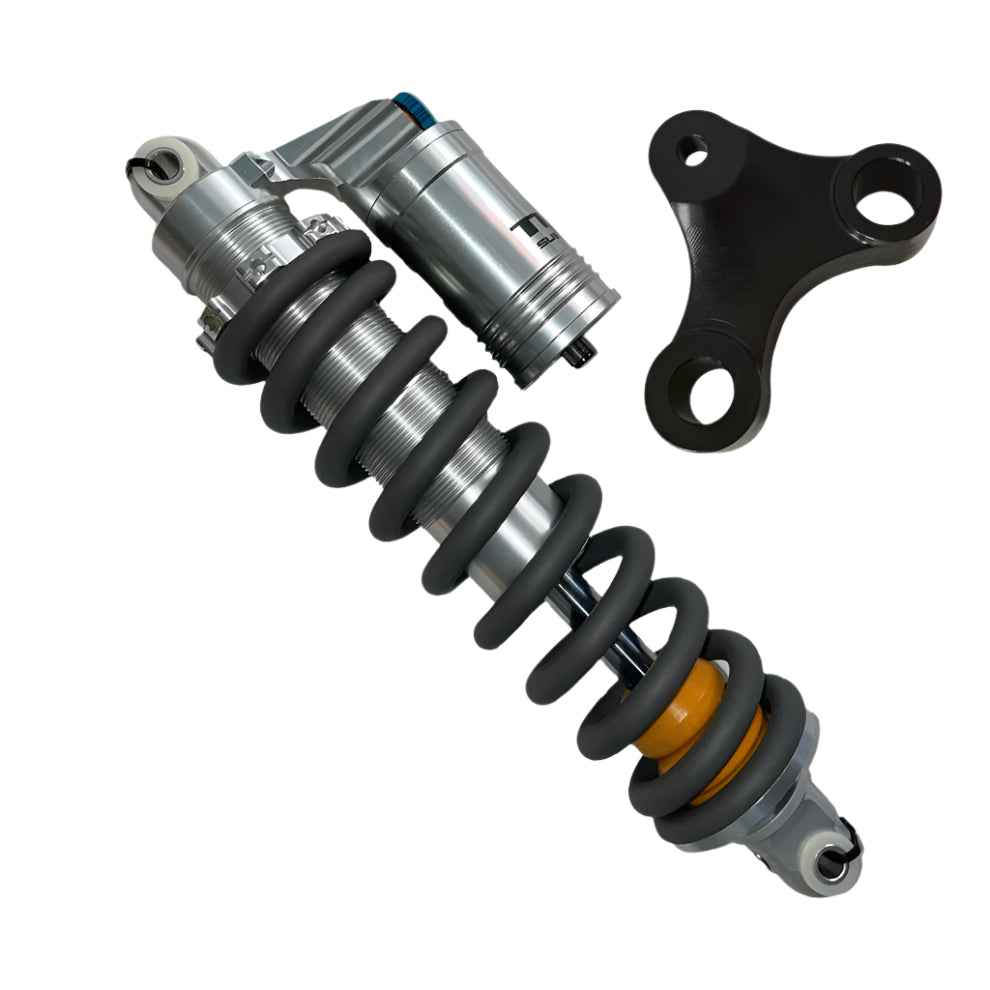

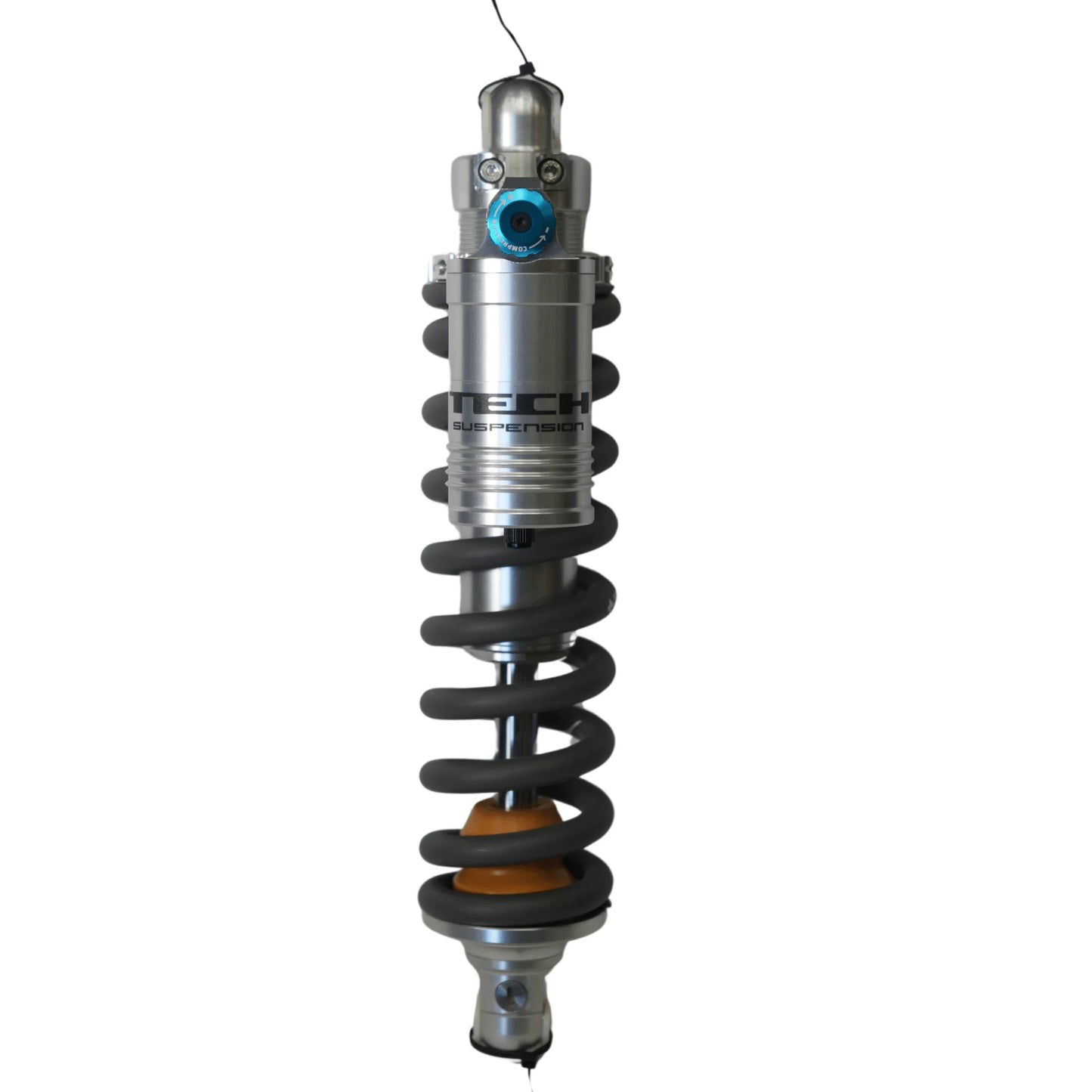

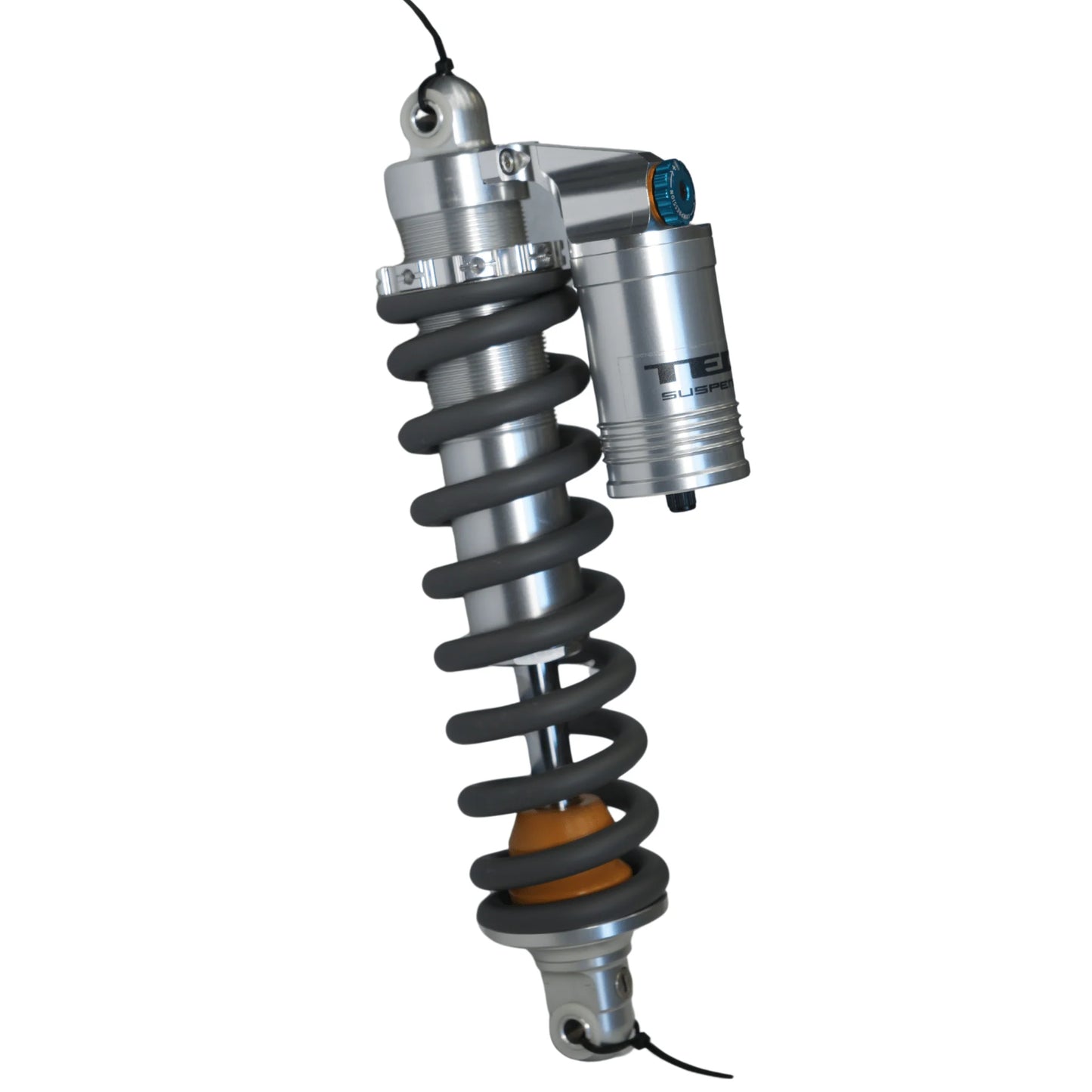

Upgrade your rear suspension with the Tech 230mm E-Moto Shock by Formula — a premium, race-ready rear shock designed specifically for electric dirt bikes like the Talaria Sting. Built with high-performance internal components and adjustable features, this shock delivers precision handling, durability, and custom-tuned comfort for aggressive off-road riding.

This rear shock features a piggyback reservoir with 3-way adjustability, ultra-lightweight spring construction, and CTS (Compression Tuning System) technology — allowing riders to fine-tune their setup for any terrain or riding style.

Features:

• 🛞 Shock Length & Stroke: 288mm eye-to-eye with 85mm stroke

• 🔧 3-Way Adjustability: Rebound (24 clicks), Compression (20 clicks via CTS), Spring Preload (0–20mm)

• 🌀 CTS Technology: Compression tuning system with interchangeable valves (includes medium “Orange” valve)

• 🪶 Lightweight Spring: Matte graphite finish, 450 lb/in (upgradeable to 600 lb/in)

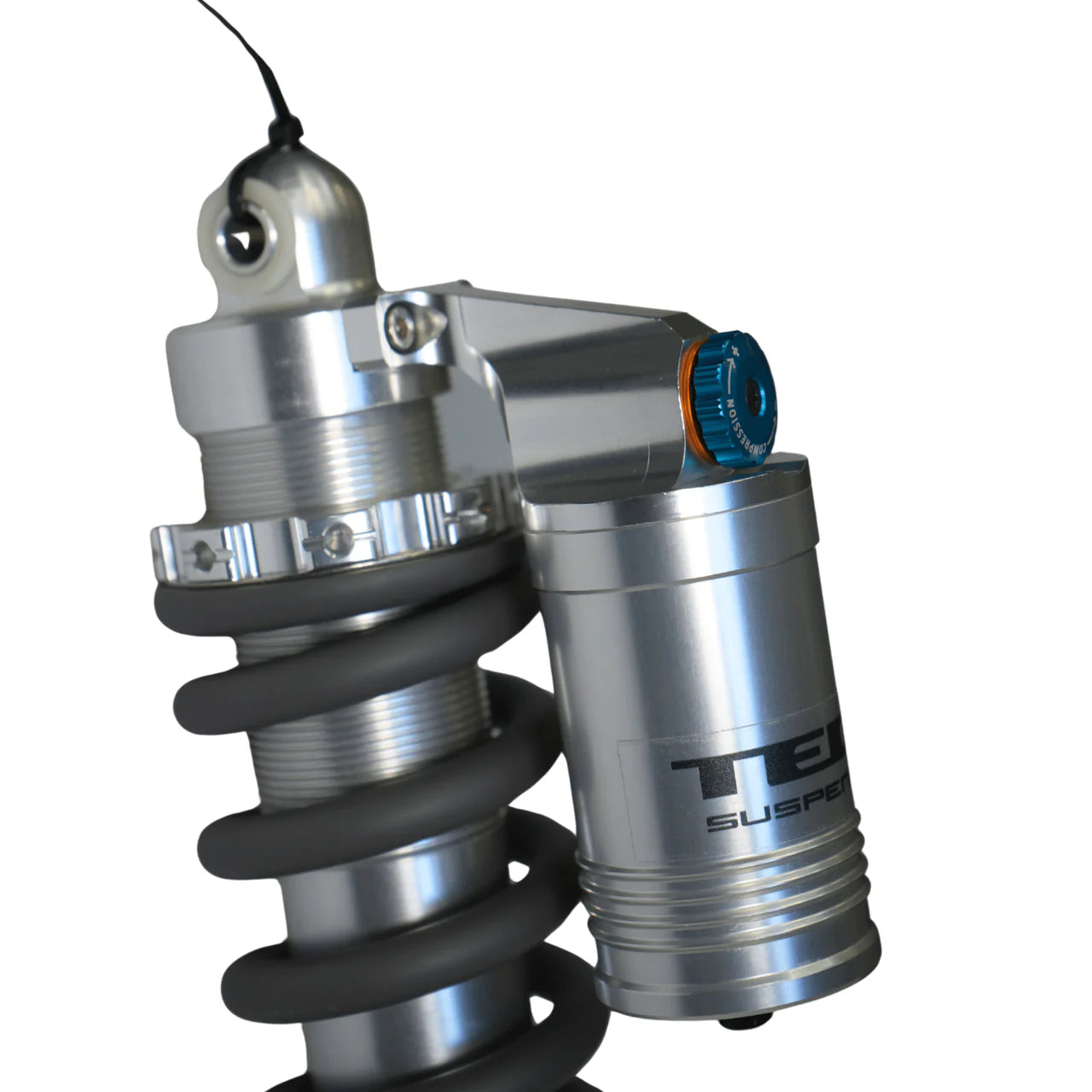

• ⚙️ External Reservoir (Piggyback): Gas-charged with 10 bar (150 psi) nitrogen pressure

• 🧩 Mounting Hardware: DU bushings with 24mm total mount width

• 🧰 Factory Settings:

  - Spring preload: 8mm

  - Rebound: 12 clicks out

  - Compression: 10 clicks out

Kit Includes:

• Tech Suspension 230mm Rear Shock

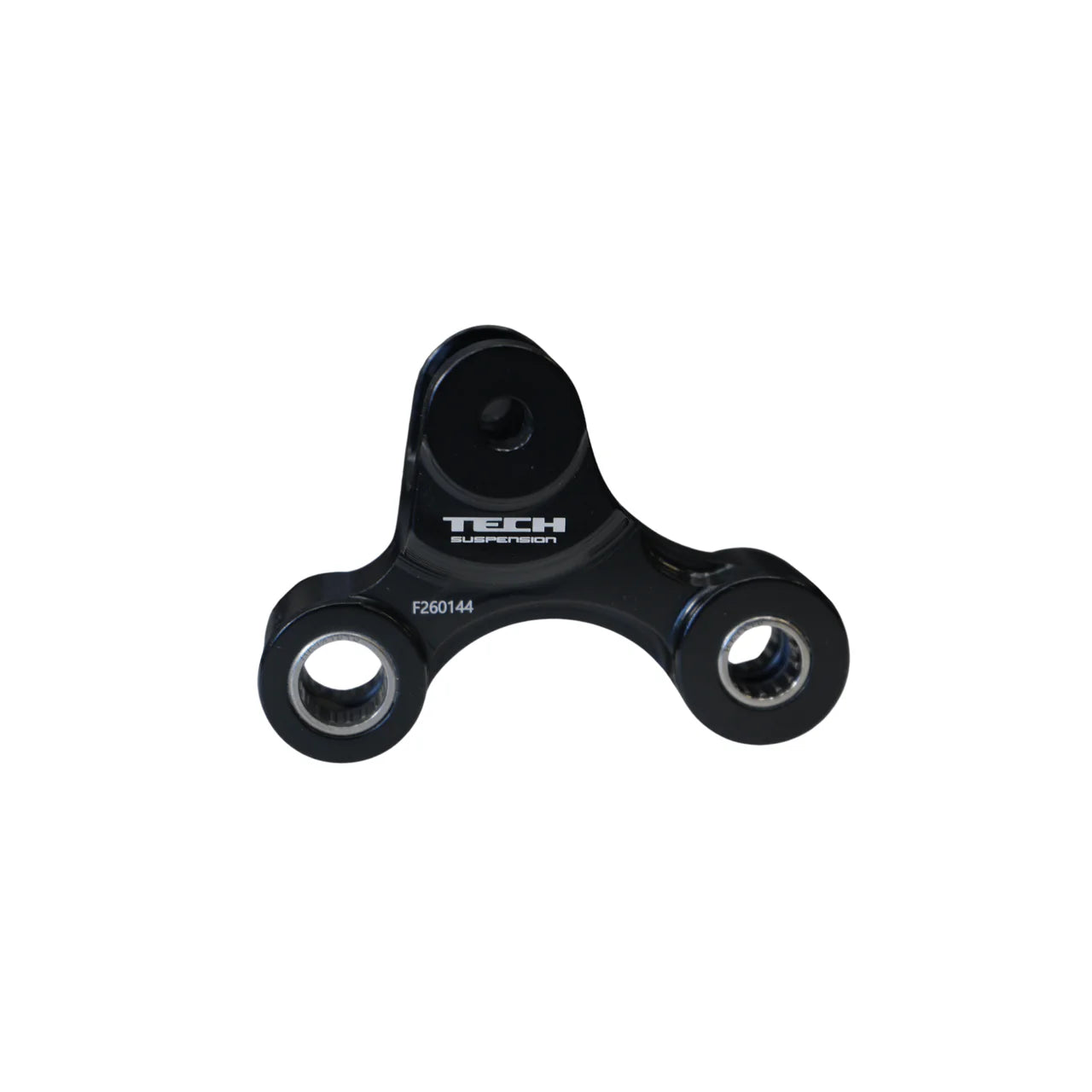

• Dedicated Talaria Link

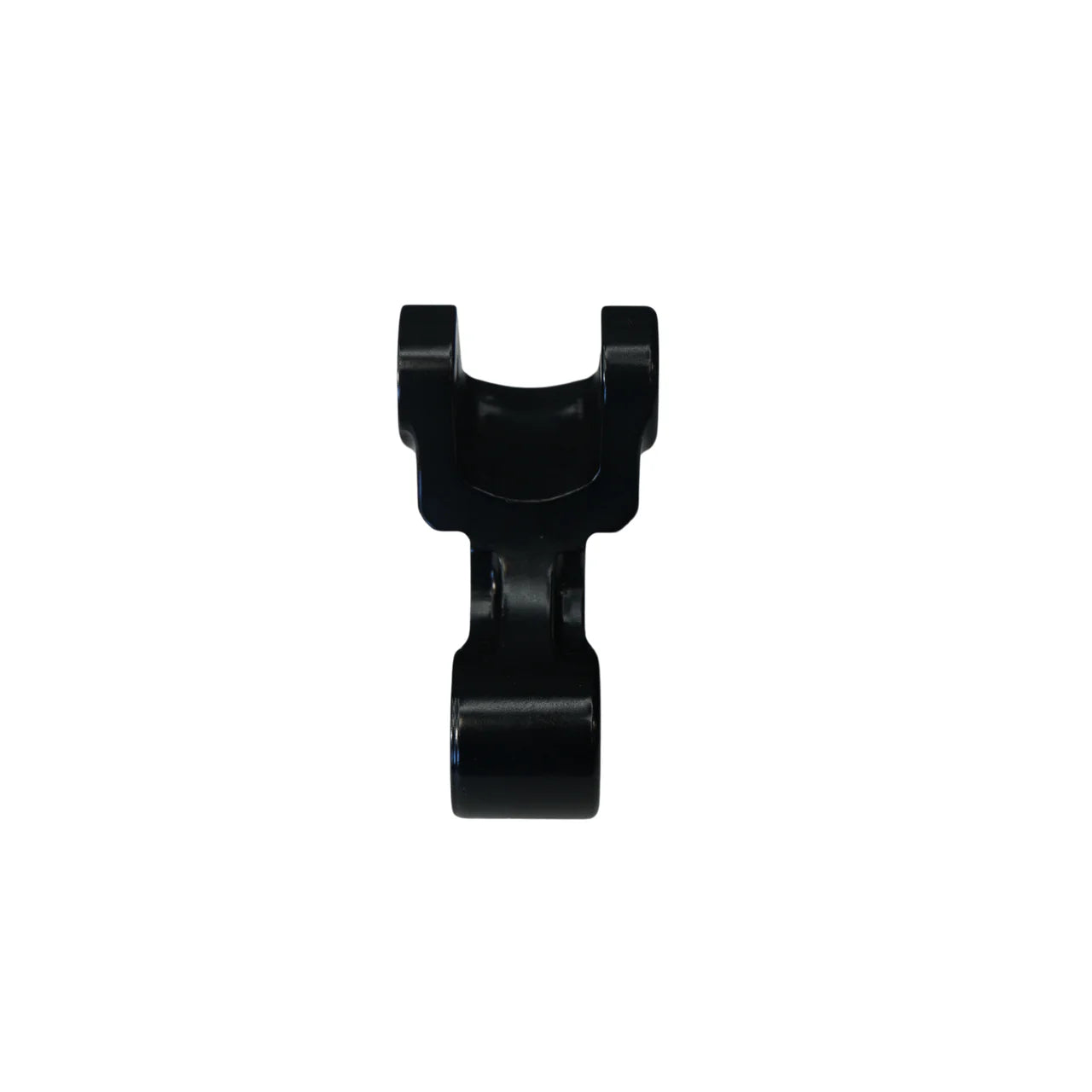

• Shortened Linkage Rod (for use with 16” wheels)

Bike Fitment:

• Talaria Sting MX3

• Talaria Sting MX4

• Talaria Sting MX5

Note: For riders using 16” rear wheels, the included shortened linkage rod ensures proper geometry and clearance.

Ready to experience next-level control and responsiveness on your Talaria? The Tech 230mm Rear Shock delivers pro-level suspension performance — built for the trail, track, and everything in between.
