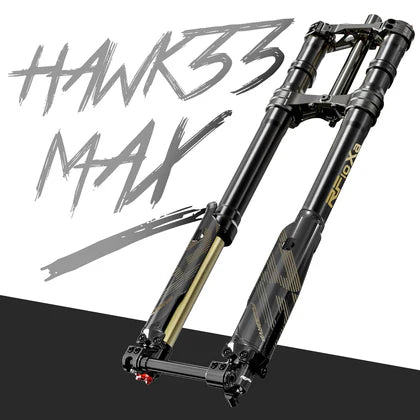

RFloXa Hawk33 Max Fork | By RFloXa Suspension | For Talaria Sting MX5

Overview

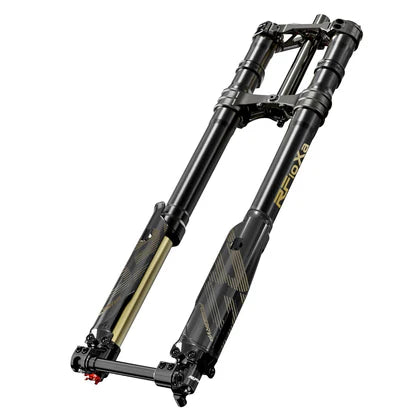

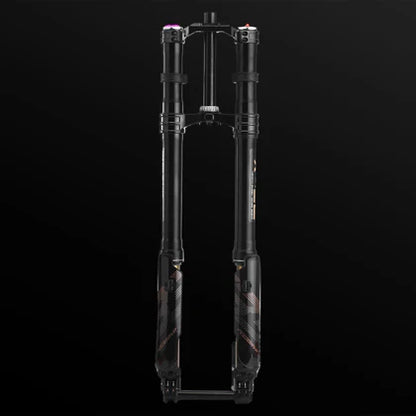

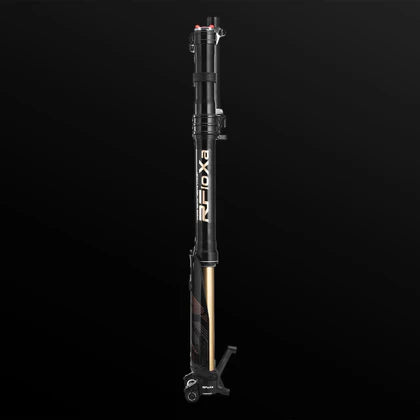

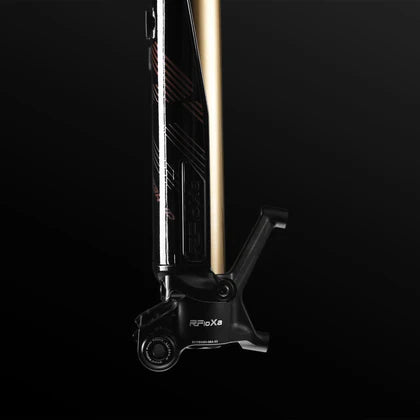

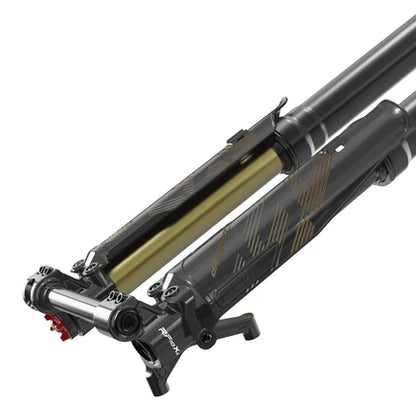

The RFloXa Hawk33 Max is a premium long-travel suspension fork engineered specifically for the Talaria Sting MX5. Designed as a direct-fit upgrade, it arrives with a preloaded bearing kit already installed so you can bolt it on immediately with no additional parts required. If you prefer the fork without the pre-pressed bearing kit, simply leave a note at checkout.

Built for aggressive off-road riders, the Hawk33 Max delivers precise damping control, customizable spring options, and a durable construction that holds up to hard hits, jumps, and demanding terrain. Its inverted oil-spring system and multi-stage adjustability make it a top-tier upgrade for MX5 owners looking to dramatically improve front-end performance.

Spring Rate Recommendations

For 203 mm Travel (19"/21" compatible)

• 45 lbs spring: riders ≤100 kg
• 60 lbs spring: 100–130 kg (ideal for heavy jumping)
• 45–60 lbs progressive spring: 80–130 kg

For 228 mm Travel (19"/21" compatible)

• 45 lbs spring: riders ≤100 kg
• 55 lbs spring: 100–130 kg

Performance Features

• Inverted Oil-Spring Damping System for improved stiffness and immediate response

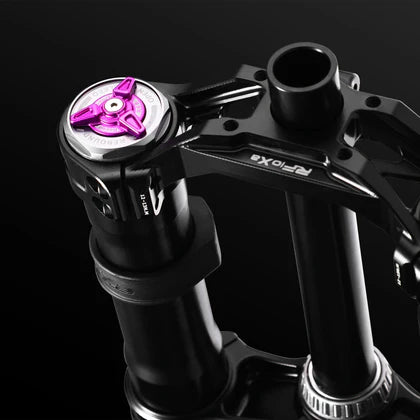

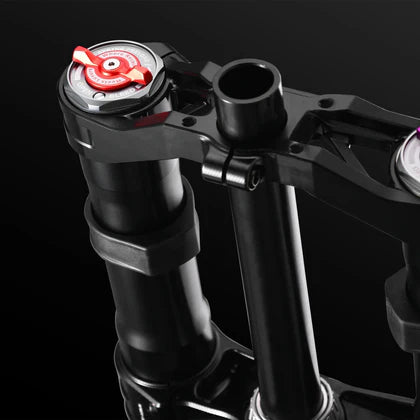

• Multi-stage adjustability including high-speed compression, low-speed compression, rebound, and spring preload
• Purpose-built for the MX5 for accurate fitment with both 19 inch and 21 inch wheel setups

Construction & Materials

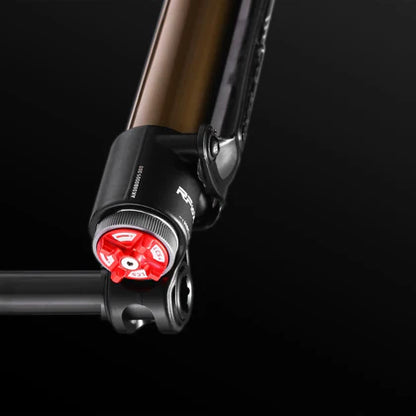

• Bottom brackets made from AL6061-T6 forged aluminum
• Fork tubes constructed from AL7075-T6 aluminum for high strength-to-weight ratio
• High-durability 55CRSI spring wire for long-term performance

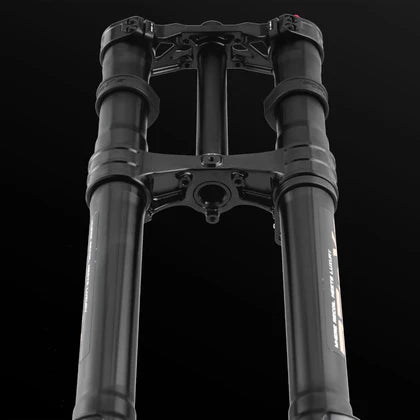

• CNC-machined triple clamp for precise alignment and structural rigidity

Technical Specifications

• Center Distance: 750–800 mm
• Main Piston Travel: 203–228 mm
• Tube Diameter: ∅37 mm
• Caliper Mount Spacing: 95.5 mm
• Disc Brake Size: ∅220 mm (upgradeable)
• Damping System: Inverted oil-spring
• Adjustments: High-speed compression, low-speed compression, rebound, spring preload

Fitment

• Talaria Sting MX5
