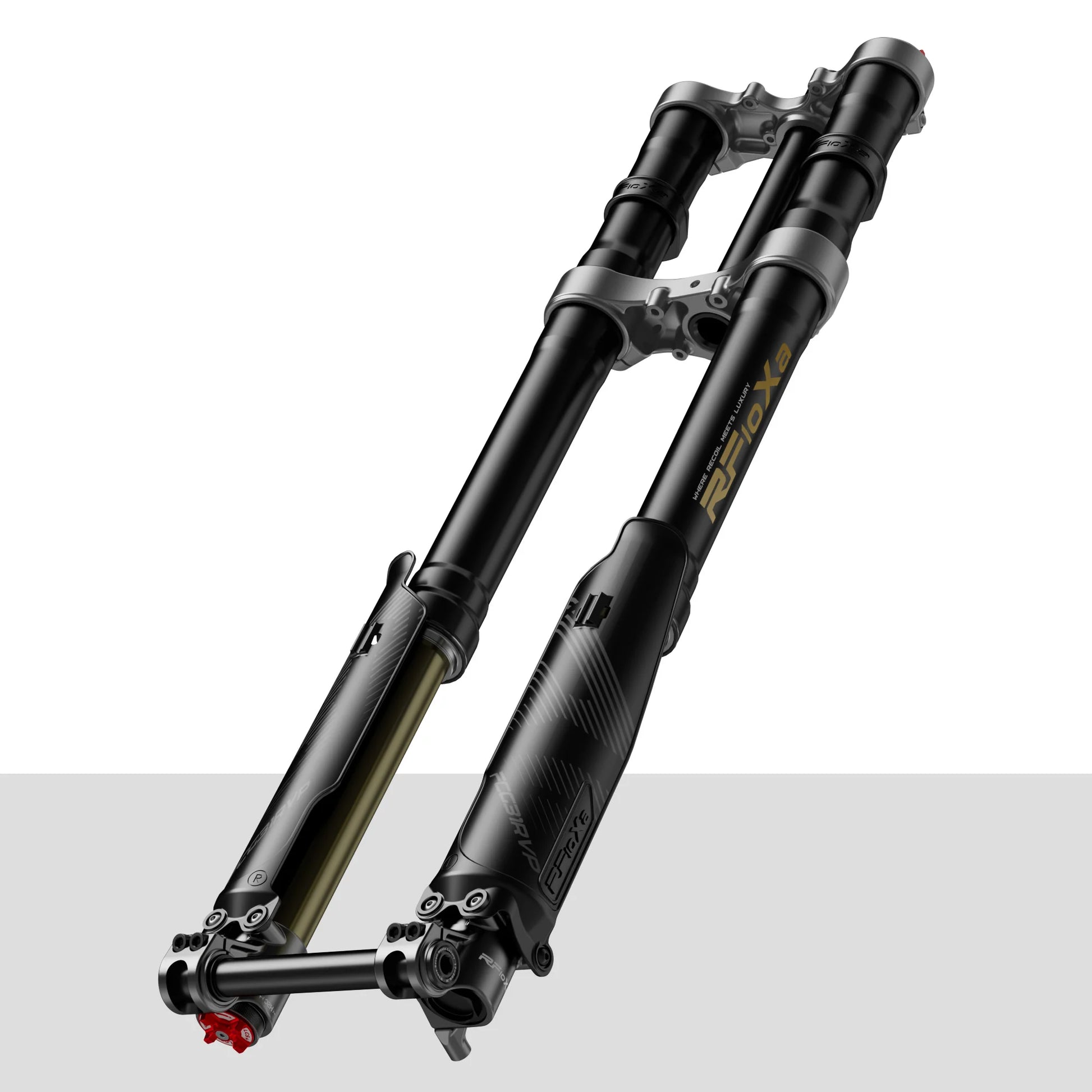

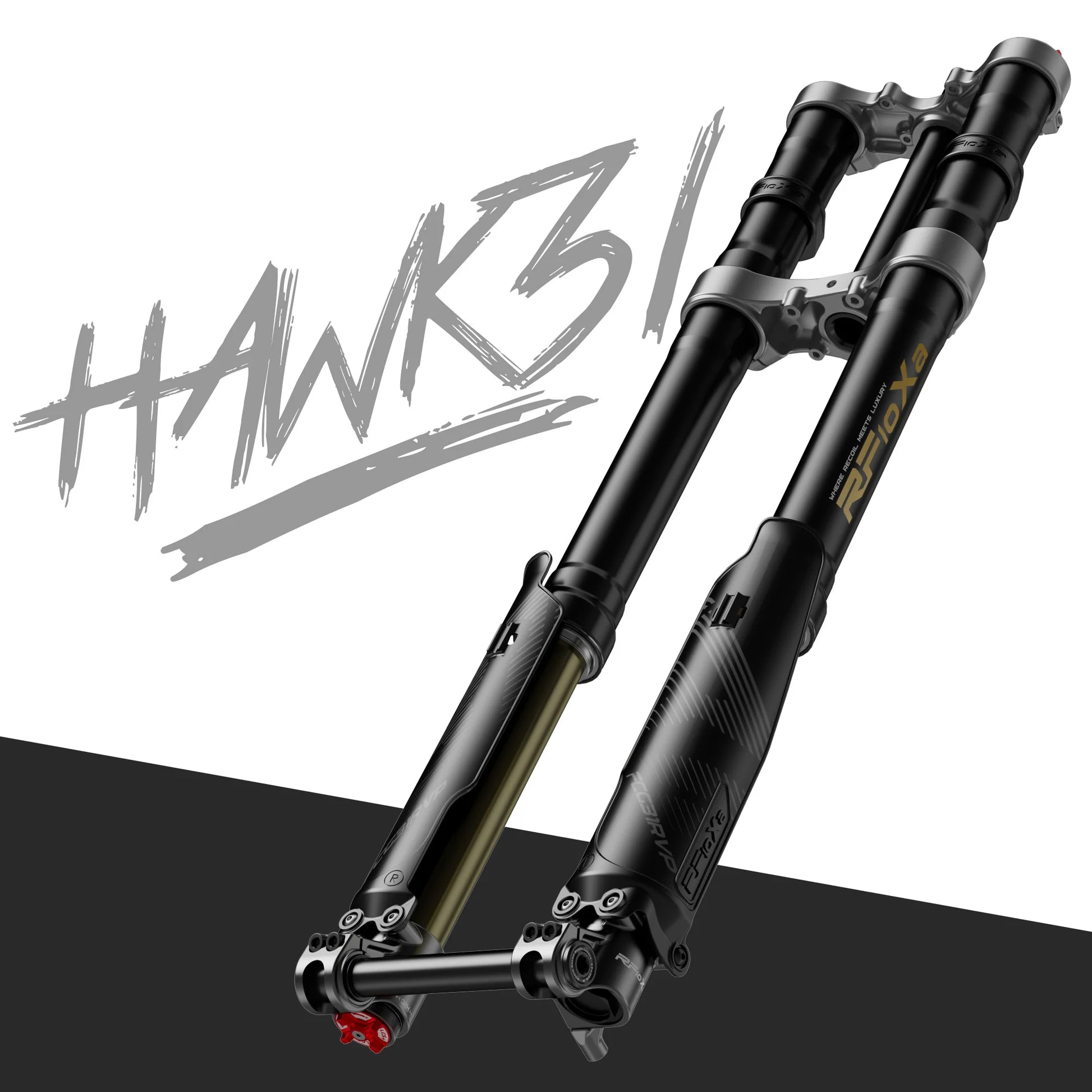

RFLOXA Hawk31 Front Fork – 203mm Travel | Performance Suspension for Surron, Talaria, E-Ride Pro & More
Built for electric dirt bike riders looking for reliable, high-performance suspension without going full pro-tier, the RFLOXA Hawk31 Front Fork delivers where it counts. With 203mm of travel, full adjustability, and a durable forged aluminum build, it’s the perfect choice for downhill trails, hard-packed tracks, and everything in between.
If you’re looking for more travel (228mm) or a wider clamp setup, check out the Hawk31 PRO/MAX version.
🔧 Key Features:
-
203mm of plush travel (228mm available in PRO/MAX versions)
-
37mm stanchions for strength and stiffness
-
74mm caliper mount spacing – compatible with 203mm rotors (upgradeable to 220mm with adapter)
-

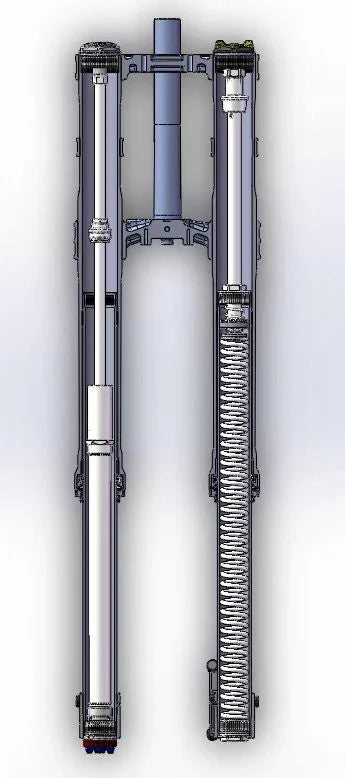

Asymmetrical inverted fork design – independent oil-spring damping left & right
-
Multi-stage manual adjusters for:
-
High-speed compression
-
Low-speed compression
-
Rebound
-
Spring preload
-
-
Oil pressure bottom-out support – absorbs big hits without jarring your frame
-
Dual valve compression plate design for smoother damping
-
Low-friction, temperature-resistant suspension oil for all-weather consistency
🧱 Construction:
-
Bottom Brackets: AL6061-T6 forged aluminum
-
Fork Tubes: AL7075-T6 alloy
-
Spring Wire: 55CRSI
-
Fork Center Distance: 750–800mm
⚖️ Spring Rate Options:
-
45 lb spring – Riders ≤ 100kg (≤ 220 lbs)
-
60 lb spring – Riders 100–130kg (220–285 lbs)
-
Progressive 45–60 lb spring – Riders 80–130kg (175–285 lbs)
✅ Fitment Compatibility:
-
Surron Light Bee LBX / LBS / L1E
-
Talaria Sting MX3 / MX4 / XXX
-
Segway X260 / X160
-
E-Ride Pro S / SS 1.0 / SS 2.0
-
Rawrr Mantis
-
79 Bike Falcon M
-
Ventus One
-
RFN Apollo
-
Rerode R1
⚠️ Fitment Notes:
Some frames, like the Talaria Sting R (MX4), may require minor grinding on the fork outer tubes to avoid contact with the frame — similar to Fox 40 installs on Light Bee. This is normal with aftermarket suspension and will not affect performance if done carefully.
⚠️ Brake Adapter Notice (Front Fork Only):
-
Currently not plug-and-play with larger brake calipers found on:
-
Altis Sigma
-
SRPNT Moto
-
E-Ride Pro SS 3.0
-
E-Ride Pro SR
-
These setups require a brake adapter that is not yet available — but it’s in the works. If you’re running Volar Sport Racing calipers, REV Rides can special order a compatible front adapter for you. Reach out and we’ll help you get dialed in.
🧠 FAQ
Q: Does the Hawk31 fit my Surron or Talaria?
A: Yes – it’s a direct fit for most models. On Talaria Sting R (MX4), minor frame contact may require sanding or grinding on the fork lowers, as is common with many aftermarket forks.
Q: How does it compare to the Hawk31 PRO?
A: The standard Hawk31 is a more affordable version with all the key adjustments and 203mm travel. The PRO/MAX versions offer wider triple clamps, CNC machining, and up to 228mm travel for more aggressive riders.
Q: How does it stack up to Fastace ALX13RC forks?
A: The Hawk31 features multi-stage preload, dual compression damping, and a sturdier bottom-out system — giving it better small bump sensitivity and more adjustability out of the box.
