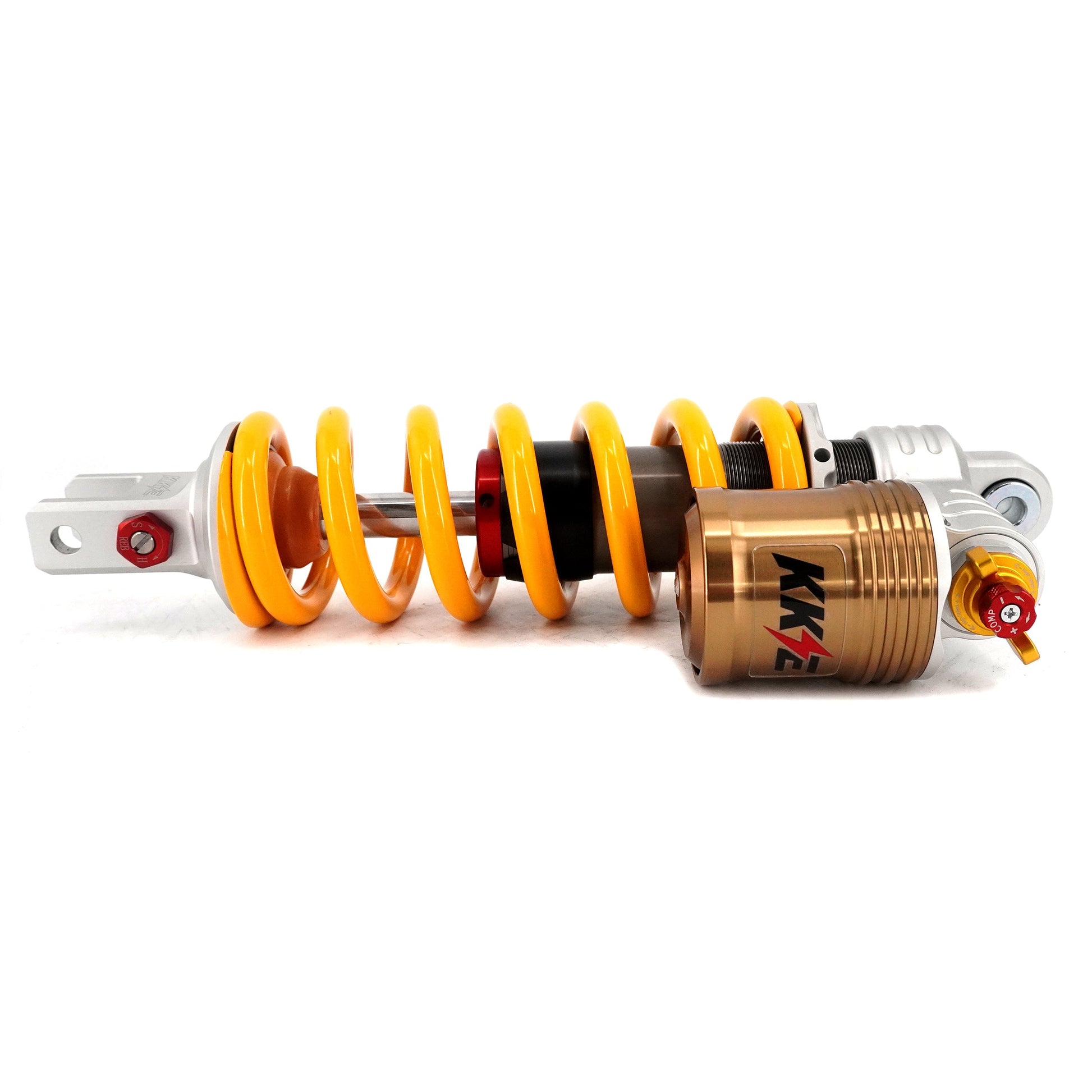

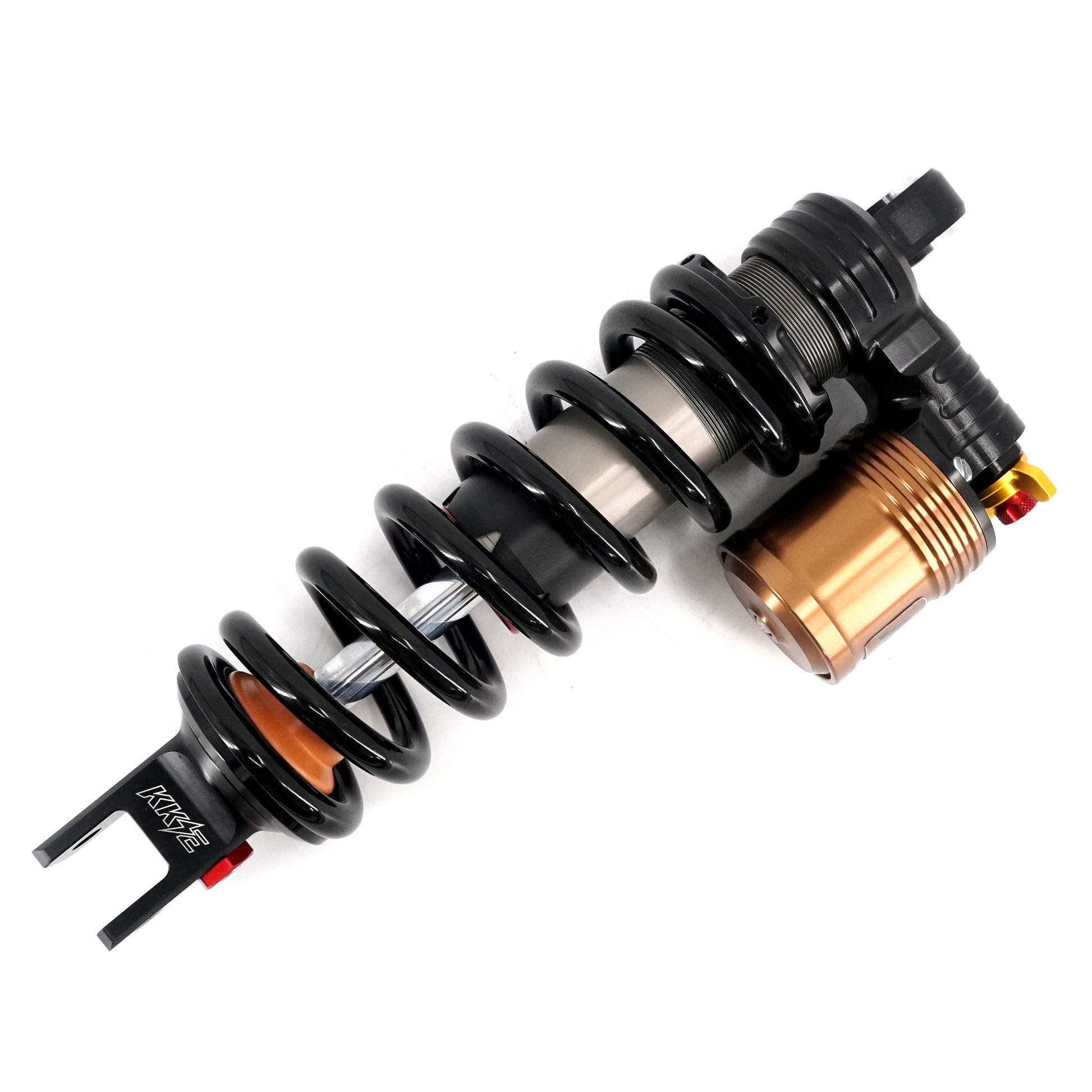

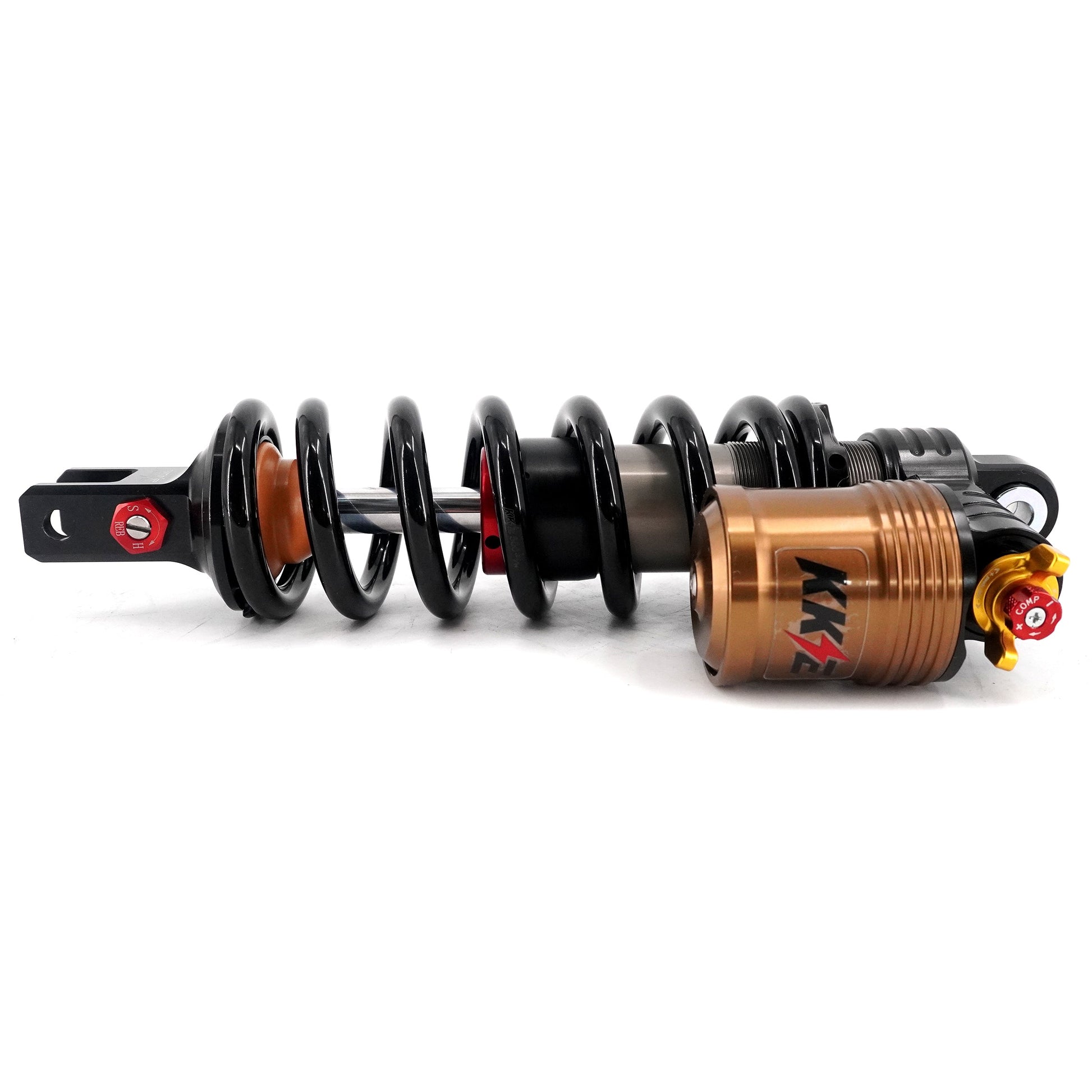

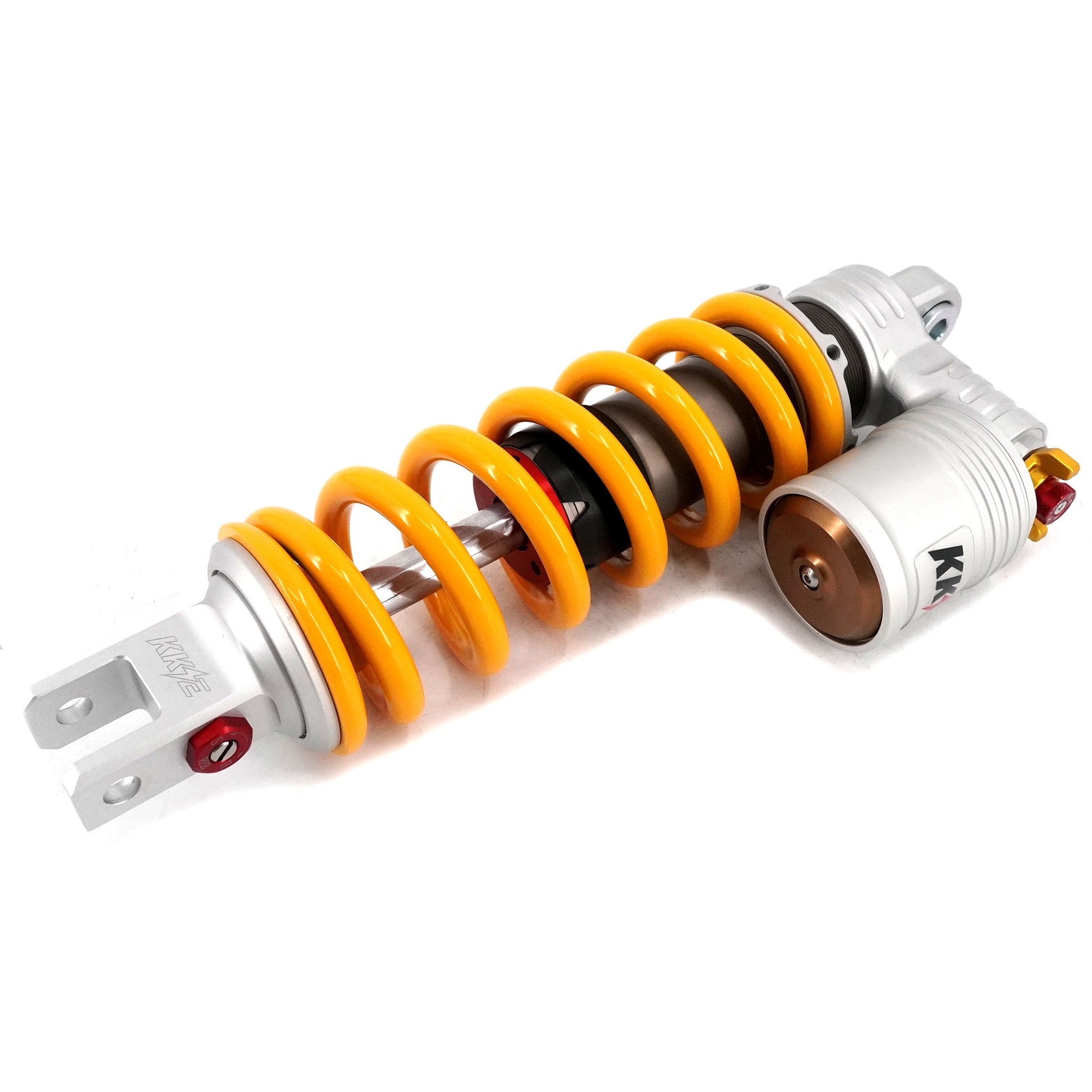

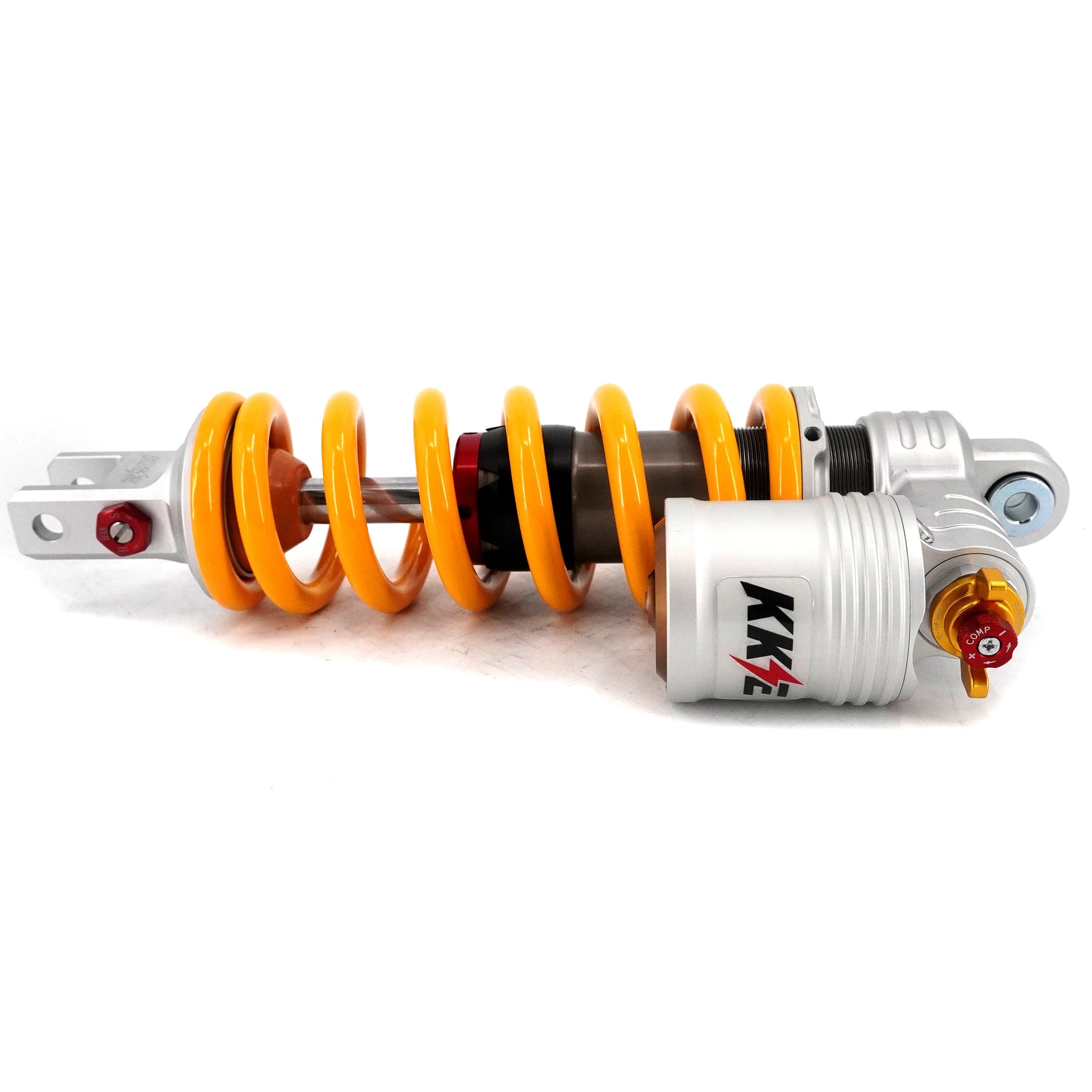

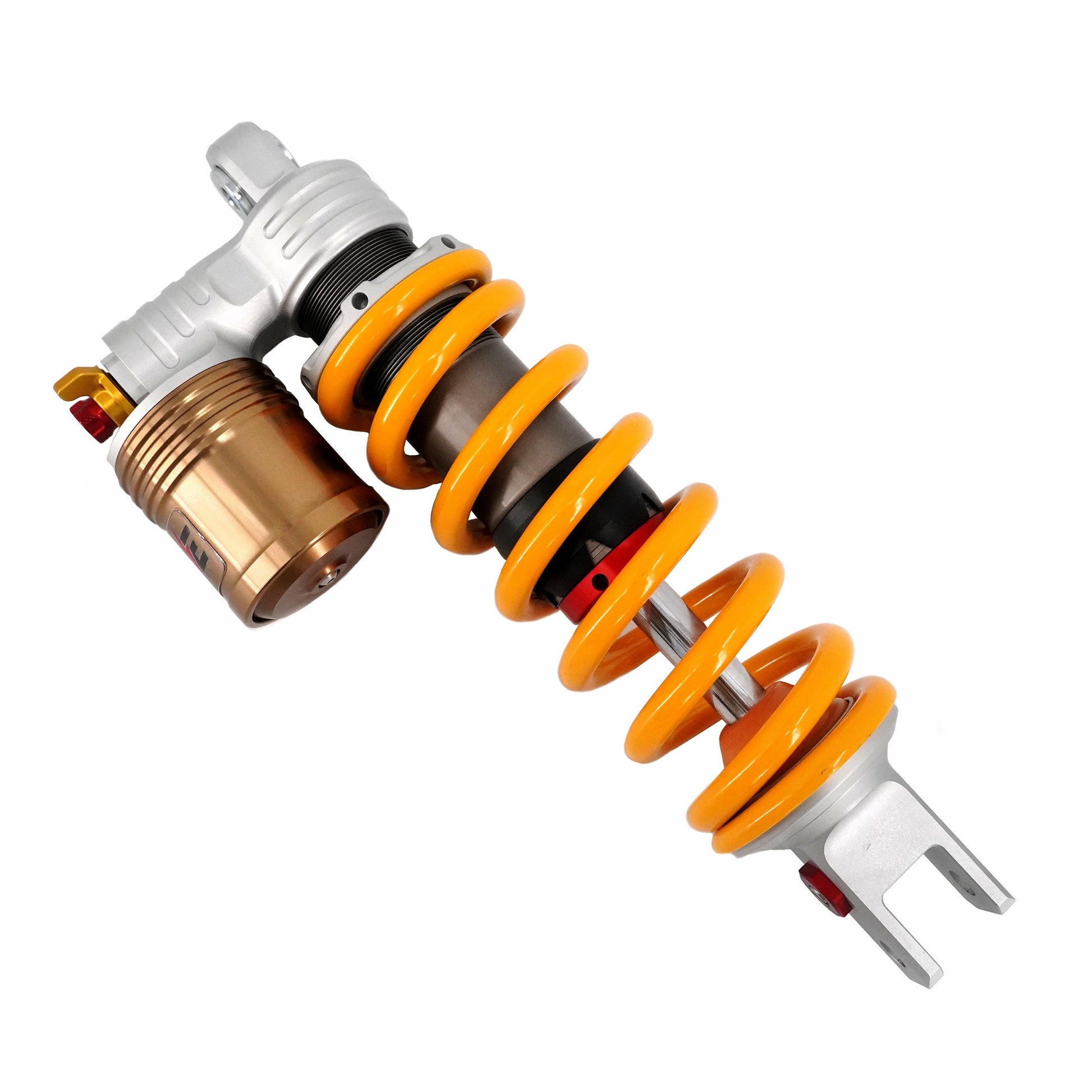

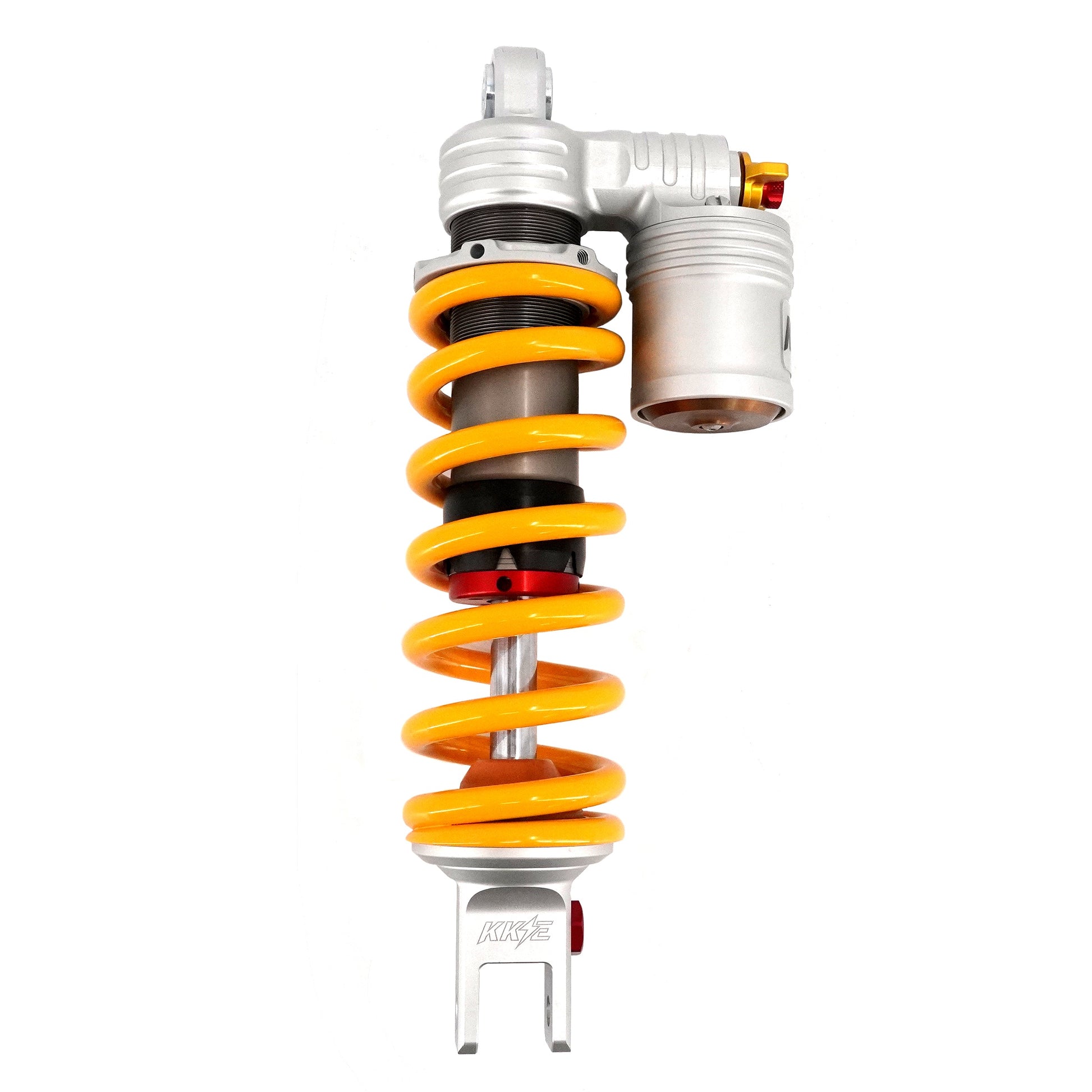

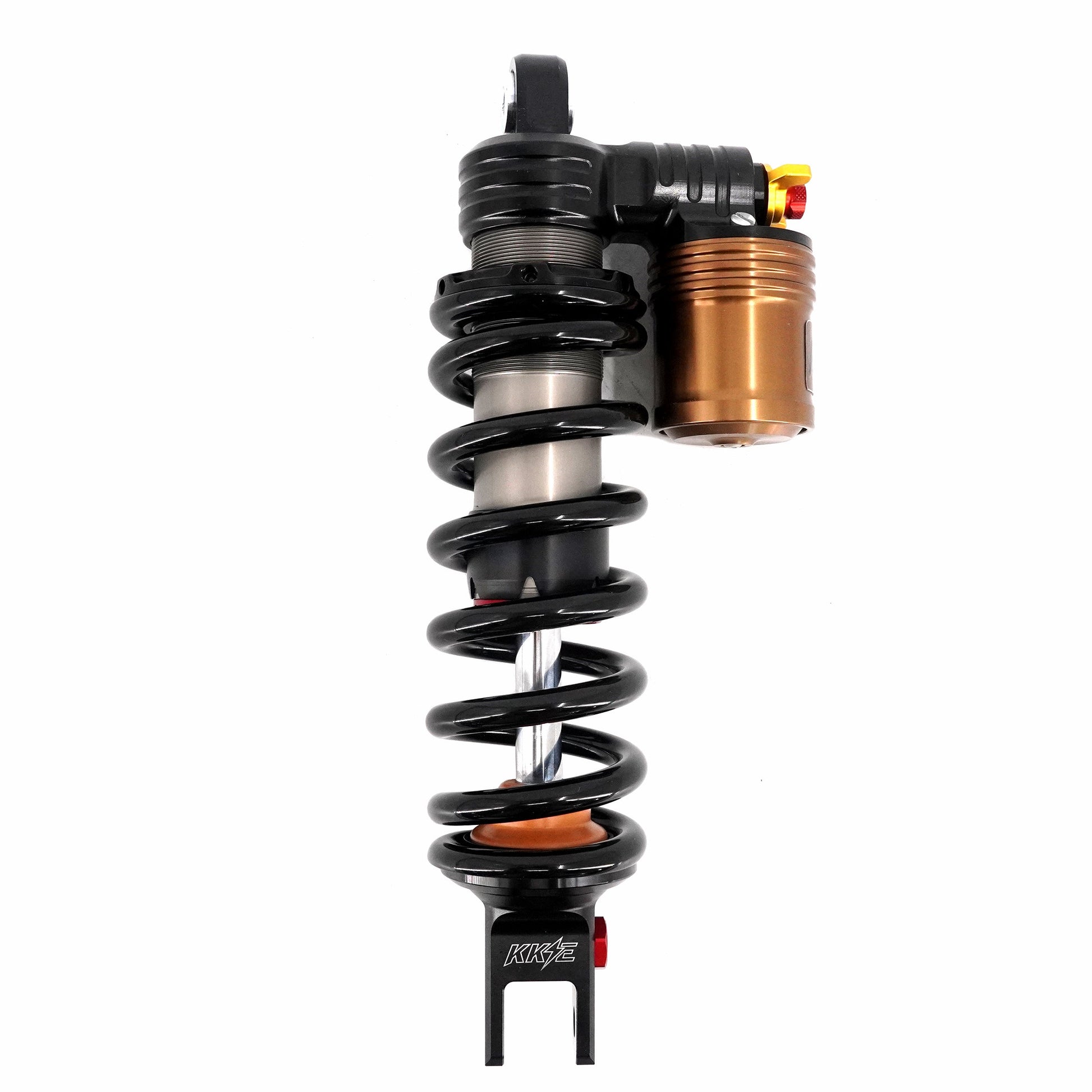

KKE Upgraded Rear Suspension Shock Absorber | By KKE | For SurRon Ultra Bee Electric Dirt Bike
This upgraded KKE rear shock is a serious performance improvement for the SurRon Ultra Bee, built for riders who want more control, better support, and consistent damping across aggressive trail and mixed riding. KKE designed this shock around a large 40mm bore and a 500lb spring rate, giving the Ultra Bee a much more planted feel under acceleration, braking, and repeated hits.
Every major component is CNC machined from high-grade aluminum alloys, with a hardened and chrome-plated piston rod and professionally calculated oil channels to keep damping predictable and fade-resistant. Internal hydraulic cushioning and upgraded all-metal internals further improve durability and long-term performance, especially for riders pushing the bike harder than stock suspension allows.
Technical Specifications
Total Length: 320mm
Top Mounting Size: 10 x 24
Bottom Fork Size: 10 x 24.2
Upper Mount: AL6061-T6, matte silver or black, full CNC machining
Lock Nut: AL6061-T6, matte silver or black, full CNC machining
Spring Guide Bushing: POM, black, oil cylinder protection

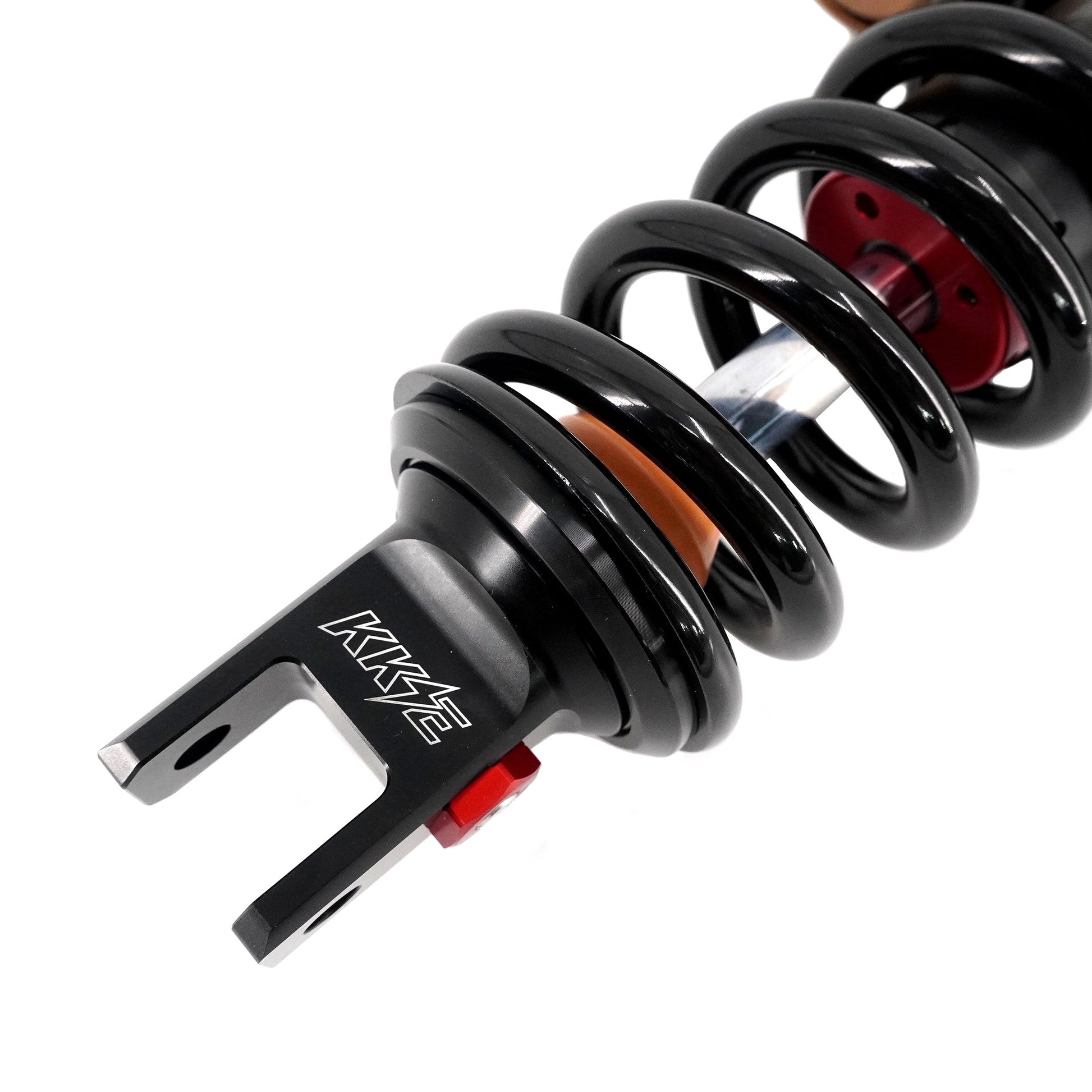

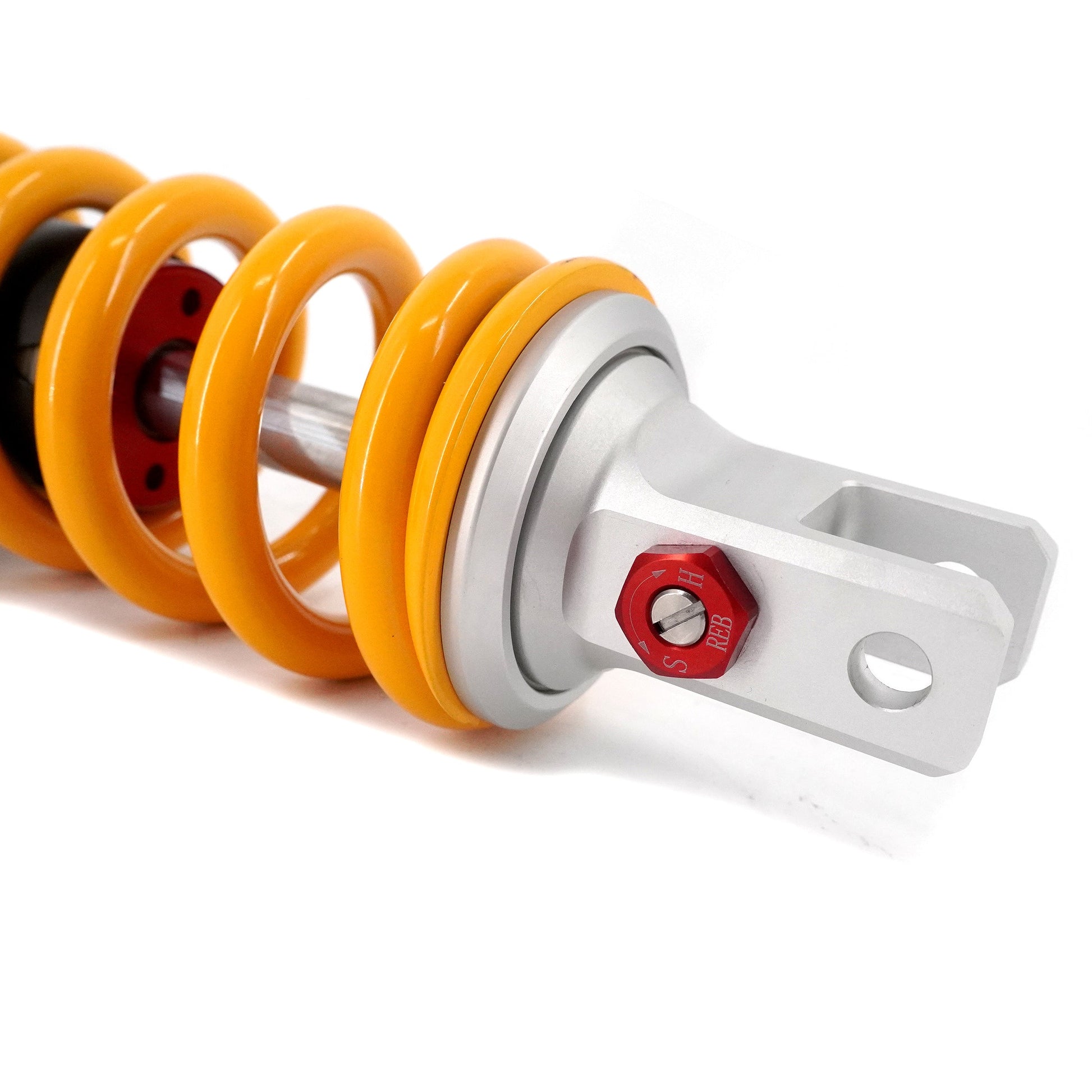

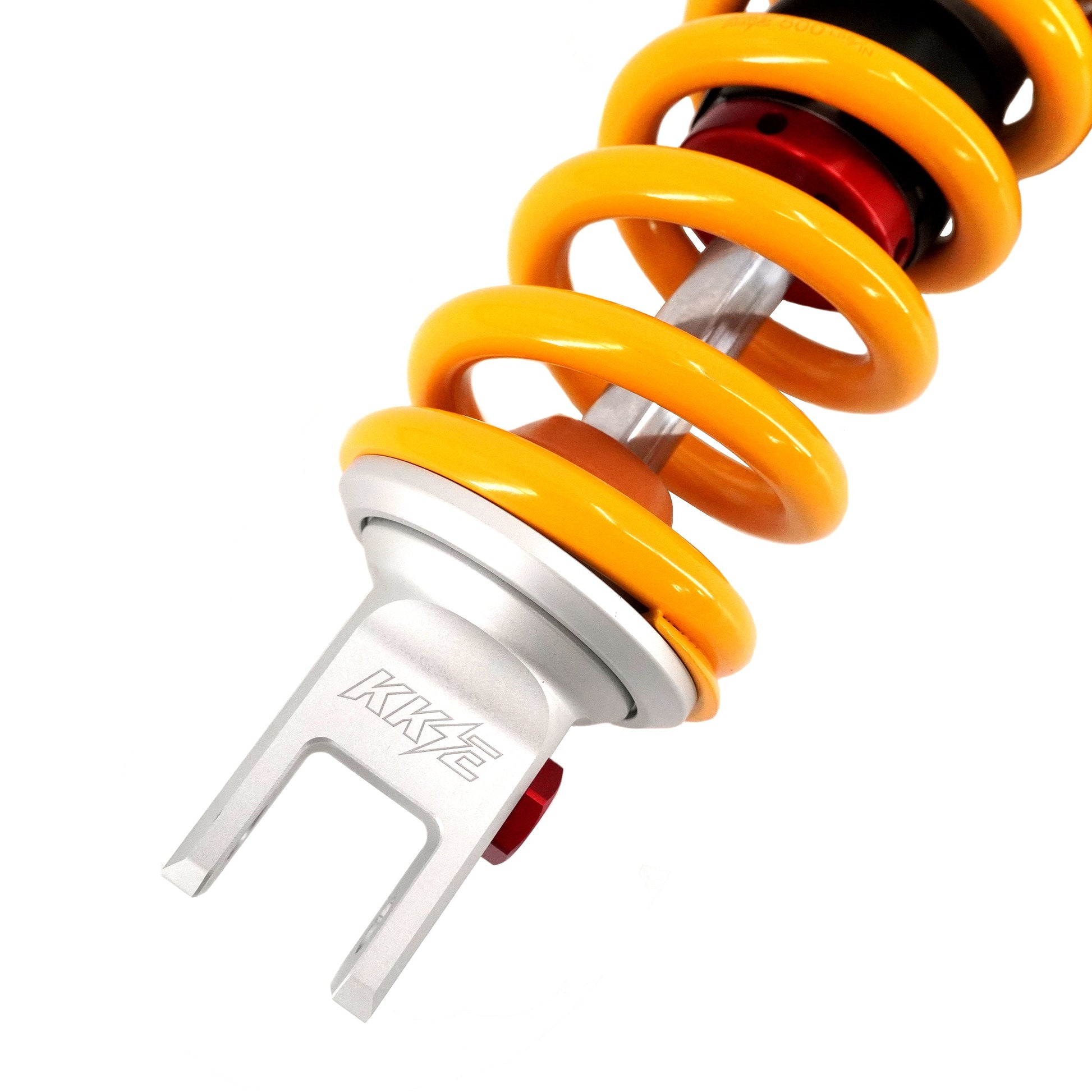

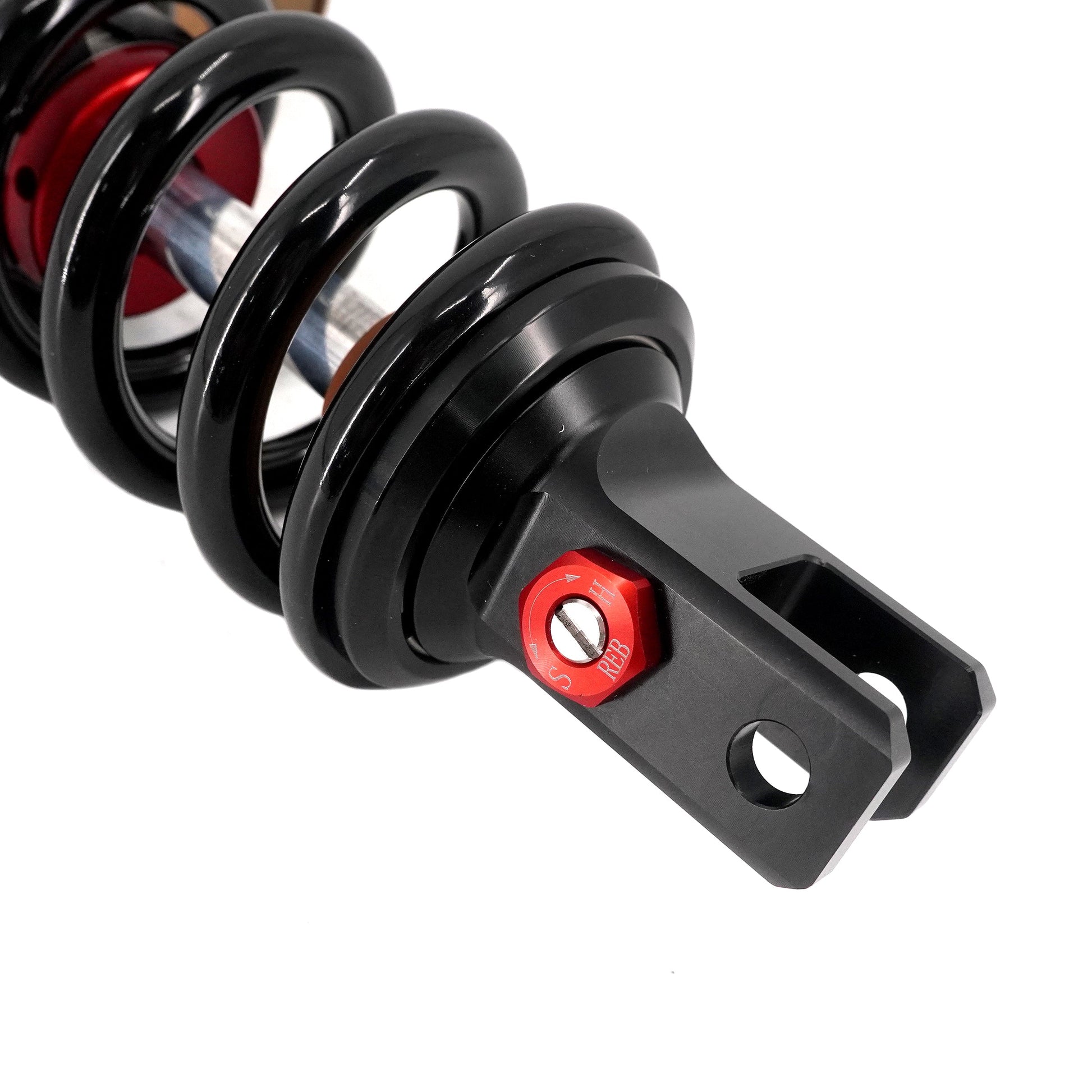

Lower Fork: AL6061-T6, matte silver or black, full CNC machining

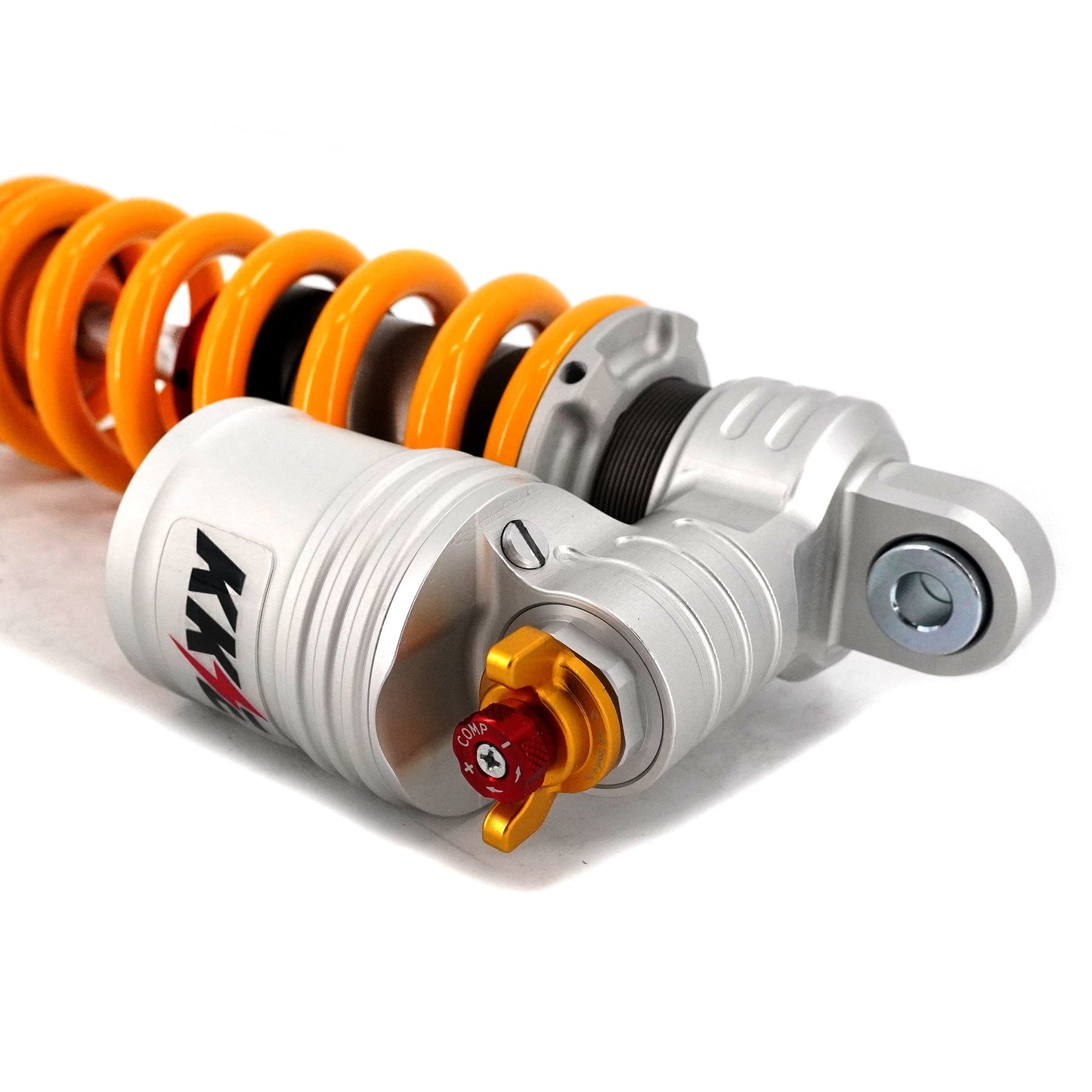

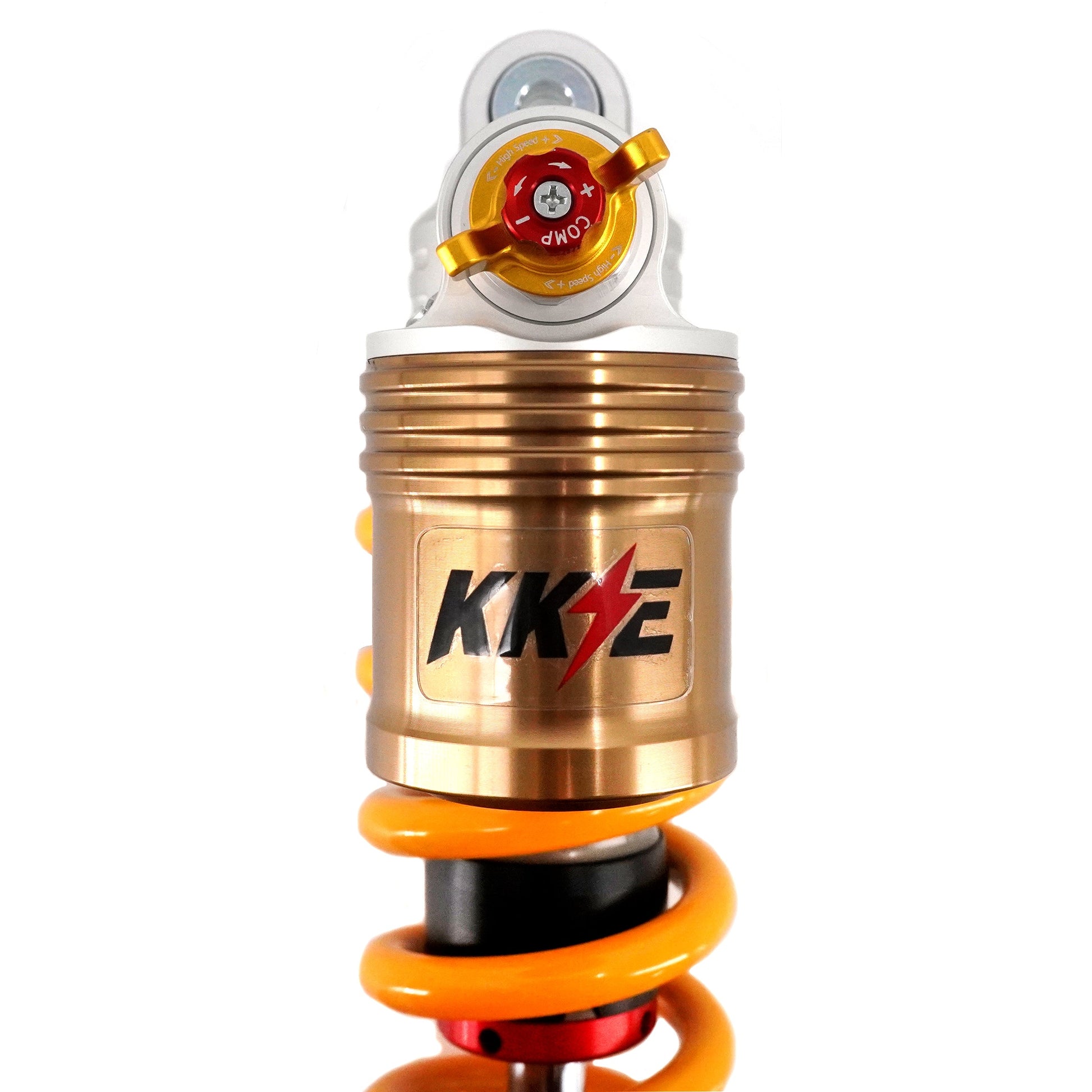

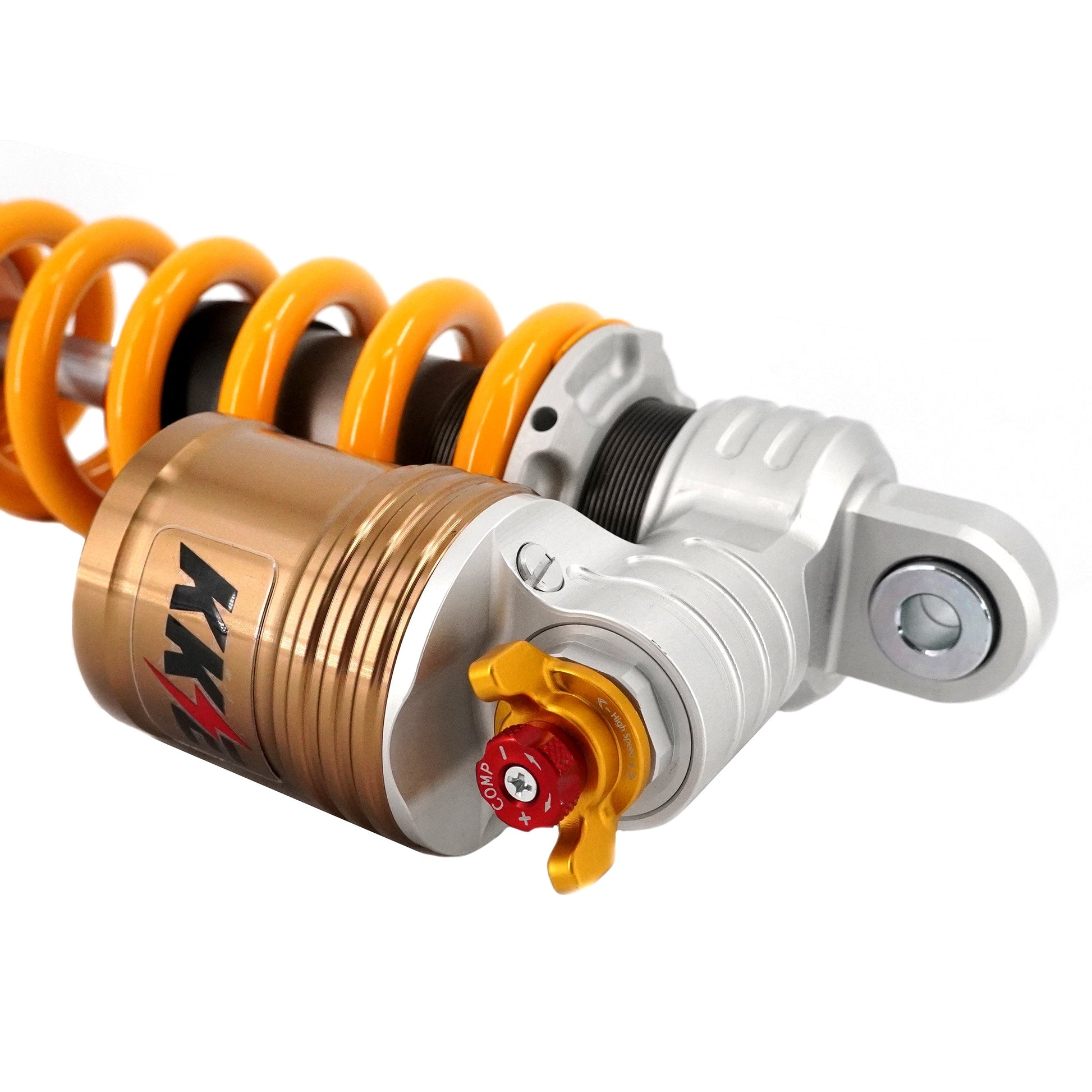

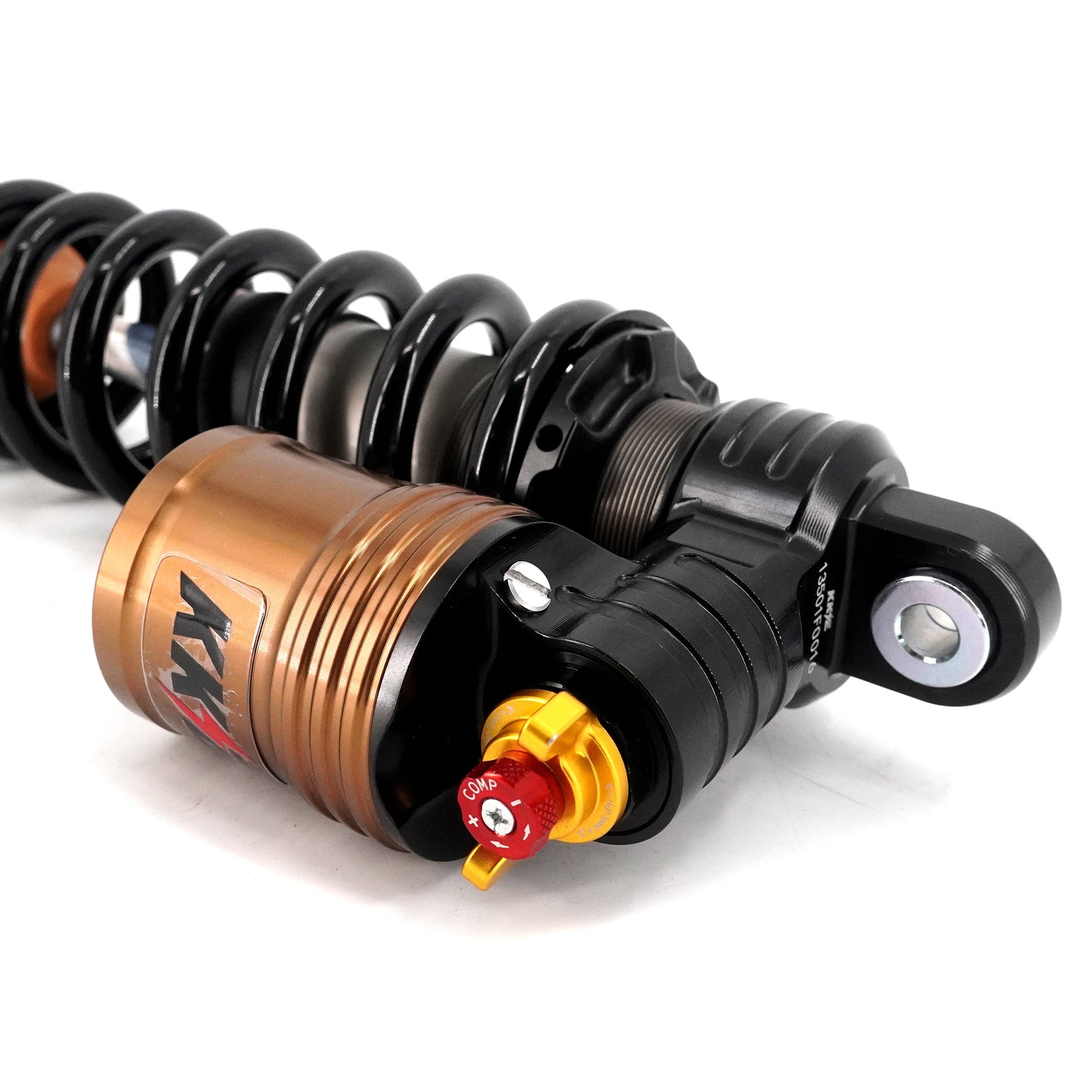

High-Speed Compression Adjuster: AL6061-T6, gold, full CNC precision machining
Low-Speed Compression Adjuster: AL6061-T6, red, full CNC precision machining

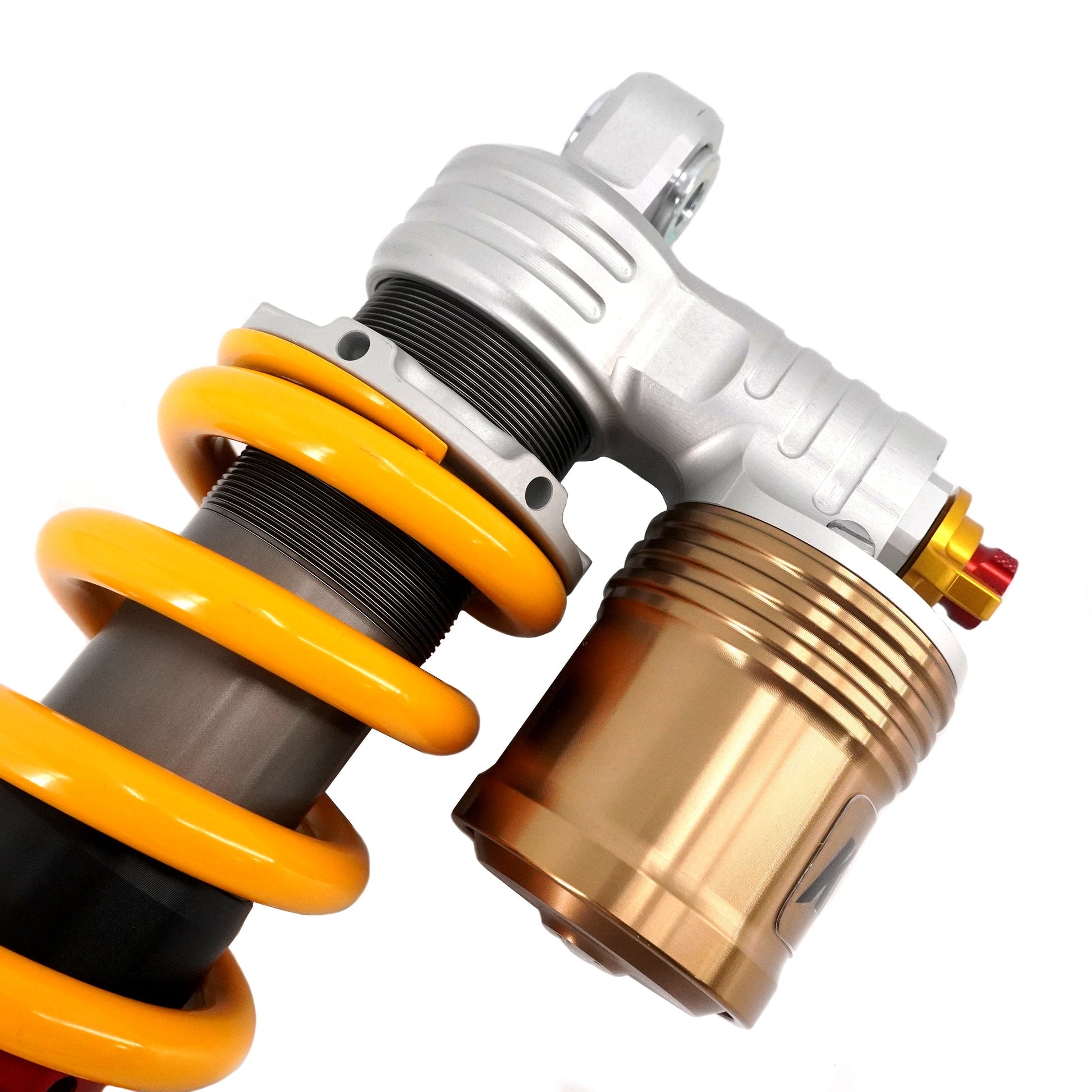

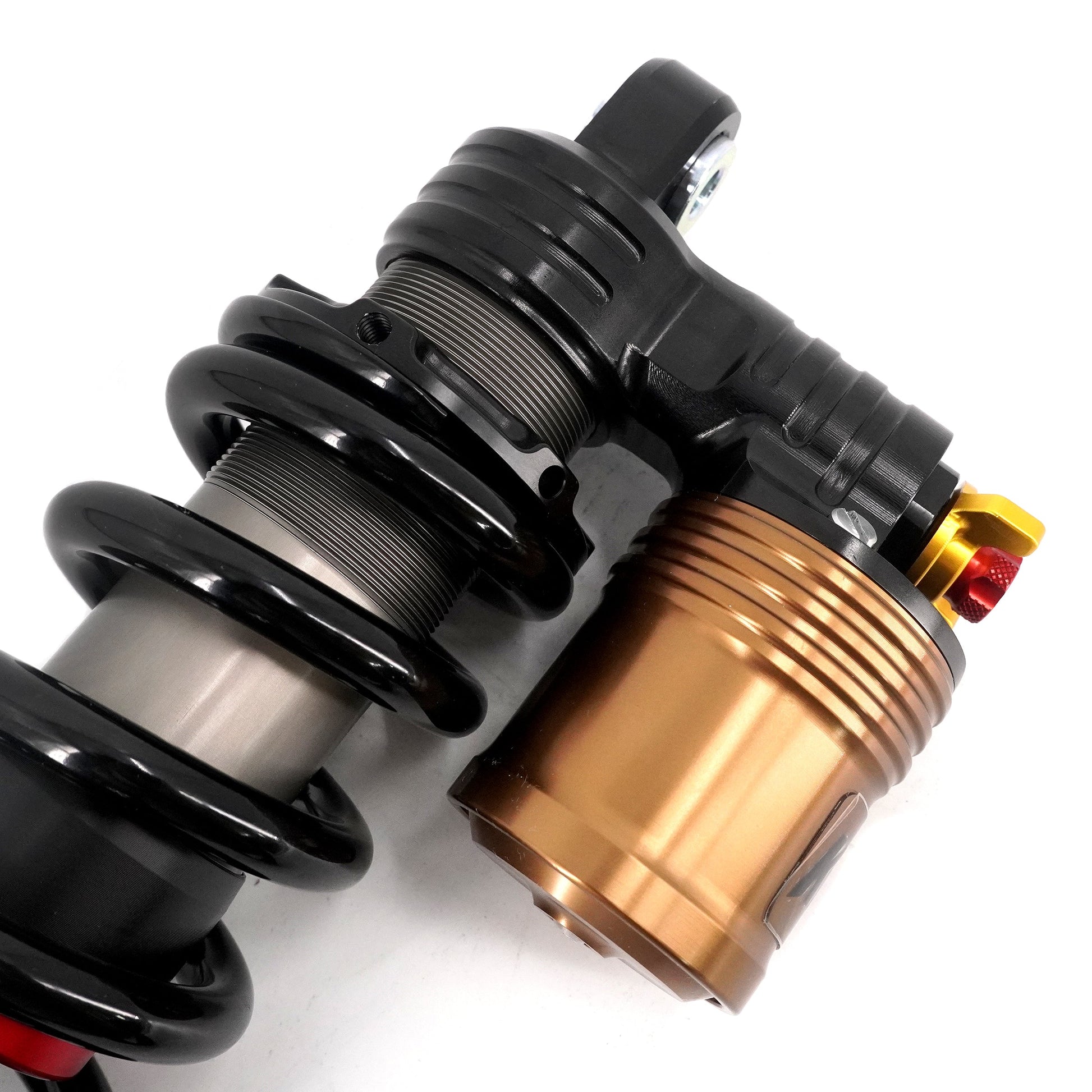

Air Chamber: AL6061-T6, matte silver or champagne gold, precision-drawn tube
Oil Chamber: AL7075-T6, raw aluminum, precision machined with honing process
Piston Rod: 40Cr steel, nickel plated then hard chrome plated
Shock Spring: 55CrSi-C-GB, left-hand high-performance spring
Shock Pad: Polyurethane, yellow, automotive-grade performance material
Key Performance Features
40mm large cylinder bore for increased oil volume and tunable damping

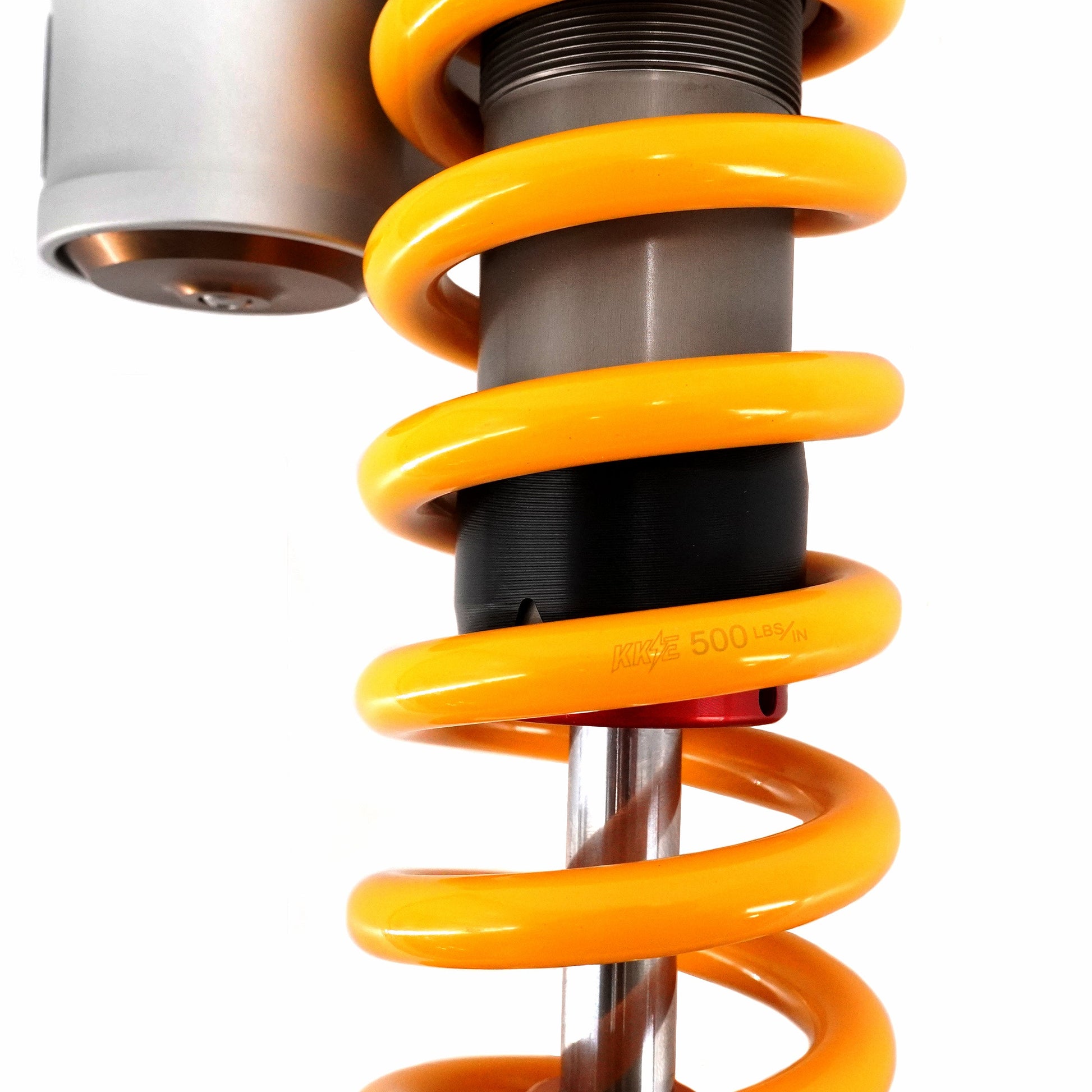

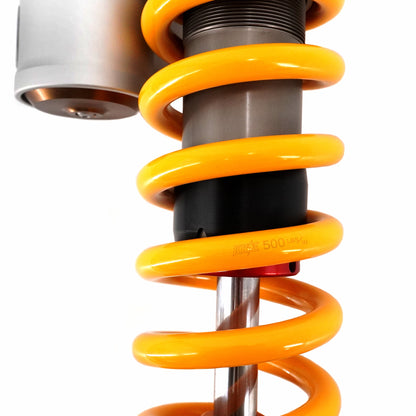

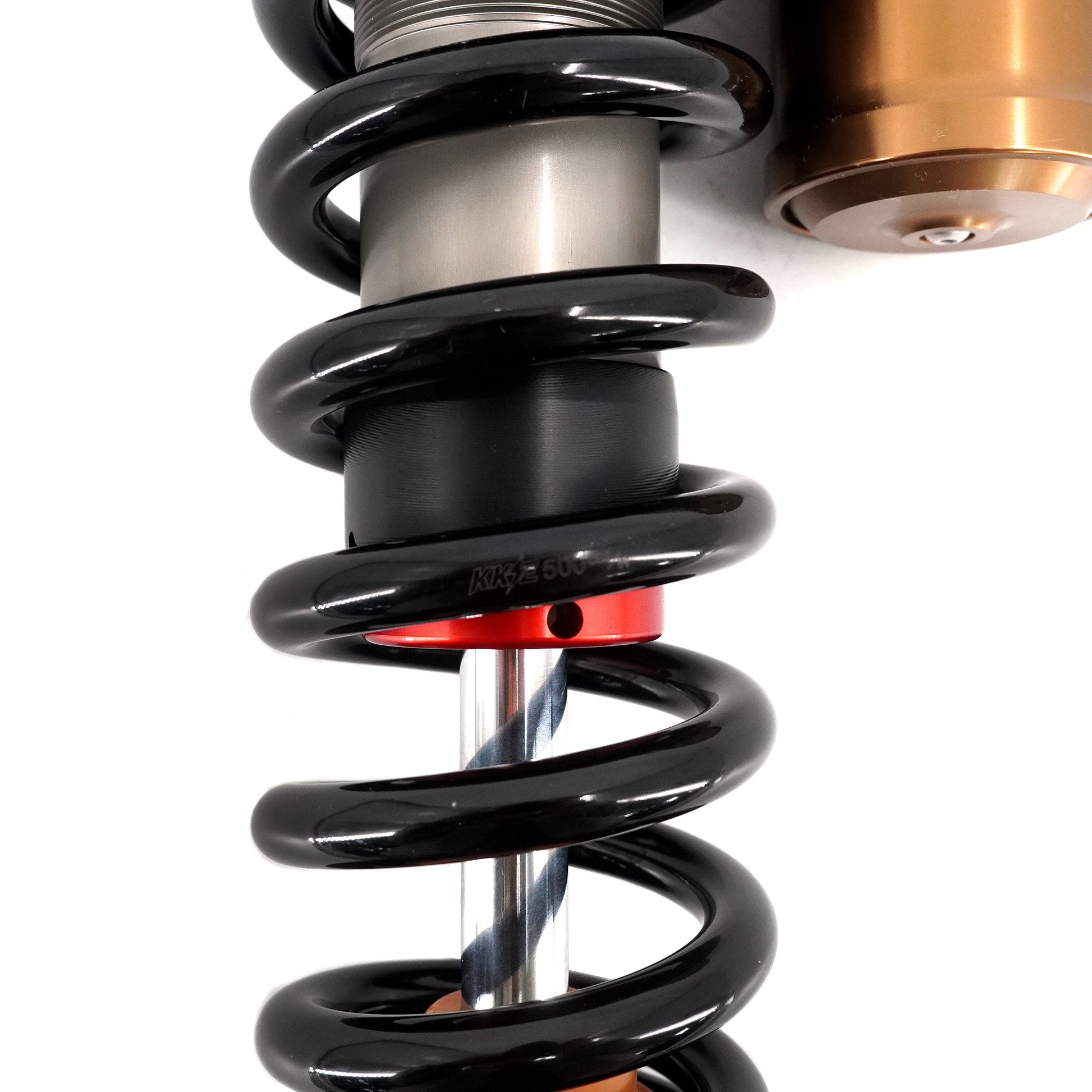

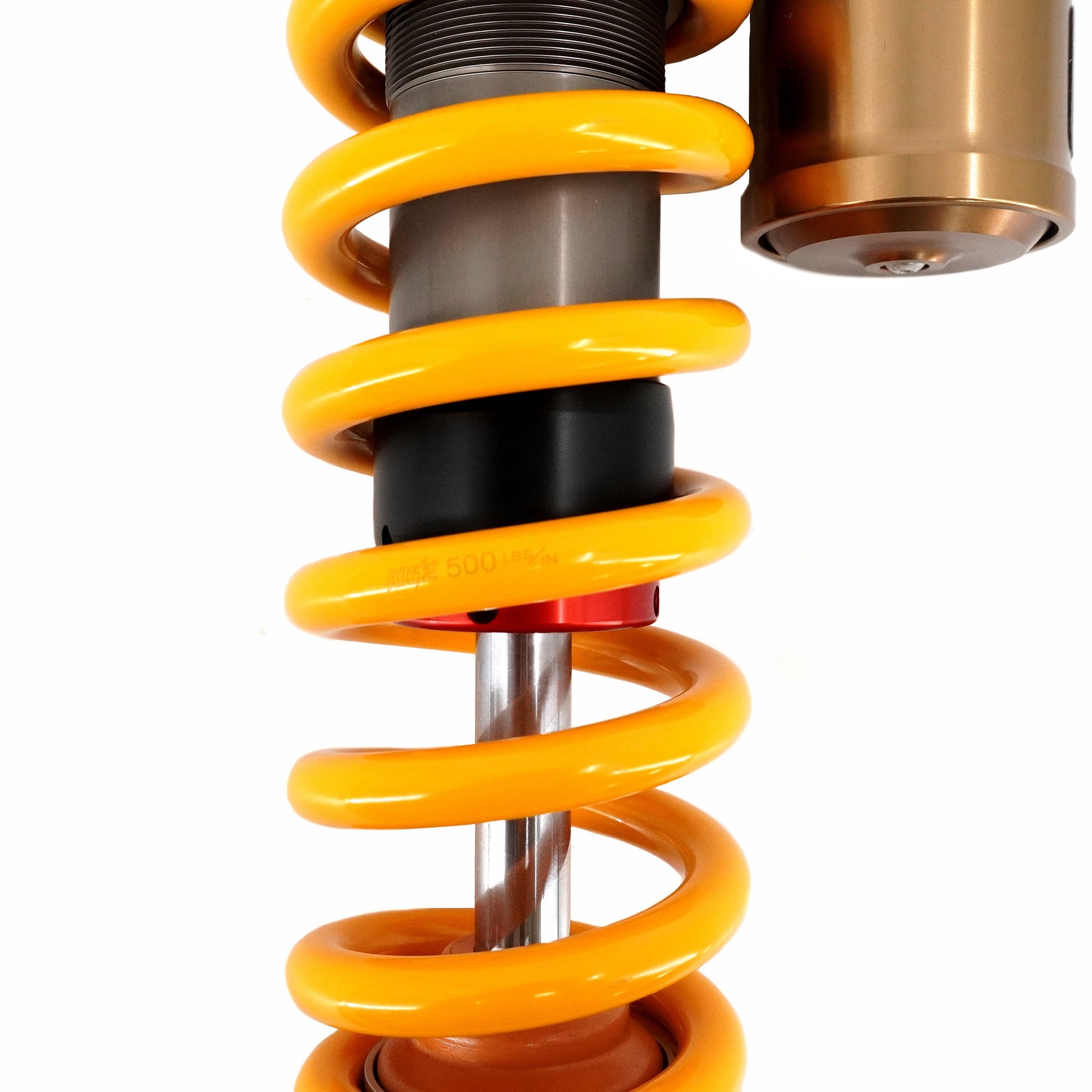

Upgraded 500lb spring rate for stronger support and improved stability
16.0mm piston rod optimized for rebound and compression oil flow balance
High-speed compression adjustment for a wider tuning range
Internal hydraulic cushioning for smoother bottom-out control
All internal rubber components replaced with upgraded metal internals
Professionally calculated oil channels to maximize shock efficiency
Imported high-performance shock oil for stable damping and low temperature fade
Extensively tested and professionally tuned damping setup
Adjustment Range
Rebound Adjustment: 15 ± 2 clicks
Low-Speed Compression: 18 ± 3 clicks
High-Speed Compression: 18 ± 3 clicks
Preload Adjustment Range: 0 to 10mm
Rider Weight Recommendation
The included 500lb spring is recommended for riders weighing approximately 65 to 85 kg. With the available click adjustments, this shock can effectively handle around 90 percent of real-world road and trail conditions when properly tuned.
Fitment
SurRon Ultra Bee 2023
SurRon Ultra Bee 2024
SurRon Ultra Bee 2025

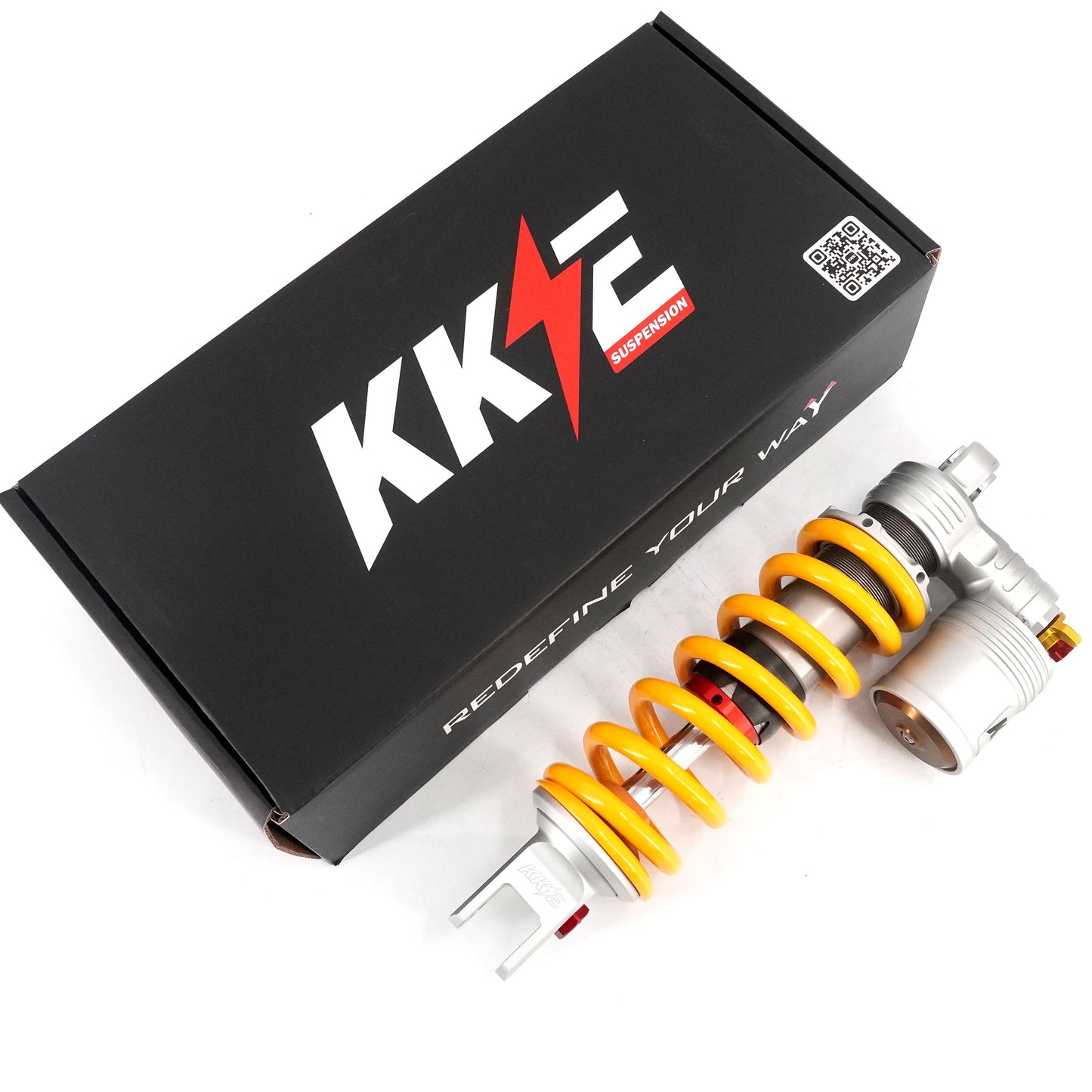

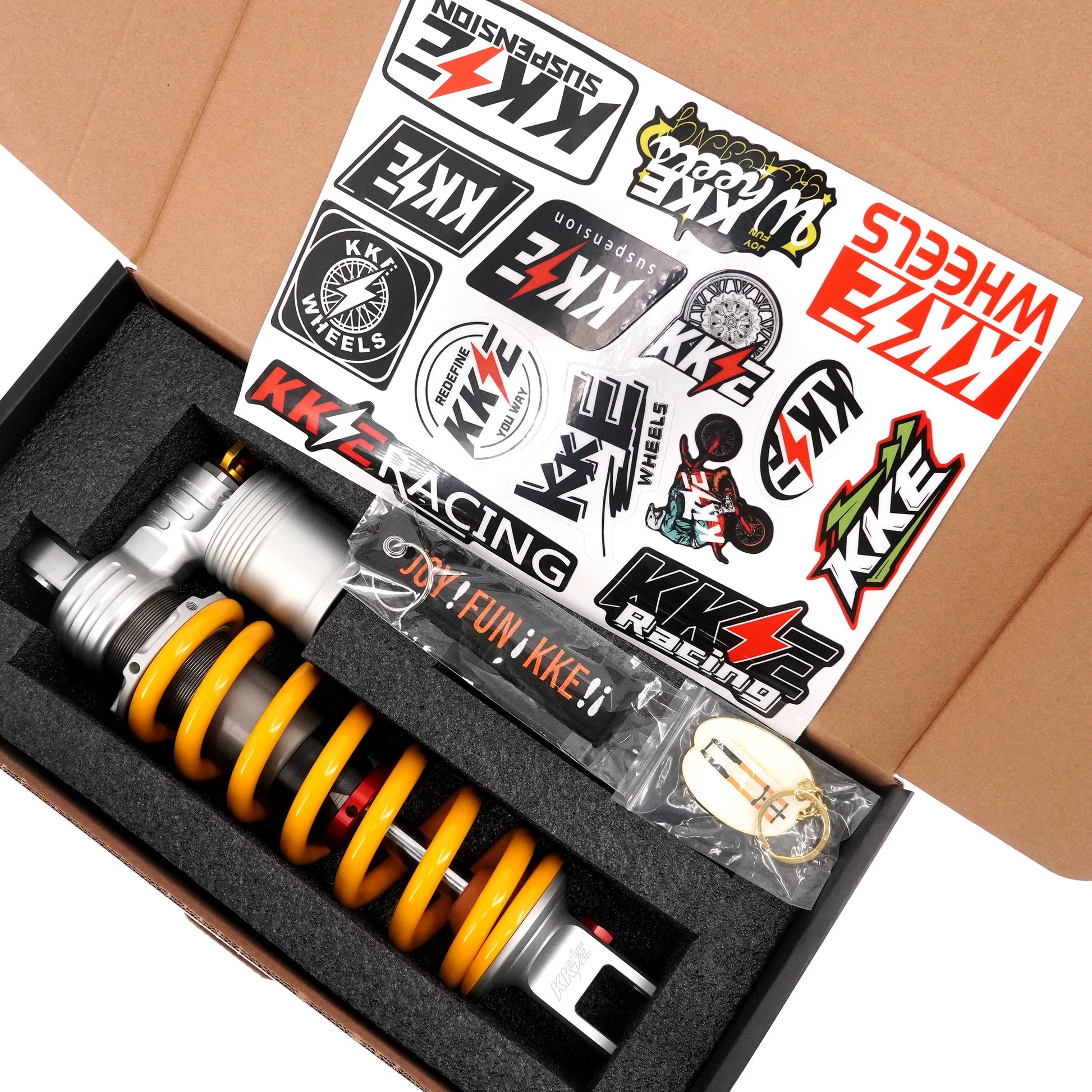

Package Includes

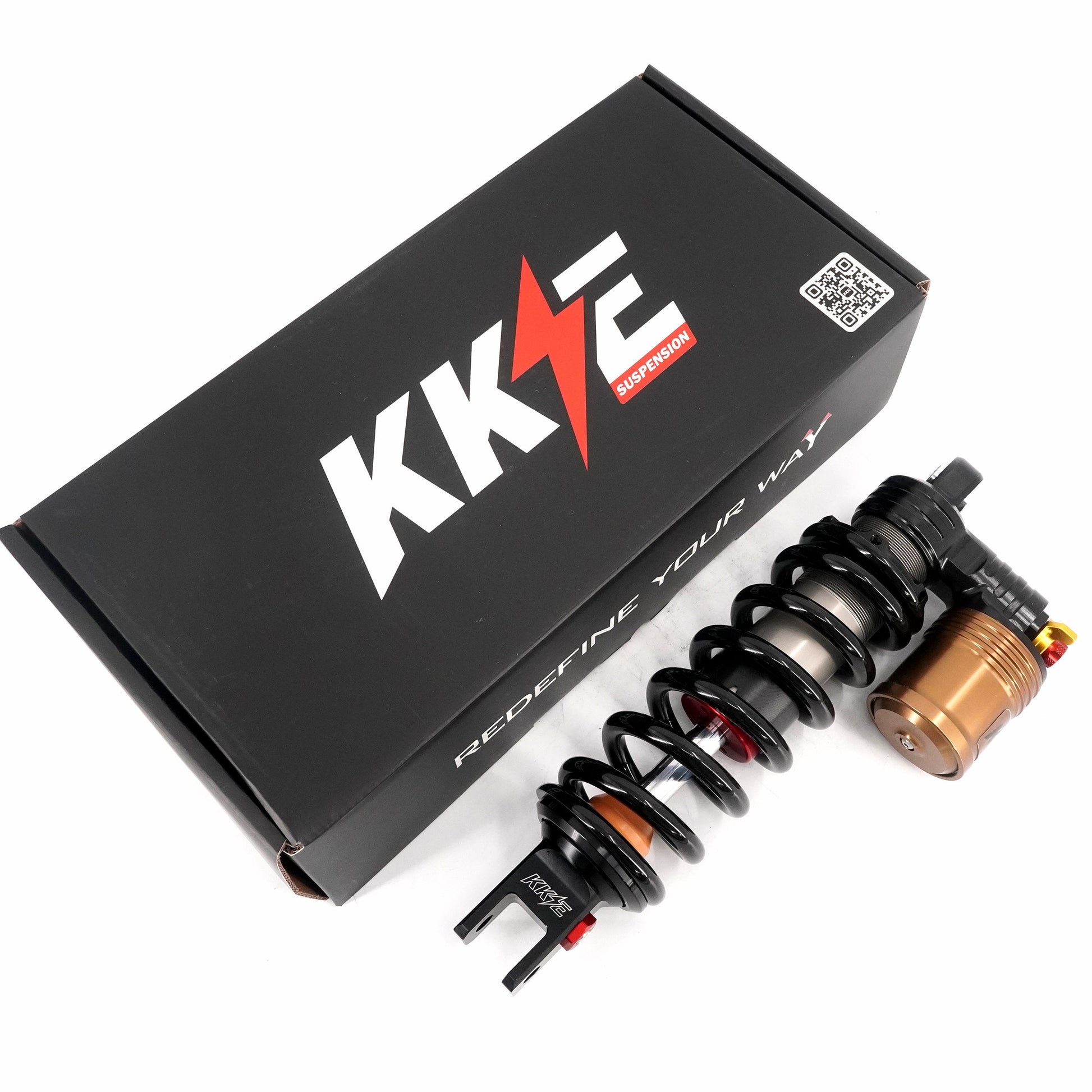

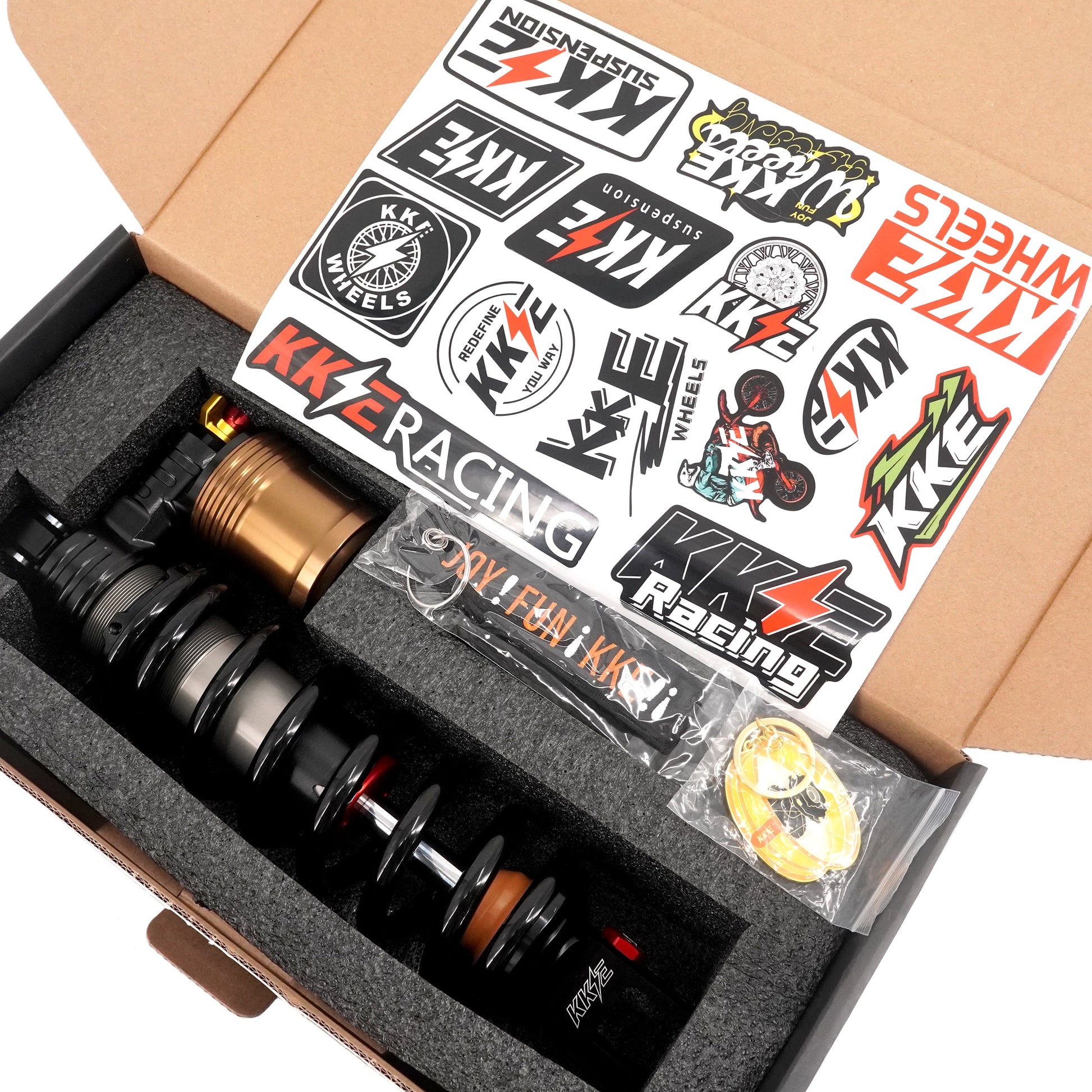

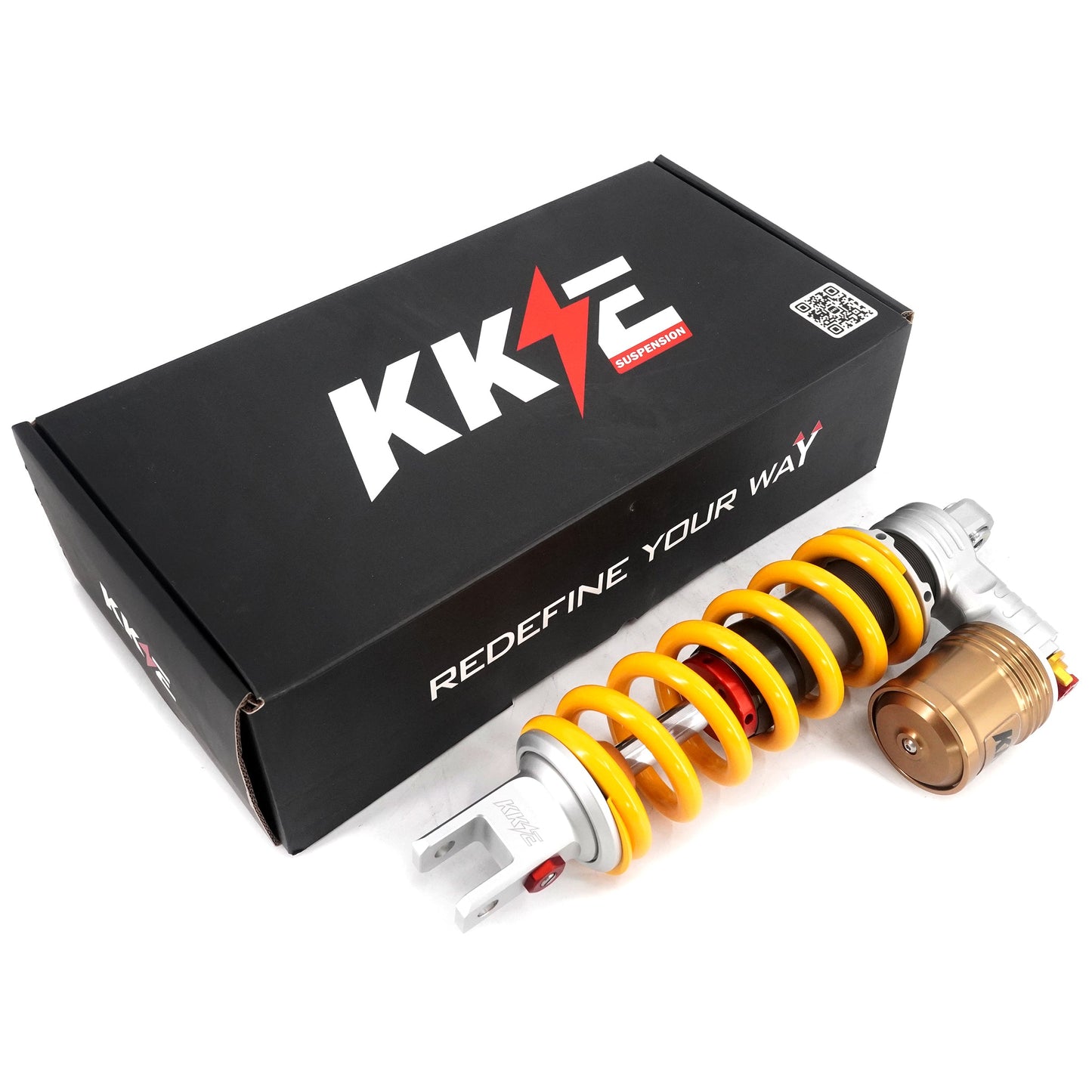

KKE rear shock absorber fully assembled with 500lb spring, 1 set
