Formula E-Moto Brakes | E Ride Pro, Surron, Talaria & More
Moto Lever Feel Meets Four-Piston Control
The Formula E-Moto brakes bring motorcycle and mountain bike brake engineering together for electric motorbikes. A motorcycle master cylinder and larger moto lever pair with an enhanced version of Formula’s four-piston Cura 4 caliper, delivering strong braking with the control to feed in pressure as you need it.
That balance matters on loose trails, technical descents, and tight corners, where managing braking pressure helps you maintain traction. The design focuses on usable power and modulation, giving you more finesse than an abrupt, grabby brake feel. Wheel lockup is still possible depending on traction and lever pressure.
Technical Details
-
Application: Designed specifically for the new generation of electric motorbikes.
-

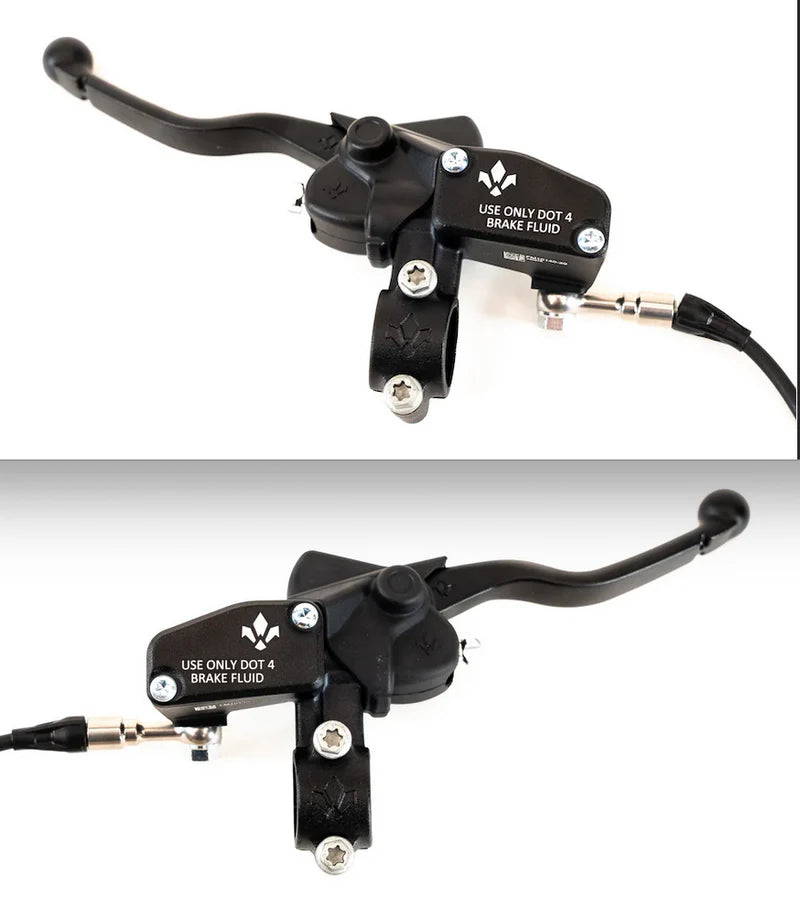

Master cylinder: Motorcycle-style master cylinder paired with a larger moto lever.
-
Caliper: Enhanced Formula Cura 4 four-piston mountain bike caliper.
-
Construction: Forged and anodized aluminum master cylinder and caliper for strength and durability.
-
Brake fluid: Designed for DOT 4 brake fluid. Do not use mineral oil in this brake system.
-
Included pads: Semimetallic brake pads. Optional sintered brake pads are available separately.
-
Assembly: Supplied as a complete brake assembly, ready to mount on a compatible bike.
-
Hose adjustment: Hose length can be shortened for your setup. Cutting the hose will likely require bleeding the brake again.
-
Rotor compatibility: Intended for compatible setups with standard 203 mm or 220 mm rotors and factory mineral oil brakes.
-
Mounting measurement: Additional bike applications should be checked for 74.2 mm mounting-hole spacing. Matching bolt spacing alone does not confirm complete fitment.
Bike Fitment
The following applications are for bikes originally equipped with mineral oil brakes and compatible 203 mm or 220 mm rotor setups. Although these Formula brakes use DOT 4 fluid, they replace the complete original brake assembly. They do not use the original system’s mineral oil.
- Surron Light Bee.
- Talaria MX3 and MX4.
- E Ride Pro S and SS 2.0.
- Ventus One.
-
Original Rawrr Mantis with 74 mm brake mounts: Front fitment only. The rear brake mounts on the opposite side of the bike, so the Formula E-Moto rear brake assembly will not fit. Verify your front mount configuration, rotor compatibility, and caliper clearance before ordering.
- Other electric motorbikes with compatible mounts and standard 203 mm or 220 mm rotor setups originally equipped with mineral oil brakes.
-
Additional potential applications: SUPER73, Strike Cycle, Electro and Co RTR, and other e-bikes with 74.2 mm mounting-hole spacing may be compatible. Verify the specific model’s mount configuration, rotor dimensions, caliper clearance, and hose routing before ordering. Separately purchased shims or appropriate adapters may be needed for correct alignment.
There are plenty of possible applications, but spacers alone do not guarantee fitment. Before you buy, confirm exactly what your bike needs to install these brakes correctly.
Fitment Exclusions
- E Ride Pro SS 3.0 and SR.
- Talaria MX5.
- Altis Sigma.
- Original Rawrr Mantis rear brake mount, including models with 74 mm mounts, because the rear brake is positioned on the opposite side.
- Other newer bikes equipped with factory DOT brakes using 95 to 100 mm bolt-post spacing.
Installation and Brake Sensor Notes
Correct caliper alignment is essential for clean rotor clearance and even pad contact. Depending on your bike, shims or adapters may be required and purchased separately. Confirm the complete mounting arrangement before installation, especially when fitting these brakes to an e-bike outside the listed applications.
These brakes do not include electronic brake sensors. They are not a suitable choice if you need to retain the original brake sensors or a brake light that relies on those sensors. This limitation also applies to many aftermarket brake options from TRP, Hayes, and most Magura setups.
Who These Brakes Are For
-
Technical trail riders: Riders who want four-piston braking power with progressive control for loose corners and challenging descents.
-
E-moto riders who prefer motorcycle controls: Riders looking for a larger moto lever and motorcycle master cylinder paired with a compact Cura 4-based caliper.
-
Compatible e-bike builders: Owners exploring a complete brake replacement who are prepared to verify mounting, alignment, and rotor compatibility.
