EXT Suspension Bundle For EMoto

EXT Suspension Bundle For EMoto

Regular price $2,520.00
Regular price Sale price $2,520.00
Sale Sold out
Please contact us to price match. Shipping is calculated at checkout

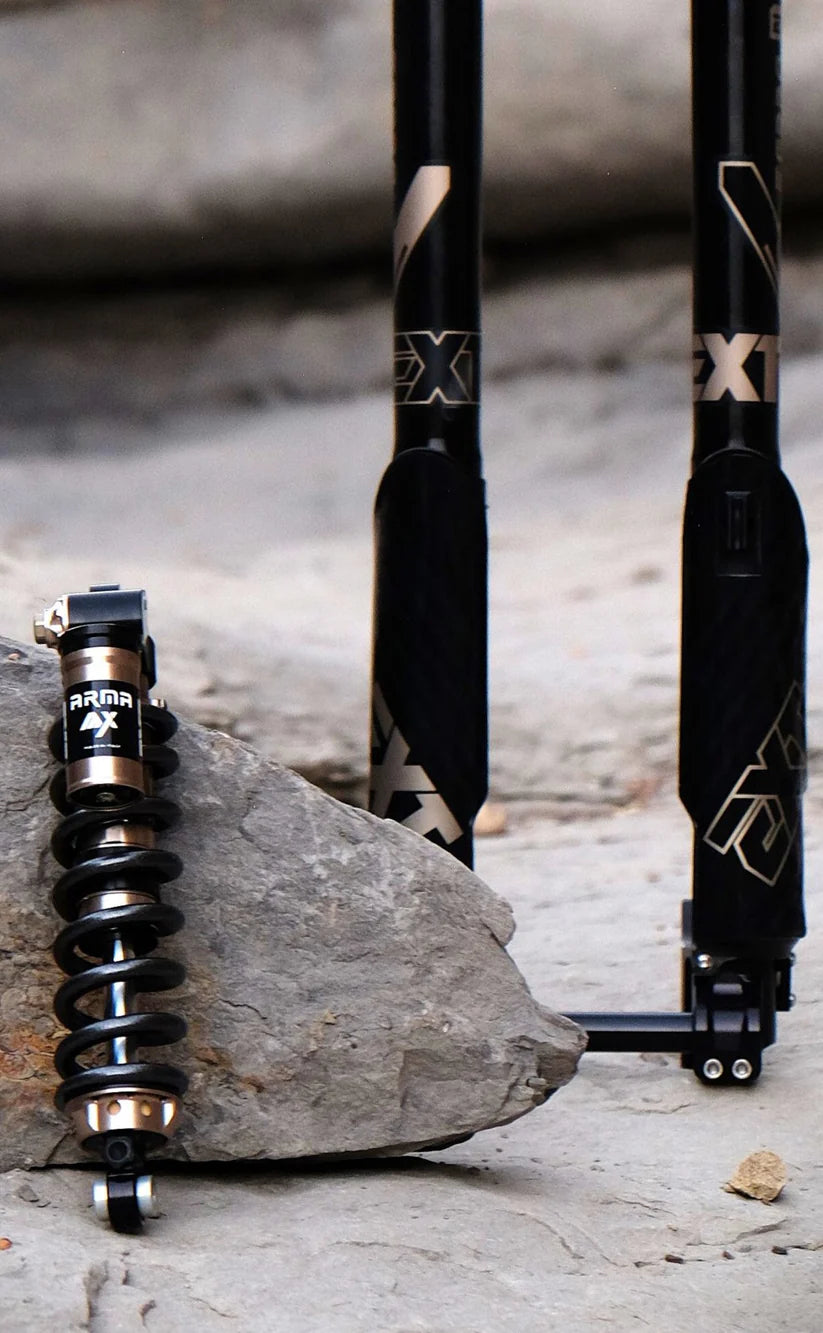

EXT Arma MX V3 (E-MX Damper) For Surron, Talaria (Spring weight)
EXT Ferro E-MX Fork Surron, Talaria, Eride pro (Crown)
More Financing Options

Ferro Arma MX Set - Fall Sale Discount 20% OFF


Ferro Arma MX set package at 20% discount from retail.



Ferro Front forks Direct link

ARMA Rear shock DIRECT LINK



Arma MX CORE FEATURES

  • 4 way adjustable: LSC-HSC-LSR-HBC (Hydraulic Bottom-Out Control)
  • High flow 29 mm main piston
  • 24 mm valve piston
  • 14 mm shaft (50% larger than most other coils on market to help deal with large side loading events)
  • Engineered rebound circuit to separate bump and rebound oil flow – Ultra low-friction coating
  • User adjustable HBC technology
  • Very low reservoir pressure for maximum sensitivity  and low cavitation(55 PSI)
  • Full custom hydraulic setup that is bike and rider specific for each shock
  • Very low hysteresis for high dynamic response
  • High turbulent flow for progressive dampening and mid stroke support
  • Low friction seal
  • Thinner bottom-out bumper and debris clearing washer
  • New low profile rebound knob for easy spring swap
  • Included with 1 light weight spring available in 400lb, 450lb, 500lb, 550lb or 600lbs (Lower options may be available upon request)
  • Comes with Sur Ron specific mounting hardware for easy bolt in instillation.

Ferro CORE FEATURES

  • Robust dual crown inverted MX design (USD)
  • 36mm Ø hard chromed steel stanchions (heat treated 42CrMo4) with Superfinish surface treatment
  • HS3 3- twin positive air system ¬+ 1 large negative self-balancing air chamber, allows for an optimum level of support through all the travel
  • High flow 3-way cartridge damper system with independent high & low speed compression plus rebound damping adjustment.
  • Superfinish inner tube coating
  • External pressure air release system on both legs
  • Twin hexagonal floating axle, boost compatible ∅20mm
  • Air spring and cartridge radial guide system with bespoke aeronautical seals (minimize friction on side loads)
  • Large piston design for best damping control and separate IFP/coil energized compression valve
  • No cavitation and low hysteresis
  • Self-hydraulic cartridge bleeding
  • Dedicated Mobile Sliding DU guiding system with super-long static overlap (for maximum guidance and best torsional rigidity). (CGB Continuously Guided Bushing system, increase stiffness)
  • 205 mm of travel and 44 mm offset
  • 200 mm post mount brake
  • Weight 4000gr
  • Pressure release one-way valves on both legs
  • Compatible with stock fender design
  • Boost Hub Spacing for more flexibility with after market wheel sets.

NOTICE: If you are running a stock wheel or a wheel that is not specifically designed for use with BOOST hubs you will need to install a rotor adaptor that is Included in your purchase.

Note: For the Sur Ron if you are not on the most current model a head tube reinforcement clamp is recommended. This item is standard equipment on the current Model year bikes. We have them available for purchase on request.
