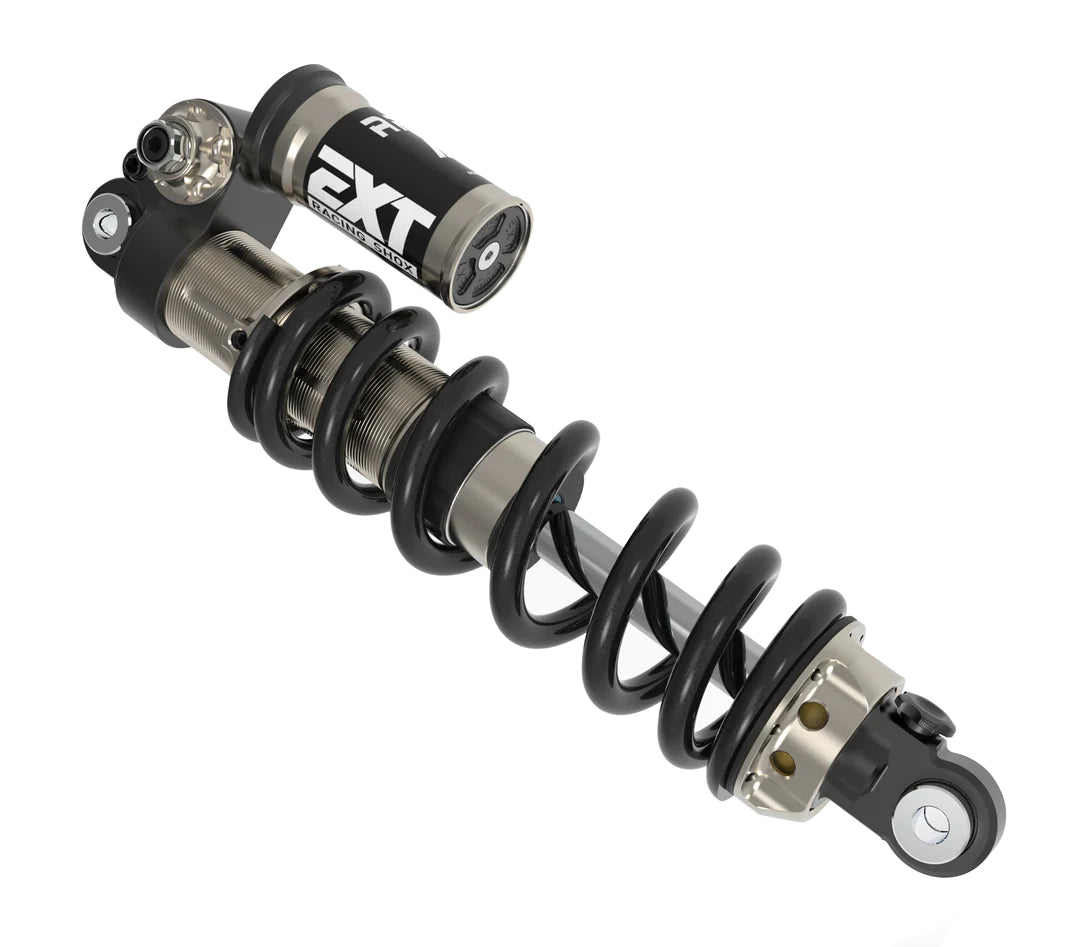

EXT Arma MX V3 (E-MX Damper) Shock for Sur-Ron, Talaria, E Ride Pro, Altis Sigma, Mantis X & More

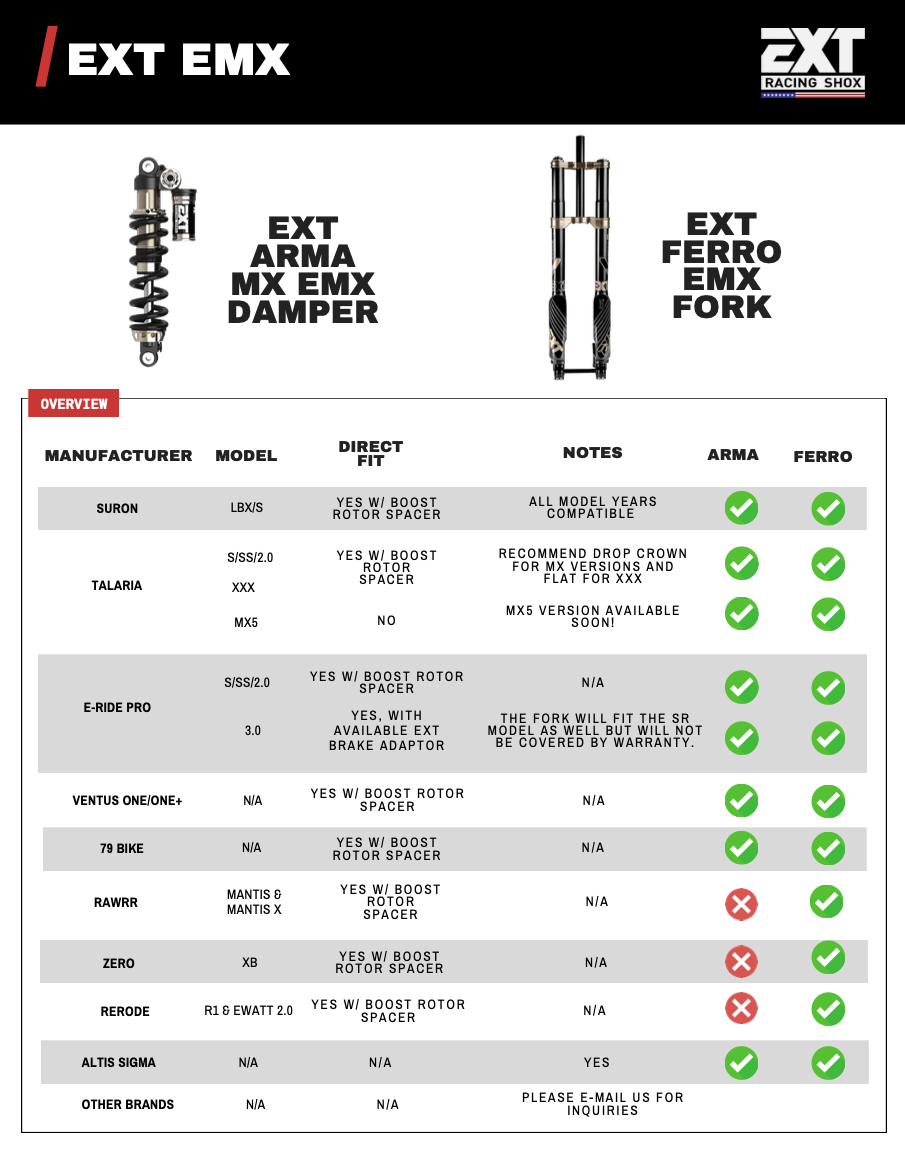

The Arma MX V3 is a direct bolt-on replacement shock for the Sur Ron Light Bee X, Talaria Sting, E Ride Pro, Altis Sigma, Mantis X, Arctic Leopard XE Pro, XE Pro S, and more. Please contact us with fitment questions. No additional Hardware is needed, simply bolt-on and go. Shock will be pre tuned by EXT-USA on the information you provide.
Engineered with performance and control as primary objectives, the shock structure has seen a redesign in order to be more robust. The Hydraulic Bottom-Out Circuit (HBC) has been enhanced with a wider range of adjustment, in order to prevent bottom-out issues, while allowing riders to use softer spring rates and providing excellent support and end stoke characteristics.
Please allow for 7-10 business days on this product thanks!
The Arma MX includes the following features
4 way adjustable: LSC-HSC-LSR-HBC (Hydraulic Bottom-Out Control)
High flow 29 mm main piston
24 mm valve piston
14 mm shaft (50% larger than most other coils on market to help deal with large side loading events)
Engineered rebound circuit to separate bump and rebound oil flow – Ultra low-friction coating
User adjustable HBC technology
Very low reservoir pressure for maximum sensitivity and low cavitation(55 PSI)
Full custom hydraulic setup that is bike and rider specific for each shock
Very low hysteresis for high dynamic response
High turbulent flow for progressive dampening and mid stroke support
Low friction seal
Thinner bottom-out bumper and debris clearing washer
New low profile rebound knob for easy spring swap
Included with 1 light weight spring available in 400lb, 450lb, 500lb, 550lb or 600lbs (Lower options may be available upon request)
Comes with specific mounting hardware for easy bolt in instillation.
*This is a special edition shock that will be built in limited runs.
Spring Guide
Rider Weight
Spring
Up to 140
400
140 to 180
450
180-210
500
210-240
550
240+
600
Note: This table is a general guide. ALWAYS FACTOR IN YOURSELF WITH ALL GEAR! For firmer or softer preference select a spring weight above or below. Feel free to contact us with questions.
