EBG V2 Hybrid Primary Drive Bundle | Light Bee X, Segway, E Ride Pro, ReRode, Ventus One, 79Bike and Talaria XXX

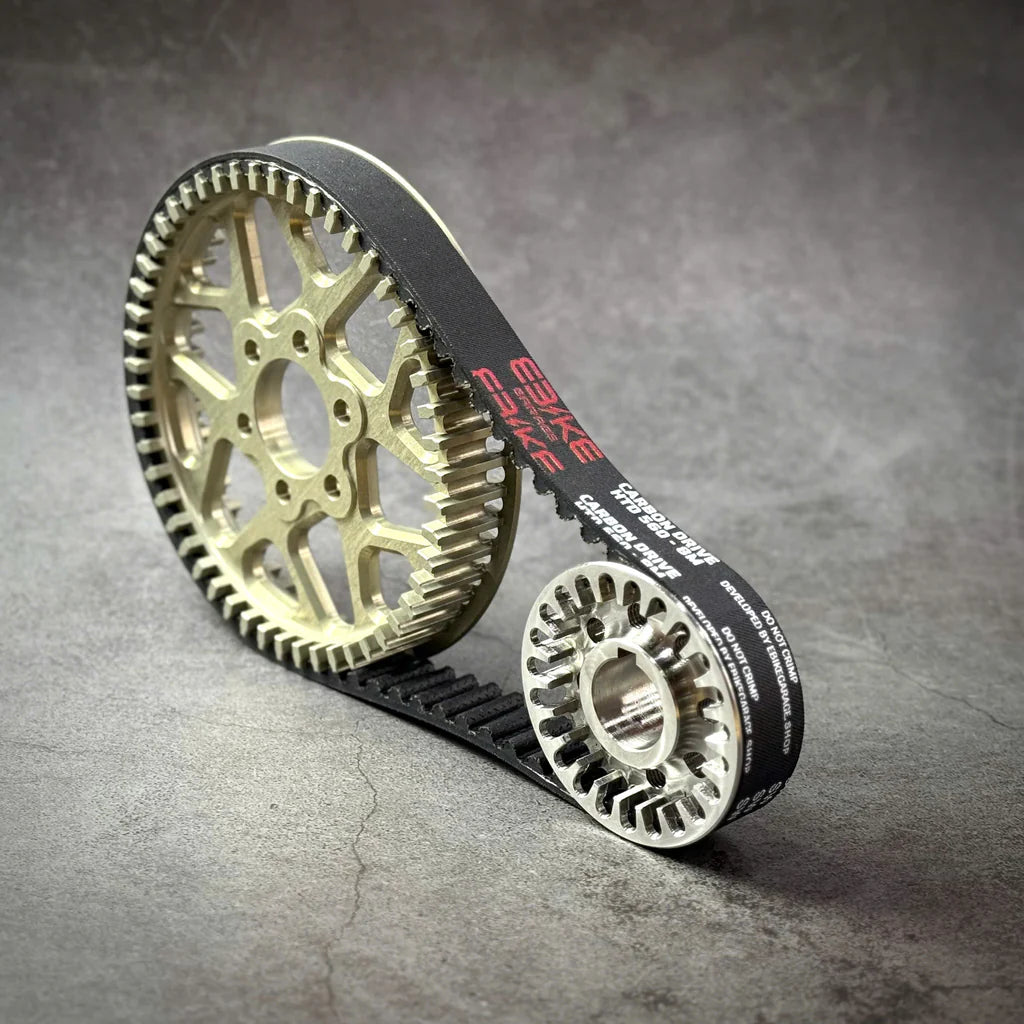

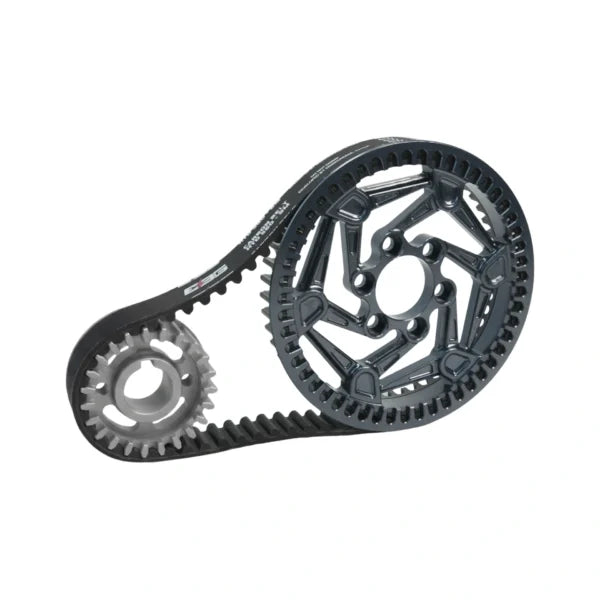

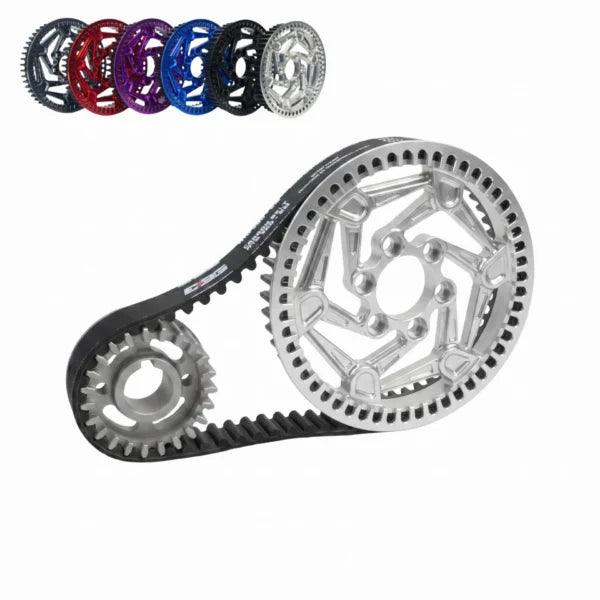

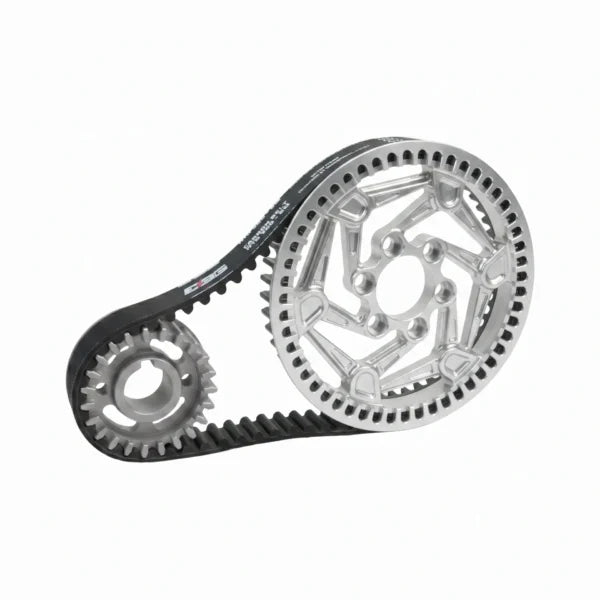

The EBG V2 Hybrid Primary Drive Bundle combines the complete 23T and 51T pulley set with a model-specific carbon-reinforced belt and EBG Belt Tension Adjustment Tool. It gives riders the main components needed to upgrade a compatible Sur-Ron-style primary drive in one matched package.

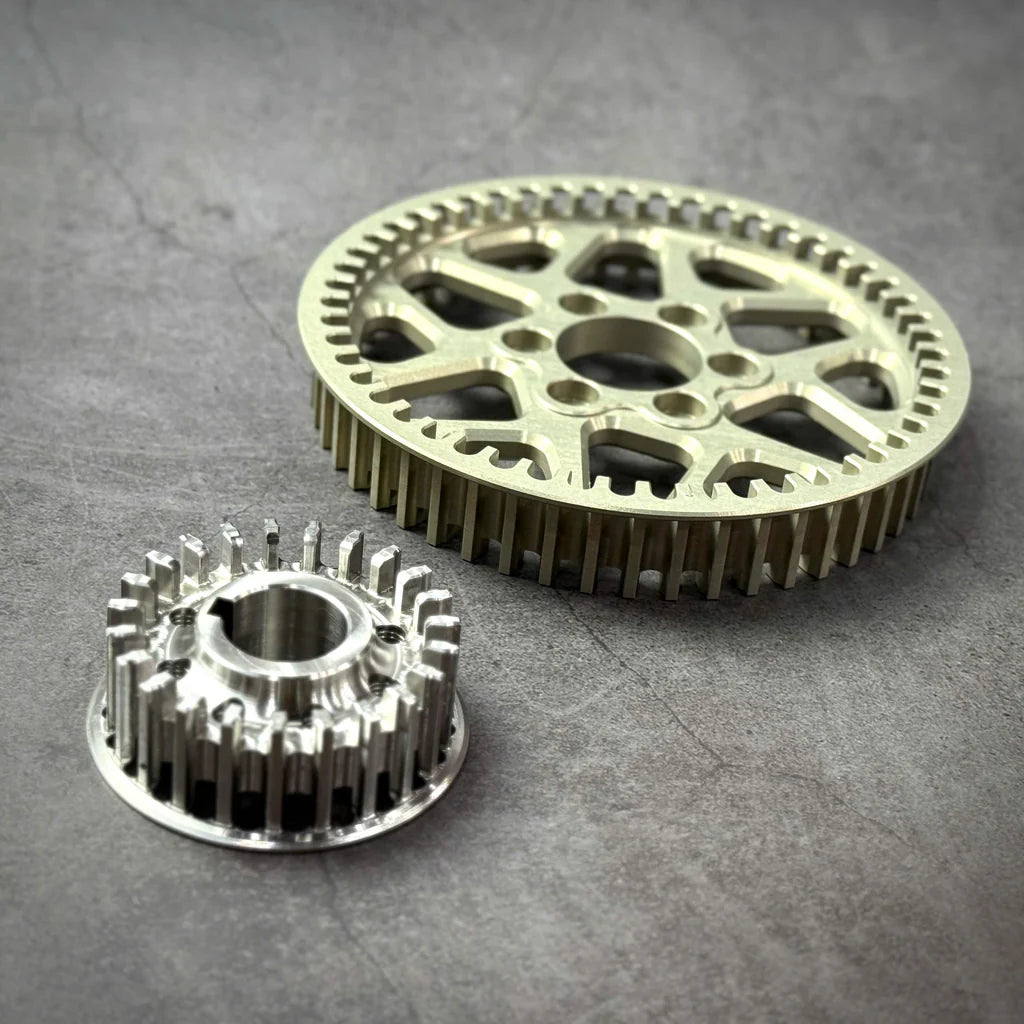

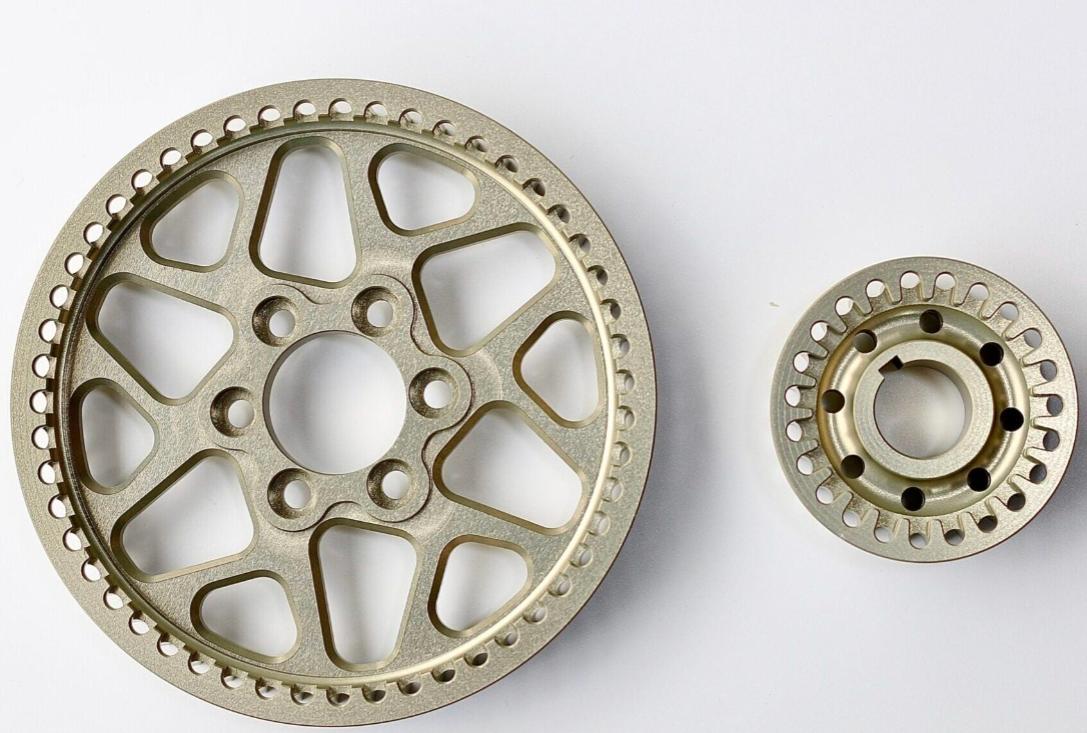

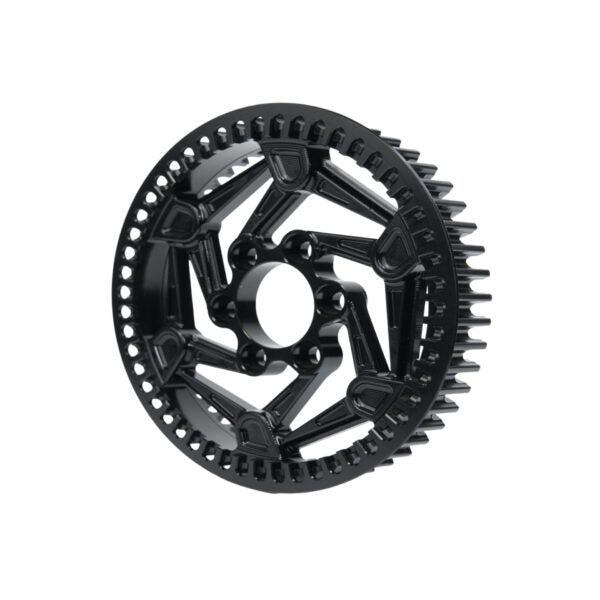

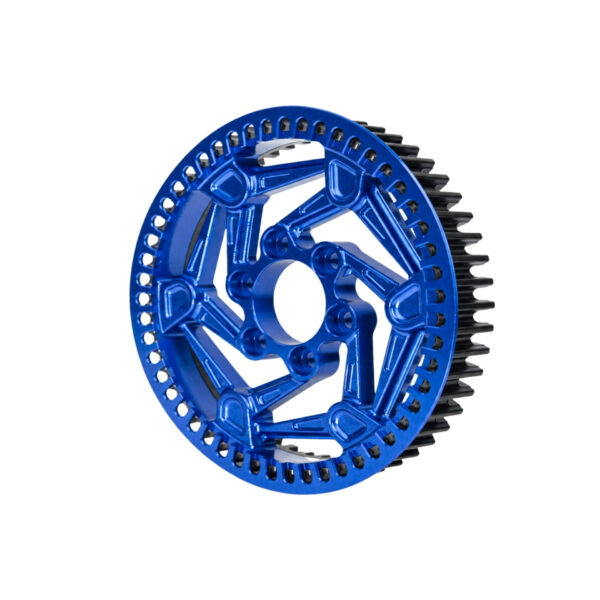

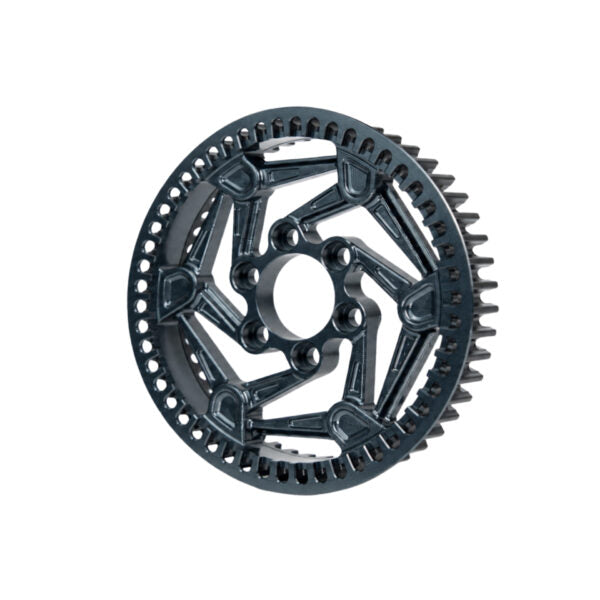

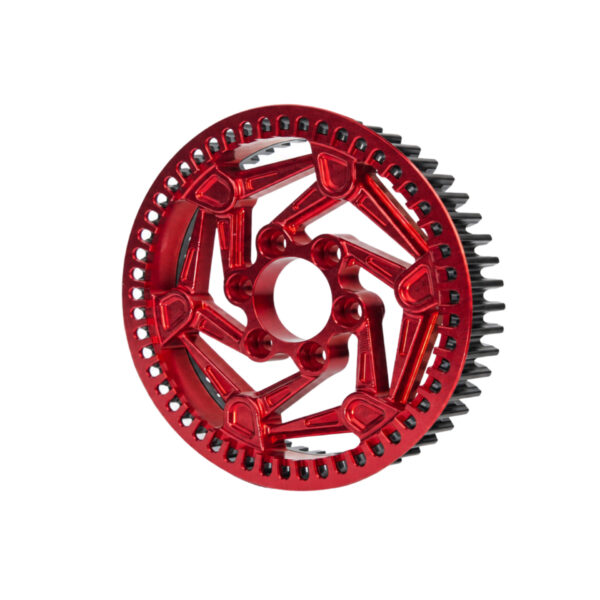

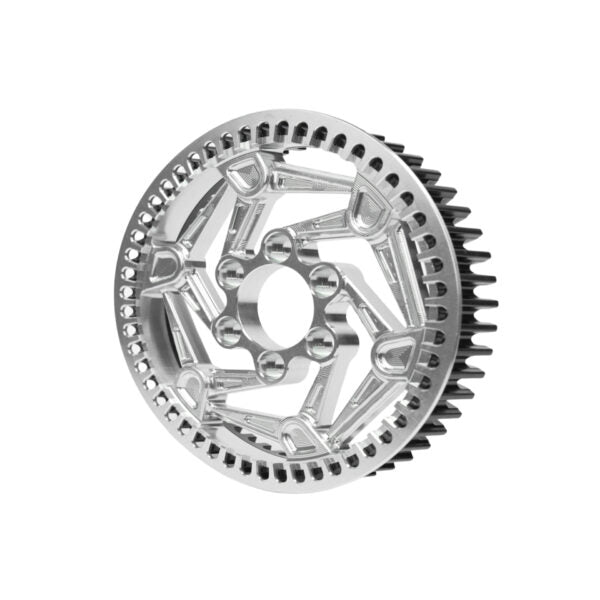

This setup pairs a CNC-machined 7075-T6 aluminum rear pulley with a heat-treated 420J2 steel front pulley. The lightweight rear pulley helps control rotating weight, while the steel front pulley adds strength where the drive system experiences concentrated load and wear.

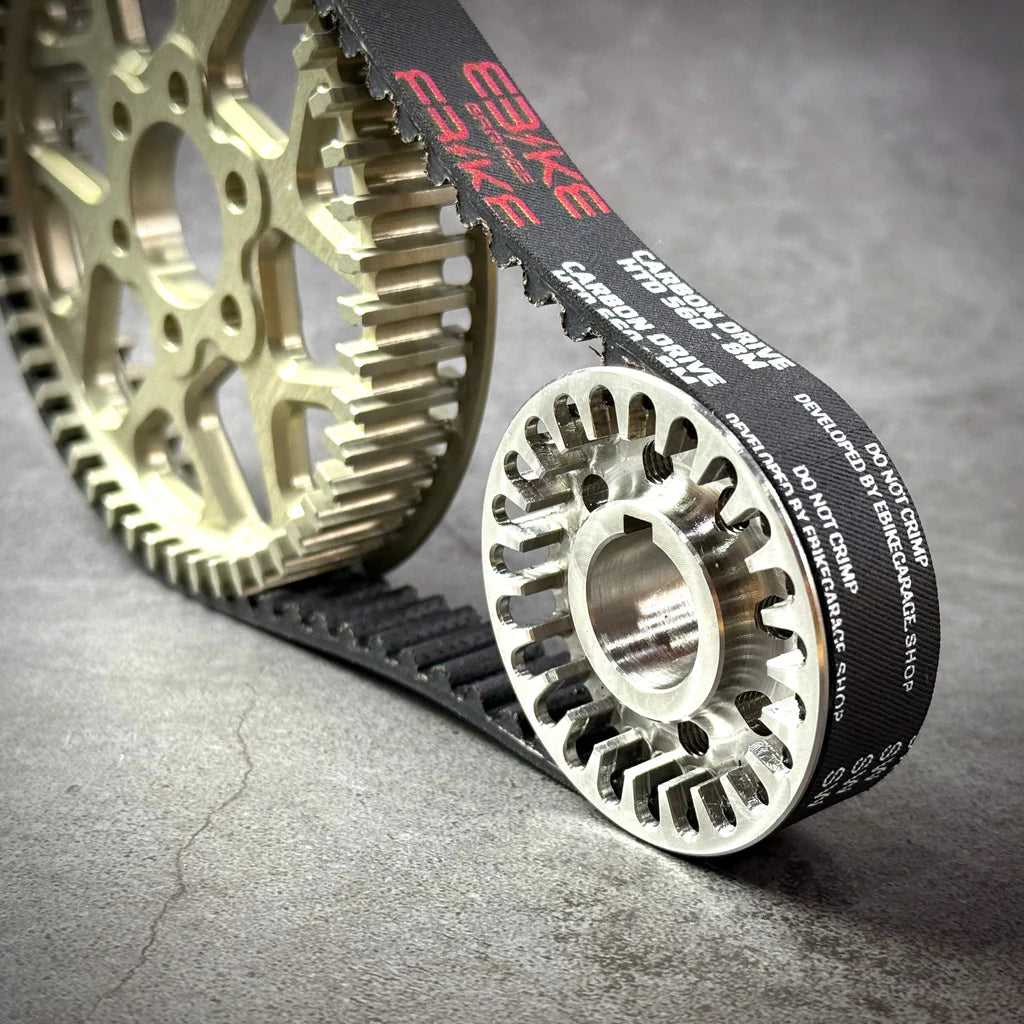

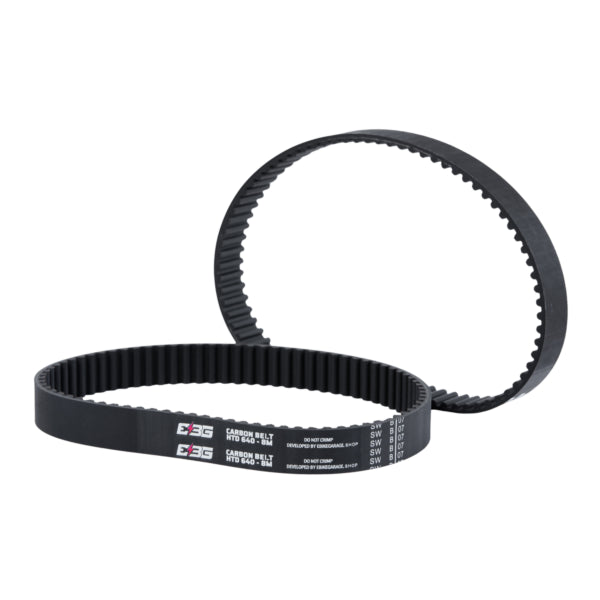

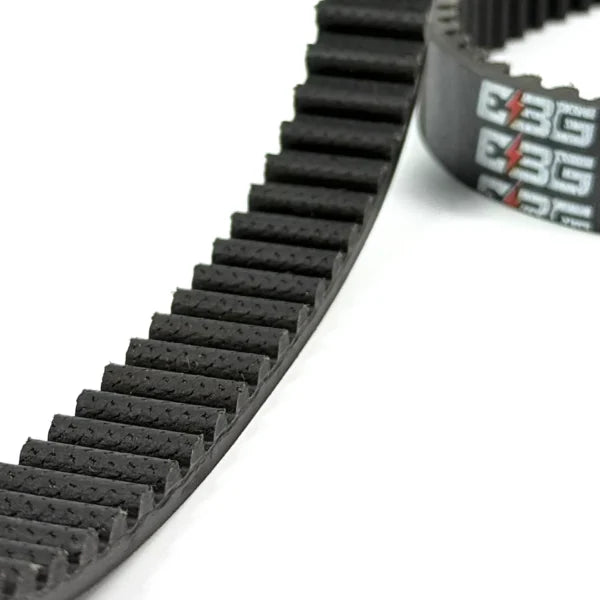

The included EBG Carbon Primary Drive Belt is designed for quiet operation, accurate tracking and consistent tooth engagement. Its carbon fiber composite construction handles repeated acceleration while delivering smooth power transfer on stock and modified electric moto builds.

Watch the EBG Carbon Belt stress test and performance video

A Complete Primary Drive Upgrade

The 23-tooth front and 51-tooth rear pulley combination creates dependable belt engagement across the drive system. When correctly aligned and tensioned, the matched setup helps reduce unwanted belt movement, drivetrain noise and inconsistent power delivery.

Choose an 18mm or 20mm carbon-reinforced belt according to the selected bundle and installed pulley configuration. The 18mm option works well for stock and moderately upgraded bikes. The wider 20mm option provides additional belt contact for modified builds and more demanding riding conditions.

The carbon belt requires no chain lubrication and will not develop the rust issues associated with a metal chain. It still needs regular cleaning, inspection and tension checks to deliver its best service life.

Bundle Includes

• 1 EBG V2 23T front primary-drive pulley
• 1 EBG V2 51T rear primary-drive pulley
• 1 EBG Carbon Primary Drive Belt in the selected 18mm or 20mm model-specific size
• 1 EBG Belt Tension Adjustment Tool

Technical Information

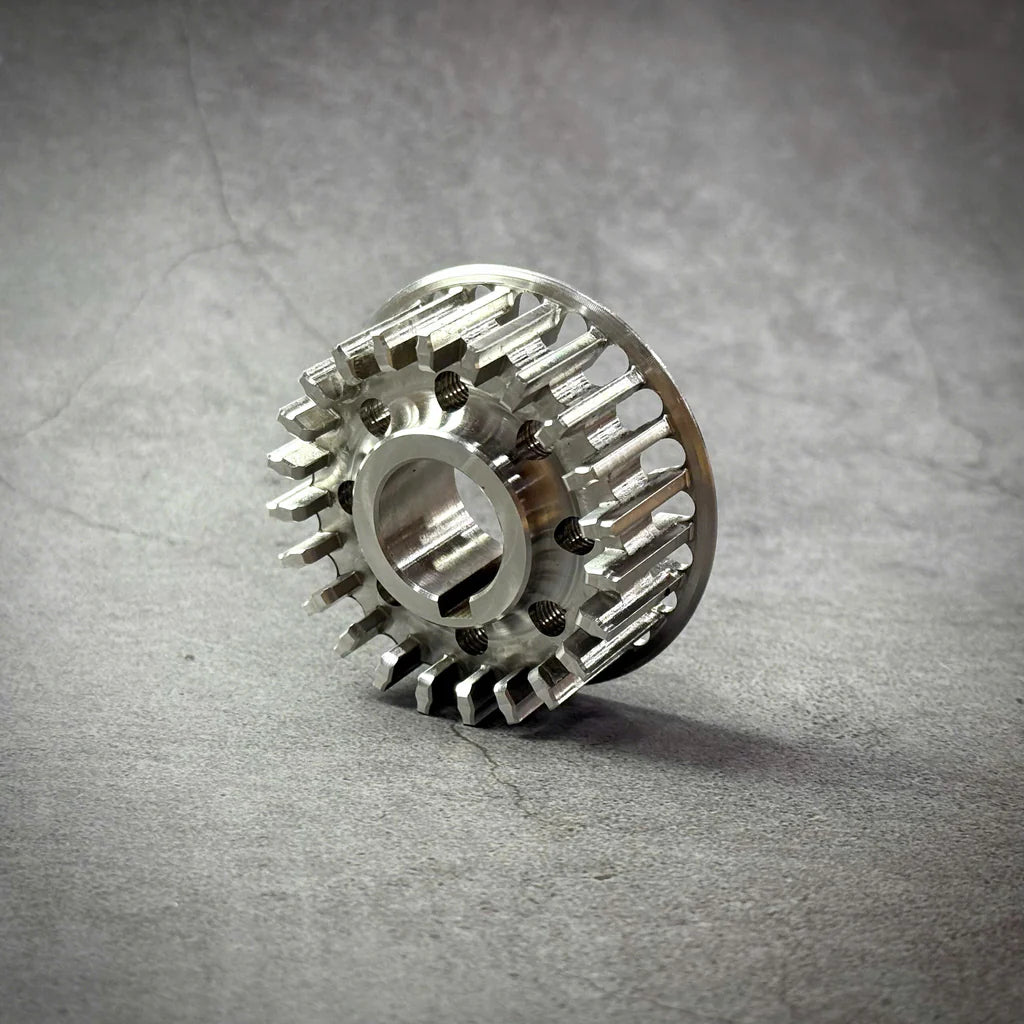

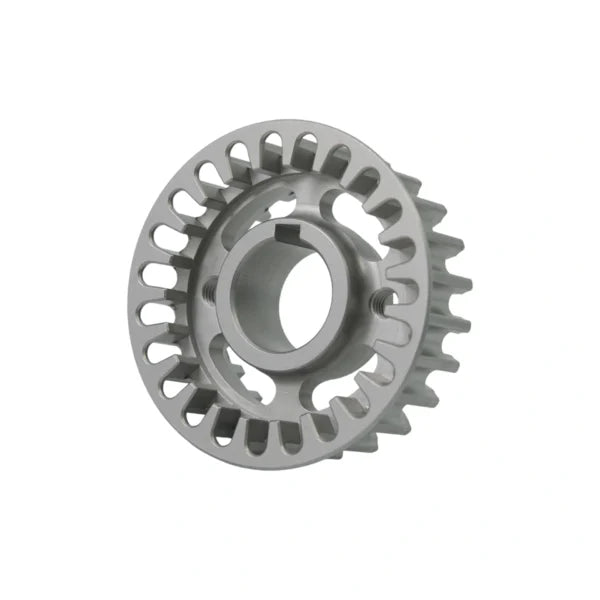

• Front pulley: 23T heat-treated 420J2 steel construction

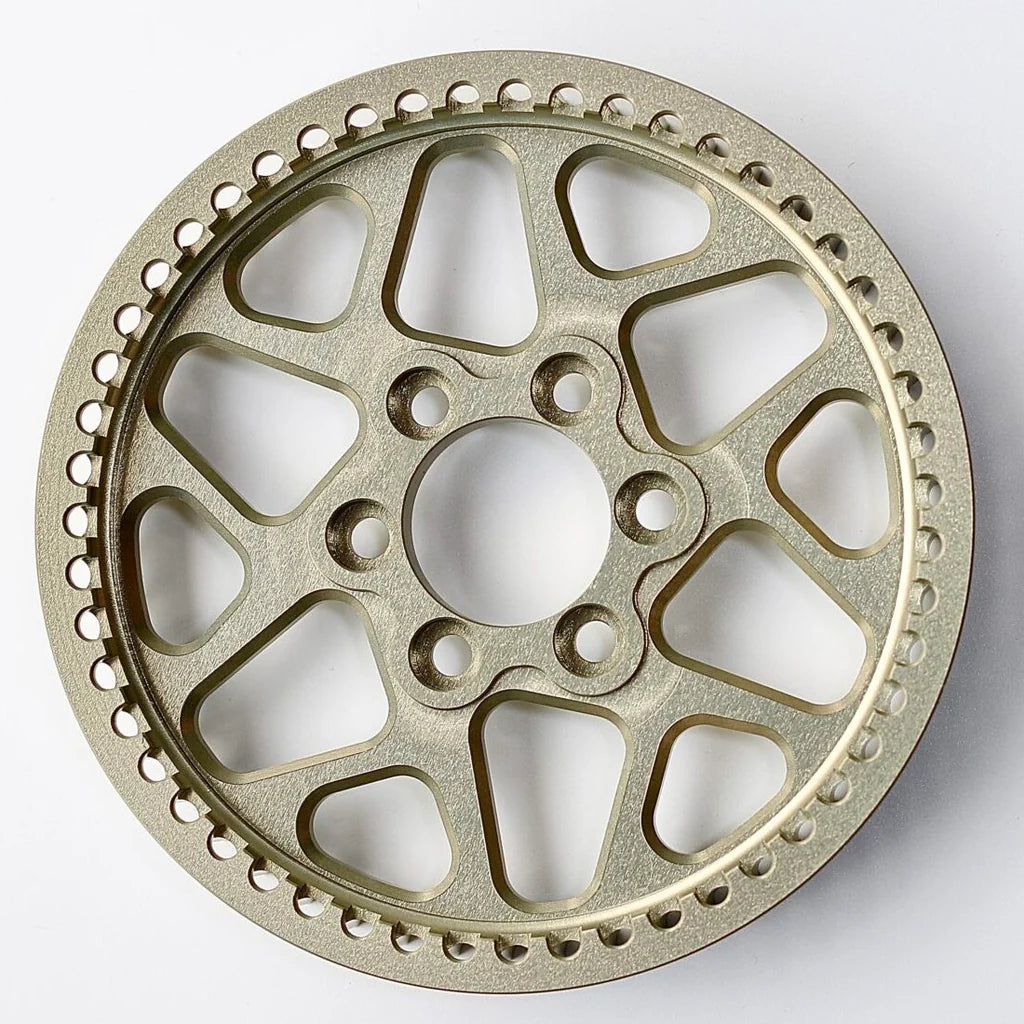

• Rear pulley: 51T CNC-machined 7075-T6 aluminum construction
• Belt material: High-quality carbon fiber composite
• Available belt widths: 18mm or 20mm, selected according to the pulley setup
• 560-8M-18mm belt rating: Up to 36 kW of actual output measured at the shaft
• 560-8M-20mm belt rating: Up to 40 kW of actual output measured at the shaft
• Recommended range for the 560-8M-20mm belt: Approximately 25 to 30 kW maximum output at the shaft for dependable service life
• Recommended torque limit: Output torque should not exceed approximately 65 to 70 Nm
• Wear resistance: Up to three to five times longer service life than a standard belt when correctly installed and maintained
• Operating conditions: Resistant to mud, water, sand and elevated drivetrain temperatures
• Maintenance: No chain lubrication required; regular cleaning, inspection and tension checks are recommended
• Design: Hybrid pulley construction for precise belt tracking, durable tooth engagement and smooth power transfer
• Warranty: 30-day EBG product warranty

Fitment

• Sur-Ron Light Bee X, LBX
• Segway X160
• Segway X260
• E Ride Pro S
• E Ride Pro SS 1.0
• E Ride Pro S16 and S17
• E Ride Pro SS 2.0
• E Ride Pro SS 3.0
• E Ride Pro SR and Pro SR applications using the listed primary-drive setup
• ReRode R1
• ReRode R1+
• Ventus One
• 79Bike Falcon Pro
• Talaria XXX, model-specific version with different styling and one available color
• Other compatible electric motos using the matching Sur-Ron-style primary belt-drive system

Choose the Correct Bundle

Select the bundle that matches your bike and required belt width. Confirm the printed belt size, belt width, tooth profile and available clearance before ordering. An 18mm belt and a 20mm belt are not interchangeable unless the selected front and rear pulley system is designed for that width.

Fitment note: Modified bikes may use belt lengths, pulley combinations or mounting clearances that differ from the original factory configuration. Confirm compatibility before ordering if the bike has an aftermarket motor, controller, jackshaft or primary-drive system.

Carbon Belt Care

For regular street use, clean the belt and apply a carbon-belt-safe maintenance solution approximately every 1,000 km. This is not chain lubricant. Use only a maintenance product intended for carbon drive belts and follow its application instructions.

After an enduro or off-road ride, remove mud, sand and grit from the belt and pulley teeth. Keeping abrasive debris out of the drive system helps protect the belt surface and maintain consistent tooth engagement.

Installation Guidance

Inspect the jackshaft and mounting hardware before installation. Install the front and rear pulleys with correct alignment, then set belt tension according to the requirements of the selected EBG pulley system. The included tension adjustment tool makes it easier to establish and maintain the proper setting.

Recheck belt tracking, pulley alignment and tension after the first ride. Professional installation is recommended for modified bikes, custom drivetrain setups and high-output builds.

Who Is This Bundle For?

• Stock-bike riders who want a quieter and smoother primary-drive system
• Modified-bike owners who need durable tooth engagement and stable power transfer
• Trail, track and high-load riders who want a matched pulley and carbon belt upgrade in one package
