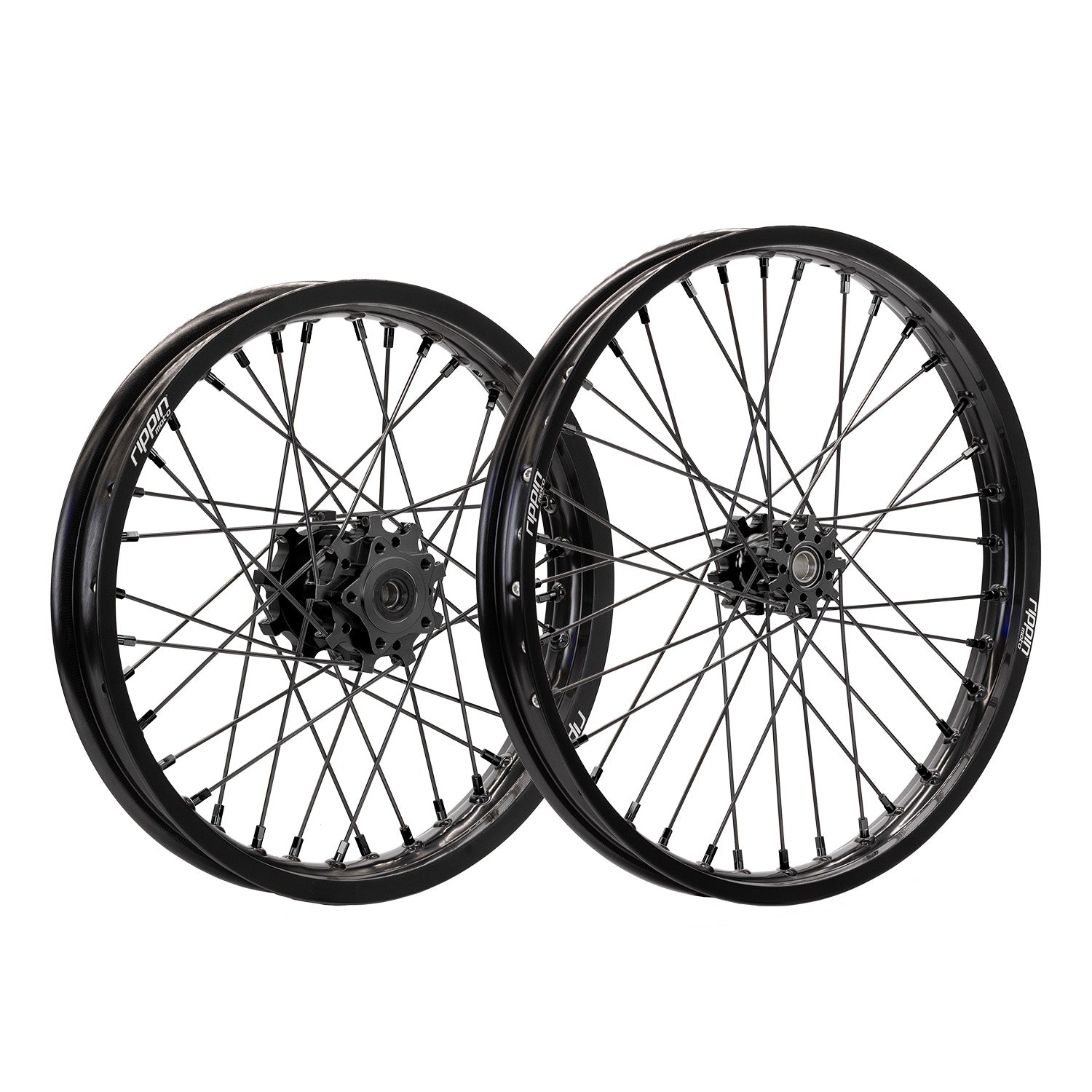

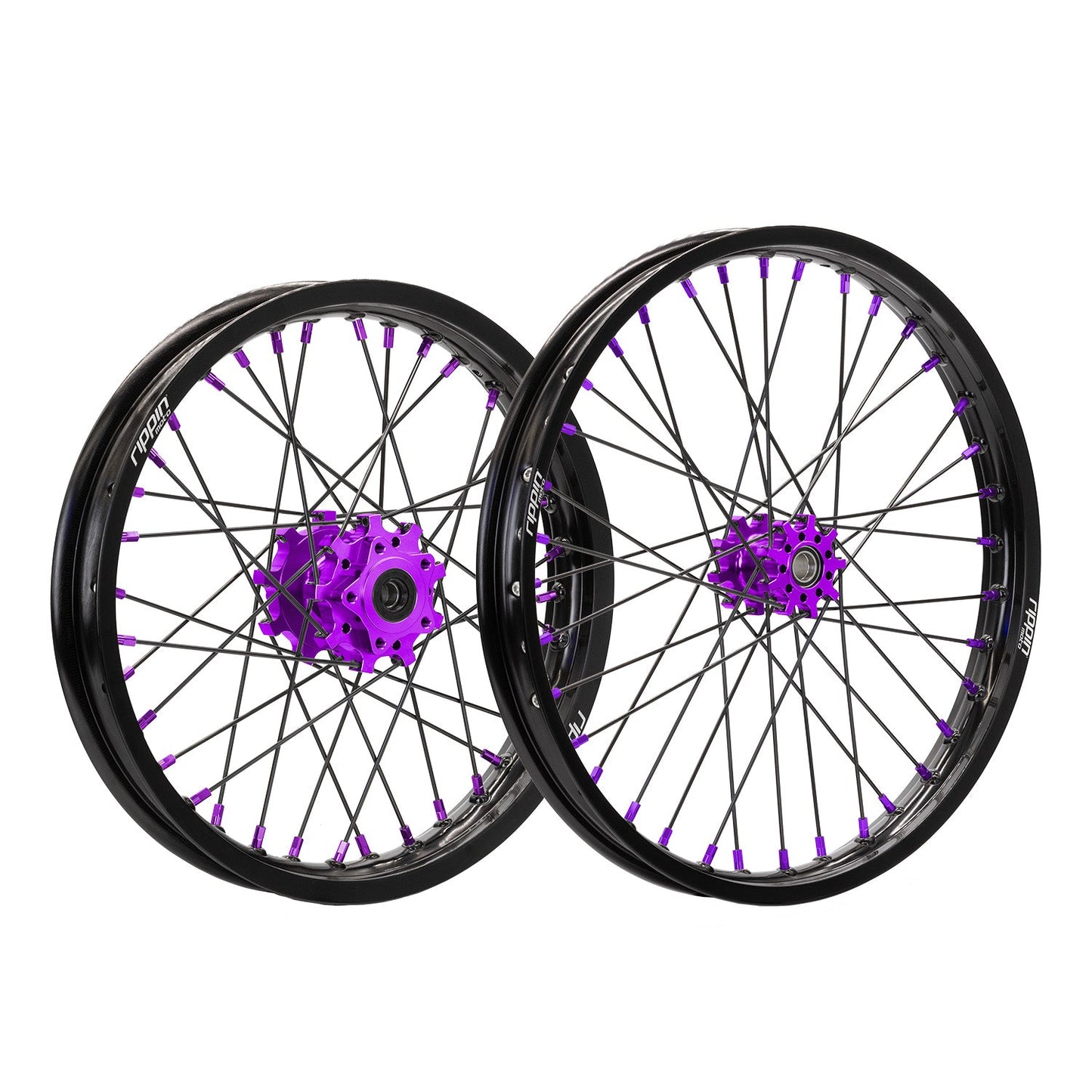

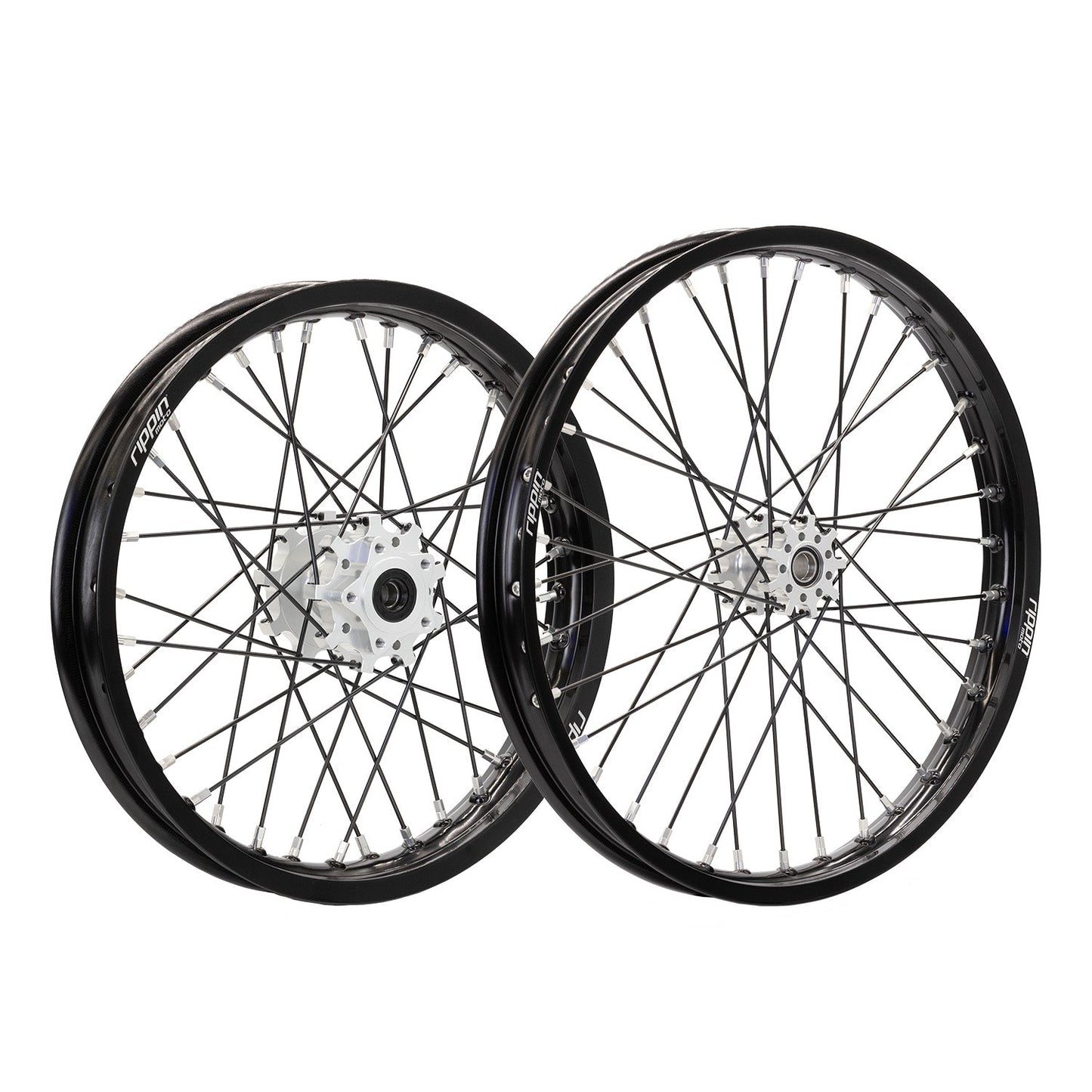

Blackline 19/16 Wheelset | For Talaria Sting MX5

Built for Riders Who Want More Strength, Better Tire Options, and Real Off-Road Performance

The wheels on your bike take some of the hardest abuse on the trail. Rocks, roots, jumps, braking forces, and repeated impacts all transfer directly into the wheel system. For riders pushing the Talaria MX5 beyond casual riding, upgrading to a stronger wheel setup can improve both durability and overall confidence on the bike.

At REV Rides we see riders upgrading wheelsets not just because of damage or wear, but because a quality wheel package completely changes how the bike feels. The Blackline 19/16 Wheelset was designed for aggressive riding environments while keeping weight under control. Combining lightweight CNC-rolled rims, billet moto-style hubs, and heavy-duty spoke construction, this setup delivers a strong and dependable foundation for trail riding, track use, and all-around off-road performance.

The 19-inch front and 16-inch rear combination creates a balanced setup that works well across multiple riding styles. The larger front wheel improves stability and confidence through rough terrain, while the 16-inch rear opens up excellent tire options and adds improved traction and bump absorption.

What Makes This Wheelset Stand Out

• 7116-T6 aluminum rims, CNC-rolled for lightweight strength and durability

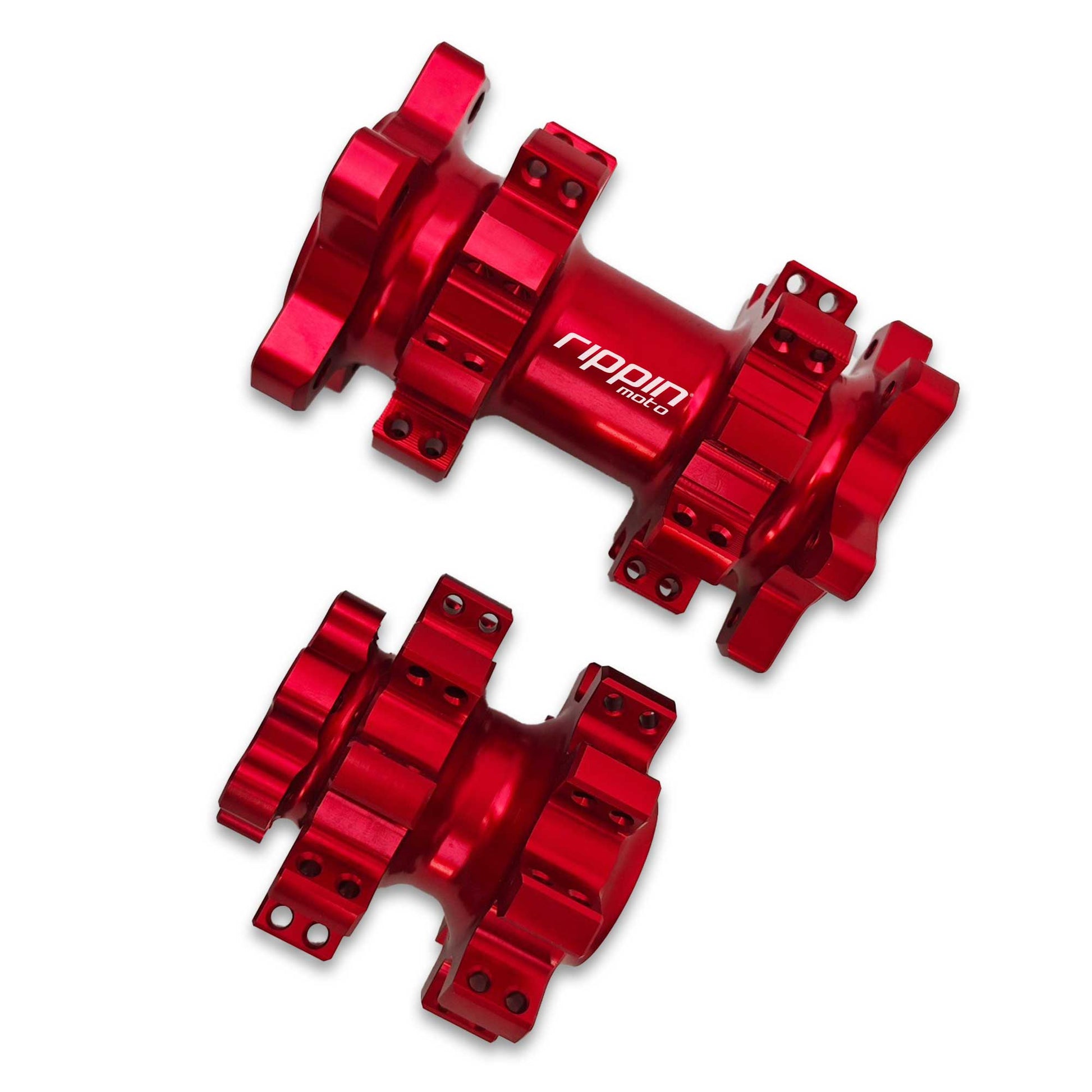

• Billet 6061-T6 pull-thru moto hubs, precision-machined for strength and premium fitment
• Heavy-duty stainless steel spokes with 7075 aluminum nipples, designed to stay tight and true during aggressive riding
• Balanced 19/16 sizing, improves handling while expanding off-road tire options
• Custom anodized color choices, lets riders personalize their build while keeping a clean factory-inspired look

Technical Specifications

Front Wheel

• Size: 19" x 1.60"
• Rim Material: 7116-T6 Aluminum
• Hub Material: CNC 6061-T6 Aluminum
• Rotor Mount Pattern: 6 x 44mm
• Spokes: 36 Stainless Steel, Ø3.0mm

Rear Wheel

• Size: 16" x 1.85"
• Rim Material: 7116-T6 Aluminum
• Hub Material: CNC 6061-T6 Aluminum
• Rotor Mount Pattern: 6 x 58mm
• Hub Options: Standard or Wide Tire Hub Kit
• Spokes: 36 Stainless Steel, Ø3.0mm

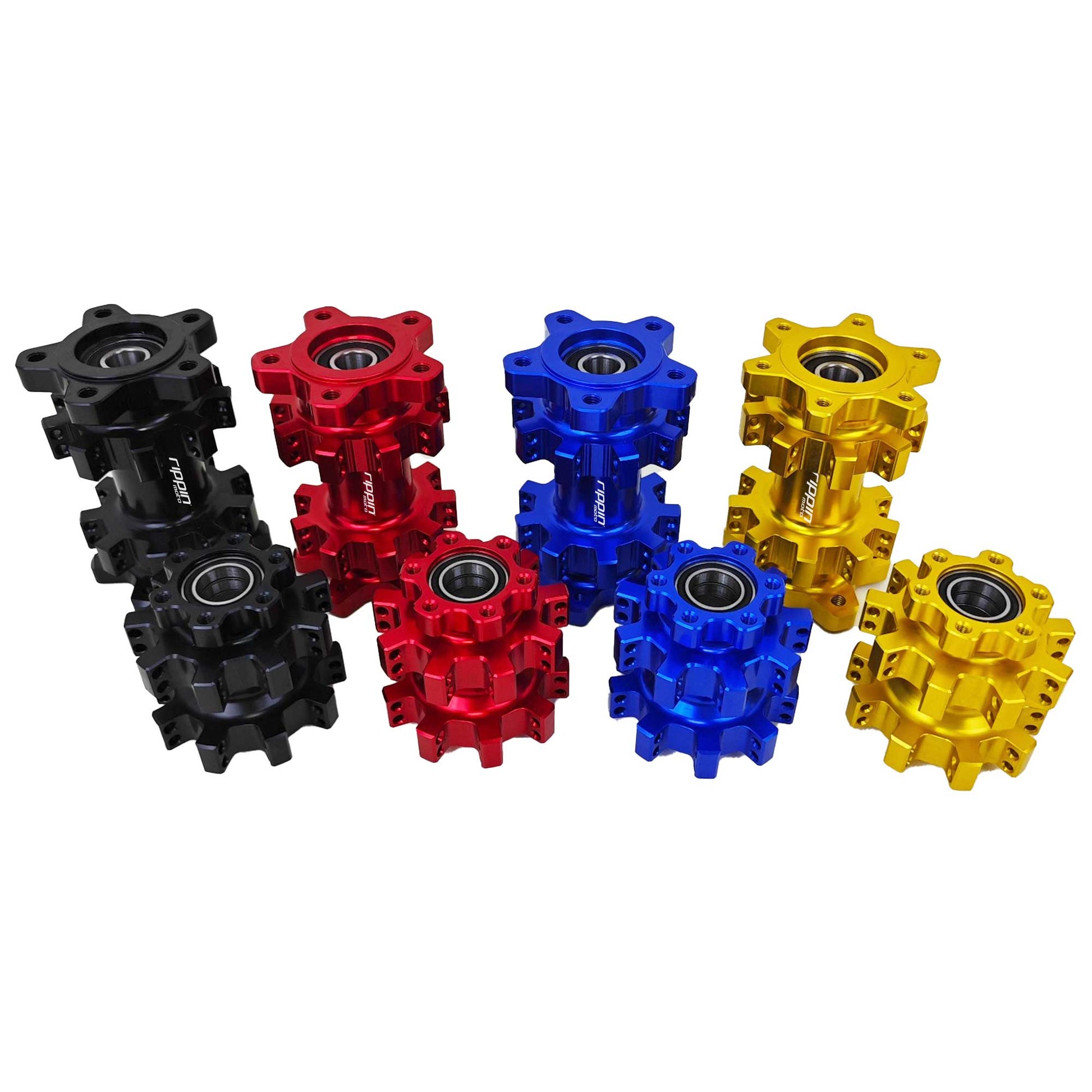

Color Options

All Blackline wheelsets come standard with stealth black rims and black spokes with your choice of anodized hub and spoke nipple colors:

• Red
• Blue
• Gold
• Green
• Purple
• Orange
• Black

All color finishes use high-quality anodizing designed for long-term durability and fade resistance.

What's Included

• Complete front wheel assembly
• Complete rear wheel assembly
• Premium sealed wheel bearings pre-installed
• Aluminum wheel spacers
• Pre-laced rims, hubs, and spokes

Ready to Ride Options

Want to skip installation work? Choose our Ready to Ride option and our team will professionally mount your tires, tubes, and rim strips before shipping.

Current tire options include:

• Bridgestone Battlecross X30
• MOTOZ Tractionator I/T
• Front Tire Size: 70/100-19
• Rear Tire Size: 90/100-16

This option saves time and gets your bike trail-ready right out of the box.

Note: Rim locks are not included with Ready to Ride wheelsets at this time.

Important Notes

• Tires sold separately unless Ready to Ride is selected
• Tubes sold separately unless Ready to Ride is selected
• Rim strips sold separately unless Ready to Ride is selected
• Brake rotors sold separately
• Rear sprocket sold separately
• Talaria MX5 wheelsets are currently built to order
• Typical build time is 10–14 business days plus shipping transit time
• Ready to Ride options require additional installation time before shipment
• Product page will automatically display "Pre-Order Now" for special order configurations

Fitment

• Talaria Sting MX5

Ideal Riders For This Setup

• Trail riders looking for stronger wheels and improved reliability
• Aggressive riders hitting rough terrain, jumps, and technical trails
• Talaria MX5 owners wanting a stronger complete wheel upgrade with custom styling options
