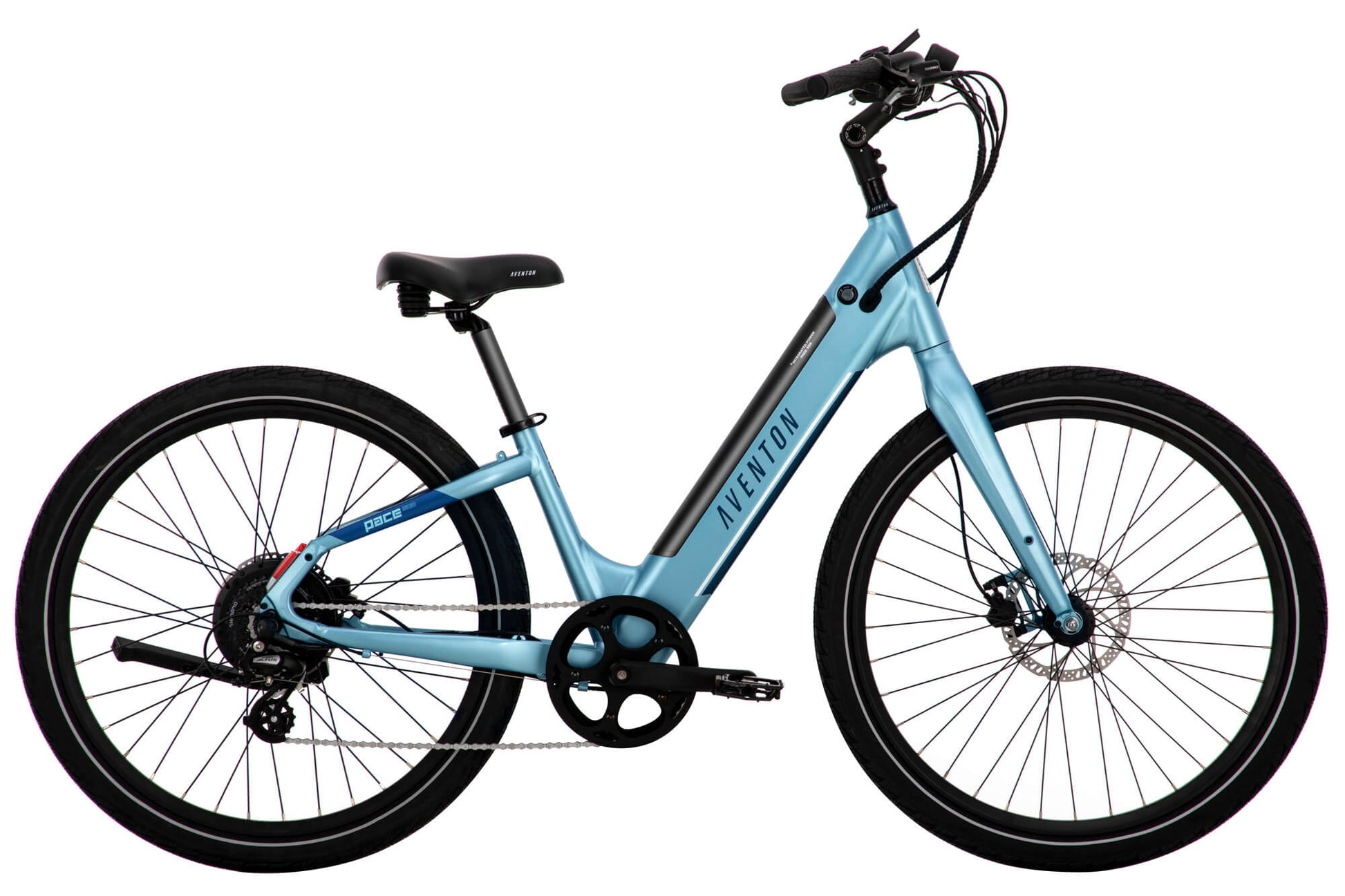

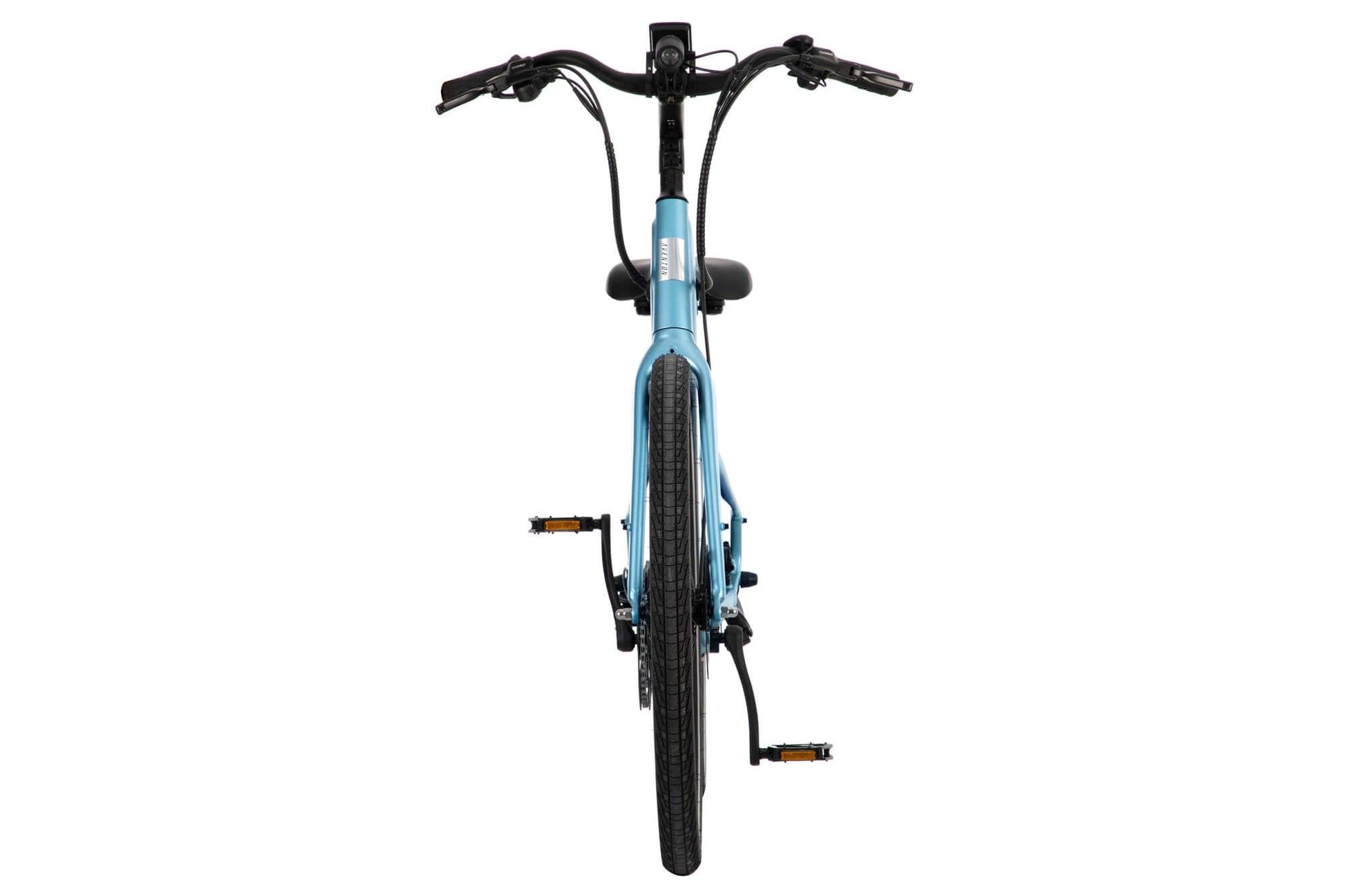

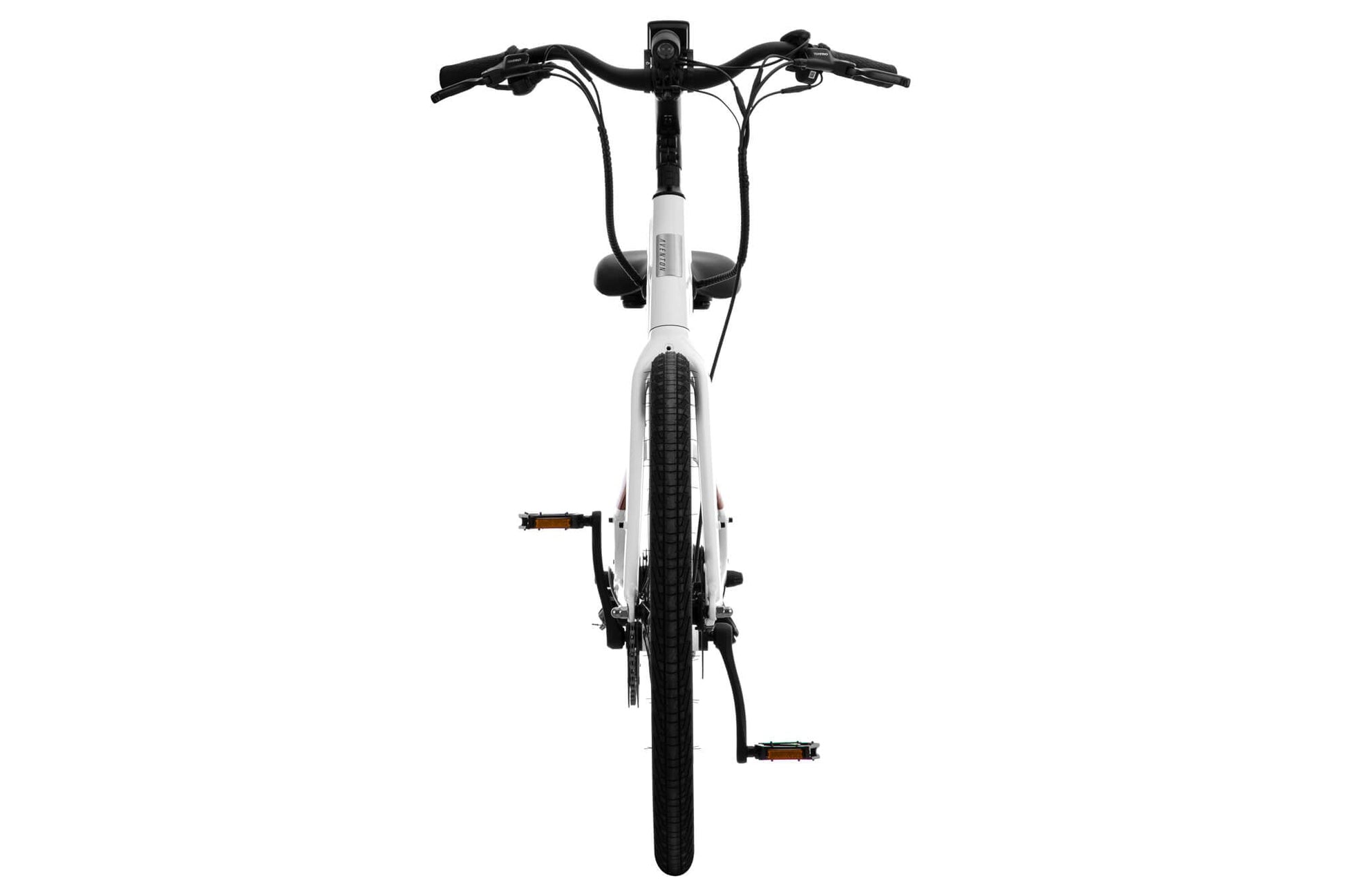

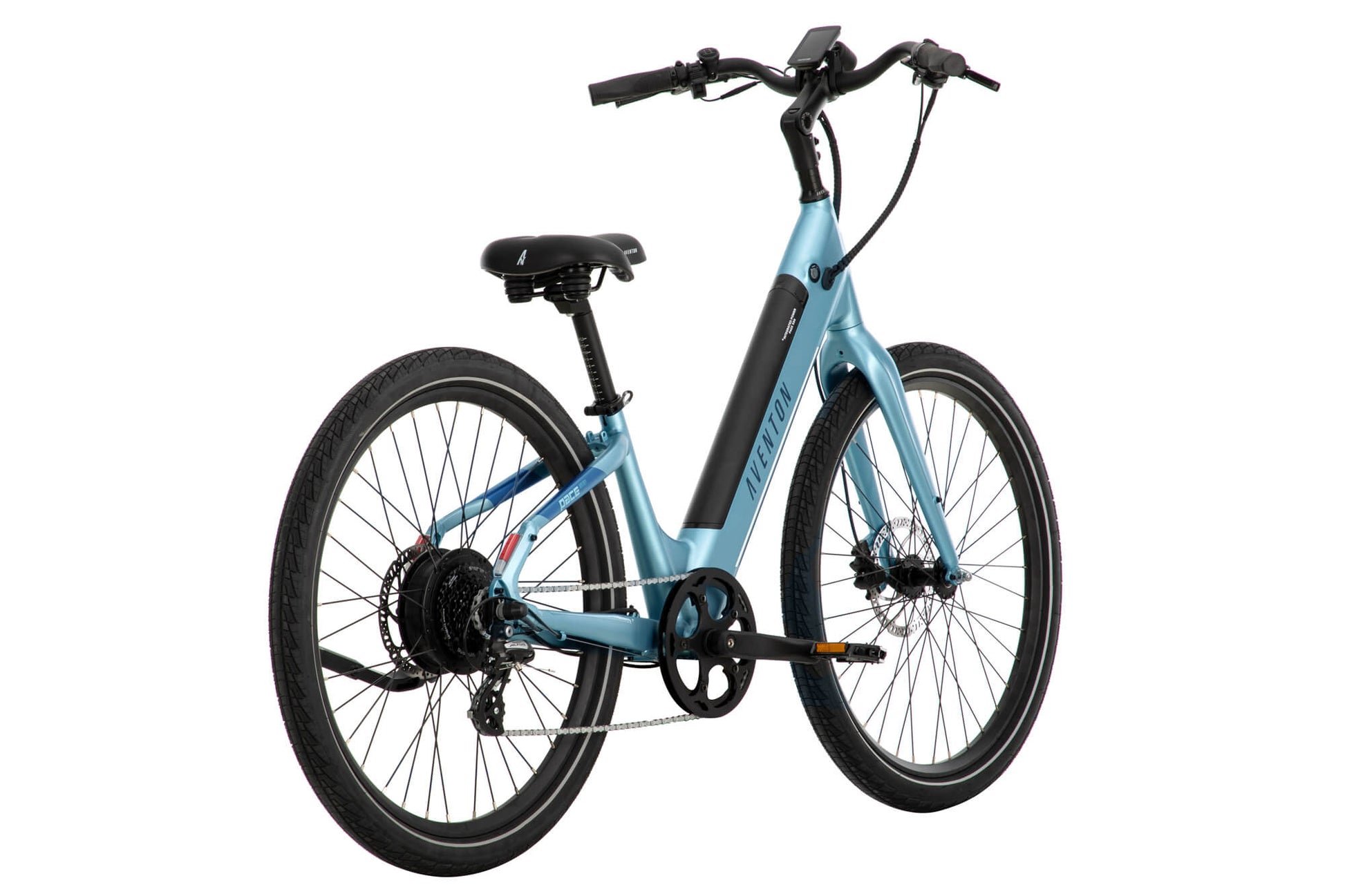

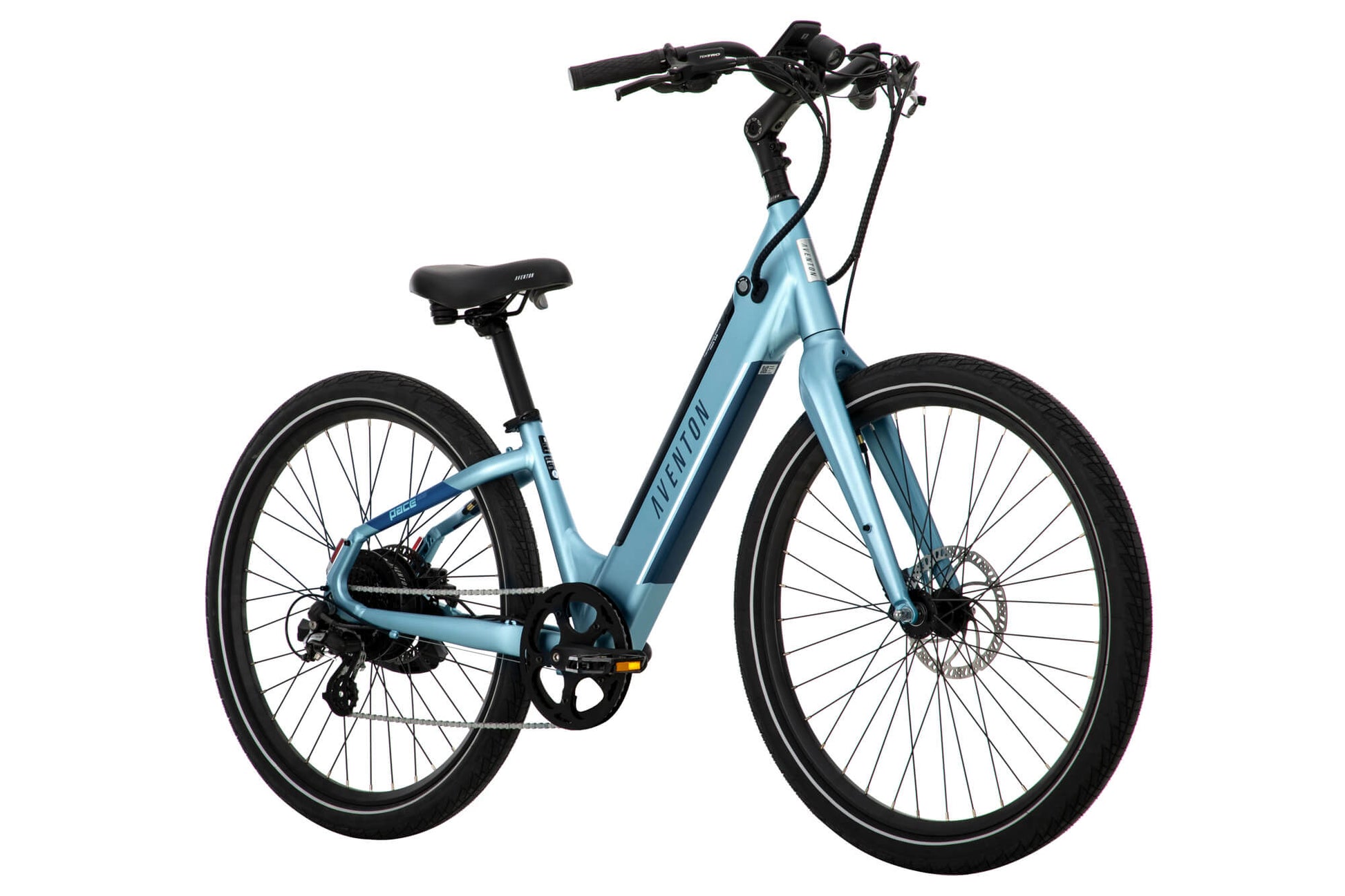

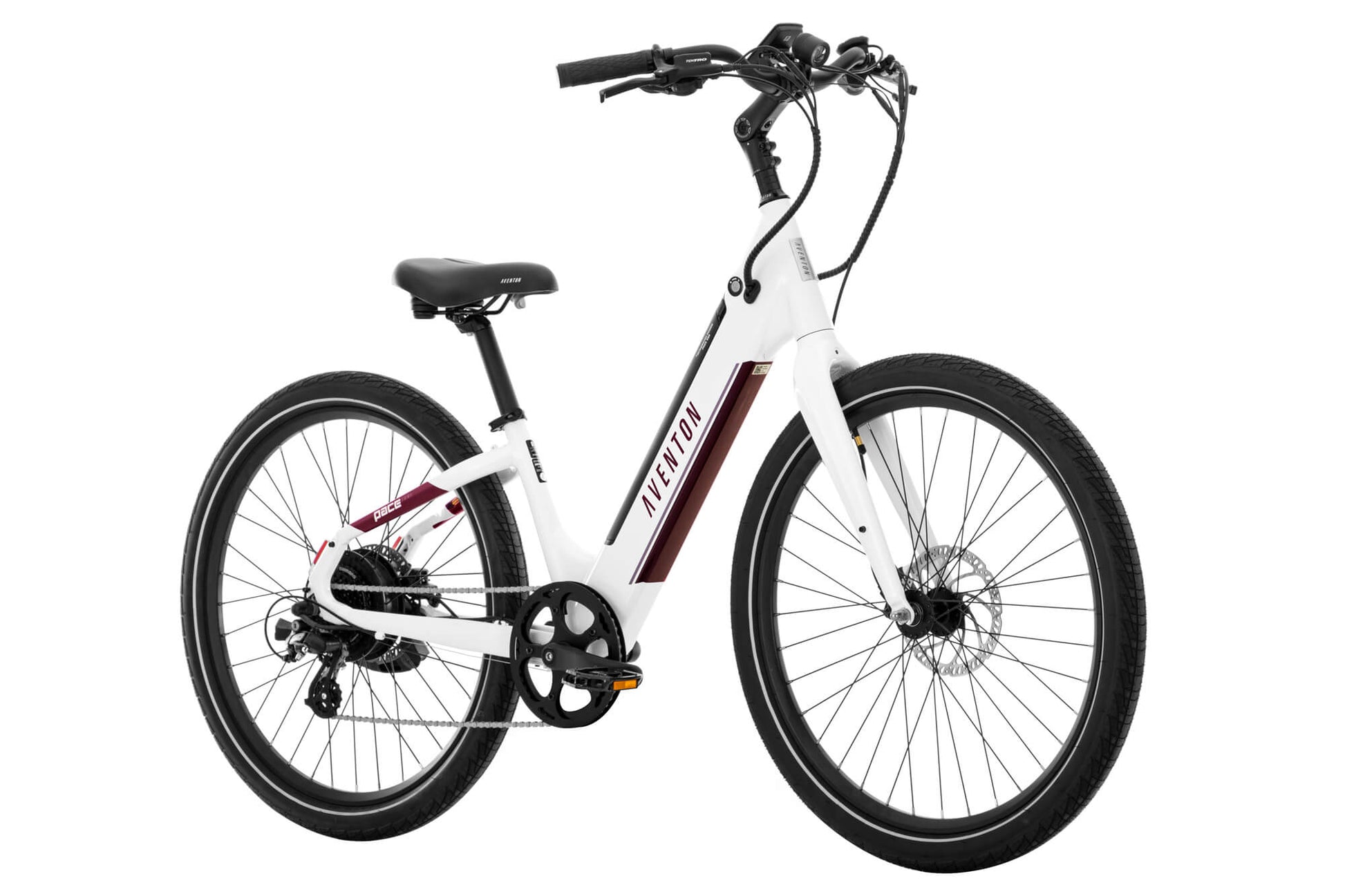

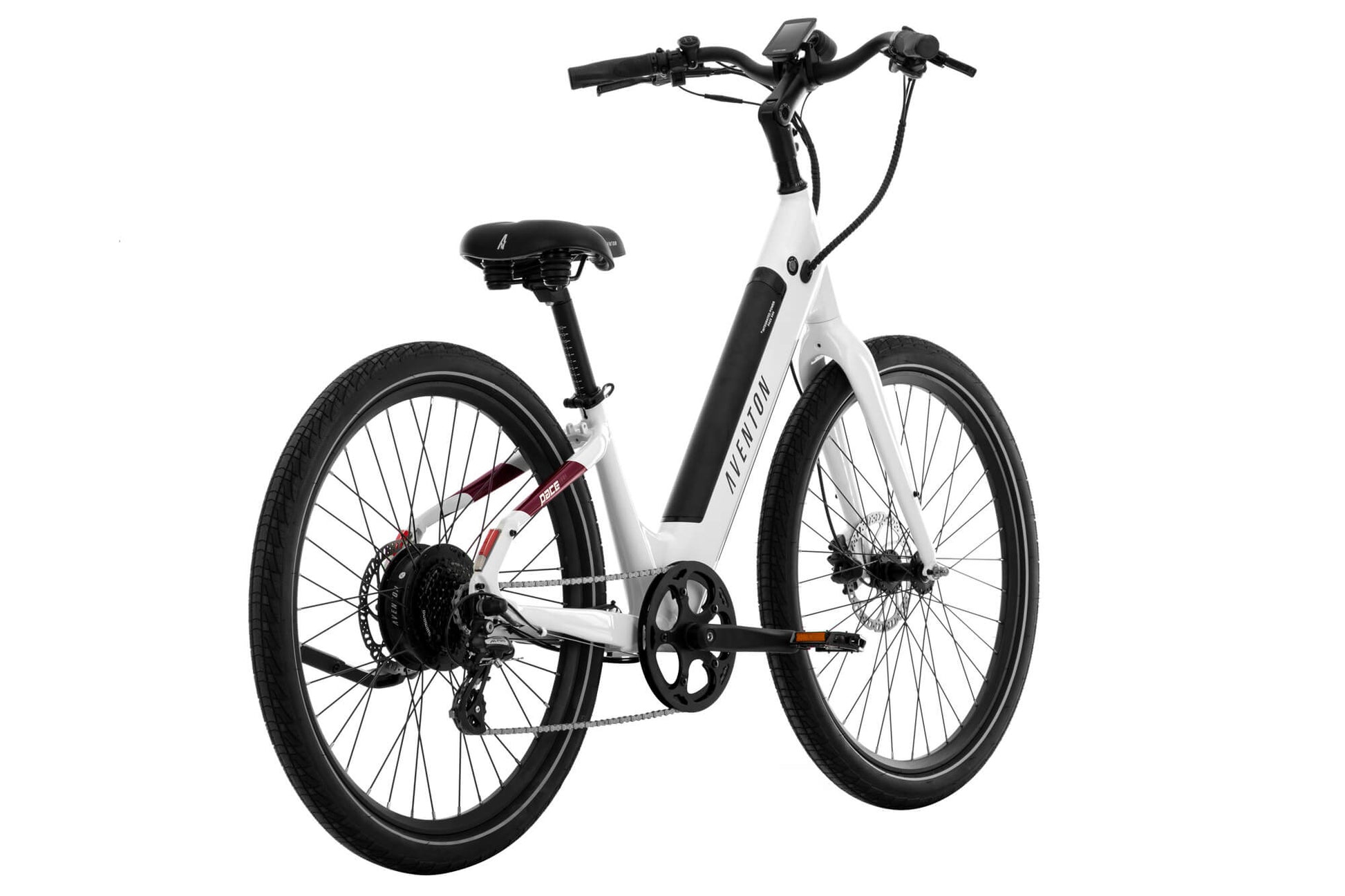

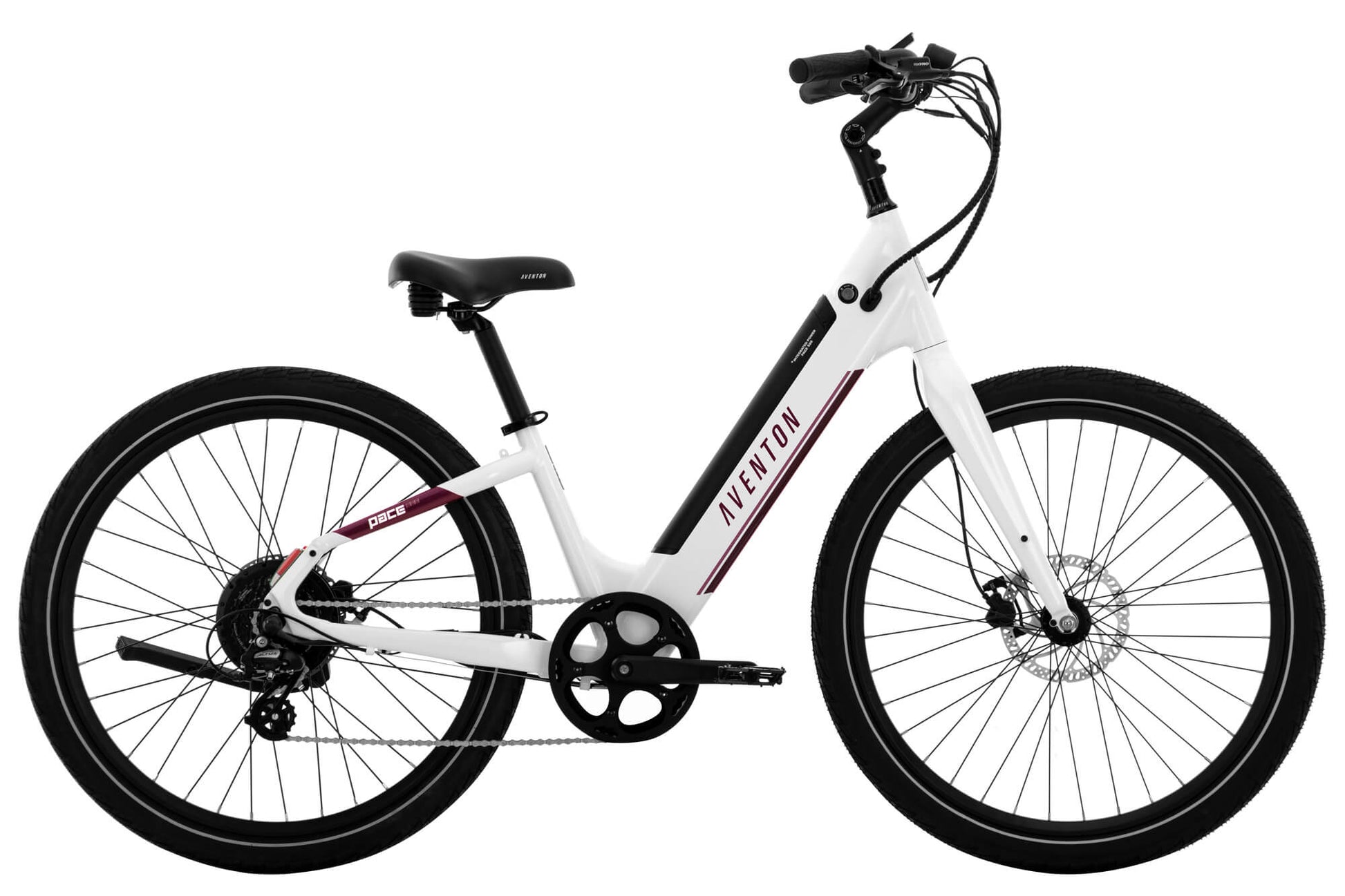

Aventon Pace 500.3 Step Through Quick Specs

• Top Speed: 28 MPH

• Motor Power: 500W

• Range: Up to 60 Miles

• Payload Capacity: 300 lbs

• Phone App: iOS, Android

• Turn Signals: Integrated Lights

  BLUE STEEL IS DISCONTINUED

Aventon Pace 500.3 Electric Bike Technical Specifications:

• General Info
  • Model: Pace 500.3 Cruiser Ebike
  • Speed: Up to 28 MPH (unlocked Class III)
  • Pedal Assist: 4 Levels
  • Range: Up to 60 miles
  • Weight: 52 lbs
  • Total Weight Limit: 300 lbs
  • Dimensions: Bike Box 150cm x 27cm x 86cm
  • Ideal Use: Cruising
  • Folding: No
  • Rider Height: 5'3" - 6'4"
• Frameset
  • Frame: Single-Butted Aluminum Alloy
  • Fork: AE-E08 PACE V2 AL fork
  • Frame Style: Step-Over
• Wheelset
  • Rim: Double Wall Aluminum 36h Front & Rear
  • Tubes: Butyl Rubber, Schrader Valve
  • Hubs: Hubs: 36H Disc Nutted Front, Nutted Rear
  • Tires: 27.5 x 2.1 Puncture Resistant, Reflective Sidewalls
• Ebike System
  • Motor: 500w, 48v
  • Throttle: Throttle on demand

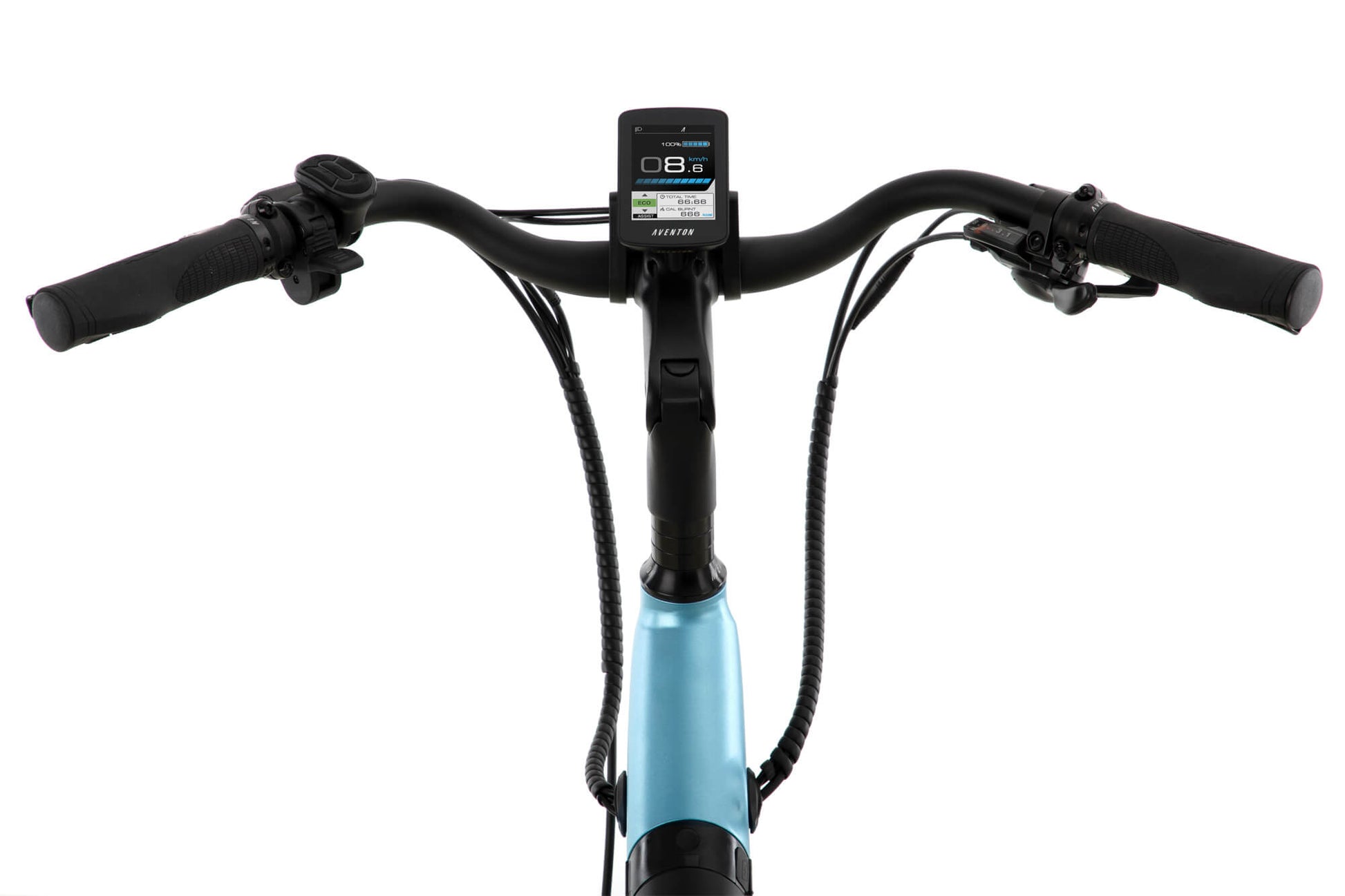

  • Display: LCD Smart "Easy Read"
  • Battery: 48V, 12.8Ah (614Wh), LG Cell, UL 2849 Compliant
  • Sensors: Torque Sensor
  • Charger: 48V, 3 Amp Fast Charger

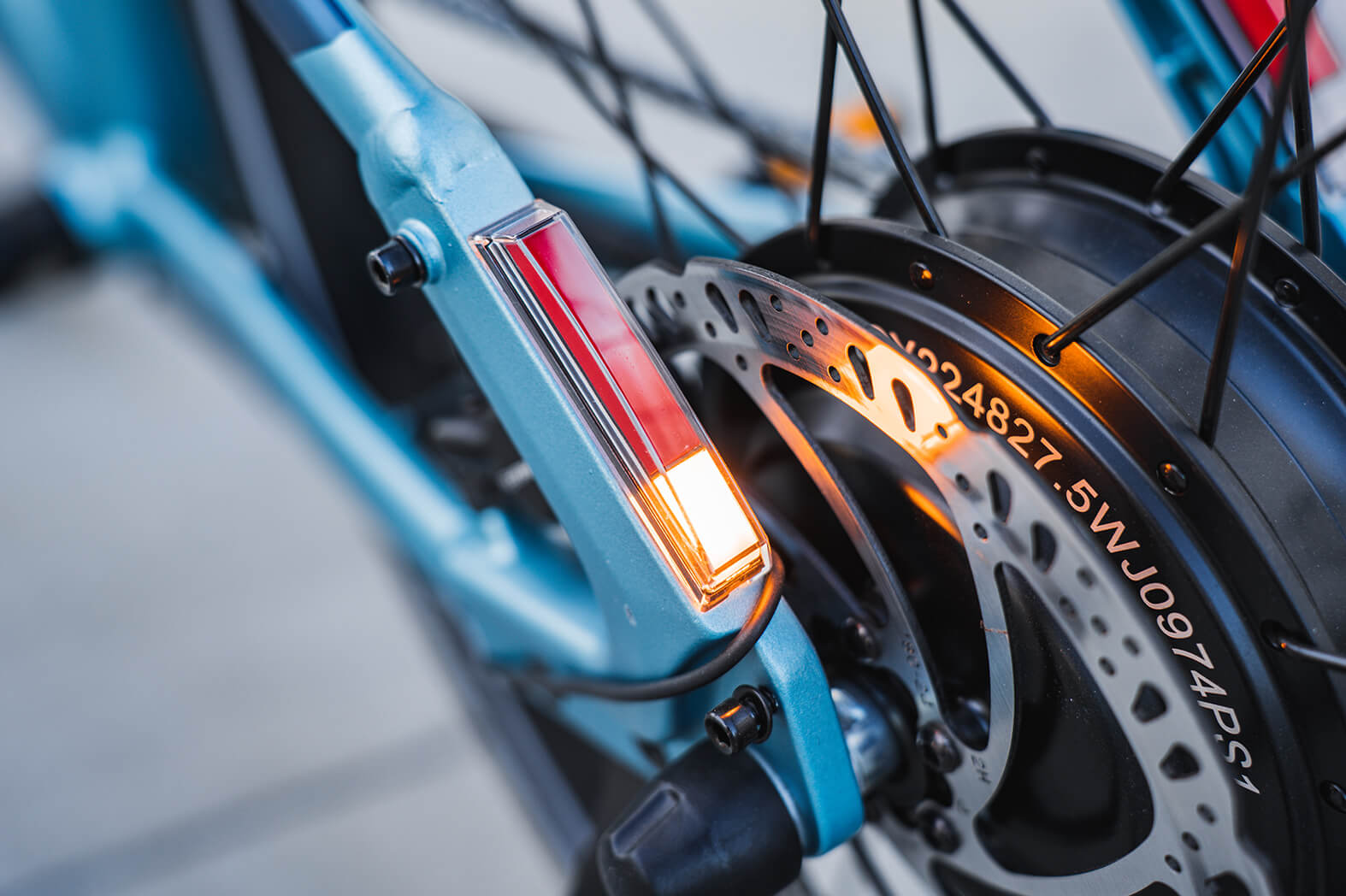

  • Lights: Front and rear lights integrated
• Brakes
  • Brakes: Hydraulic
• Drivetrain
  • Pedals: 9/16" Alloy Platform
  • Bottom Bracket: Square Taper, Sealed, Torque Sensor
  • Crankset: 170mm w/ 48 T
  • Rear Derailleur: Shimano 8 speed
  • Cassette: 12-32T, 8 Speed
  • Shift Lever: 8 Speed Trigger
  • Chain: 122 Link, 8 Speed
• Cockpit
  • Saddle: Aventon Saddle
  • Seatpost: Forged Alloy, 30.9mm 2-Bolt Clamp
  • Stem: Threadless, 31.8mm, 90mm
  • Seat Clamp: 34.9mm Quick Release
  • Handlebars: Aluminum 31.8mm, Sweptback
  • Headset: Sealed Bearing Headset
  • Grips: Ergonomic Comfort
• Included Accessories
  • Kickstand: Included, rear mount
  • Fenders: Optional
  • Rear Rack: Optional
• Miscellaneous
  • Suspension: None
