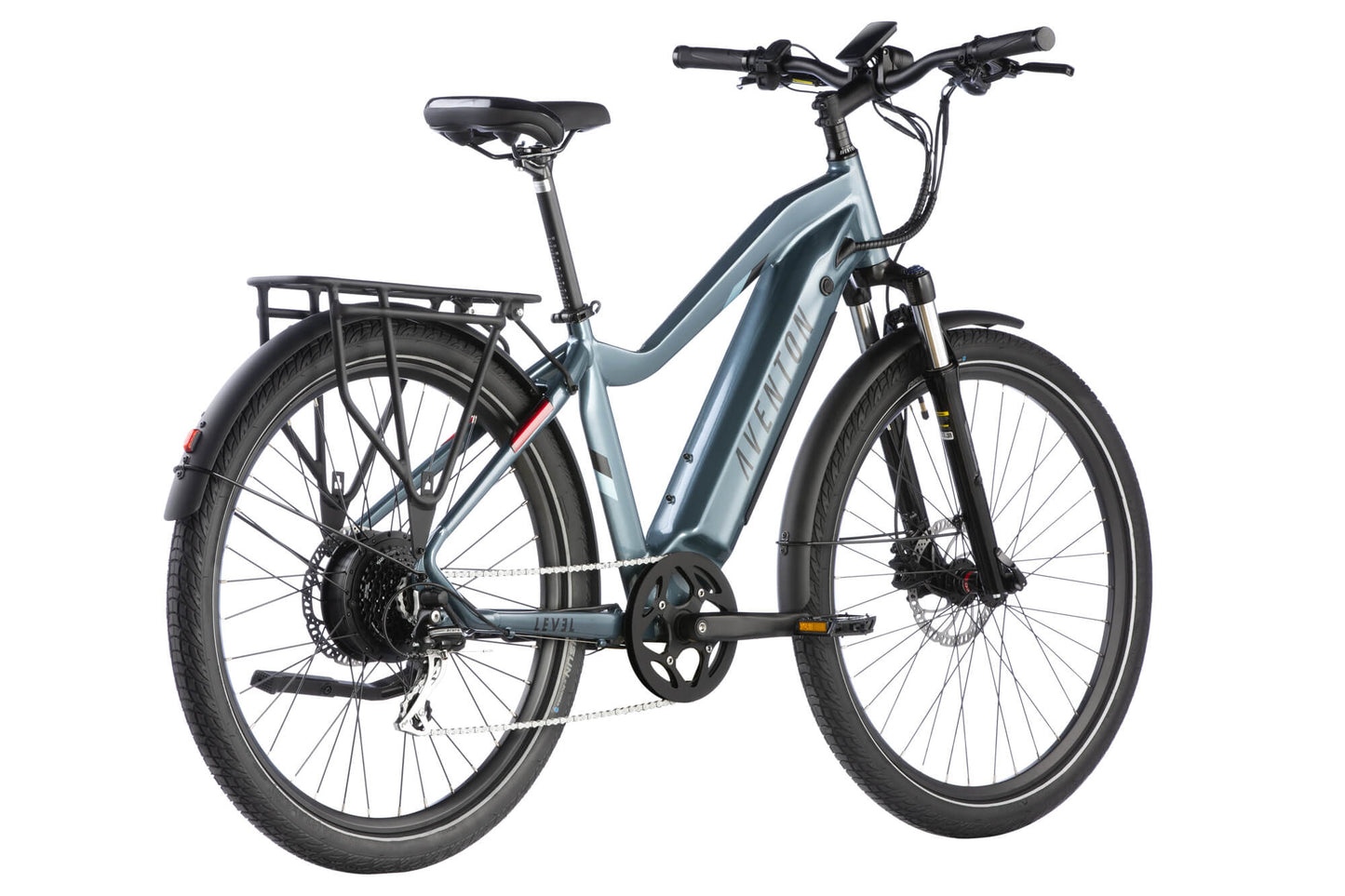

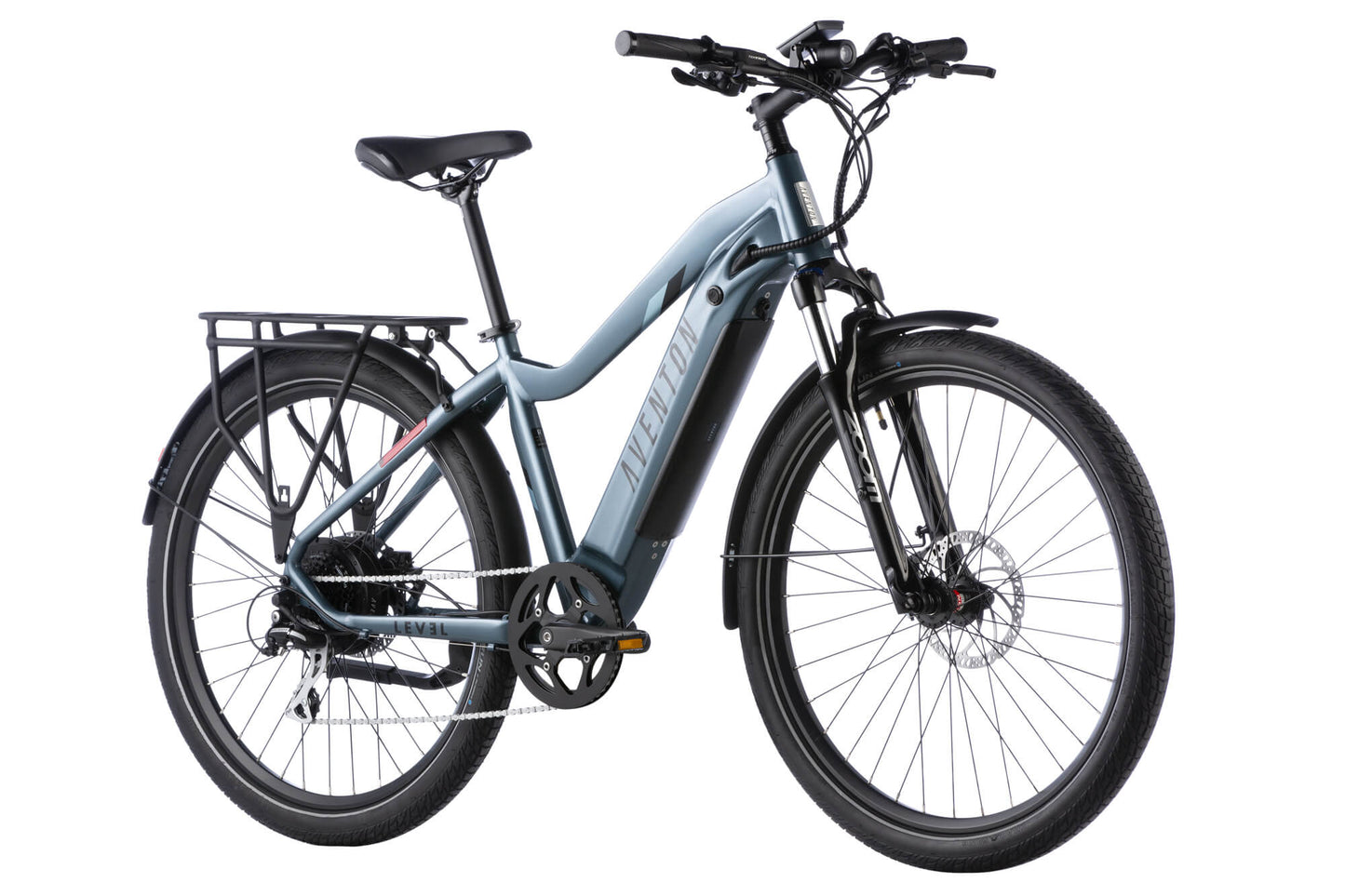

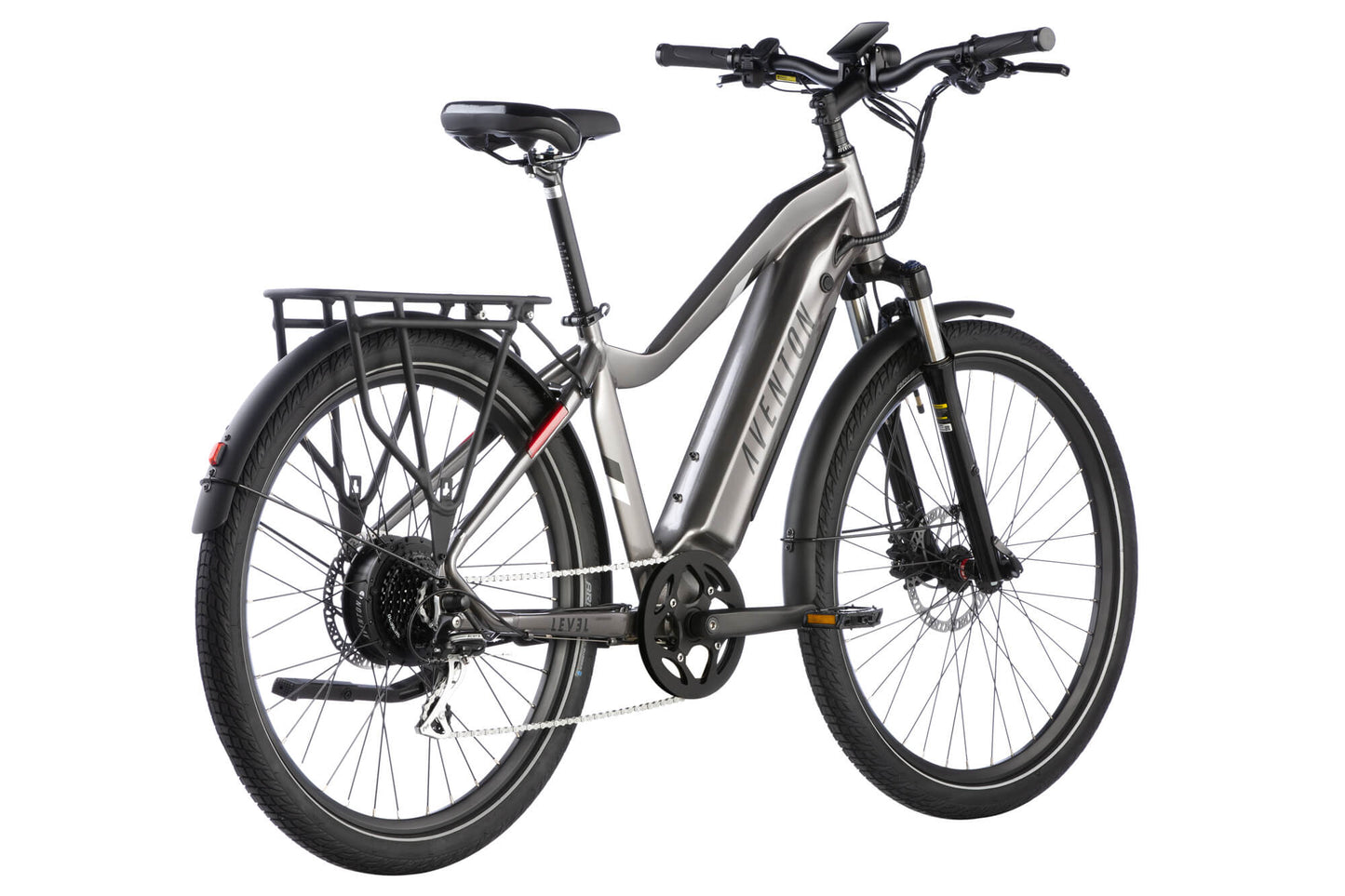

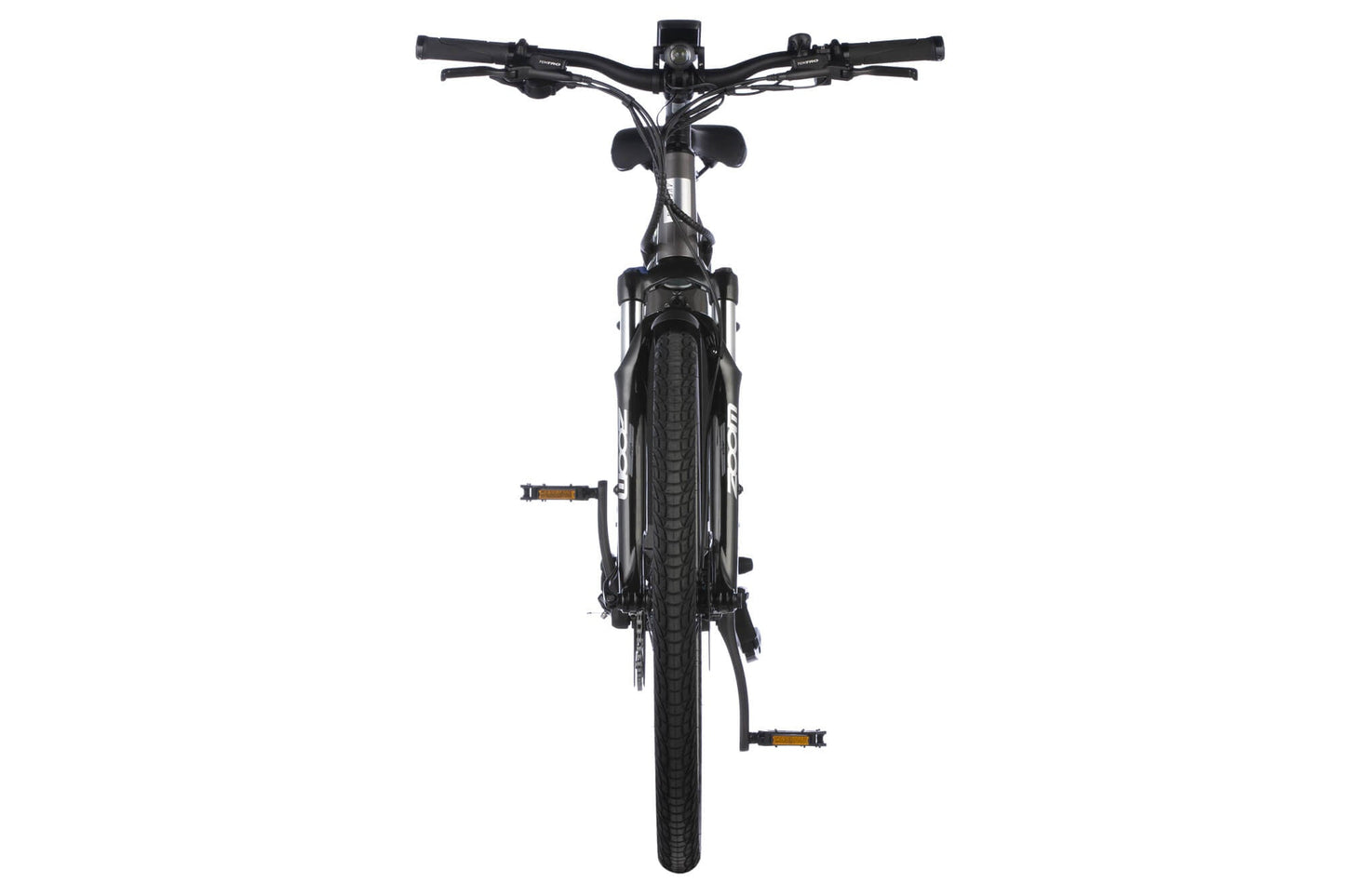

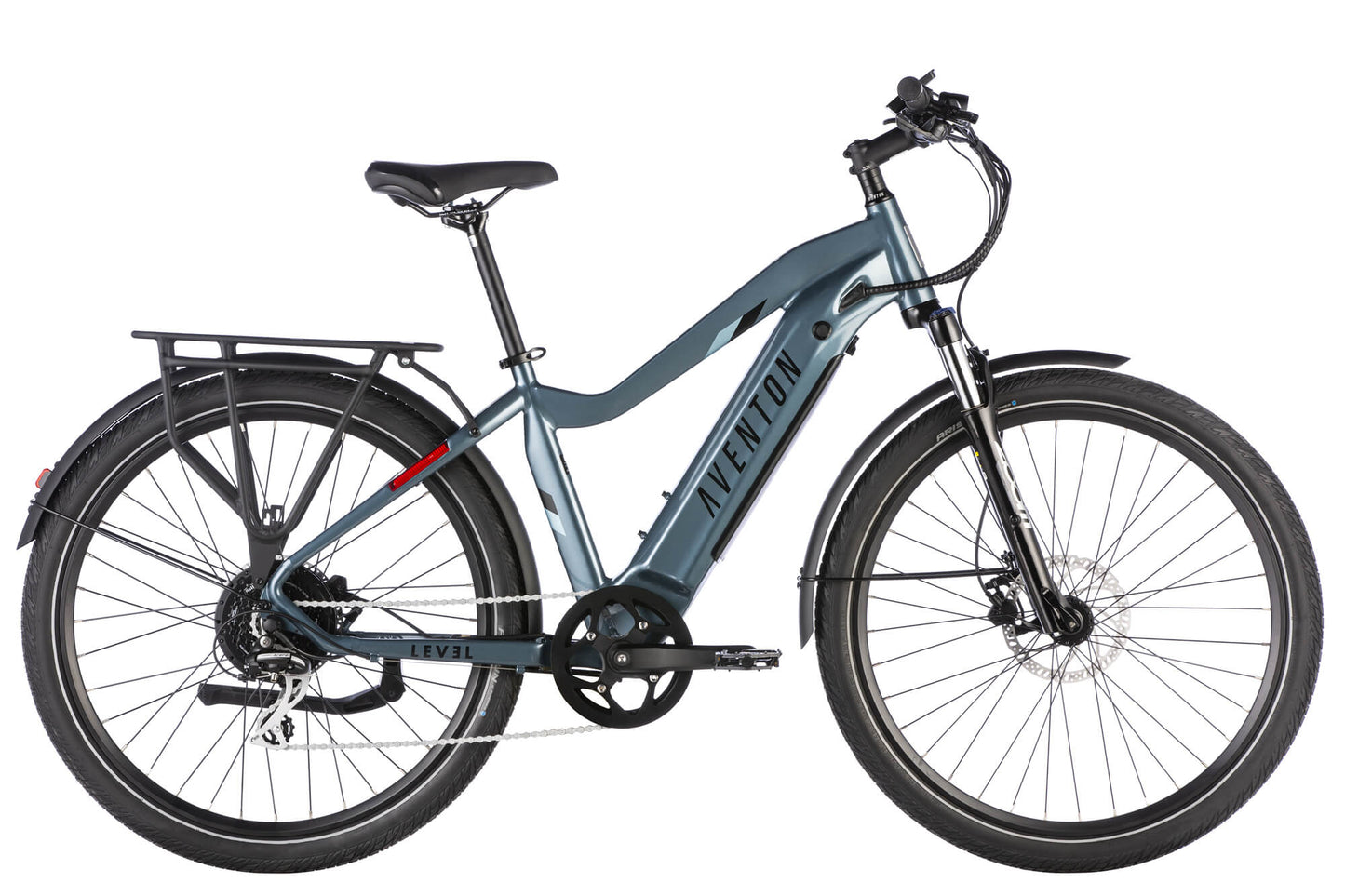

Aventon Level.2 Step Over Electric Bike

Aventon Level.2 Step Over Electric Bike

Regular price $1,699.00
Regular price $5,099.00 Sale price $1,699.00
Sale Sold out
Please contact us to price match. Most orders over $100 ship free, otherwise shipping is calculated at checkout
Size
Color
More Financing Options

Quick Specs

  • TOP SPEED: 28 MPH
  • RANGE: Up to 60 Miles
  • PAYLOAD CAPACITY: 300 lbs
  • PHONE APP: iOS, Android

Aventon Level.2 Electric Bike Technical Specifications:

General Info

  • Model: Level.2 Commuter Ebike
  • Speed: 28 MPH
  • Pedal Assist: 5 levels
  • Range: Up to 60 miles
  • Weight: 62 lbs
  • Total Weight Limit: 300 lbs
  • Ideal Use: Commuting
  • Folding: No
  • Rider Height: 5'3" - 6'4"
Frameset
  • Frame: Double-Butted Aluminum Alloy
  • Fork: Coil Spring Suspension, Thru-axle, 65mm travel with lockout
  • Frame Style: Step-Over
Wheelset
  • Rim: Double Wall Aluminum 36h Front & Rear
  • Spokes: Black Stainless 13G Front / 12G Rear
  • Tubes: Butyl Rubber, Schrader Valve
  • Hubs: 36H Disc Thru-axle Front, Nutted Rear
  • Tires: 27.5" x 2.1" Hybrid Tires, Reflective Sidewalls
Ebike System
  • Motor: 750w (peak), 500w (sustained), 48v

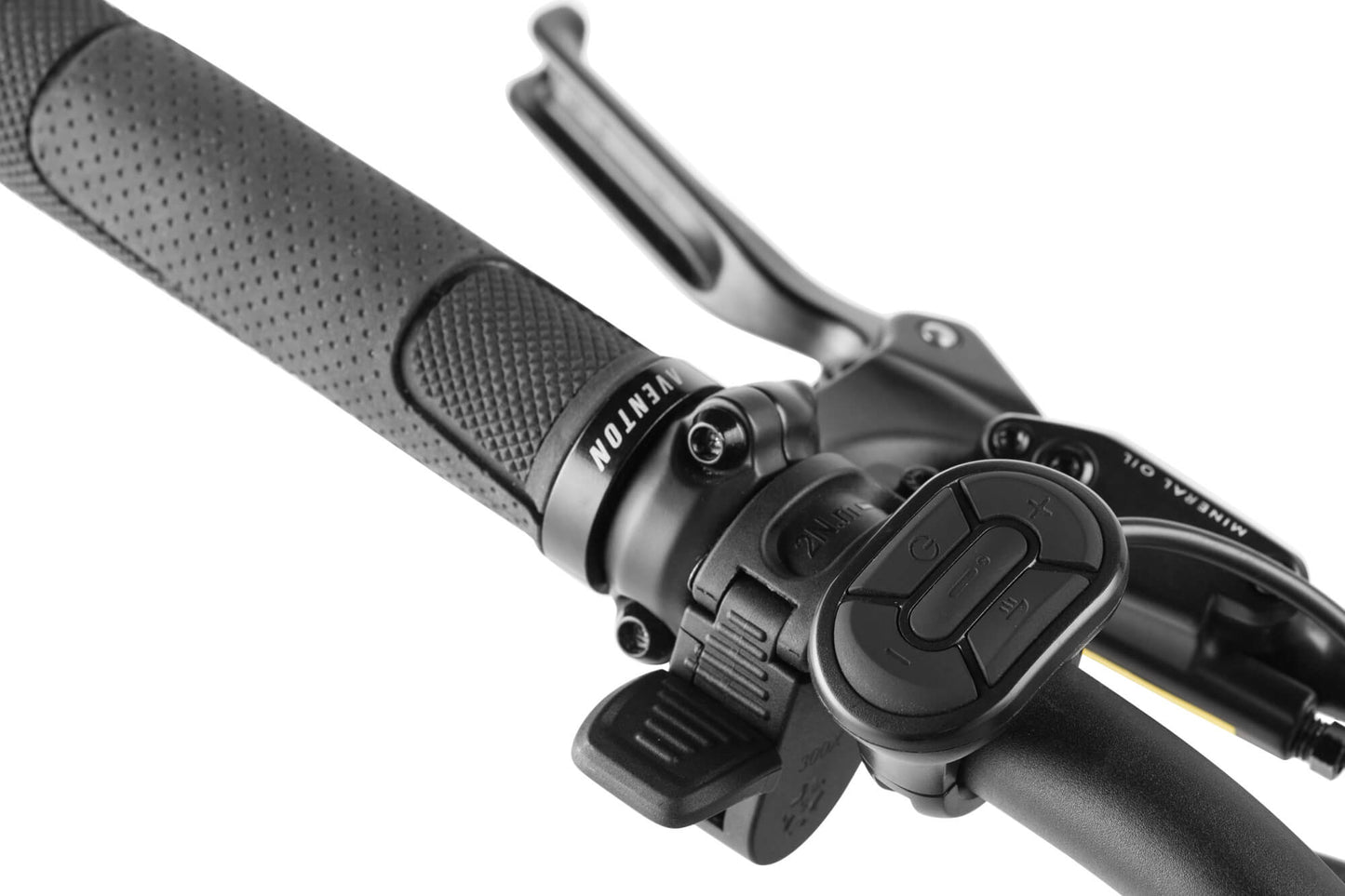

  • Throttle: Throttle on demand

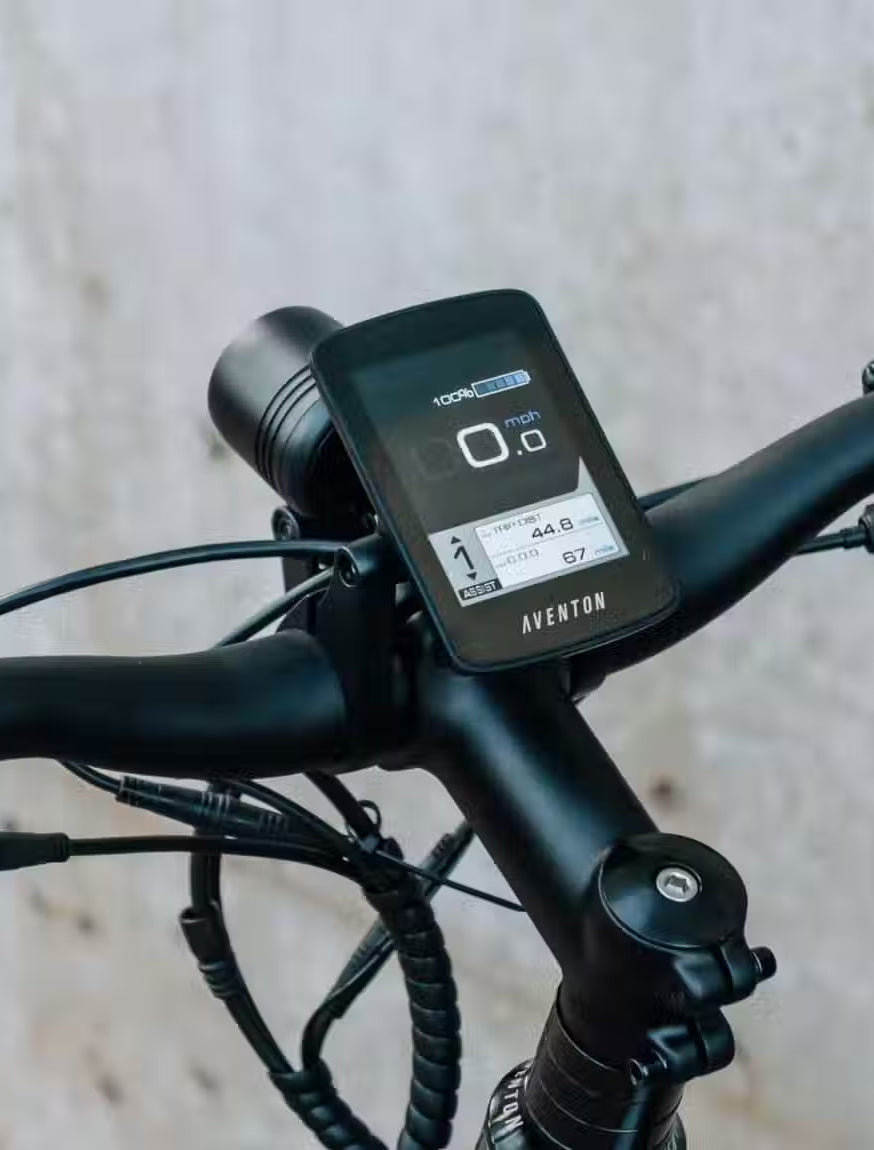

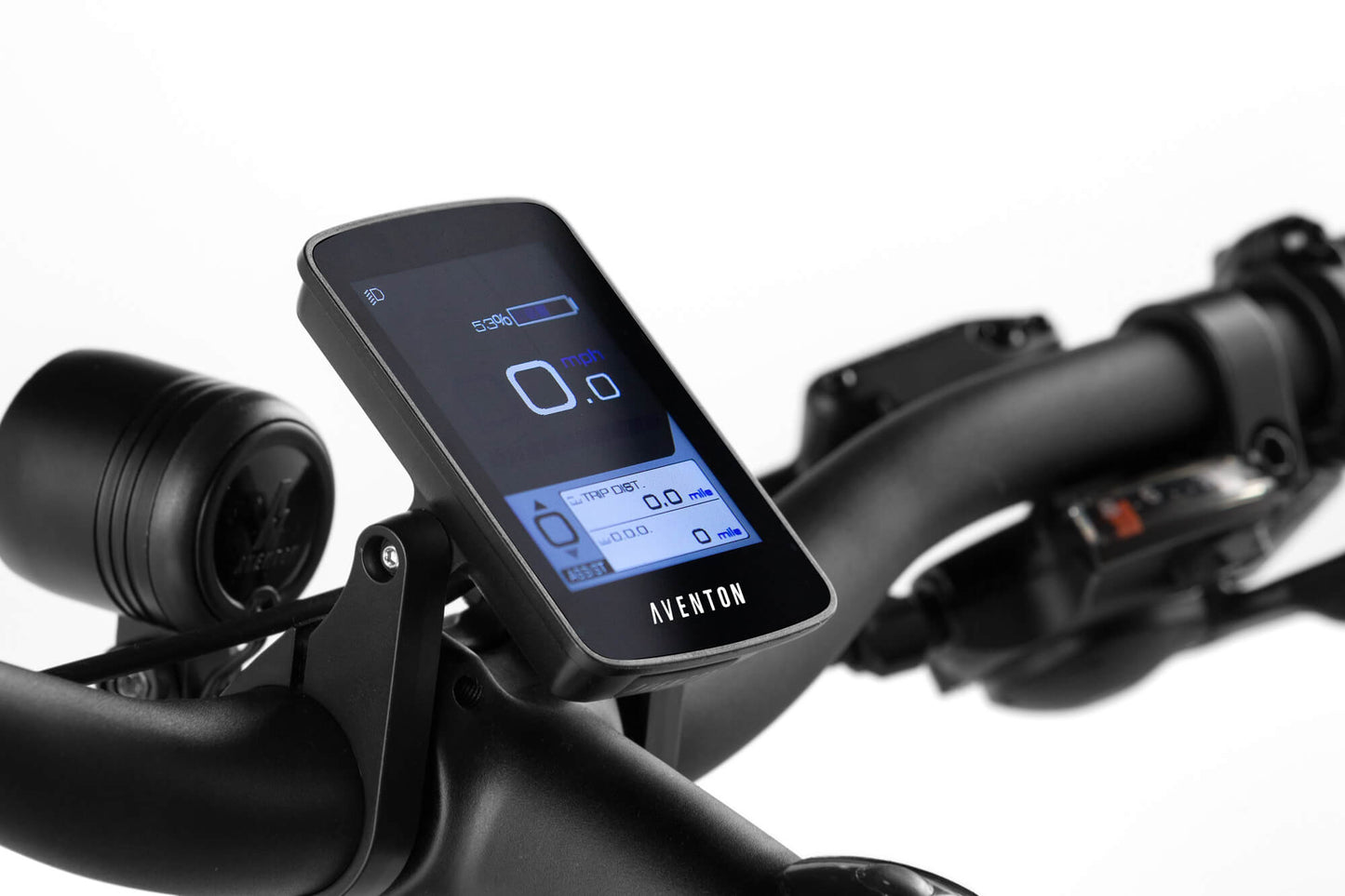

  • Display: LCD Smart "Easy Read"
  • Battery: 48V, 14Ah (672Wh) LG Cell, UL 2849 Compliant
  • Sensors: Torque Sensor
  • Charger: 48V, 3 Amp Fast Charger

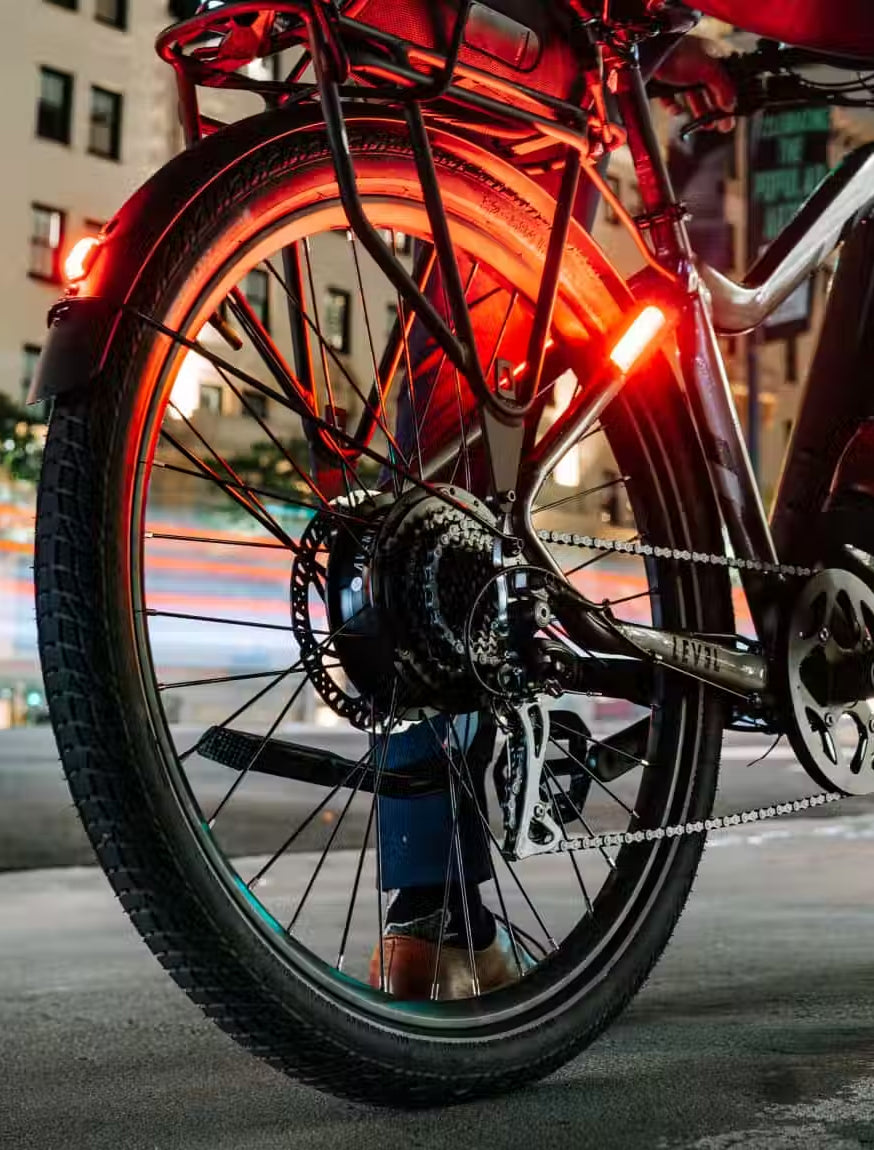

  • Lights: Front and rear lights integrated
Brakes
  • Brakes: Hydraulic

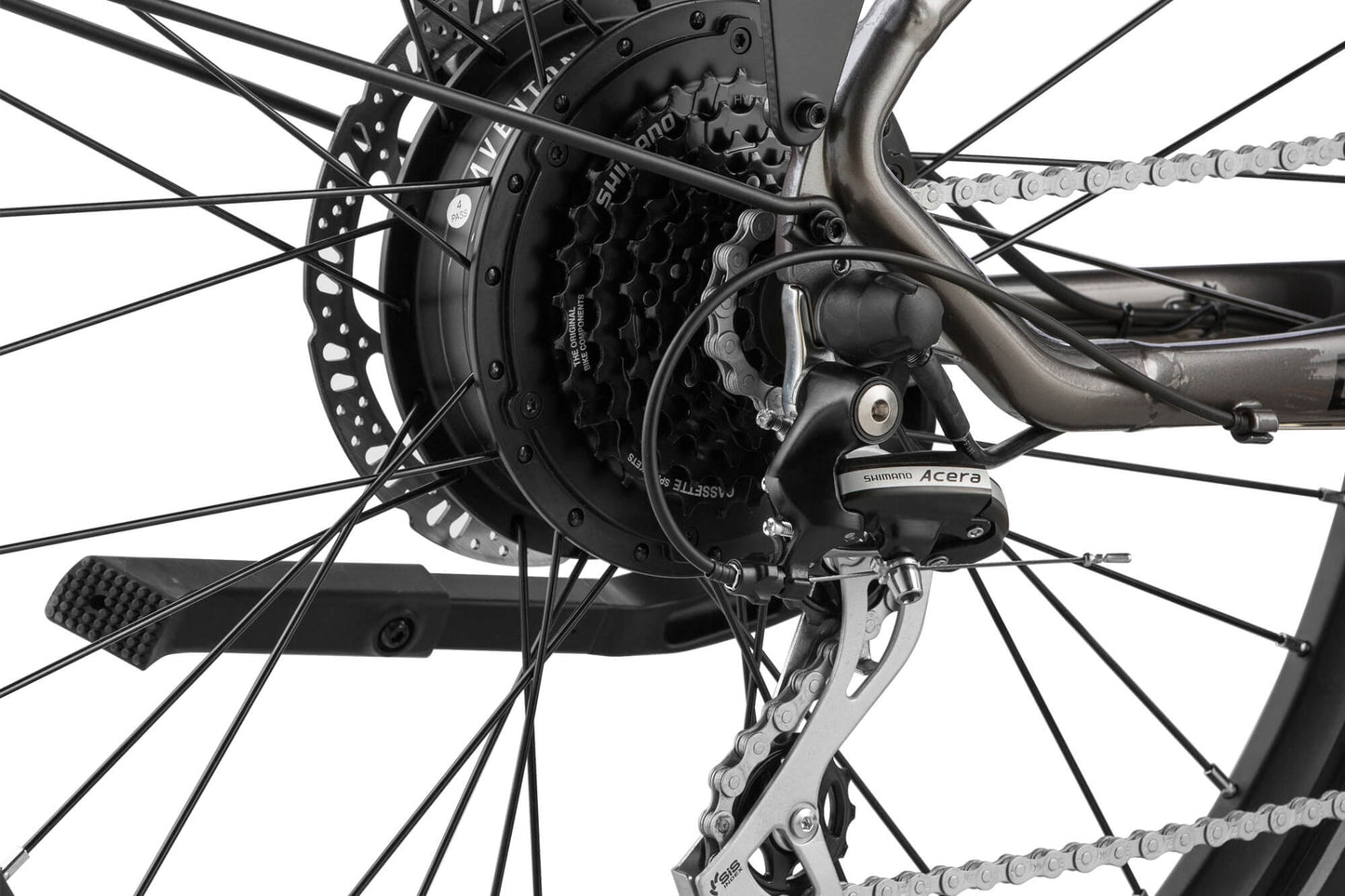

Drivetrain
  • Pedals: 9/16" Alloy Platform
  • Bottom Bracket: Square Taper, Sealed, Torque Sensor
  • Crankset: 170mm w/ 46 T
  • Rear Derailleur: Shimano 8 speed
  • Chain: 122 Link, 8 Speed
  • Cassette: 12-32T, 8 Speed
  • Shift Lever: 8 Speed Trigger

    Warranty



    At REV Rides we understand the importance of micromobility. Many of our customers rely on their electric vehicles for transportation to work, school or just daily recreation. Because of this we want to ensure that our customers feel secure with their purchase from us.

    Click here to learn more about our warranty

    View full details
