EBMX XLB-60 CORE Motor + X-9000 V3 Controller Bundle
Plug & Play Power Kit
For E-Ride Pro, Sur Ron, 79 Bike

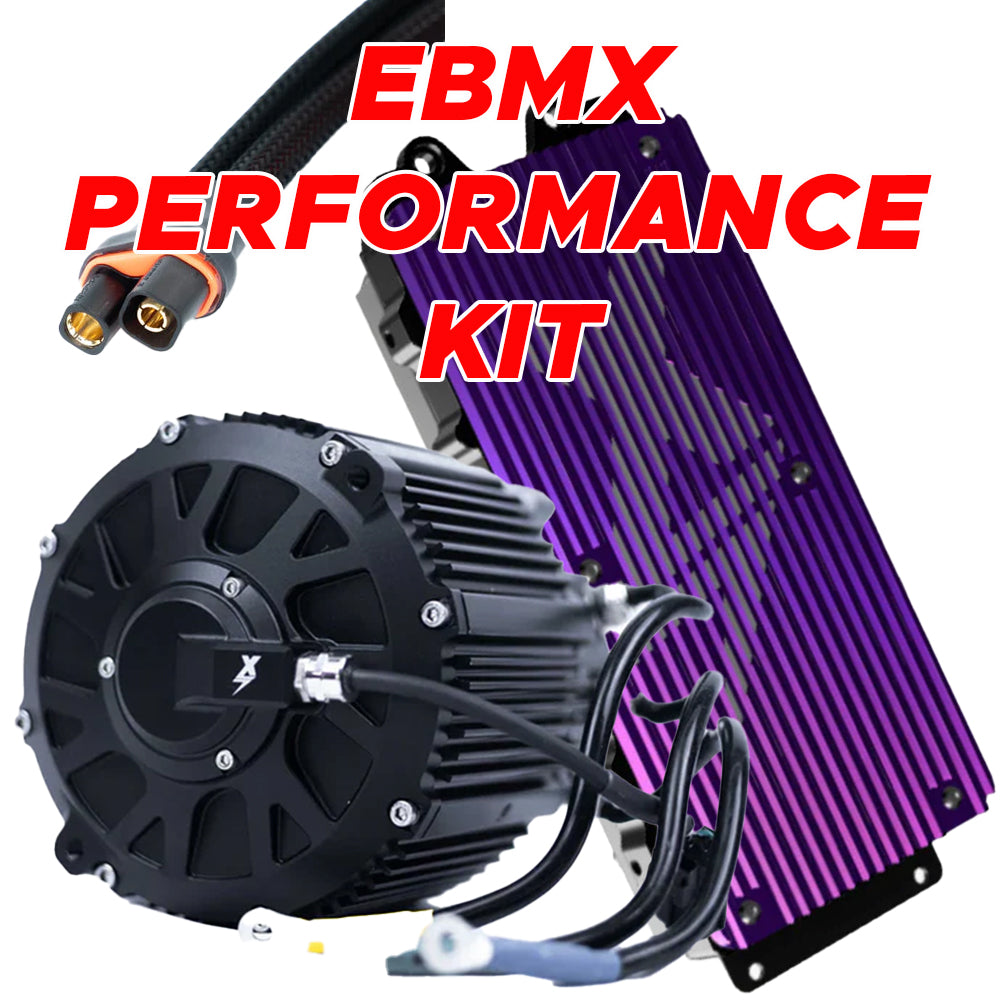

Complete Power Upgrade – CORE Motor + Controller + Display + Throttle

Unleash real-world performance with this EBMX CORE Bundle built for riders who want serious torque, smooth power delivery, and reliable off-road performance. This full plug-and-play kit includes the XLB-60 CORE motor, X-9000 V3 controller, display, throttle, and harness pre-configured for your bike.

Whether you're riding a Sur Ron, E-Ride Pro, or 79 Bike Falcon, this bundle transforms your e-moto into a responsive, high-output machine that rides smoother, pulls harder, and climbs stronger.

What’s Included

• EBMX XLB-60 CORE Motor

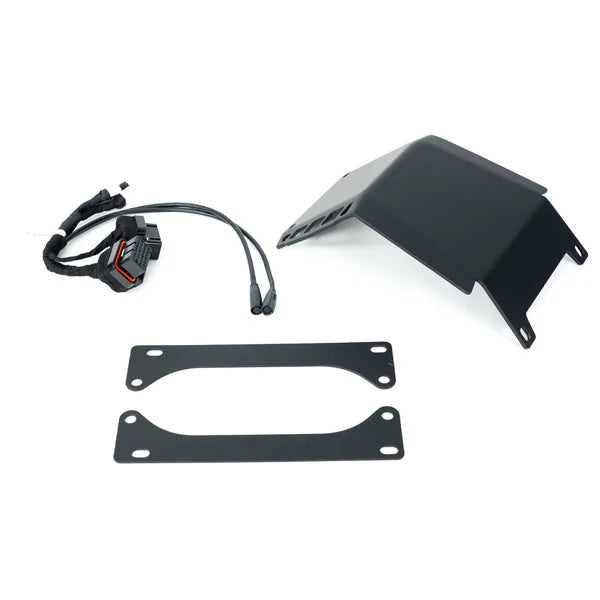

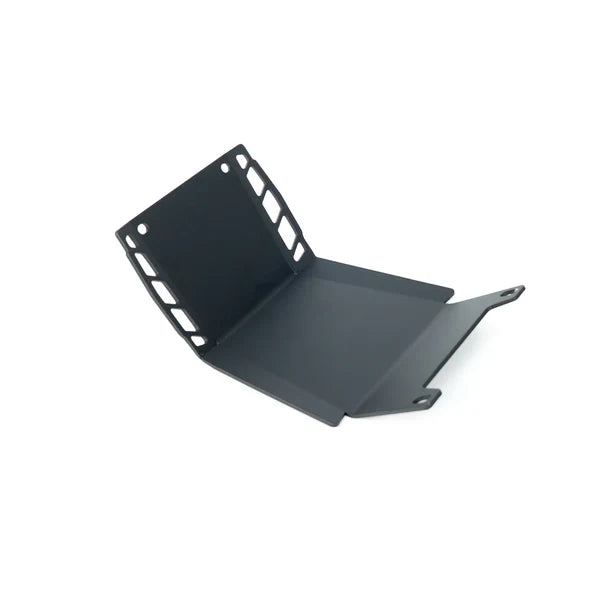

• Custom EBMX Bash Plate (bike-specific fitment)

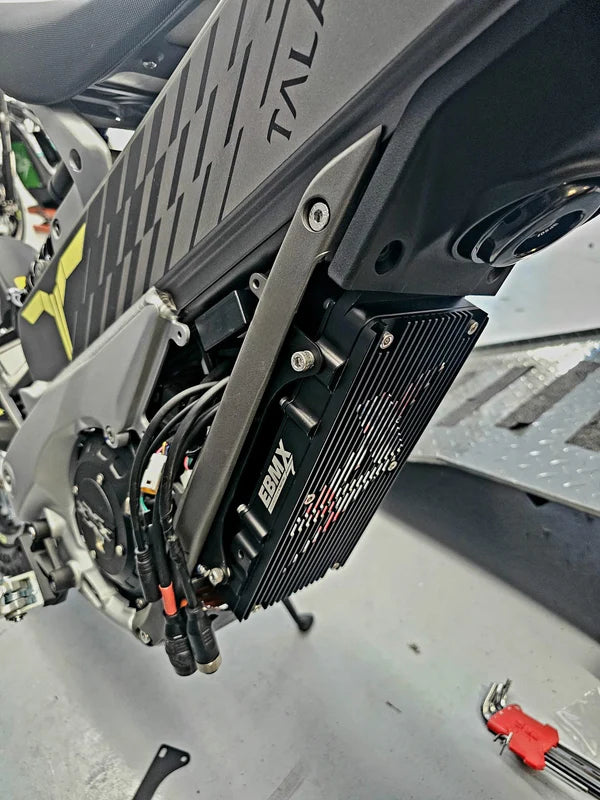

• EBMX X-9000 V3 Controller (Air-Cooled)
• EBMX SW102T Full-Color Display
• Thumb Throttle
• Bluetooth Tuning Module

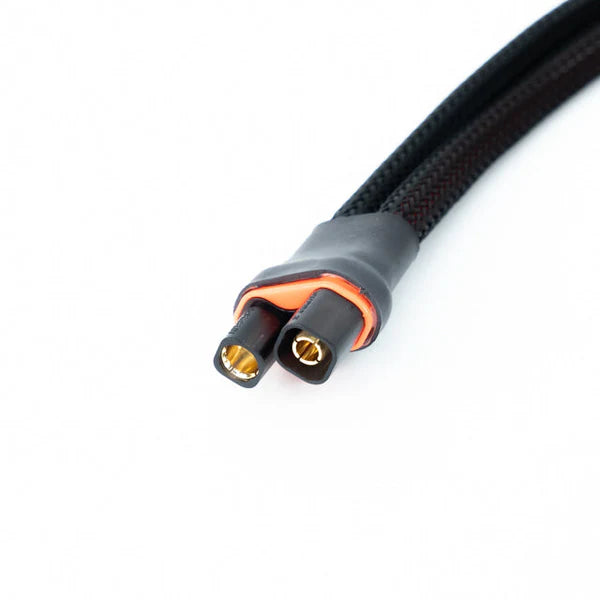

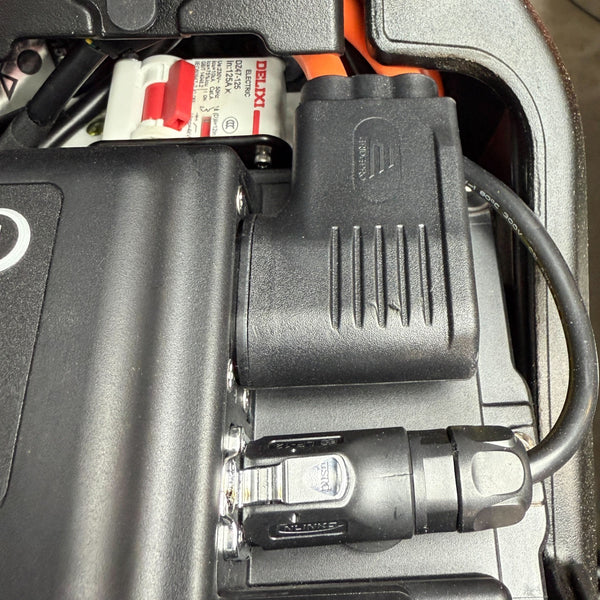

• 1–2 Adapter Harness (bike-specific)

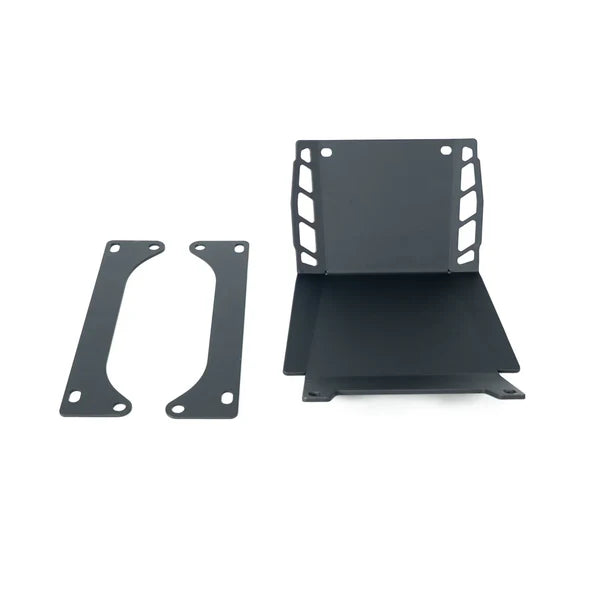

• Controller Mounting Brackets

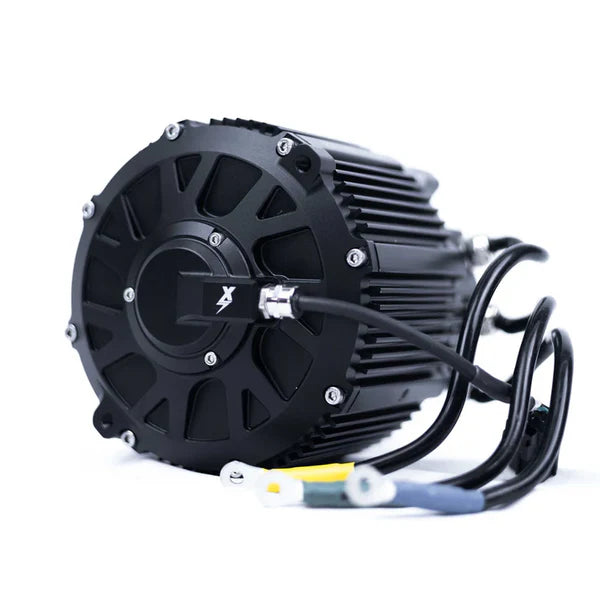

XLB-60 CORE Motor Highlights

• 64mm stator for strong electric output and torque
• 87KV motor delivering up to 41kW peak @ 90V
• Real-world output: 32–35kW on 72V (20S) setups
• 12,000 RPM limit for crisp throttle feel
• IP67 waterproofing + 180°C winding temp rating
• Custom internal rotor with encoder-based motor control

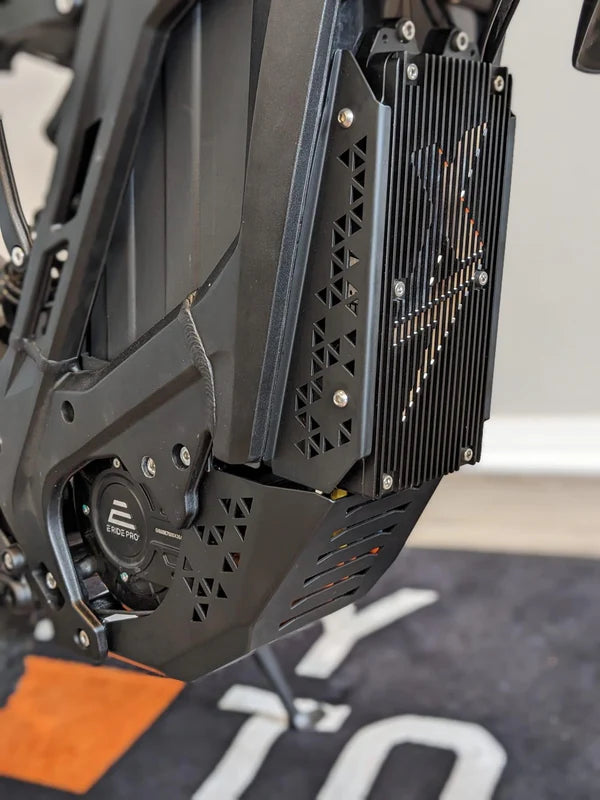

• Includes EBMX bash plate for plug-in protection
• Built for trail riders, jump lines, and technical off-road

Recommended CORE Gearing:

• 18” rear wheel → 52T
• 16” rear wheel → 48T

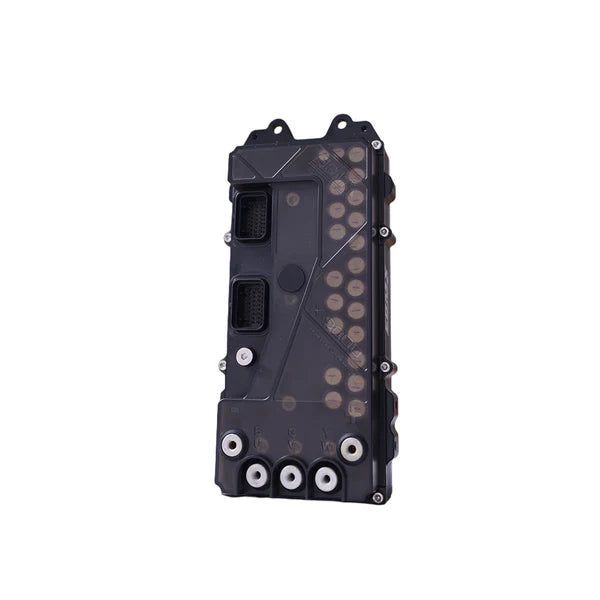

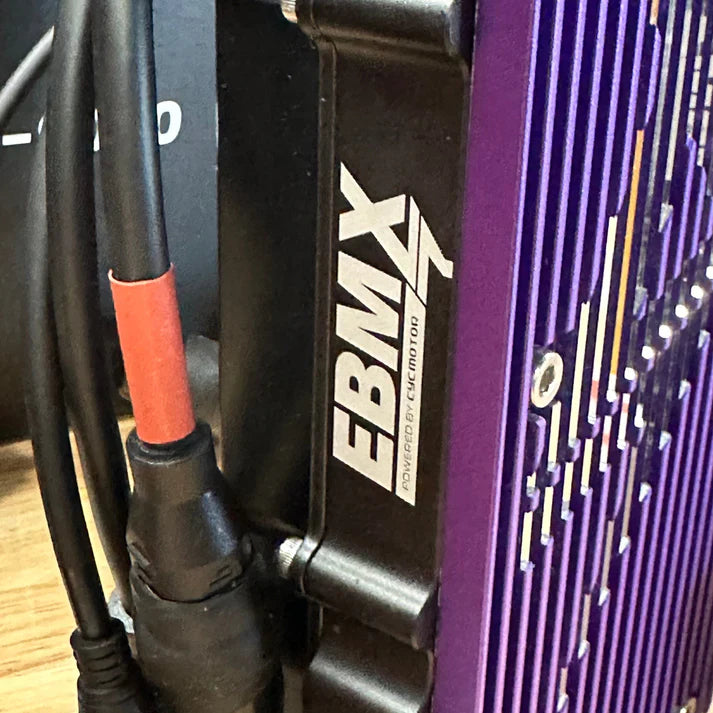

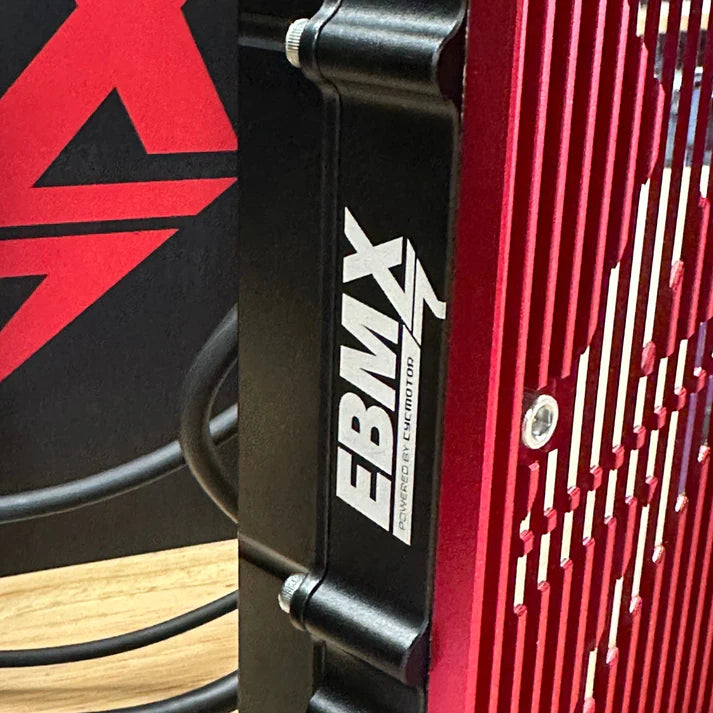

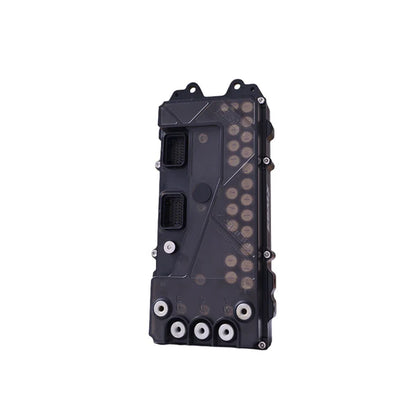

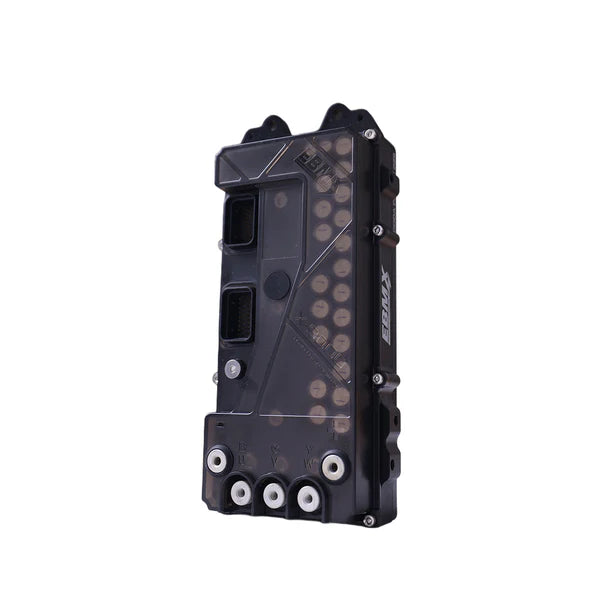

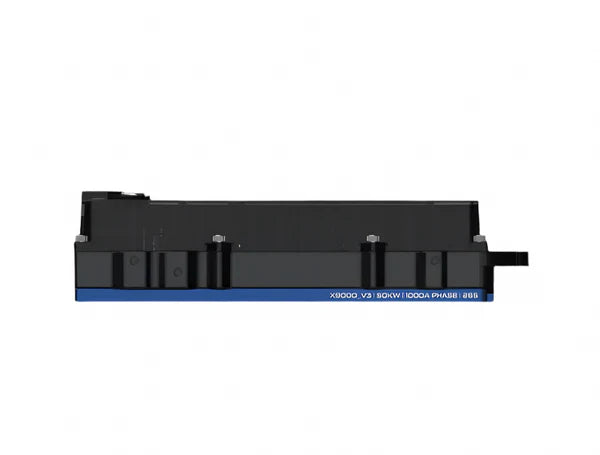

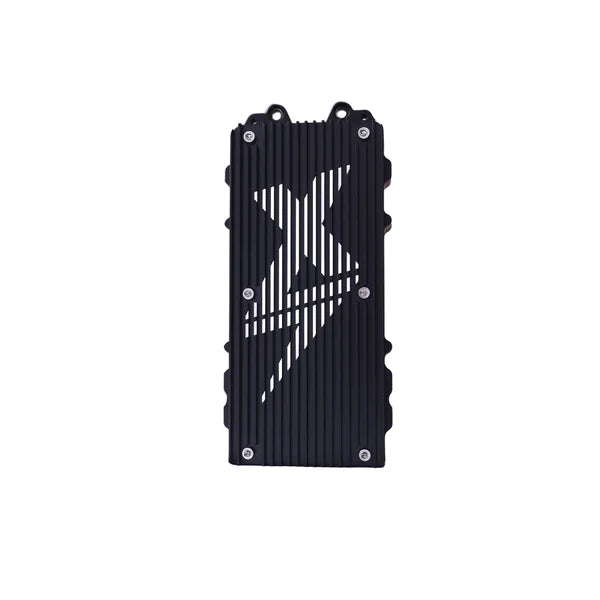

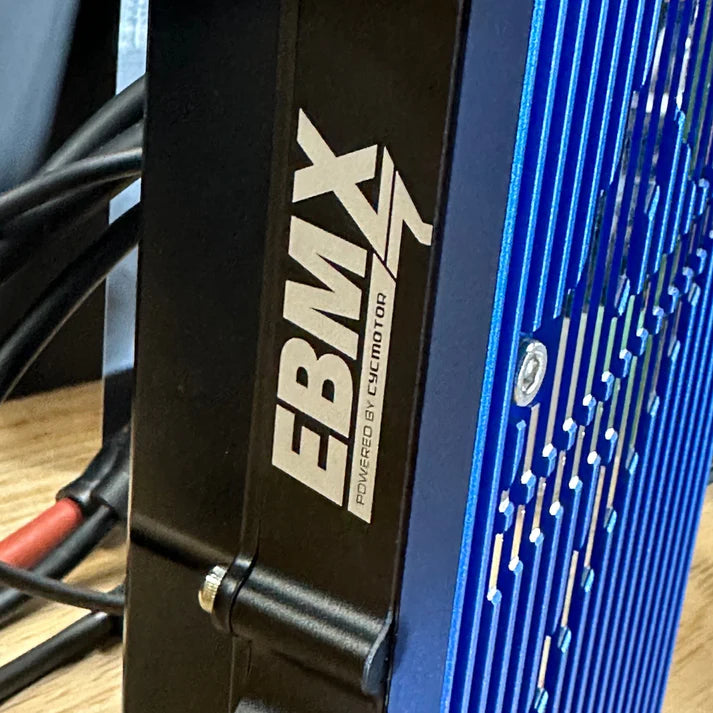

X-9000 V3 Controller Highlights

• 30x Infineon MOSFETs: 50kW continuous / 60kW peak output
• Supports 48–120V systems with 1600A burst current
• Fully tunable via EBMX Bluetooth app
• Live settings for regen, throttle curves, max amps
• Includes E-Clutch, Wheel Lift Assist, and Race/Street modes
• Custom VESC firmware on 6-layer PCB with CNC copper busbars

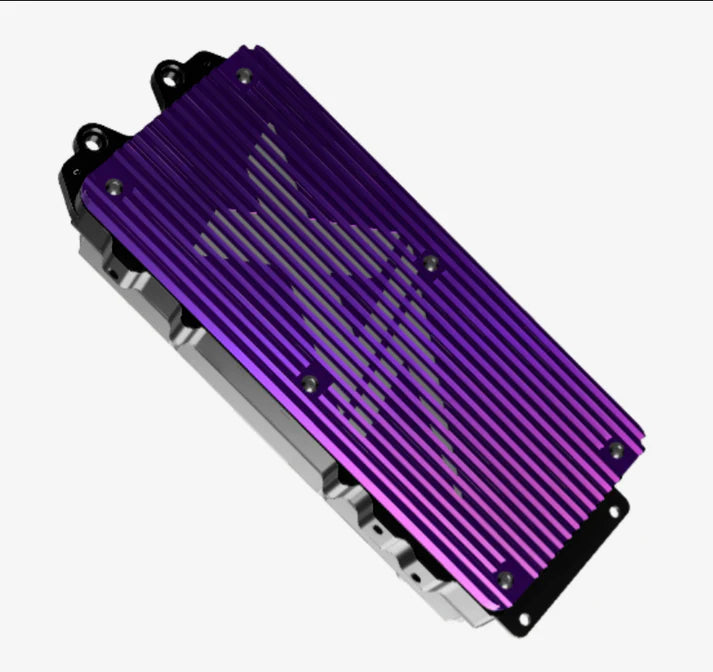

• IP67 waterproof housing with air-cooled alloy heatsink

Fitment

• Sur Ron Light Bee / LBX
• E-Ride Pro SS 2.0 / SS 3.0 / SR
• 79 Bike Falcon S / Pro

Note: Harness and bash plate are pre-configured for your selected bike model. Fully plug-and-play out of the box when ordered from REV.

Color Options

• Motor Bash Plate: Black, Red, Blue, Gold, Purple

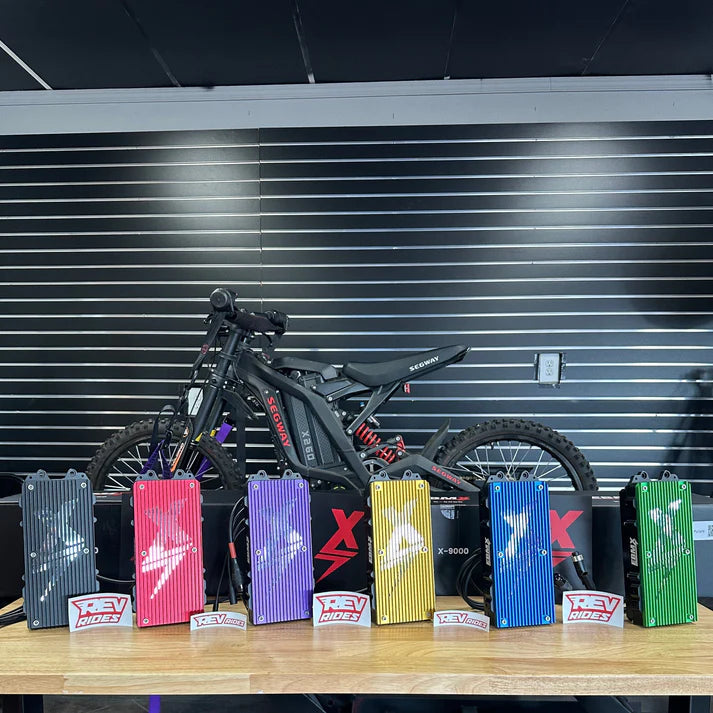

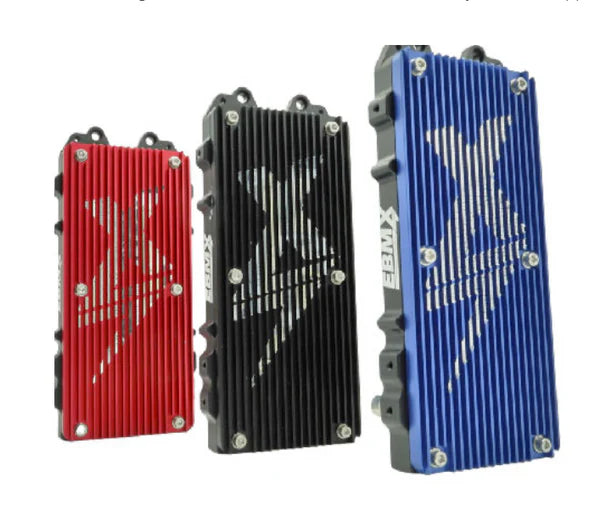

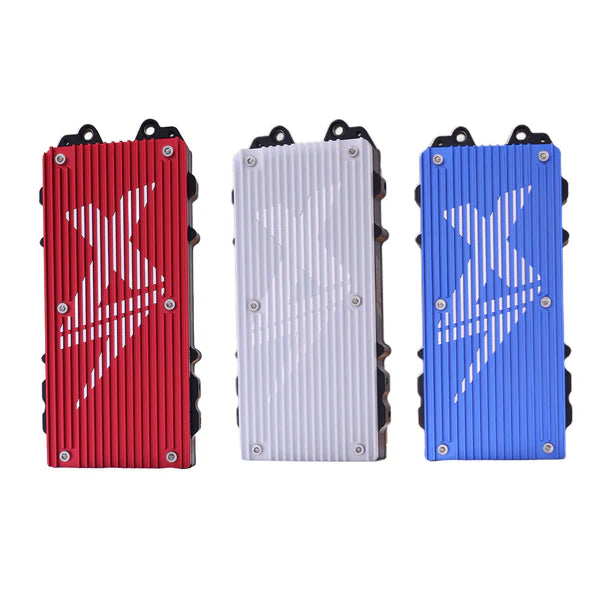

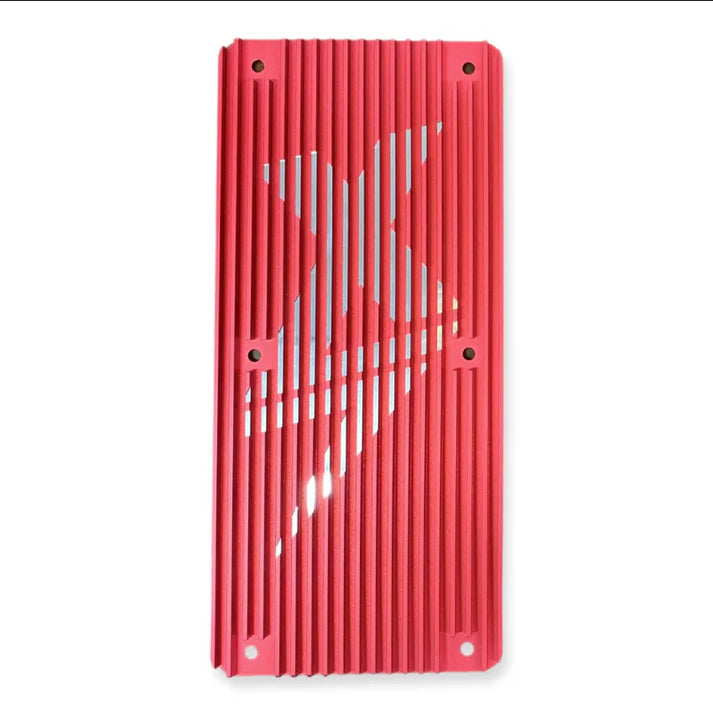

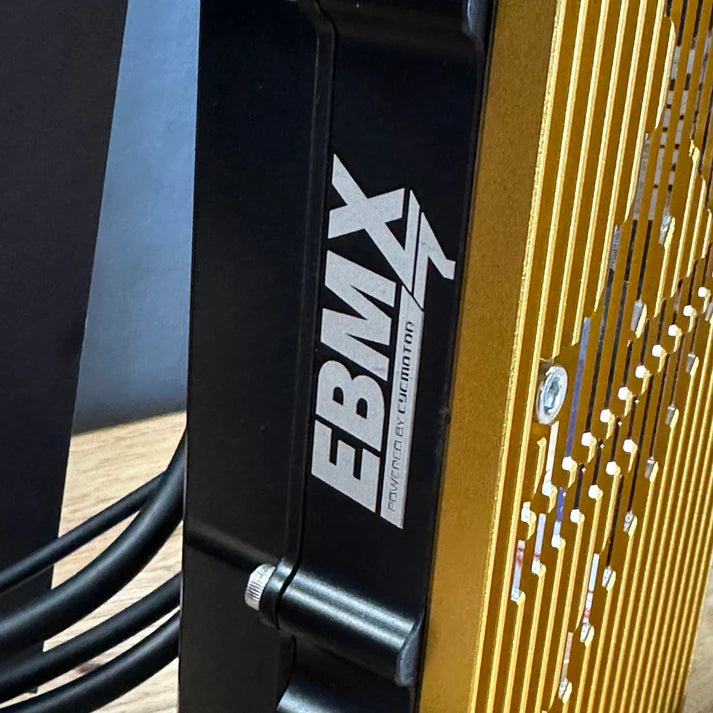

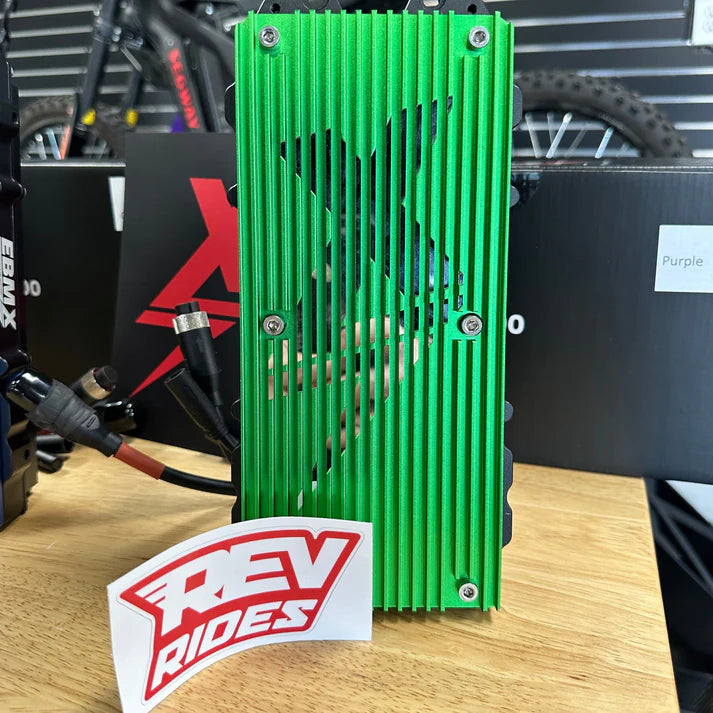

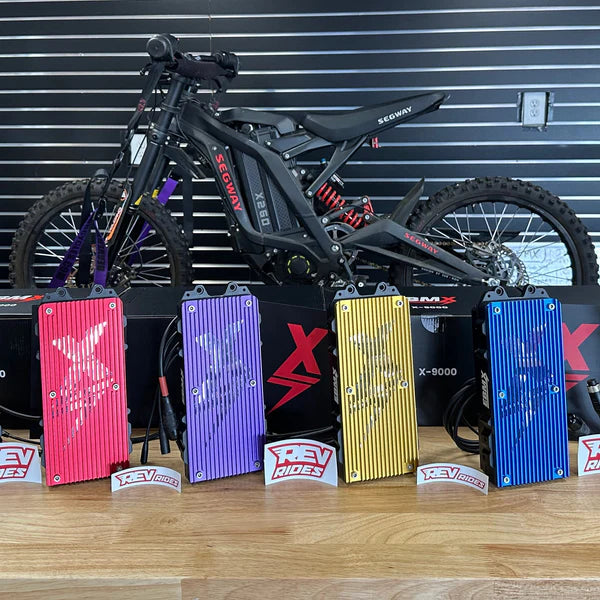

• Controller Heatsink: Black (default) • Red • Blue • White • Purple • Gold

Warranty

2-Year EBMX Warranty when CORE Motor is used with the X-9000 V3 Controller. Covers manufacturer defects and performance issues under off-road use.

Important Safety Info

• For off-road use only — not legal for public streets
• Experienced riders only — serious torque and speed
• Upgrade brakes, tires, and suspension before installing
• Always follow local laws and safety guidelines

Need help dialing in your gearing or tuning profile? Reach out to the REV Rides team — we ride what we sell.
