Ventus Motor & VTB V9600 Controller Combo Kit | 28kW+ Power Upgrade | For Emoto | by Ventus Bikes

Ventus Motor & VTB V9600 Controller Combo Kit | 28kW+ Power Upgrade | For Emoto | by Ventus Bikes

Regular price $1,976.00
Regular price Sale price $1,976.00
Sale Sold out
Shipping calculated at checkout.
Bike harness

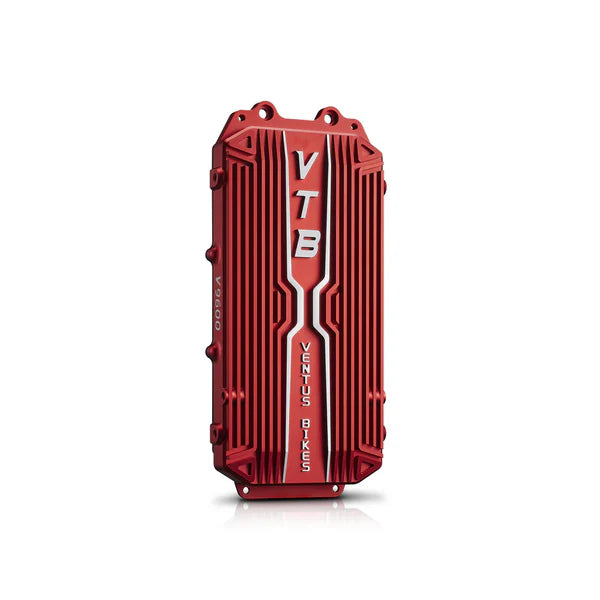

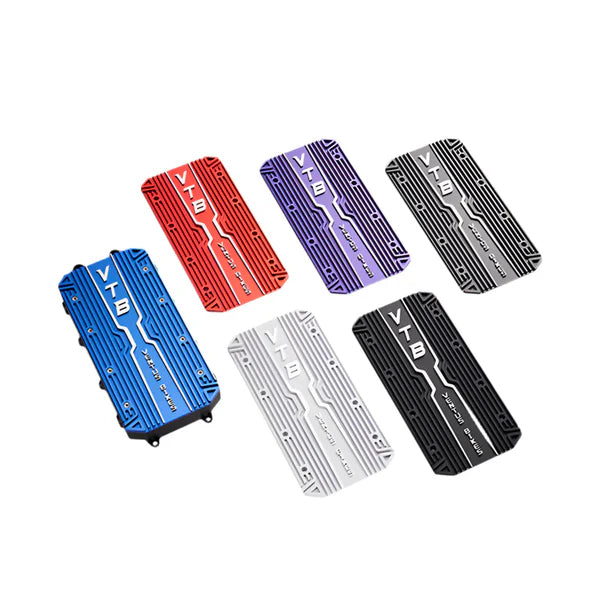

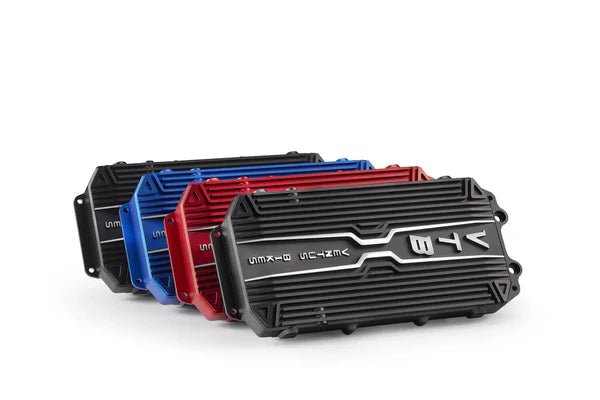

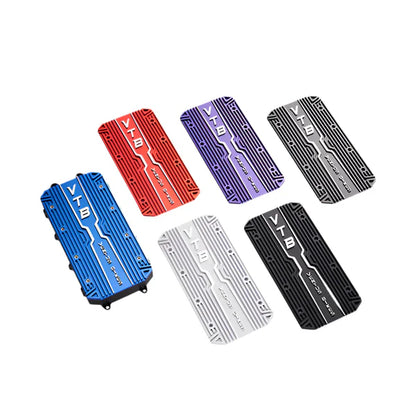

Controller Heat Sink Color

Ventus Motor & VTB V9600 Controller Combo Kit | 28kW+ E-Moto Power Upgrade | by Ventus Bikes | For Sur-Ron, Talaria, E-Ride Pro, 79 Bike

Built to Unleash Beast Mode on Your E-Moto

The Ventus Motor & Controller Combo Kit is a purpose-built upgrade for riders looking to push past the limits of stock power. Whether you're on a Sur-Ron, Talaria, E-Ride Pro, or 79 Bike, this kit delivers raw torque, smarter control, and reliable performance across the board. Tuned for race conditions but rideable on trails and streets, it pairs the proven VTB V9600 controller with the next-gen 28kW Beast motor for insane acceleration and precision throttle feel.

What’s Included

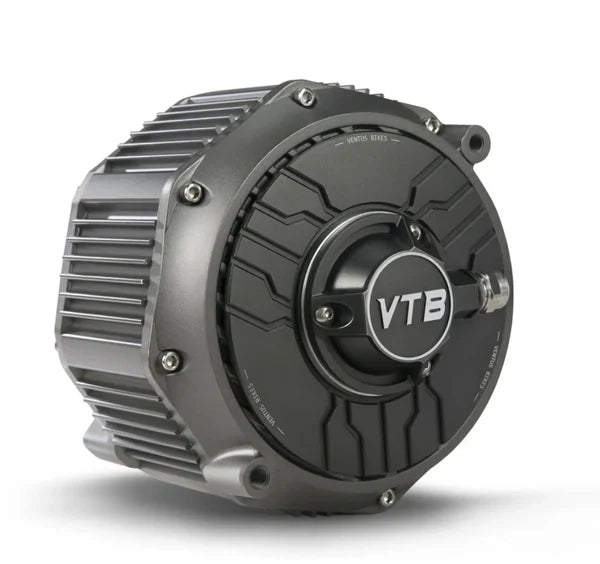

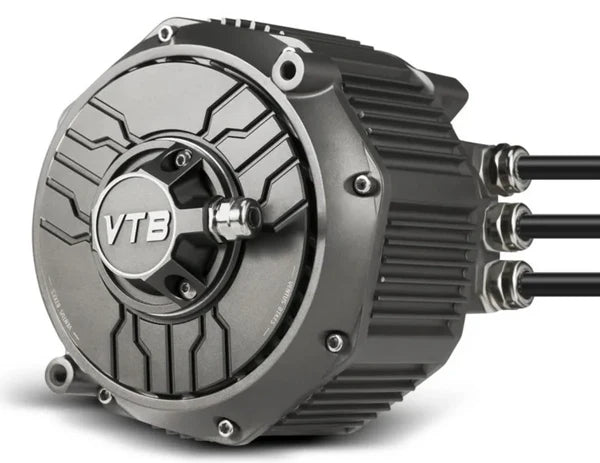

  • VTB Beast 28kW Motor (Iron Gray Finish)

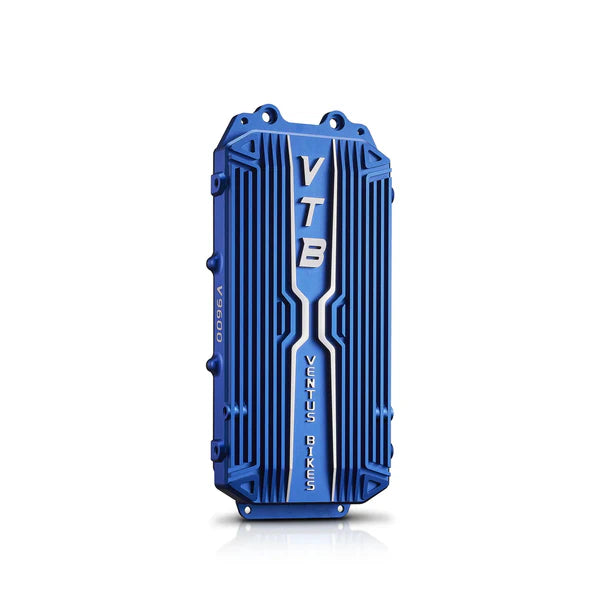

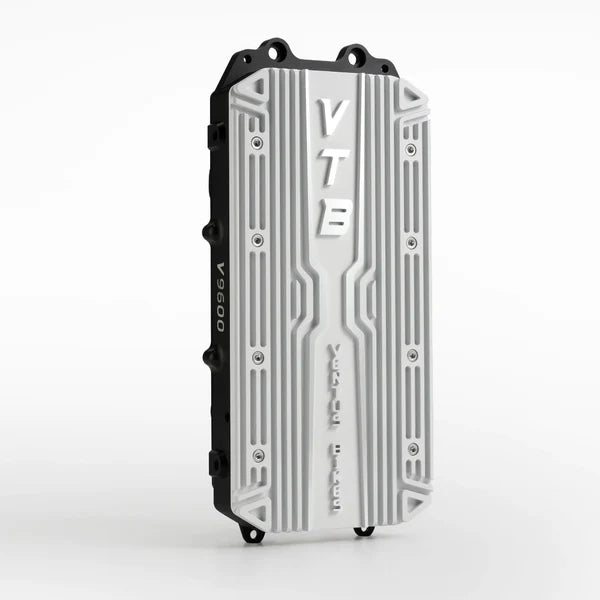

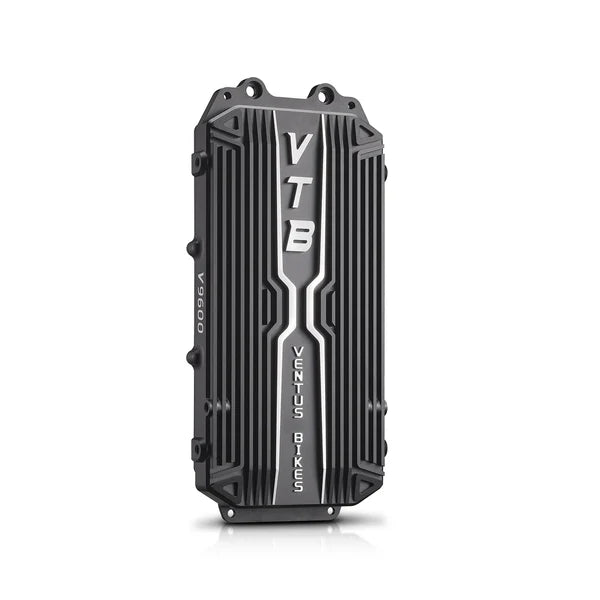

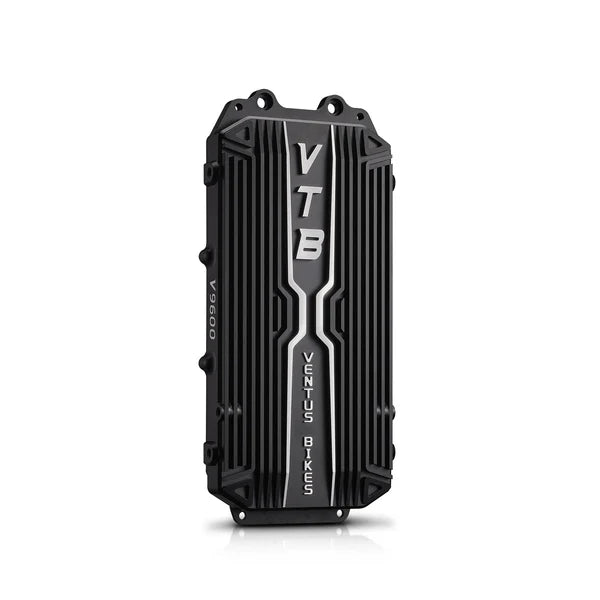

  • VTB V9600 Controller
  • Color LCD Display (VTB Dashboard)
  • Throttle Handle + Thumb Throttle
  • Switch Assembly

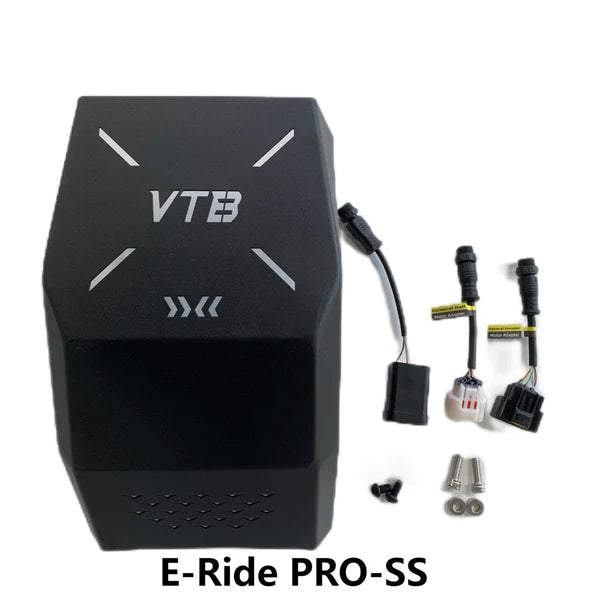

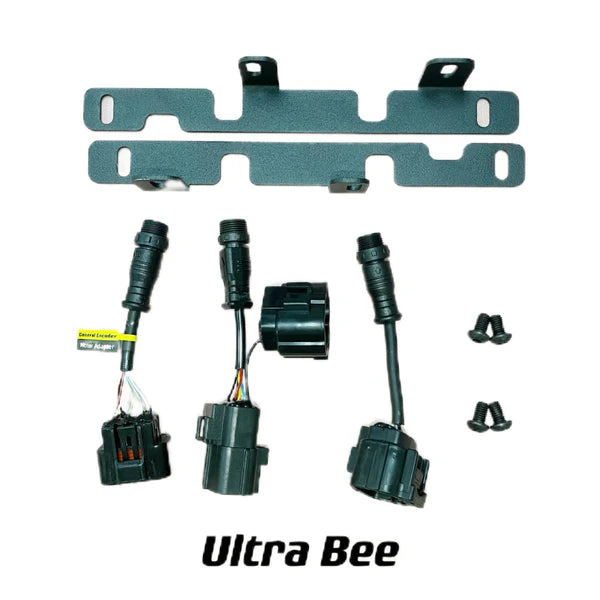

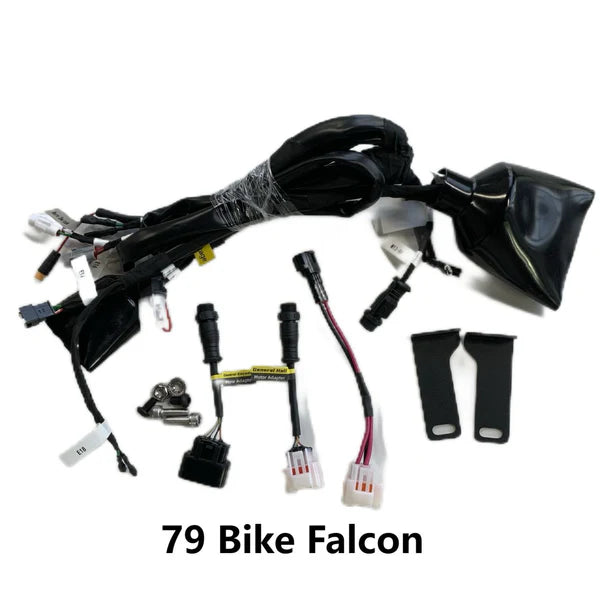

  • Bike-Specific Wiring Harness
  • Mounting Bracket for Display
  • Built-in Bluetooth App Control (Apple & Android)

Motor Specs

  • Peak Power: 28kW
  • Max Torque: 62N·m
  • Max Rotor RPM: 9500 RPM
  • Voltage Range: 48–100V
  • Efficiency: ≥95%
  • IP67 Waterproof / High-Temp Safe Design
  • Encoder: ABZ+PWM, 1024ppr
  • Shaft: 40CrMoTi Steel Alloy
  • Bearings: High-durability sealed
  • Air Gap: 0.5mm for torque efficiency
  • Weight: 10.9kg

Controller Specs

  • Peak Power: 44kW
  • Max Phase Current: 960A
  • Voltage Range: 48–84V (Operating) / 30–99V (Absolute)
  • Sinusoidal Vector Control
  • IP67 Fully Waterproof
  • 3 Power Modes / 5 Riding Modes / 5 Regen Modes
  • Super-Linear Throttle Response + Adaptive Low Voltage Compensation
  • OTA Firmware Updates via VTB App
  • Real-Time Tuning, Diagnostics, and Mode Switching

Fitment

  • Sur-Ron Light Bee / LBX / LBS
  • Sur-Ron Ultra Bee

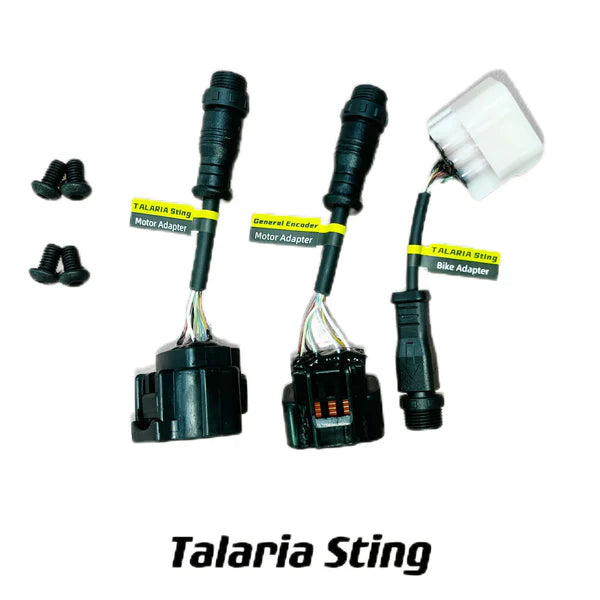

  • Talaria Sting MX3 / MX4 / XXX

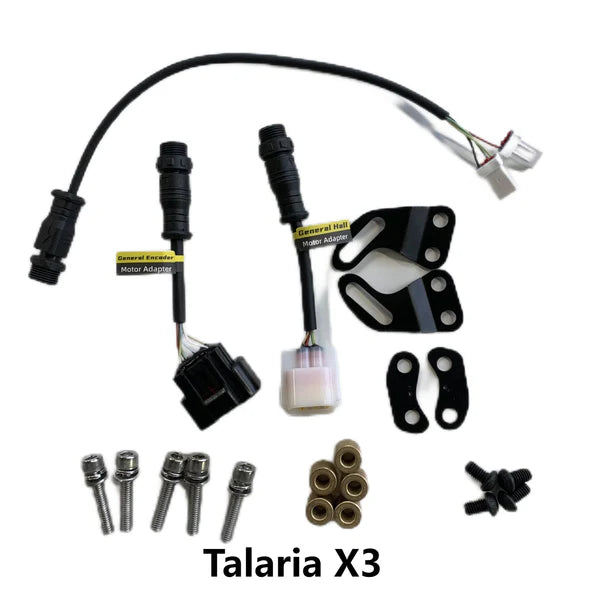

  • Talaria X3 (VTB Motor only)
  • E-Ride Pro S / SS / SR (1.0 to 3.0)
  • 79 Bike Falcon M
  • Segway X160 / X260

Motor Compatibility

  • VTB Beast 28kW / 35kW
  • Sur-Ron Factory Motors
  • KO, EBMX, Trop, Sotion, LTXS, QS165

Controller Compatibility

  • Sur-Ron Light Bee & Ultra Bee
  • Talaria Sting & X3
  • E-Ride Pro S / SS / SR
  • 79 Bike Falcon M

Smart Features

  • Bluetooth App Control (iOS & Android)
  • VTB App with real-time diagnostics, tuning, and firmware updates
  • Encoder support for ultra-precise throttle control
  • Sensor unlocking + BMS sync for VTB battery systems

Sensor & Adapter Notes

  • We configure your harness based on your setup

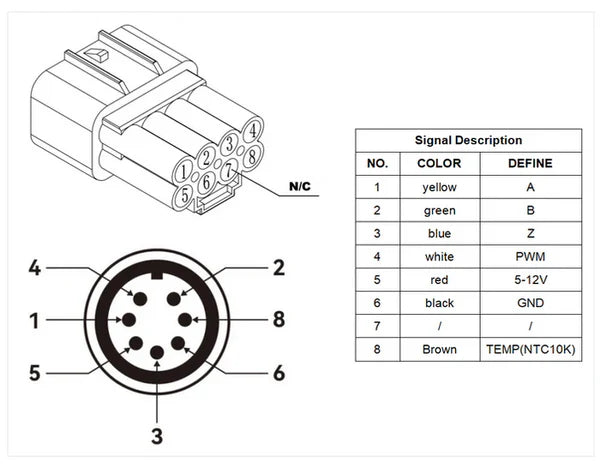

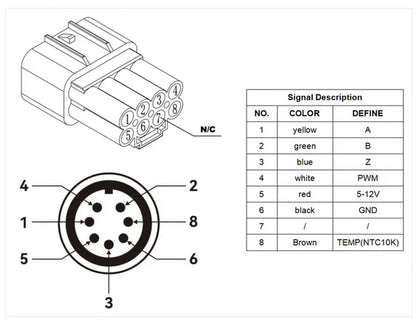

  • 6-pin (Hall) and 8-pin (Encoder) options available
  • VTB motors use built-in encoder — no adapter needed

Performance Benchmarks

  • Stock Light Bee: 5.13kW Peak
  • Stock Ultra Bee: 12kW Peak
  • VTB Beast + V9600: 23.5kW+ at the wheel
  • Top Speed on Light Bee w/ VTB Setup: 140km/h
  • Power increase: 4.6x over stock Light Bee
