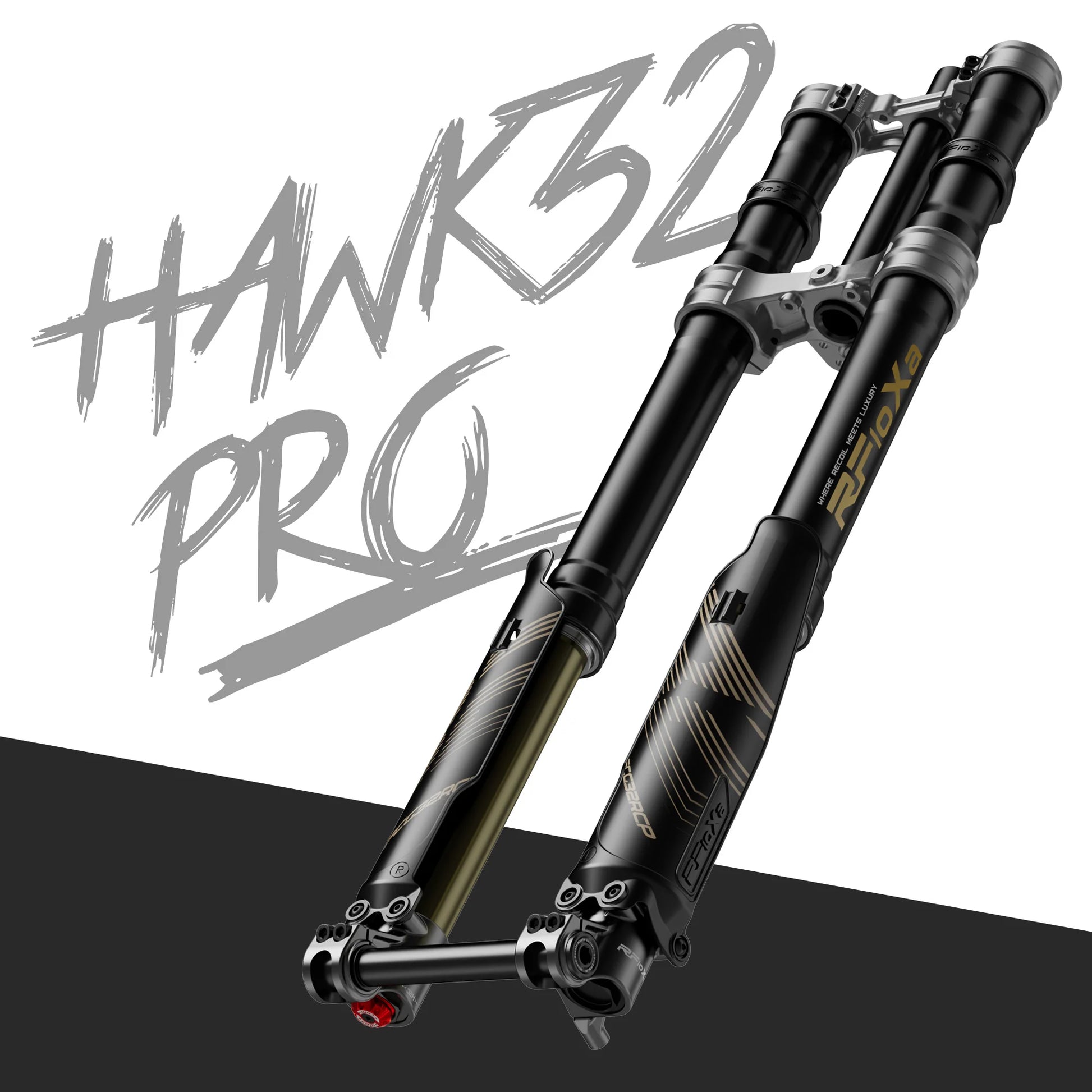

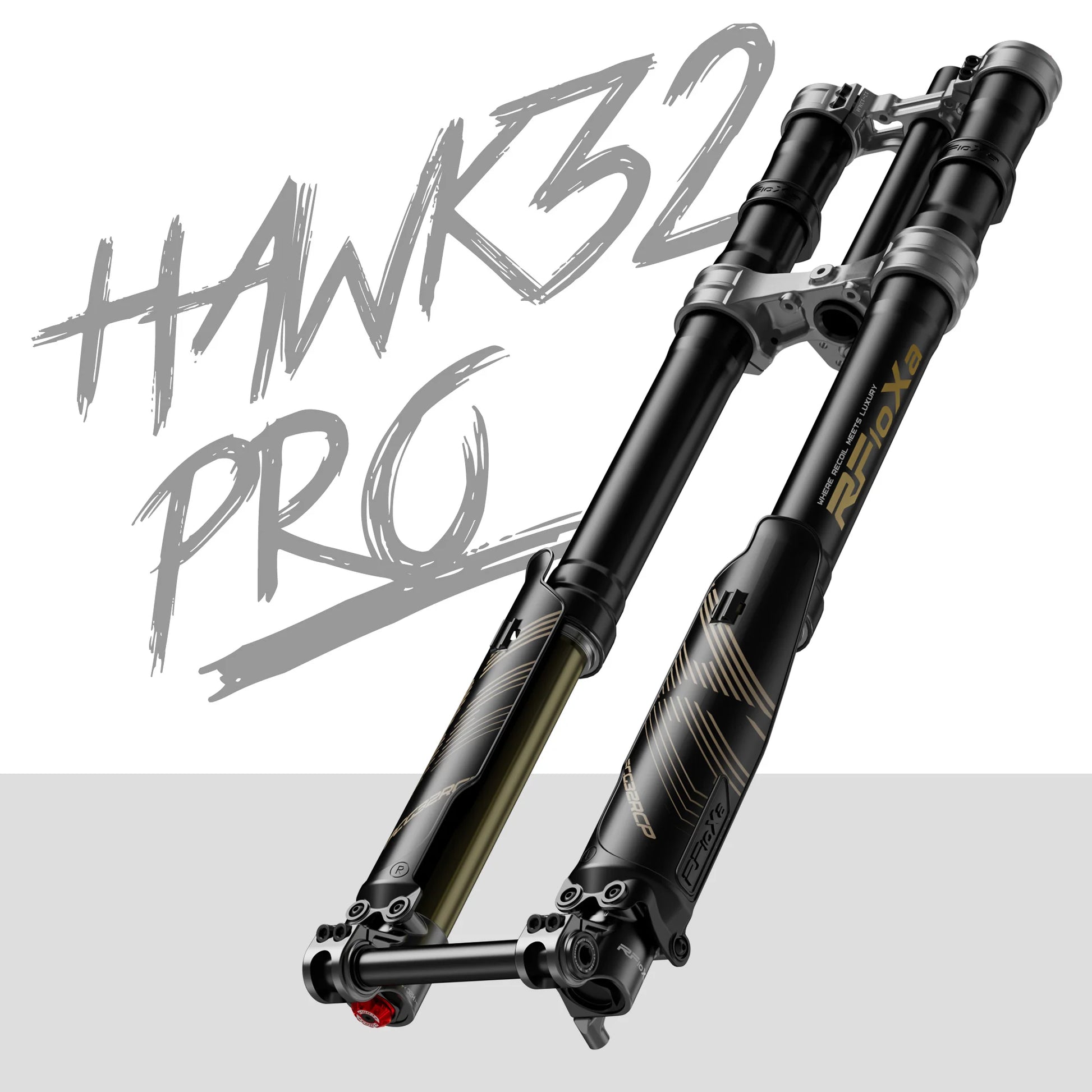

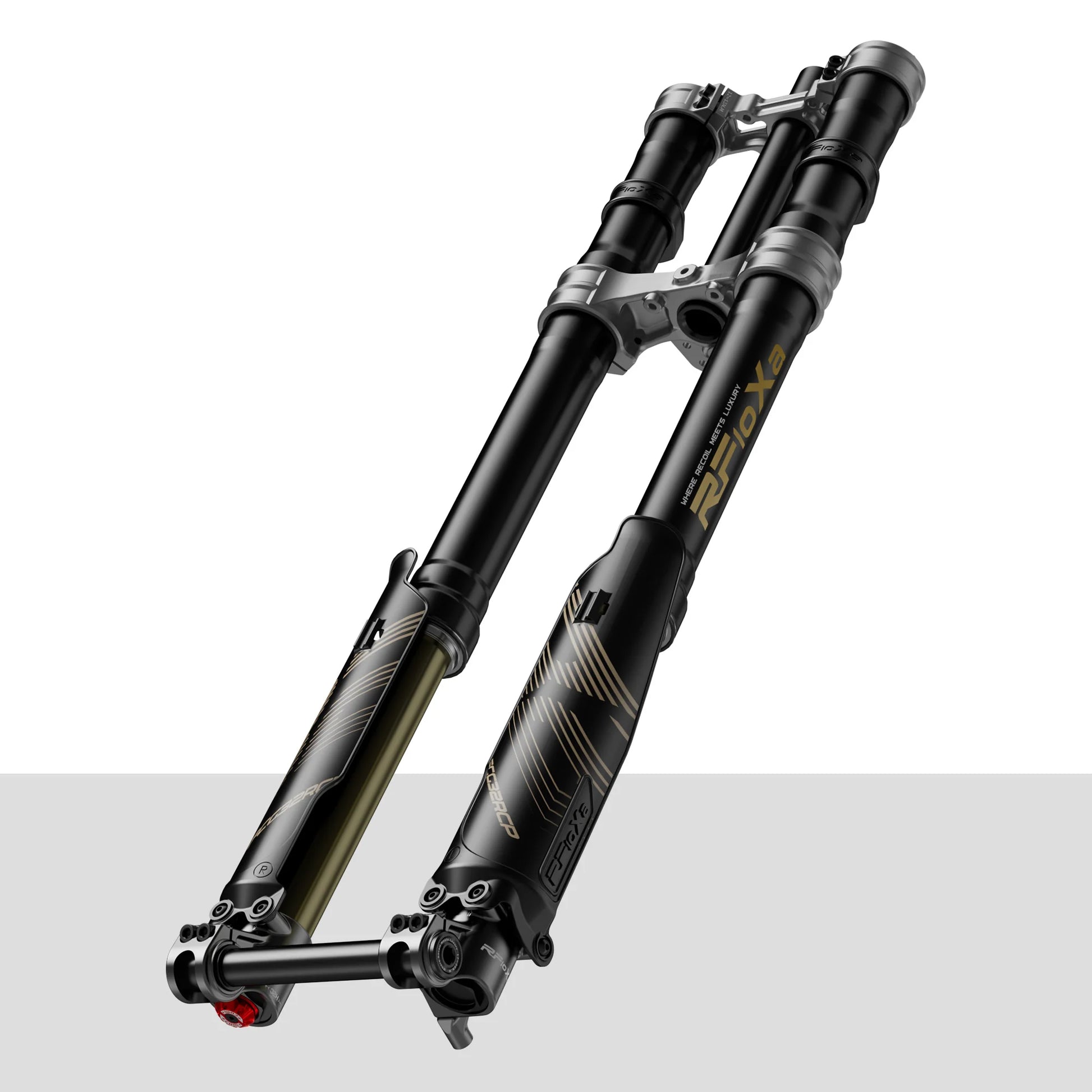

RFLOXA Hawk32 PRO Front Fork –

203mm Travel | High-Performance Suspension for

 Surron, Talaria, E-Ride Pro & More...

Engineered for high-speed trails, aggressive off-road terrain, and precision tuning, the RFLOXA Hawk32 PRO Front Fork delivers everything elite riders need in a performance suspension upgrade. With 203mm of buttery travel (custom upgradeable to 228mm upon request), this fork offers the stability, comfort, and customization modern e-moto riders demand.

Built from premium materials and tuned with multi-stage compression and rebound adjustment, the Hawk32 PRO is a perfect match for downhill riders, electric dirt bike enthusiasts, and anyone looking to take their front-end control to the next level.

🔧 Key Features:

• Travel: 203mm (upgradeable to 228mm with custom order)

• 37mm stanchion diameter

• 74mm caliper mount spacing (compatible with 203mm discs; 220mm optional with adapter)

• Inverted oil-spring damping system with asymmetrical leg function

• Multi-stage tuning knobs for:

  • Compression (high & low-speed)

  • Rebound

  • Spring preload

• Oil pressure bottom-out design for impact support and durability

• CNC precision-machined triple clamp (PRO version)

• Dual compression valve plates for consistent, responsive damping

• High-grade shock oil (low-friction, low-freezing-point) for stable performance in all climates

🧱 Construction Materials:

• Bottom Brackets: AL6061-T6 forged aluminum

• Fork Tubes: AL7075-T6 aluminum

• Spring Wire: 55CRSI

• Triple Clamp: CNC precision-machined (Hawk32 PRO-specific)

⚖️ Spring Rate Recommendations:

• 45 lb spring – Up to 100kg / 220 lbs

• 60 lb spring – 100–130kg / 220–285 lbs

• Progressive 45–60 lb spring – 80–130kg / 175–285 lbs

📏 Specs Overview:

• Center Distance: 750–800mm

• Travel Range: 203–228mm (custom option)

• Disc Size Compatibility: 203mm standard (upgradeable)

• Suitable For: Electric dirt bikes, downhill MTB, trail builds

• Adjustments: Compression, rebound, spring preload (manual knobs)

✅ Fitment Compatibility:

• Surron LBX / LBS / L1E

• Talaria Sting MX3 / MX4 / XXX

• Segway X160 / X260

• E-Ride Pro S / SS 1.0 / SS 2.0

• RAWRR Mantis

• 79-Bike Falcon M

• Ventus One

• RFN Apollo

• Rerode R1

⚠️ Brake Adapter Notice (Front Fork Only):

Currently not plug-and-play with larger brake calipers found on:

• Altis Sigma

• SRPNT Moto

• E-Ride Pro SS 3.0

• E-Ride Pro SR

These setups require a brake adapter that is not yet available — but it’s in the works.

If you’re running Volar Sport Racing calipers, compatibility will vary depending on your bike, wheel, and rotor setup. This suspension platform is somewhat universal, and some models may require additional parts to achieve proper fitment.

💬 Need help? Reach out and we’ll get you dialed in: REVRides.com/contact

🧠 FAQ

Q: Why choose the Hawk32 PRO over the standard Hawk32?

A: The PRO version comes with a CNC-machined triple clamp, offering a sleeker aesthetic, easier installation, and more refined ride feel. It’s the more advanced, premium version of the Hawk32.

Q: How does the Hawk32 PRO compare to other forks like Fastace ALX13RC?

A: With multi-stage preload and compression adjustability, the Hawk32 PRO gives you the ability to truly fine-tune your suspension for both everyday cruising and high-impact drops—offering far more precision than basic OEM or budget-level forks.

📦 Included:

• Hawk32 PRO Fork Assembly

• Pre-installed Spring (based on your selection)

• CNC Triple Clamp

• Manual Adjustment Knobs

• 1-Year Warranty
