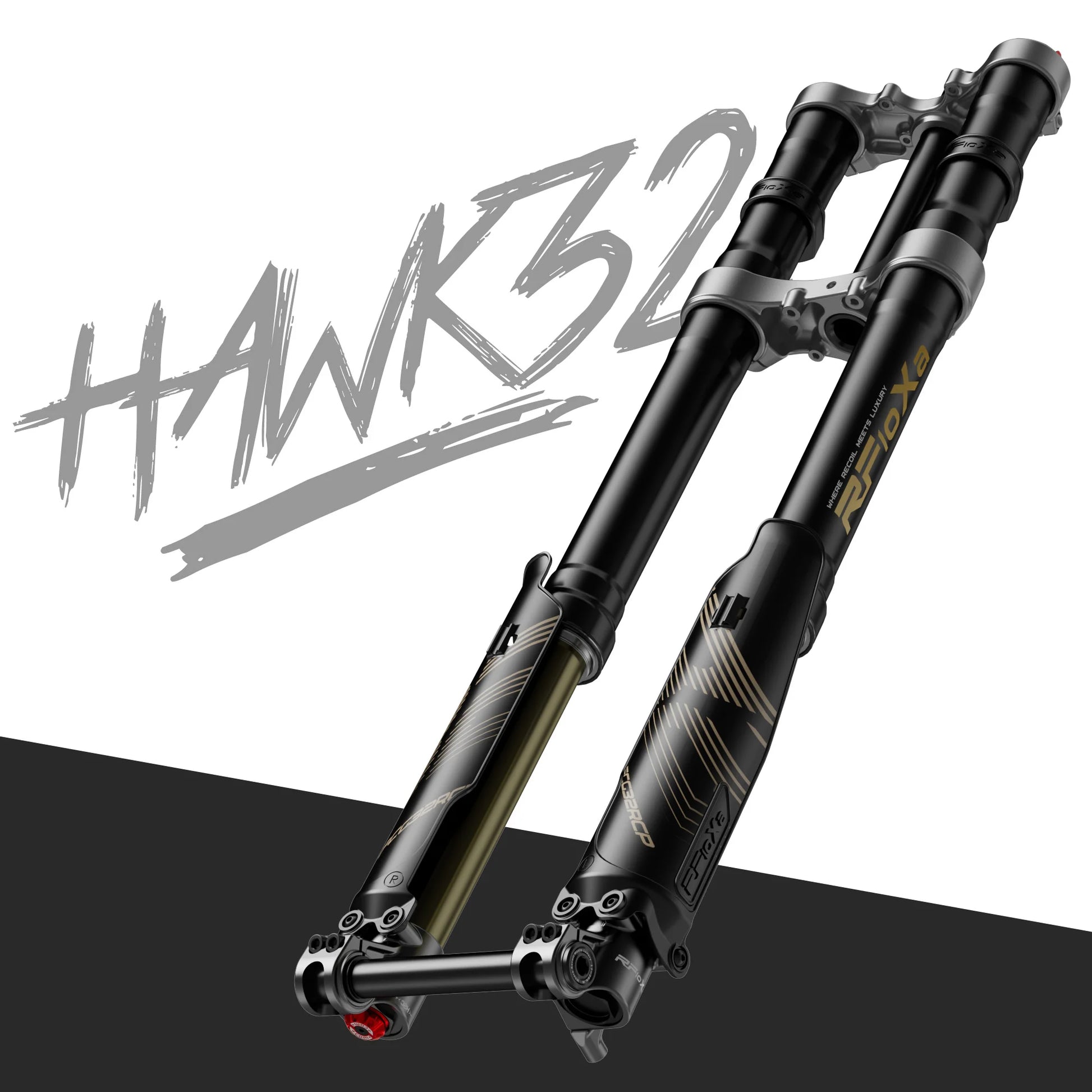

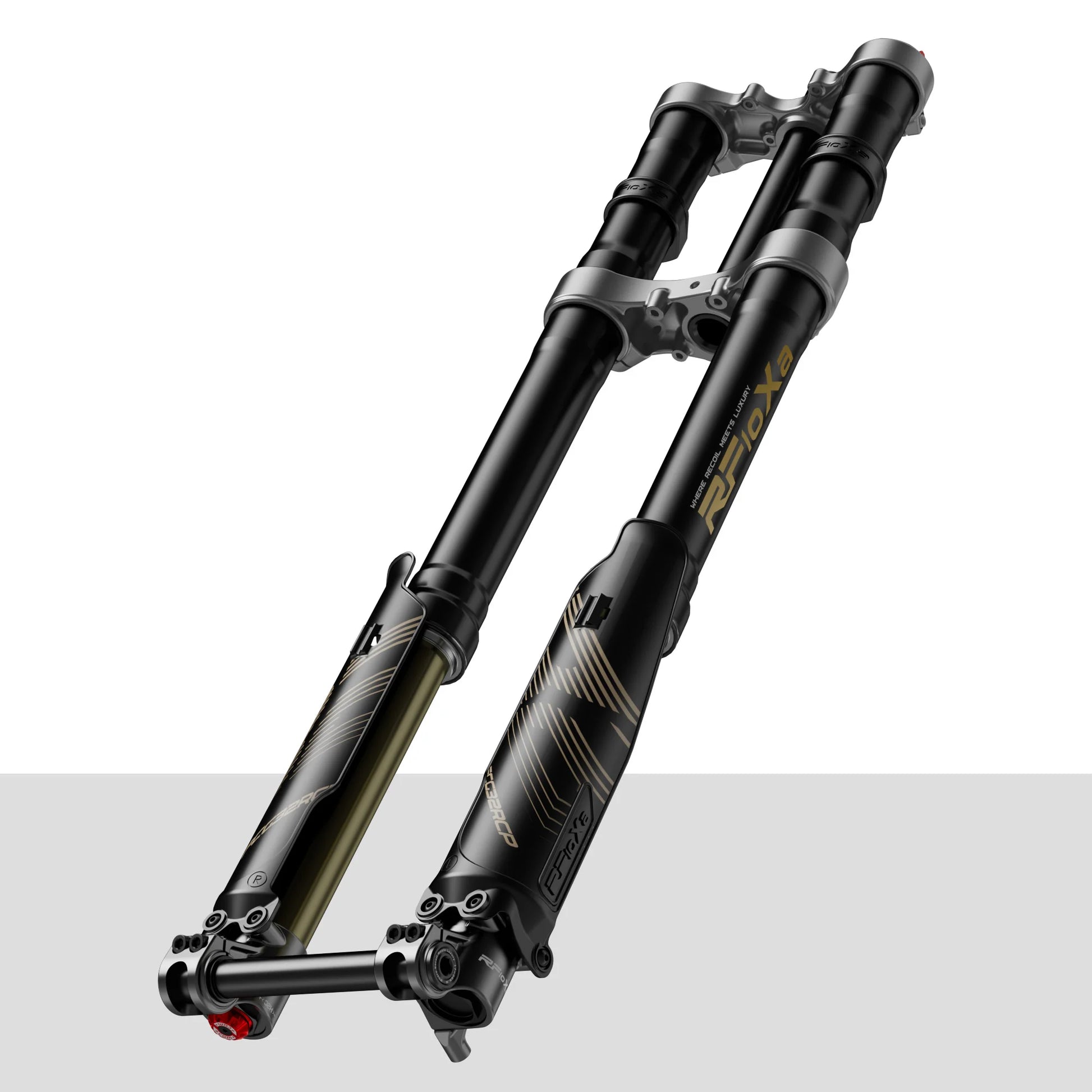

RFLOXA Hawk32 Front Fork – 203mm Travel | Performance Suspension for Surron, Talaria, E-Ride Pro & More

Take your ride to the next level with the RFLOXA Hawk32 Front Fork, purpose-built for electric dirt bikes and downhill off-road machines. With 203mm of plush travel, a robust inverted oil-spring damping system, and multi-stage adjustability, the Hawk32 offers the perfect balance of strength, tunability, and all-terrain control — all at an accessible price.

Looking for extended travel and a CNC clamp upgrade? Check out the Hawk32 PRO version for up to 228mm of travel and added tech features.

🛠 Key Features:

• 203mm of travel (not upgradeable—see PRO for 228mm option)

• 37mm stanchion diameter

• 74mm caliper mount spacing (compatible with 203mm rotors; 220mm with adapter)

• Inverted oil-spring suspension with independent left/right leg function

• Multi-stage adjustments:

  • High & low-speed compression damping

  • Rebound damping

  • Spring preload (manual knobs)

• Oil pressure bottom-out design for end-of-travel support

• Dual valve plates for stable compression control

• Low-friction, cold-resistant suspension oil

• Forged AL6061-T6 brackets + AL7075-T6 alloy fork tubes

• 55CRSI spring wire for long-term resilience

⚖️ Spring Weight Options:

• 45 lb spring – Riders ≤ 100kg (≤ 220 lbs)

• 60 lb spring – Riders 100–130kg (220–285 lbs)

• 45–60 lb progressive spring – Riders 80–130kg (175–285 lbs)

📏 Tech Specs:

• Center Distance: 750–800mm

• Main Piston Travel: 203mm

• Tube Diameter: ∅37mm

• Brake Mount Spacing: 74mm

• Disc Size Compatibility: 203mm (upgradeable to 220mm)

• Adjustments: Compression (HSC/LSC), Rebound, Spring Preload

• Damping System: Inverted oil-spring with independent leg function

• Warranty: 1-Year Manufacturer Warranty

✅ Fitment Compatibility:

• Surron LBX / LBS / L1E

• Talaria MX3 / MX4 / XXX

• Segway X160 / X260

• E-Ride Pro S / SS 1.0 / SS 2.0

• RAWRR Mantis

• 79 Bike Falcon M

• Ventus One

• RFN Apollo

• Rerode R1

⚠️ Frame Clearance Notes:

Some bike models may require minor grinding/modification to ensure proper fork clearance:

• Talaria MX4 / Sting R may need light grinding on the fork outer tube to prevent contact with the frame (similar to how Fox 40 installs on Surron).

• We recommend inspecting your fork/frame spacing carefully before install. Reach out if you have questions—we’re here to help.

⚠️ Brake Adapter Notice (Front Fork Only):

Currently not plug-and-play with larger brake calipers found on:

• Altis Sigma

• SRPNT Moto

• E-Ride Pro SS 3.0

• E-Ride Pro SR

These setups require a brake adapter that is not yet available — but it’s in the works.

If you’re running Volar Sport Racing calipers, compatibility will vary depending on your bike, wheel, and rotor setup. This suspension platform is somewhat universal, and some models may require additional parts to achieve proper fitment.

💬 Need help? Reach out and we’ll get you dialed in: REVRides.com/contact

🧠 FAQ

Q: What’s the difference between the Hawk32 and Hawk32 PRO?

A: The standard Hawk32 uses a forged triple clamp and offers 203mm of travel. The Hawk32 PRO features a CNC triple clamp for added strength, sleeker lines, easier installation, and is available with 228mm travel.

Q: Why is spring preload tuning important?

A: Preload lets you dial in how firm or soft your front end feels before hitting the trail. The Hawk32’s multi-stage preload system provides a better level of fine-tuning than many entry-level forks—especially compared to forks like the Fastace ALX13RC.
