Lewis - LHT Ultimate Brake Set - Titanium bolts & Pistons - Black EZmtb K28 Hoses

Lewis - LHT Ultimate Brake Set - Titanium bolts & Pistons - Black EZmtb K28 Hoses

Regular price $509.99
Regular price $549.99 Sale price $509.99
Sale Sold out
Please contact us to price match. All orders over $100 ship free, otherwise shipping is calculated at checkout
Color
Location
More Financing Options

The new hotness! Lewis Tech is Paving a path in the World of brakes for Ebike and Mountain bikes!

Lewis Tech LHT Axial Cylinder 4x17mm Titanium Pistons Hydraulic Disc Brake

Please allow 2-3 weeks for Shipping times.
Technology
  • Self-developed patented technology
    Self-developed patented technology

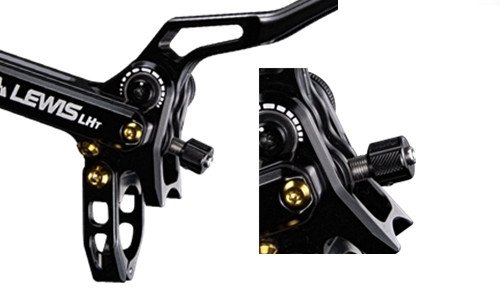

    Lewis' patented technology for dual adjustment of lever reach & bite point allows you to customize the feel to your preference for superior performance out on the trails.

    Reach(tool free), bite point(with allen key).

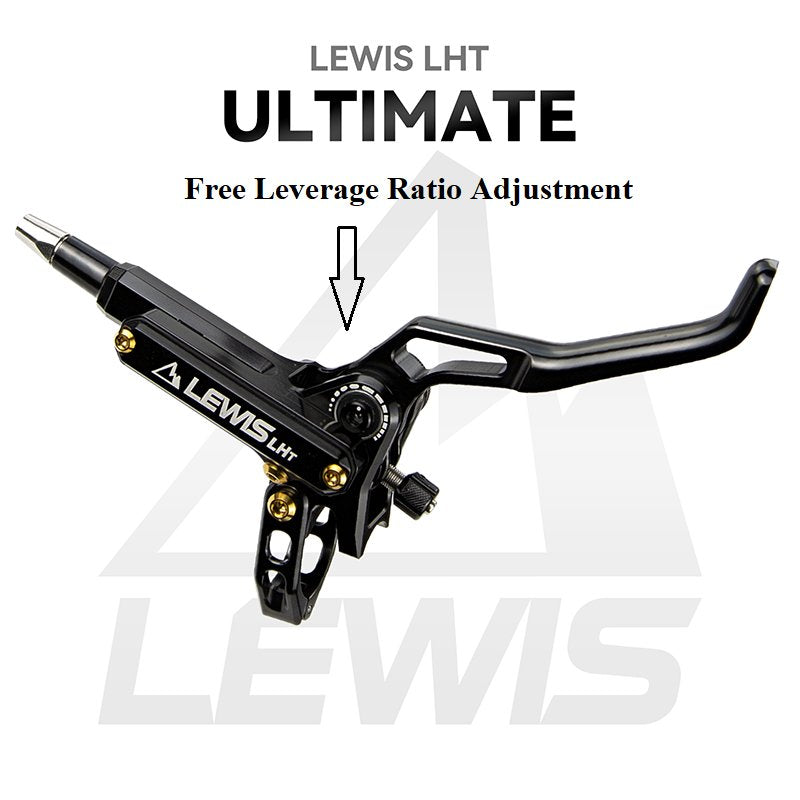

  • Free Leverage Ratio Adjustment
    Free Leverage Ratio Adjustment

    The patented Free Lever Adjustment technology allows the lever ratio to beadjusted by moving the center point of the brake lever.

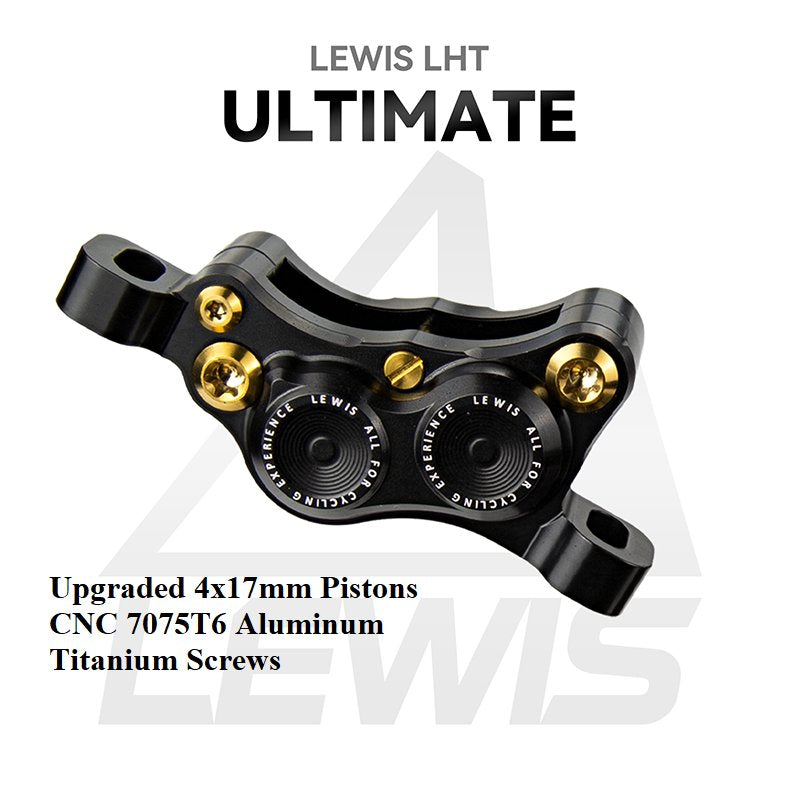

  • CNC 7075 & Titan Four Pistons
    CNC 7075 & Titan Four Pistons

    Upgraded 4x17mm pistons, with titanium gold screws, high strength and light weight.

  • Self-developed Titanium Insulation
    Self-developed Titanium Insulation

    In high-intensity use environments, the good high-temperature thermal conductivity of the titanium material complements the ceramic thermal insulation, allowing the pads to conduct and dissipate heat more evenly.

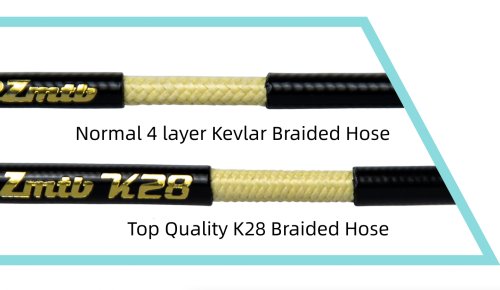

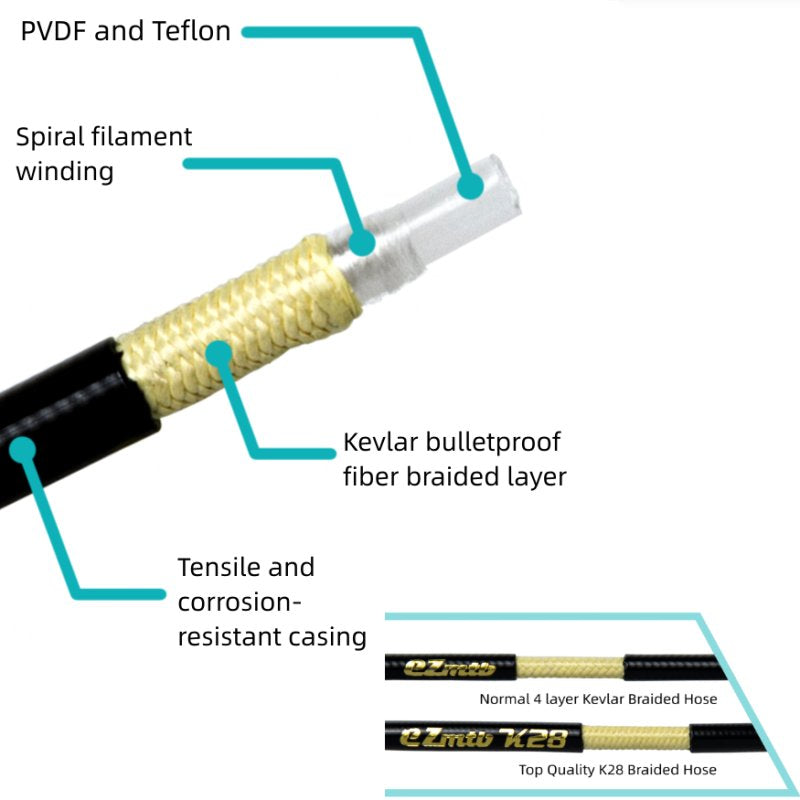

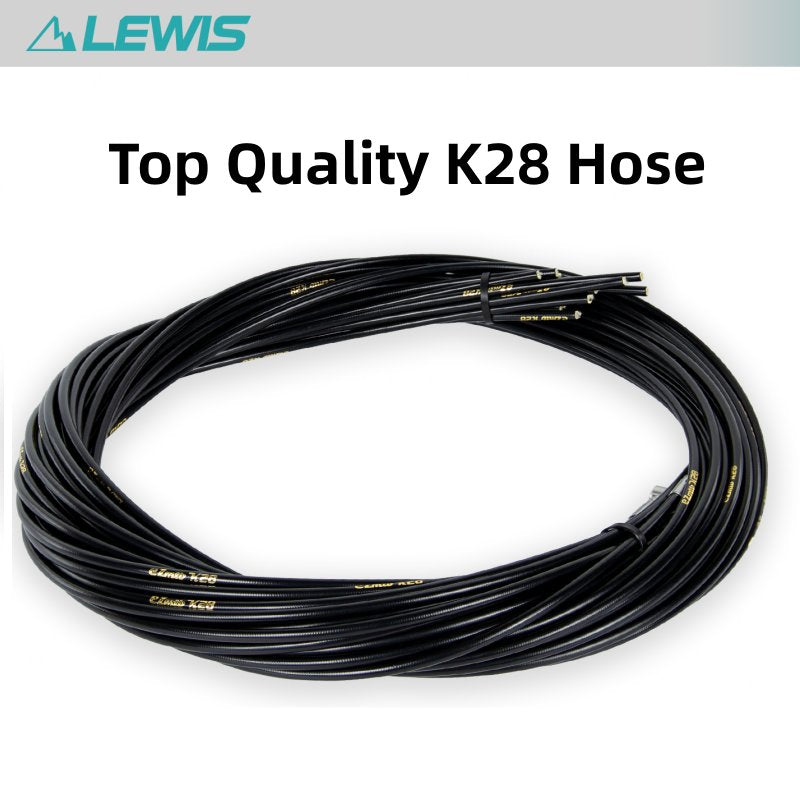

  • Top Quality K28 Hose
    Top Quality K28 Hose

    K = Kevlar28 = 28 mesh braided per inch, k28 series hose than traditional 4-layer nylon hose, an increase of 40% Kevlar, the use of the latest weaving process technology, density breakthroughs in the highest ever, from the experience, the new series brought about by the change in the brake feel is obvious and can be perceived as a very hard braking feel. Provides a better choice for riders.

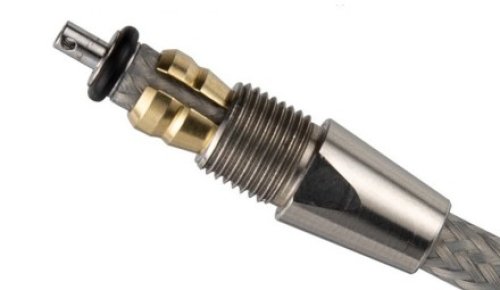

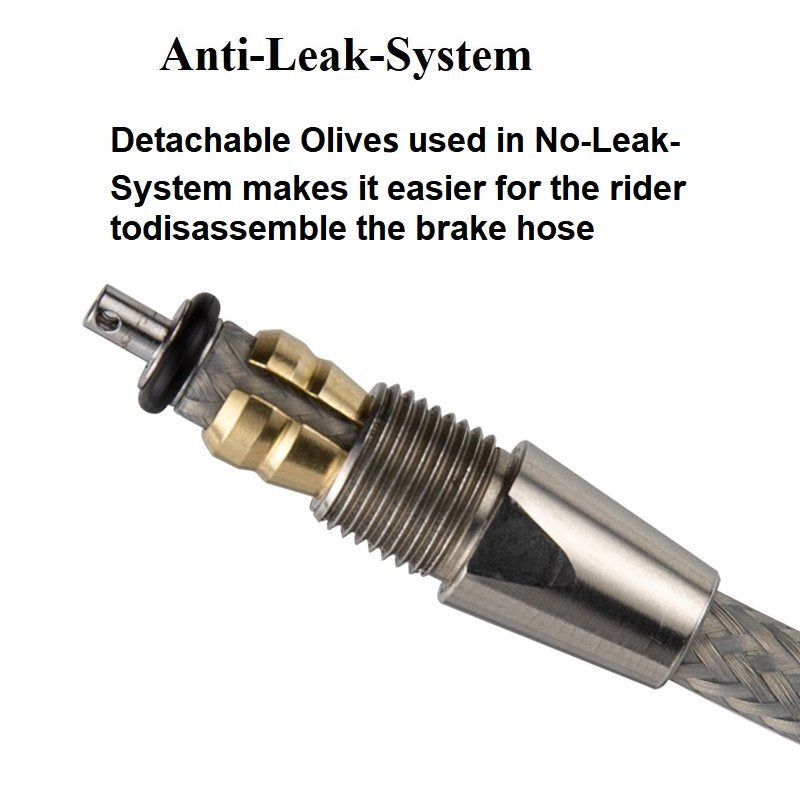

  • No-Leak-System
    No-Leak-System

    Detachable Olive Head used in No-Leak-System makes it easier for the rider to disassemble the brake hose.

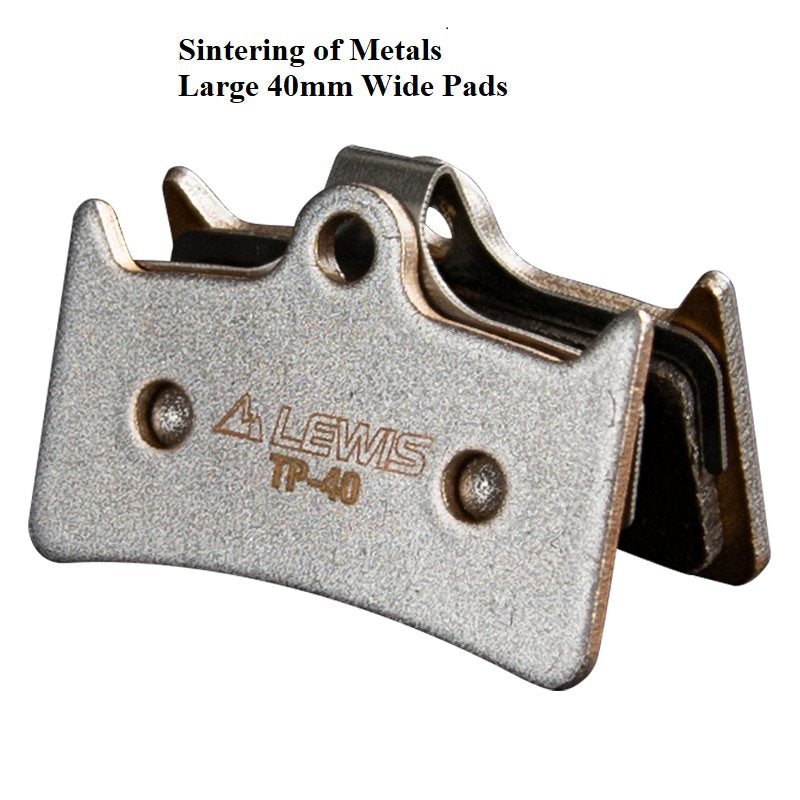

  • TP-40 Large Pads
    TP-40 Large Pads

    LHT Ultimate uses a 40mm wide sintered metal TP-40, a larger area meant for better wear resistance and heat decay performance.

SPECIFICATIONS


MASTER CYLINDER
Type Axial
Material  CNC 7075T6 Aluminum
Body Finish  Black, Silver, Black & Silver, customized colors
Clamp Color  Black, Silver
Clamp Type  Hinged
Screws Titanium
ADJUSTABLE LEVER REACH YES, Tool Free
ADJUSTABLE PAD BITE POINT Yes, with 2mm Allen key


LEVER BLADE
Material  CNC 7075 T6 Aluminum
Color  Black, Silver, Black & Silver, customized colors
Brake lever version 1 Finger


CALIPER
Material  CNC 7075 T6 Aluminum
Color  Black, Silver, Black & Silver, customized colors
MOUNT TYPE Post mount
Piston  4 x 17mm Titanium + Ceramic Pistions
Screws Titanium
Pad type  Metallic


Hose
Hose size  Outside Diameter 5mm,Bore 2.2mm
Hose length  90cm front /160 cm rear, can be shorten to adapt bike
Hose finish  Black, Braided
INTENDED USE Enduro, Downhill, All-Mountain, E-bike, Dirtbike
Rotors  Not included, optional (140 mm | 160 mm | 180 mm | 203 mm | 223 mm)
Adapter Not included
WEIGHT Cylinder 94g, Caliper 117g
Oil Mineral oil
Bleed Kit Recommendation EZMTB 2022std








4 *17mm-piston caliper designed for tougher challenging trails.

Patented 3 Adjustment Technologies for Leverage Ratio & Lever Reach & Bite Point.

Front+Rear Brakes weight = 639g(Oil Hose included), 422g without Oil Hose.

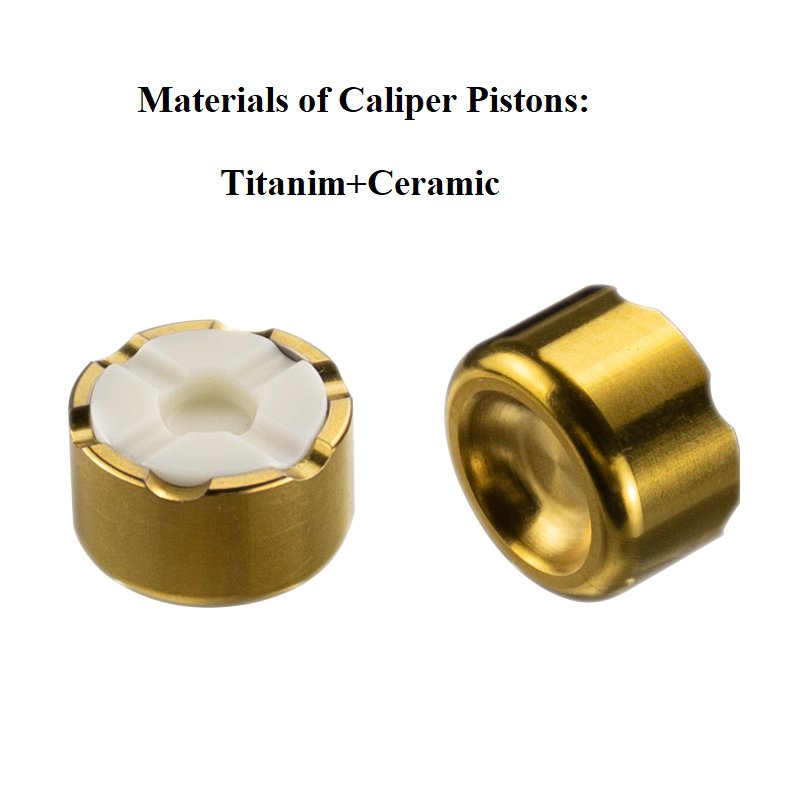

4x17mm Titanium+Ceramic pistons with large metal sintered pads.

A pair of brakes uses a total of 8 Titanium pistons and 18 Titanium screws for each component.

Approx. 68g for titanium parts, 107g for stainless steel parts, cumulative weight reduction of approx. 39g

Upgraded hinged clamp, no fray bike handlebar.

Easy Bleeding Technology.

Mineral Oil and Kevlar K28 hose.

High-precision CNC machining technology.

Powerful but predictable braking force.

Ultra light lever action.

Bearing pivots provide superior modulation and feel.

Fitment

  • Surron Light Bee X
  • Segway X260
  • Segway X160
  • Eride Pro
  • Eride pro SS
  • Eride pro SR
  • 79bike Falcon-M
  • Talaria Sting MX3
  • Talaria Sting MX4
  • Talaria XXX
  • Rawrr Mantis
  • Apollo/RFN Ares Rally Pro
  • Beta Explorer Emoto
  • RIEJU E-TANGO
  • VSETT 10+
  • VSETT 10 single motor
  • Super 73 RX
  • Super 73 R
  • Onyx LZR
  • Super 73 S
  • Super 73 S2
  • Zooz Bikes UU750
  • Zooz Bikes UU1100
  • Zooz Bikes UU1200
  • Ariel Rider Grizzly
  • Ariel Rider X-Class
  • Ariel Rider Kepler
