Lewis Tech LH4 Axial Cylinder 4 Pistons Hydraulic Disc Brake

Lewis Tech LH4 Axial Cylinder 4 Pistons Hydraulic Disc Brake

Regular price $389.99
Regular price $549.99 Sale price $389.99
Sale Sold out
Please contact us to price match. All orders over $100 ship free, otherwise shipping is calculated at checkout
Lever body | Caliper Color
Lever & Top Cap Color
Side and location
More Financing Options

The new hotness! Lewis Tech is Paving a path in the World of brakes for Ebike and Mountain bikes!

 Please allow 2-3 weeks for Shipping times.

We will be updating with more colors soon.
Technology
  • Self-developed patented technology
    Self-developed patented technology

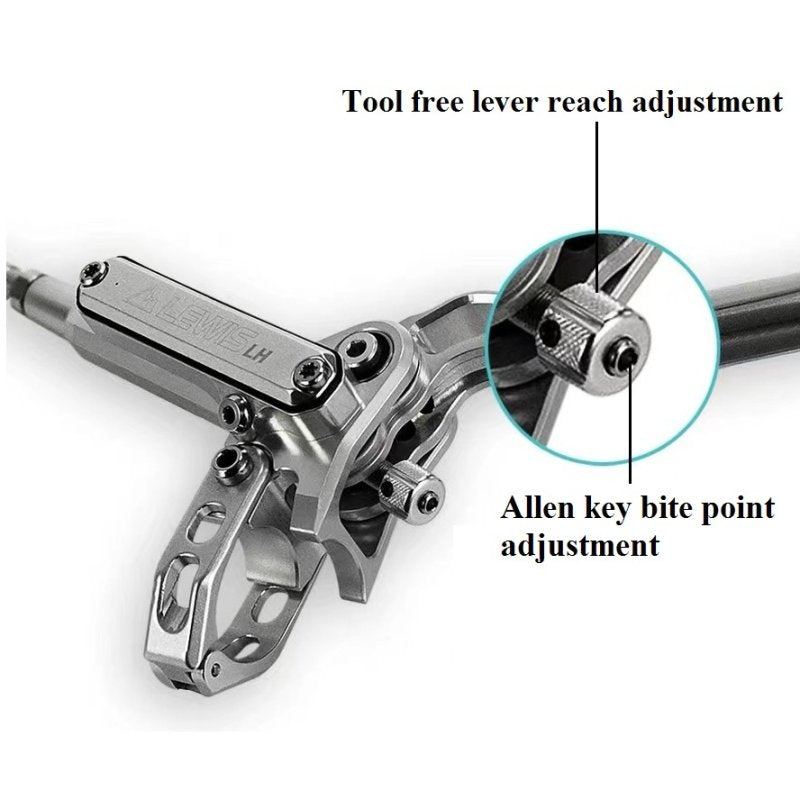

    Lewis' patented technology for dual adjustment of lever reach & bite point allows you to customize the feel to your preference for superior performance out on the trails.

    Reach(tool free), bite point(with allen key).

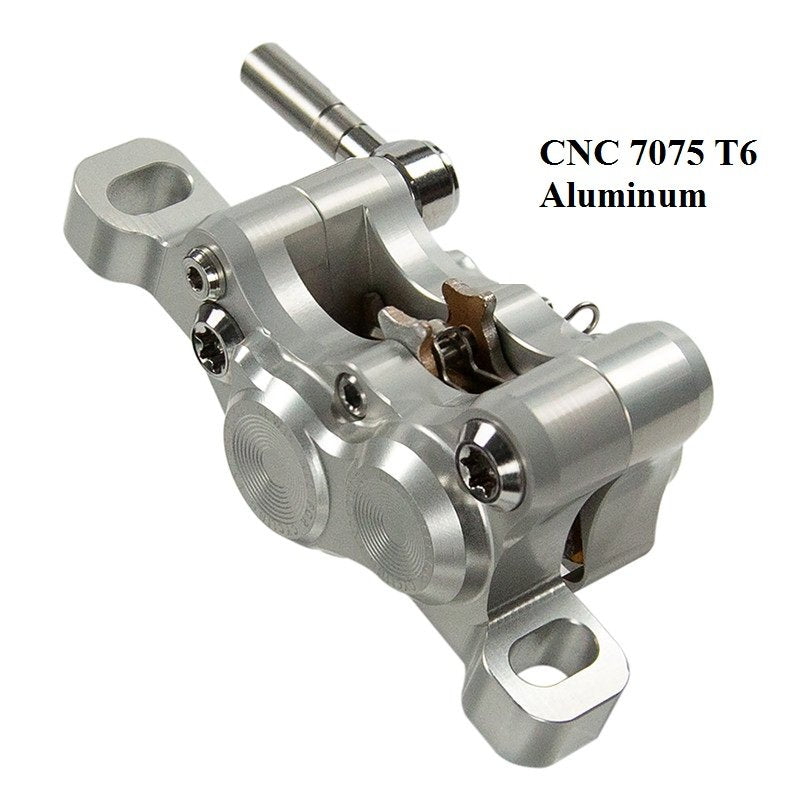

  • CNC 7075 T6 Aluminum four-piston caliper
    CNC 7075 T6 Aluminum four-piston caliper

    7075 aluminum alloy allows for better rigidity increasing the overall performance of the brake, while keeping the power stable and predictable.

    Four-piston caliper provides superior braking power for any situation on the trials.

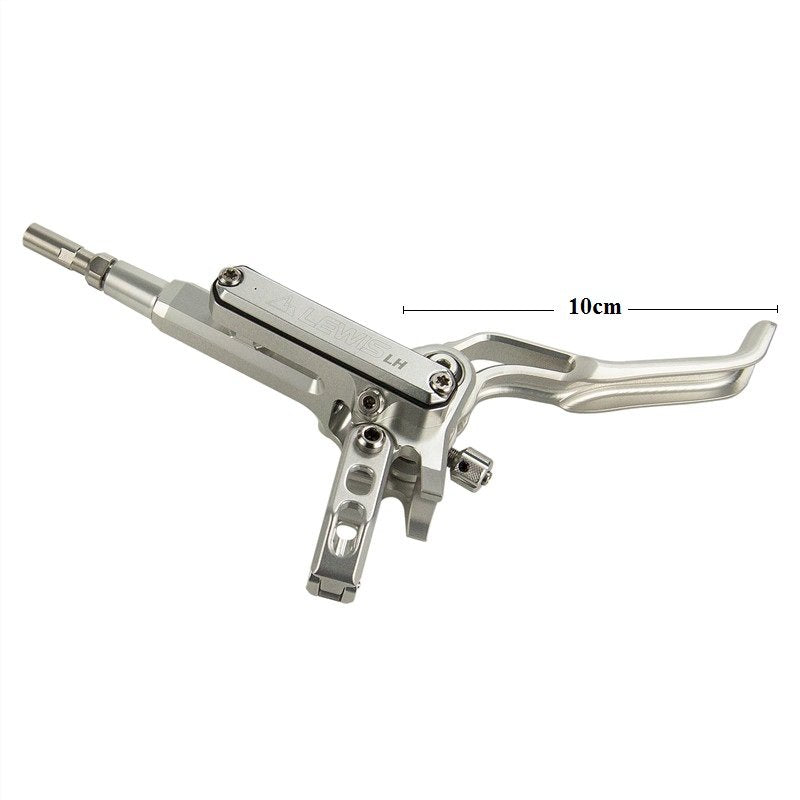

  • Lever blade length increased by 6mm
    Lever blade length increased by 6mm

    Increased lever blade length by 6mm for a more aggressive leverage ratio. With our dual adjustment system get stronger braking power without sacrificing reach.

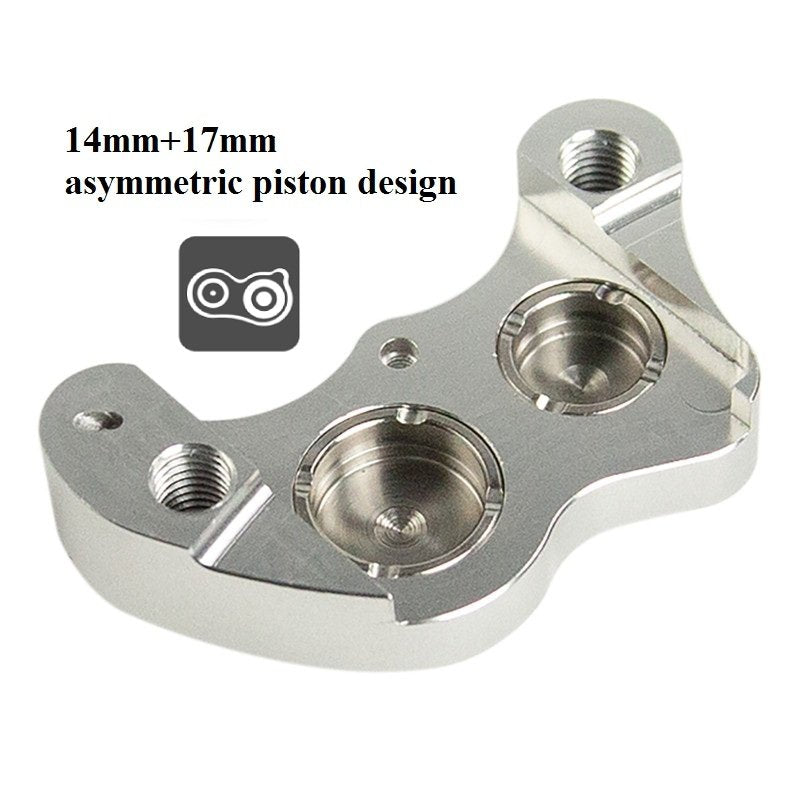

  • 14mm+17mm asymmetric piston design
    14mm+17mm asymmetric piston design

    The 14mm+17mm asymmetric piston design improves the linear feel of the brakes, balances the pressure distribution of the pads and balances wear.

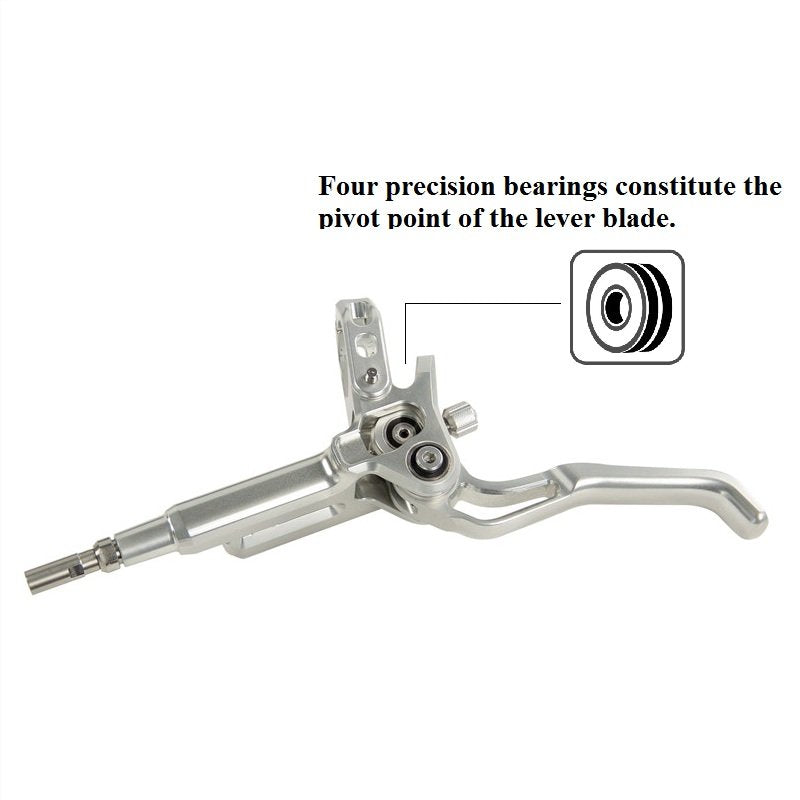

  • Four precision bearings
    Four precision bearings

    Four precision bearings constitute the pivot point of the lever blade.

    Each movable pivot is composed of precision bearings on both sides providing a stable and smooth action.

  • Top Quality K28 Hose
    Top Quality K28 Hose

    K = Kevlar28 = 28 mesh braided per inch, k28 series hose than traditional 4-layer nylon hose, an increase of 40% Kevlar, the use of the latest weaving process technology, density breakthroughs in the highest ever, from the experience, the new series brought about by the change in the brake feel is obvious and can be perceived as a very hard braking feel. Provides a better choice for riders.

  • Hose customizeation
    Hose customizeation

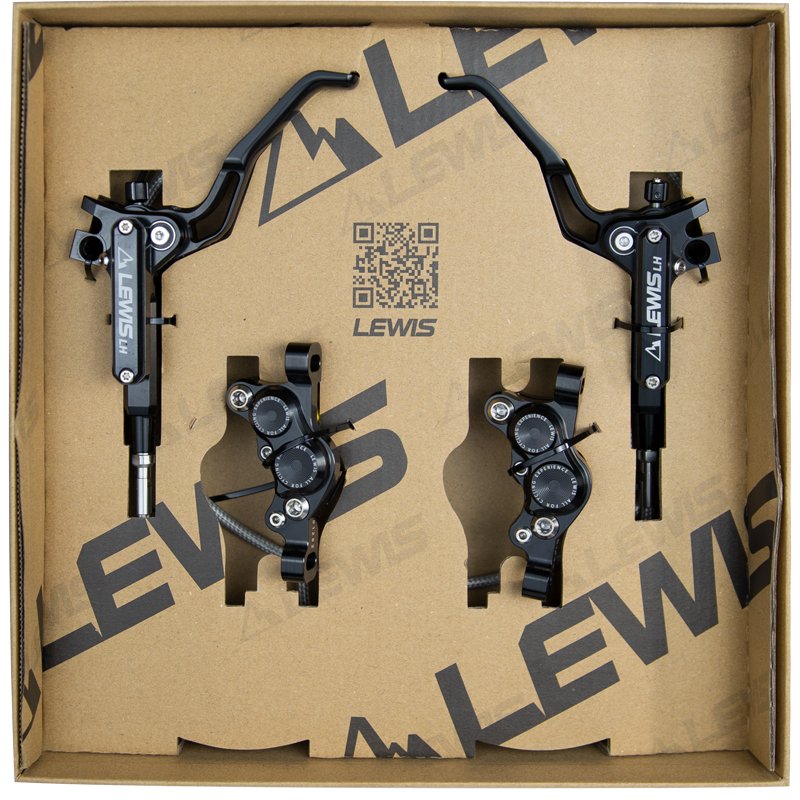

    A pair of standard LH4 with left hand rear and right hand front. The length of the the hose is 90cm at the front and 160cm in the rear. If you need to customize the hose length or lever direction please feel free to contact us.

SPECIFICATIONS
MASTER CYLINDER
Type Axial
Material  CNC 7075T6 Aluminum

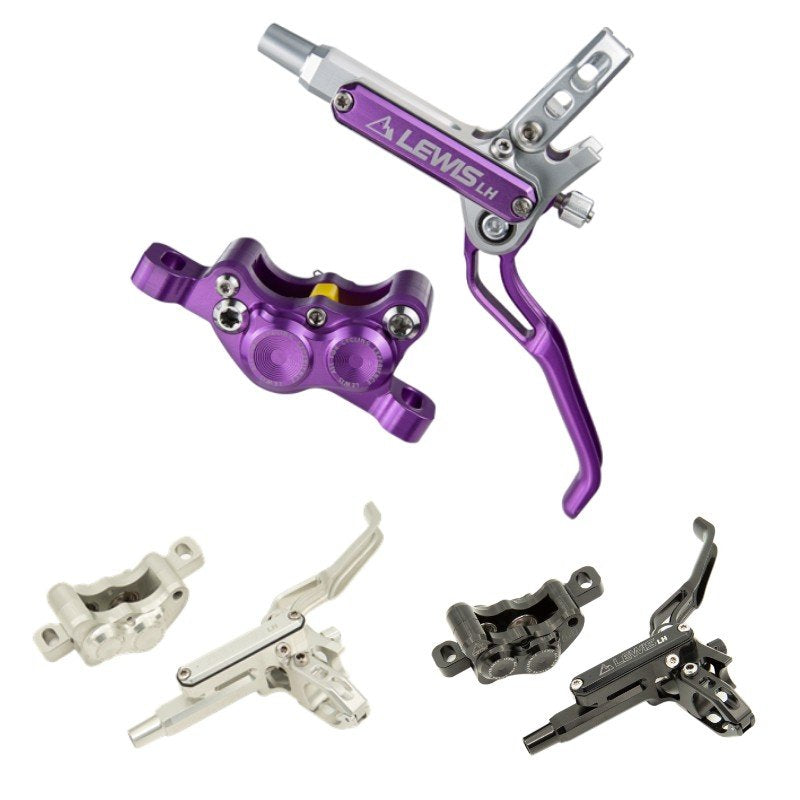

Body Finish  Black, Silver, Black & Silver, customized colors
Clamp Color  Black, Silver
Clamp Type  Hinged
Screws Stainless Steel
ADJUSTABLE LEVER REACH YES, Tool Free
ADJUSTABLE PAD BITE POINT Yes, with 2mm Allen key

4-piston caliper, strongest power, designed for Downhill and Enduro.

Patented 2 in 1 dual adjustment for lever reach & bite point.

Front+Rear Brakes weight = 597g(Oil Hose included), 380g if without Oil Hose.

14mm+17mm 4 Stainless steel pistons with Metallic Pads.

Upgraded hinged clamp, no fray bike handlebar.

Easy Bleeding Technology.

Mineral Oil and Kevlar hose.

High-precision CNC Machine Cuttingtechnology.

Powerful but predictable braking force.

Ultra light lever action, Great Modulation

Bearing pivots provide superior modulation and feel.





Fitment

  • Surron Light Bee X
  • Segway X260
  • Segway X160
  • Eride Pro
  • Eride pro SS
  • Eride pro SR
  • 79bike Falcon-M
  • Talaria Sting MX3
  • Talaria Sting MX4
  • Talaria XXX
  • Rawrr Mantis
  • Apollo/RFN Ares Rally Pro
  • Beta Explorer Emoto
  • RIEJU E-TANGO
  • VSETT 10+
  • VSETT 10 single motor
  • Super 73 RX
  • Super 73 R
  • Onyx LZR
  • Super 73 S
  • Super 73 S2
  • Zooz Bikes UU750
  • Zooz Bikes UU1100
  • Zooz Bikes UU1200
  • Ariel Rider Grizzly
  • Ariel Rider X-Class
  • Ariel Rider Kepler
