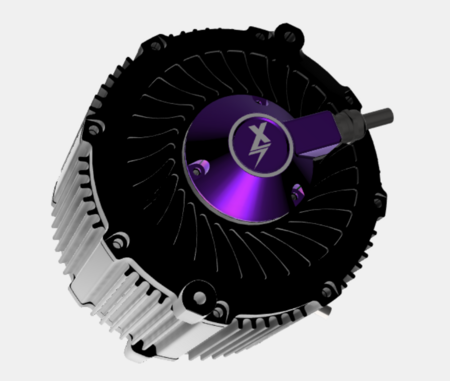

The EBMX XLB-60 Motor is the ultimate upgrade for your Sur-Ron, E-Ride Pro, or compatible e-moto, offering unmatched power and precision. Designed to work seamlessly with the EBMX X-9000 controller, this motor is a plug-and-play replacement for the OEM Sur-Ron Light Bee motor and includes a custom EBMX bash plate for perfect fitment and durability. Featuring cutting-edge technology such as 180°C windings, IPM rotor design, and encoder-based motor control, the XLB-60 ensures smooth, predictable power delivery with enhanced low-end torque for off-road, trail, and track adventures.

With up to 35kW of peak power, advanced cooling options, and a waterproof IP67 rating, the XLB-60 is built to handle extreme conditions and deliver race-level performance. For those seeking even more speed and torque, the XLB-60 RACE Edition offers increased rotor size, higher KV windings, and a longer torque band for maximum RPM and acceleration. Whether you’re an experienced rider looking for more power or a performance enthusiast pushing the limits, the EBMX XLB-60 Motor is engineered to redefine your ride.

EBMX are pleased to introduce the XLB-60RACE!!!

EBMX has been quietly working on the new XLB-60 motor and are excited to let you all know it is now ready for order shortly!

All you will need to do is purchase the necessary plug and play wiring kit for the bike you want to install it into (Light Bee, ERIDEPRO and more coming soon).

Making products as versatile as possible has been the focus at EBMX, and the motors continue down this design ethos.

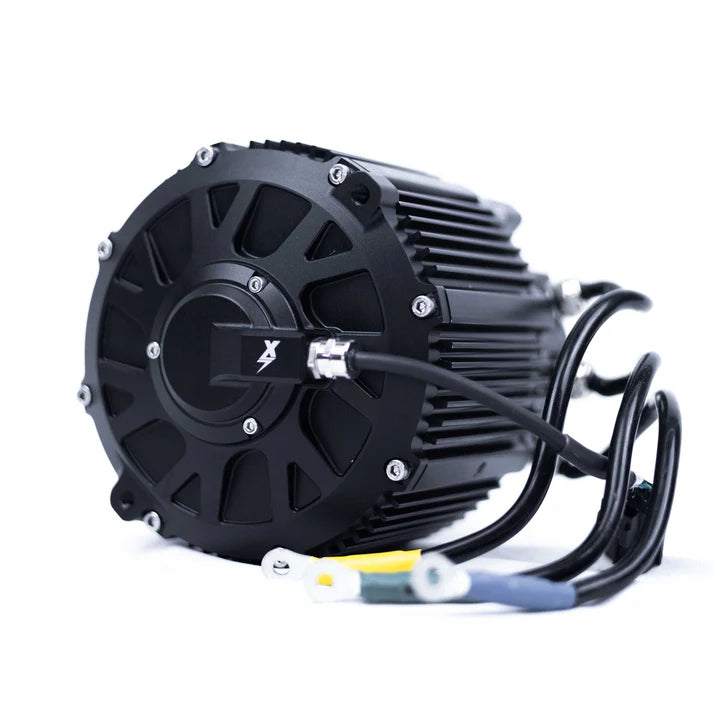

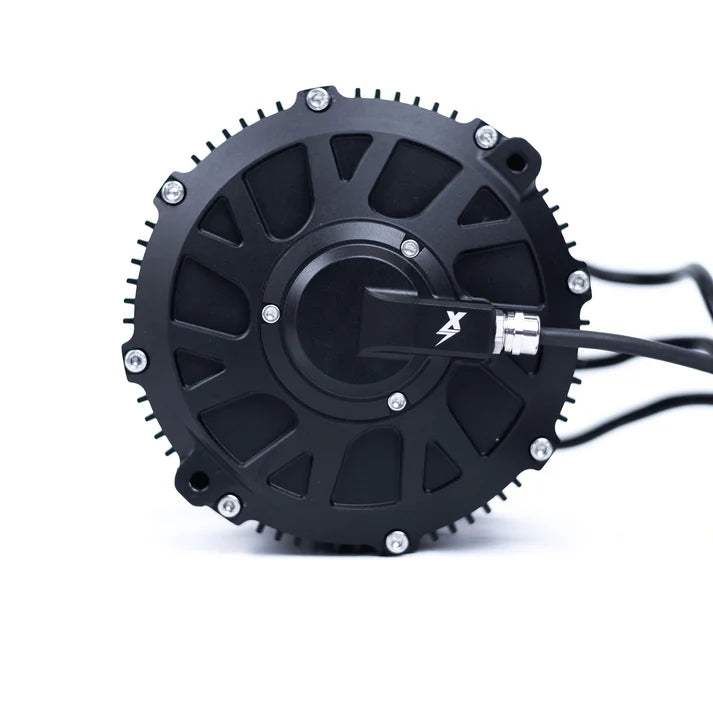

The EBMX XLB-60 RACE Motor has a larger stator from the old motor going up from 60 to 65mm and a screaming 105kv wind; this is going to push these little emotos to new heights and speeds! More power, More speed, More fun, More savage!

More Power, More Speed, More Fun, More Savage!

the XLB60 Race Edition, designed for speed and maximum RPM, hands down this is the fastest motor on the market. We took our existing XLB60 motor, cranked up the KV to 105 and to bring the torque up, we lengthened it to 65MM. With our EBMX rotor design we lengthened the torque band to create a constant pulling force from 0 to 13000RPM. The XLB60 Race is aimed at racer, from MX to trail or even the drag strip, designed to handle the heat and bring insane levels of RPM with longest torque band possible.

Recommended Gearing:

Off Road: 18 inch 58T-64T( 75MPH top speed with 64T/72V)

Off Road: 16 inch 54-58T

Off Road 17 inch 56T - 60T

Recommend X9000 Settings on a 400Amp BMS 20S/22S:

1000 Phase / 30KW

900 Phase / 25KW

800 Phase / 20KW

Need more range? try turning field weakening to 0%. With a 64T sprocket off road riding on 21/18 wheels, 65MPH is easily achievable on a 72V battery. This can help increase range by up to 15%.

Real World Motor Testing Results: Your results may very based on rider weight and gearing.

85KG Rider

75KG EBMX Built Surron

64T Sprocket

1000 Phase Amps

20S 72V Race Battery

Peak Power 32-34KW

22S 81V Race Battery

Peak Power 36 - 38KW

Peak Power: 42KW @1200 Phase Amps/92V

Peak Torque: 97NM @1200 Phase Amps/92V

Stator Length: 65mm

Magnet Length: 65mm

Rotor Type: IPM

Motor KV: 105

Maximum stable rotor RPM: 14000

Motor Weight: 12.2KG

Position Sensor Type: Encoder

Motor Temperature: Maximum 180 Degrees C

IP Rating: 67

Motor Configuration: 10 Poles & 12 Slots

Winding Type: Dual Y Parallel

Peak Phase Current: 1400Amps

Continuous Phase Current: 600Amps (35NM)

Watch how to install it here!

Please be aware that the EBMX XLB-60 Motor is not compatible with stock or most aftermarket bash plates (SXS Bash Plates are the only aftermarket Bash Plates which we have tested that will fit).

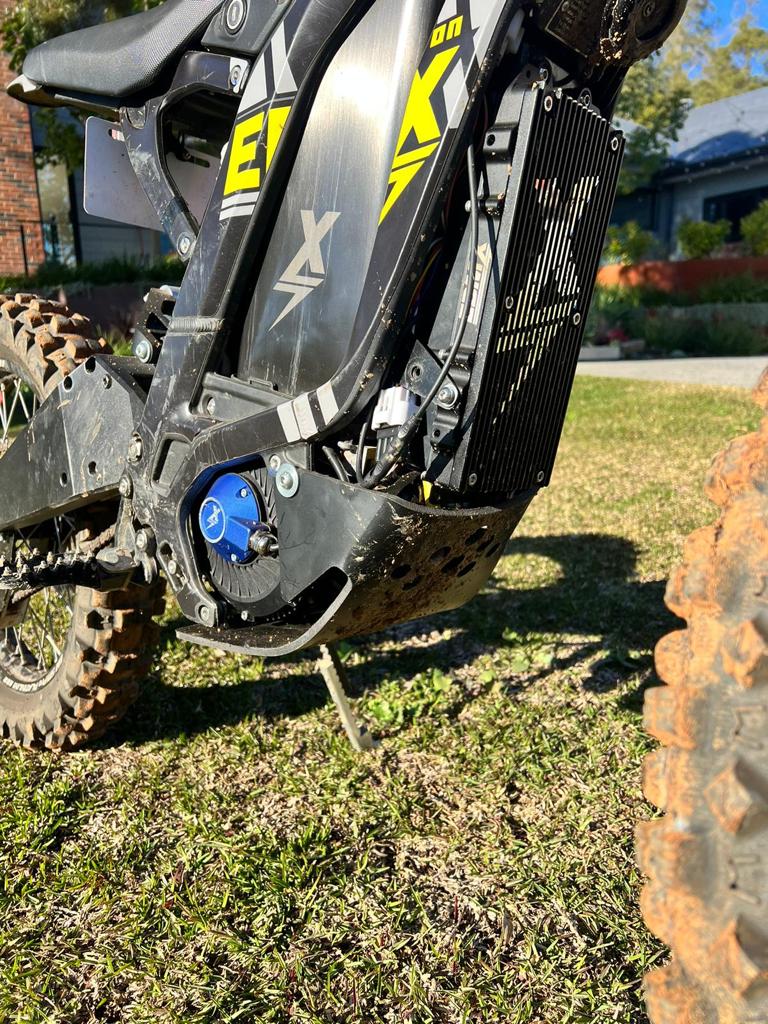

The EBMX XLB-60 Motor is a Plug and Play replacement for the OEM SurRon Light Bee Motor.

The price includes an EBMX Custom Bash Plate that will fit perfectly with your motor, you can find a full description of the product below.

These Motors are only Guaranteed to work with the X-9000. We cannot guarantee compatibility with any other controller.

The first batch of motors have been dispatched worldwide, and the feedback has been overwhelmingly positive.

Watch how to install it here!

Please be aware that the EBMX XLB-60 Motor is not compatible with stock or most aftermarket bash plates (SXS Bash Plates are the only aftermarket Bash Plates which we have tested that will fit).

With this in mind, EBMX has manufactured a special bash plate for use with the XLB-60 Motors which will be included in all pre-orders that you make before the 1^st of August 2023.

For any orders made after the pre-order period has ended, we have added an additional $50 USD to the price of the XLB-60 to ensure that all customers have a bash plate to be used with the XLB-60 Motor.

35KW rated and tested, designed from the ground up to handle the heat, 180C rated windings with U42H magnets

Custom IPM rotor design and industry leading 1mm rotor air gap revving out to rated 13000RPM. Encoder based motor control for increased low end torque response and smooth predicable power delivery.

We built these motors to stay cool under race conditions to ensure you focus on your riding and not your motor temperatures. It doesn’t matter if you are on the track, street or local trail, if you want the best, then this motor is for you.

The EBMX motor range has been specifically designed to surpass the performance of other motors in their classes.

In contrast to many of EBMX competitors who utilize hall sensors, we have opted to incorporate encoder sensors in our motors. This decision stems from the fact that encoder sensors demonstrate greater stability under demanding riding conditions. While hall sensors rely on estimated rotor positions, encoder sensors consistently provide precise angle measurements of the rotor’s position. Hall sensors are typically employed for tracking motor position during start-up and up to approximately 2000 rpm, after which the motor operates in a “sensorless” manner. However, during intense riding situations such as wheel spinning and sudden deceleration combined with rapid throttle adjustments, hall sensors angle detection can result in substantial current spikes in the controller. This can pose significant issues for many controllers, leading to tripping and loss of throttle power, although this is less prevalent in the X-9000.

Encoder sensors, on the other hand, are capable of tracking motor position at all speeds and do so more frequently than hall sensors. As a result they can deliver a smoother more responsive and controllable powerband and they do not generate the same type of current spikes that often cause controller issues. Furthermore, they contribute to improved low-end torque control and overall motor response.

EBMX motor have been custom built and are finely tuned to work with the EBMX X-9000 controller. These motors will work with many other types of controllers, however they may require you to do your own custom tuning

The EBMX new motors have been engineered for performance enthusiasts and experienced riders in controlled environments. These motors are significantly faster than standard motors, and their extreme speed can pose serious risks if not handled with caution.

IMPORTANT SAFETY CONSIDERATIONS:

1. NOT INTENDED FOR ROAD USE: EBMX Motors are NOT designed for use on public roads or crowded areas. These motors are strictly meant for off-road use and controlled environments only.
2. EXPERIENCED RIDERS ONLY: These high-performance motors are recommended for experienced riders who possess the necessary skills and expertise to handle powerful machines. Novice riders are strongly advised against using our motors.
3. USE WITH CAUTION: The enhanced speed and power of our motors require extreme care and attentiveness. Always exercise caution and be aware of your surroundings when operating our products.
4. UPGRADE SAFETY EQUIPMENT: It is crucial to ensure that your bike is equipped with upgraded brakes and other safety features capable of handling the increased speed and power provided by our motors. Using the motor with stock brakes or inadequate safety measures may result in accidents and severe injuries.
5. ADHERE TO LOCAL LAWS: Familiarize yourself with local regulations and laws pertaining to off-road vehicle usage in your area. Always ride within designated areas and private tracks that allow for safe operation.
6. KEEP AWAY FROM CHILDREN: Our motors are not toys, and they must be kept out of reach of children. Never allow minors or inexperienced individuals to operate these motors.
7. RIDE RESPONSIBLY: Ensure that you are in a sound state of mind and not under the influence of any substances that could impair your judgment before operating the motor.

By purchasing and using EBMX Motors products, you acknowledge and understand the inherent risks associated with high-speed off-road motor use. EBMX shall not be liable for any injuries, accidents, damages, or losses incurred as a result of improper usage, negligence, or failure to adhere to this disclaimer.

Enjoy the thrill of our motors responsibly and with safety as your utmost priority.
