EBMX X-9000 V3 controller Full Kit for Emotos

EBMX X-9000 V3 controller Full Kit for Emotos

Regular price $1,299.00
Regular price Sale price $1,299.00
Sale Sold out
Please contact us to price match. Shipping is calculated at checkout
EBMX X-9000 Controller - Air Cooled Heat Sink (Color)

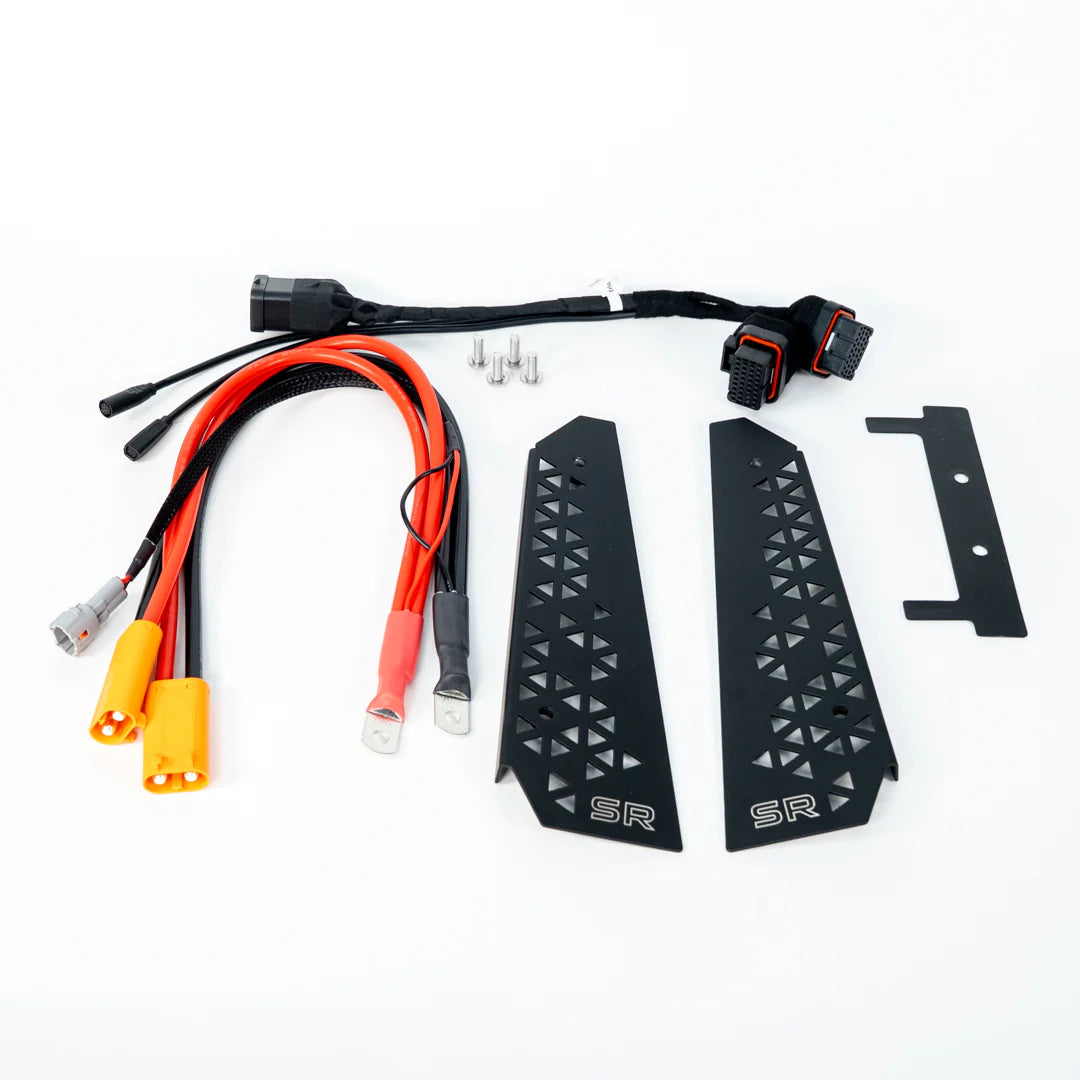

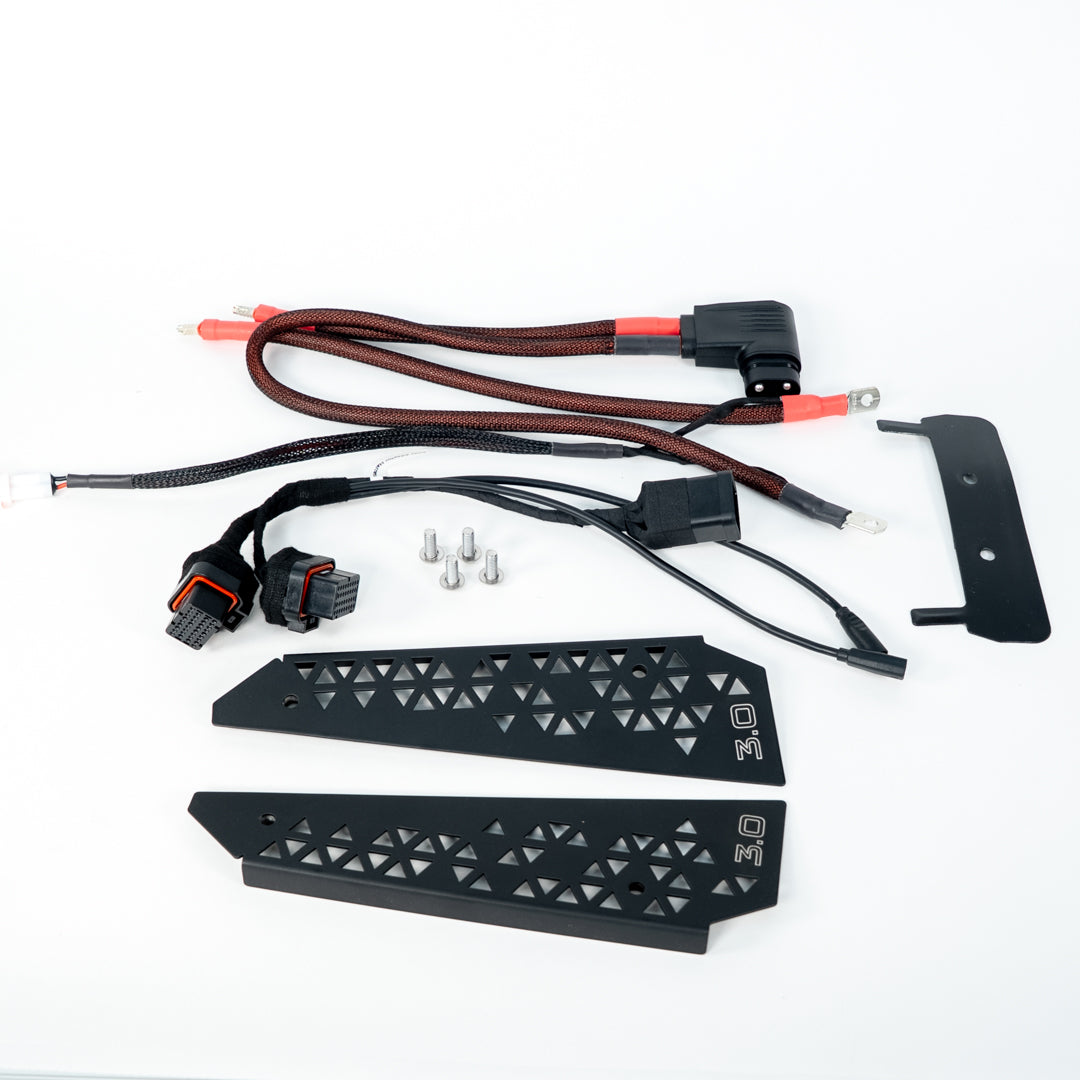

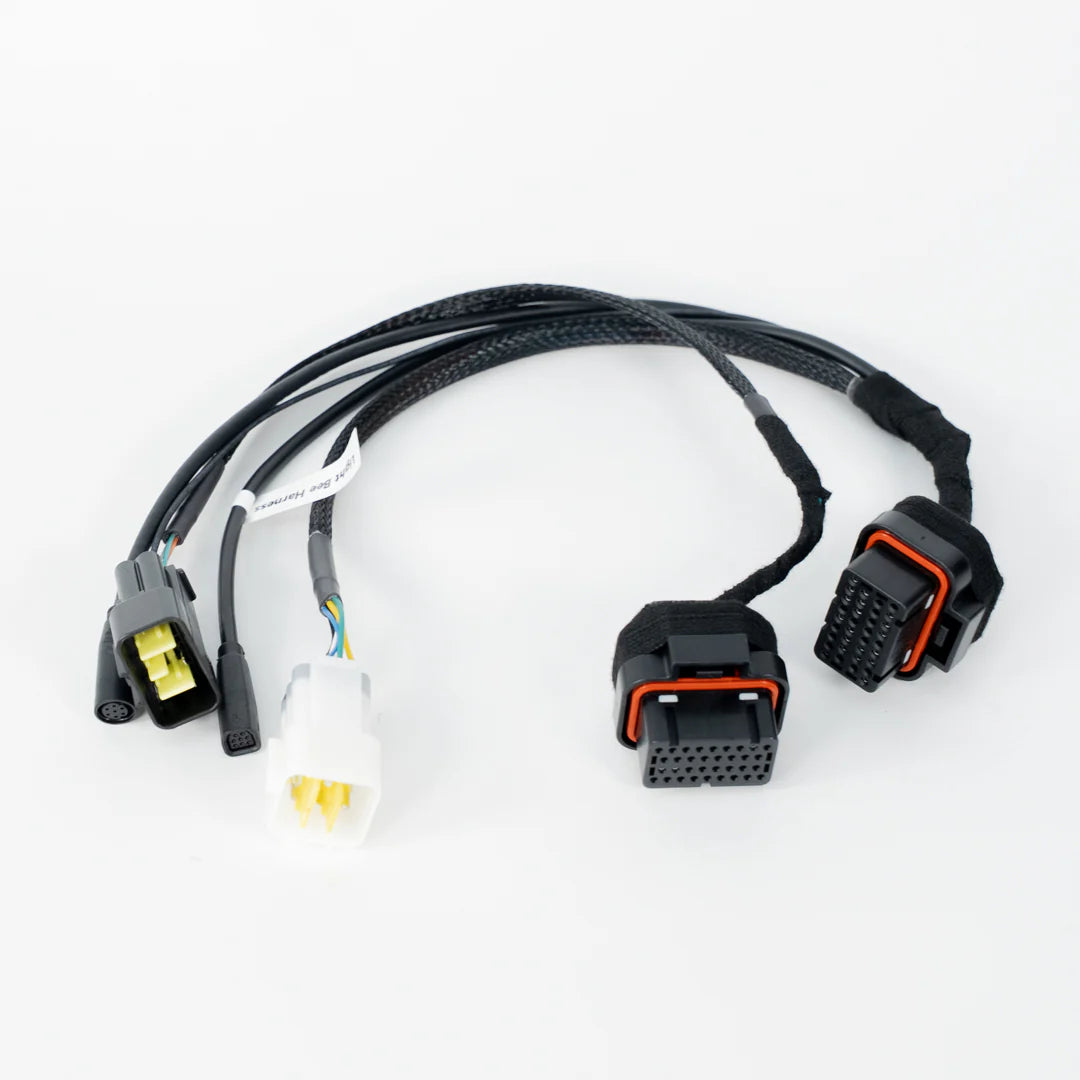

EBMX X-9000 V3 | Wiring Harness Kit for Emoto. (Select your harness)
More Financing Options

EBMX X-9000 V3 Controller | Sur Ron, Talaria, E-Ride Pro, & More | By EBMX

PRE ORDER NOW!

Starts shipping late July early August

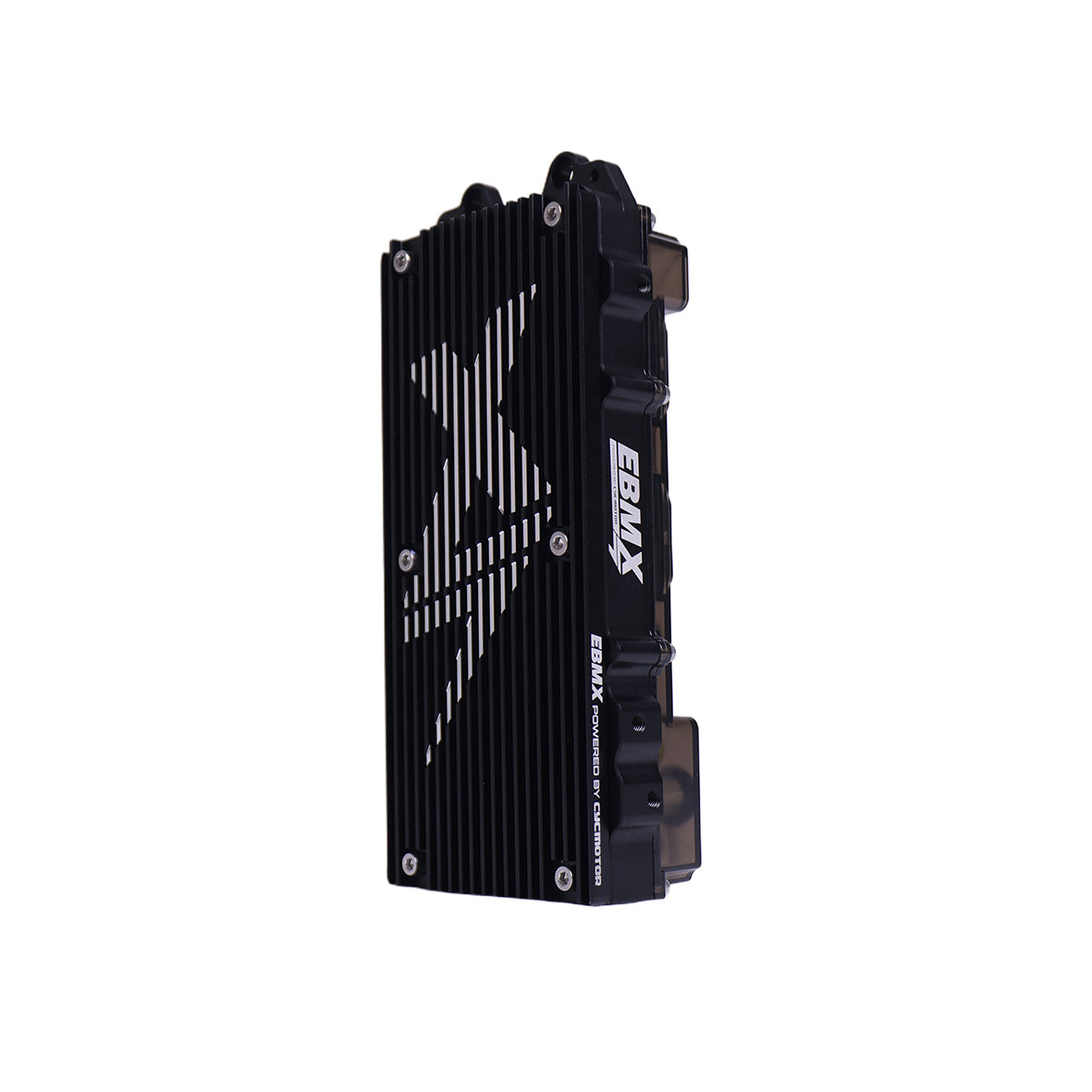

The long-anticipated EBMX X-9000 V3 is here — a complete redesign of the industry-leading V2 controller. After 18 months of testing and refinement, the V3 delivers unmatched performance, thermal efficiency, and plug-and-play compatibility with Sur Ron, Talaria, E-Ride Pro, and other high-performance E-Moto platforms. Final production begins shipping late July to early August 2025.

Built for serious riders and racers, this is more than just a controller — it’s a fully integrated performance system.



🔥 What's New in the V3:

  • 30x Infineon MOSFETs for 50kW continuous / 60kW peak power output

  • 6-layer PCB and CNC copper busbars – 30% cooler operation than V2

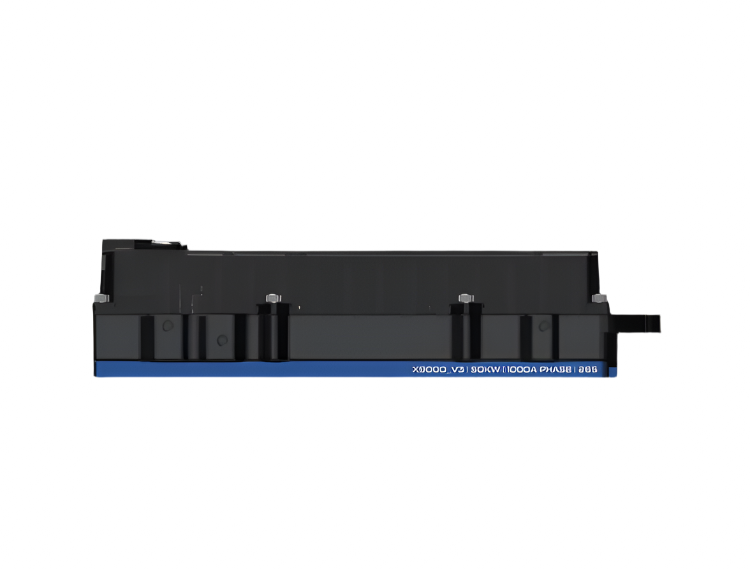

  • Slimmer rear profile for better fitment

  • New square-set plug system to prevent pin damage

  • Removable harness for easier servicing

  • Supports 120V builds (no longer limited to 72V)

  • Integrated IMU with Wheel Lift Assist

  • EBMX X-Series App: Full throttle, regen, and motor tuning via Bluetooth

  • Updated SW102T Color Display with customizable metrics


📱 App & Display Integration:

  • Live tuning: Regen, throttle curve, max amps, motor settings

  • Load-and-Go Profiles: Choose presets by bike or battery type

  • Modes: Street / Race, plus 3-level assist & EBMX E-Clutch

  • Live Metrics: Power output, RPM, temp, speed, distance, regen, etc.


⚙️ Compatibility:

This controller is plug-and-play for:

  • Sur Ron Light Bee / Ultra Bee

  • Talaria MX3 / MX4 / MX5 / XXX

  • E-Ride Pro SS 2.0 (V3 Battery)

  • E-Ride Pro SS 3.0 (Breaker & Non-Breaker Versions)

  • E-Ride Pro SR

  • ReRode R1

  • QS138 70H / 90H

  • 79 Bike Falcon S / Pro

  • Altis Sigma (COMING SOON)

⚠️ V2 harnesses are NOT compatible.

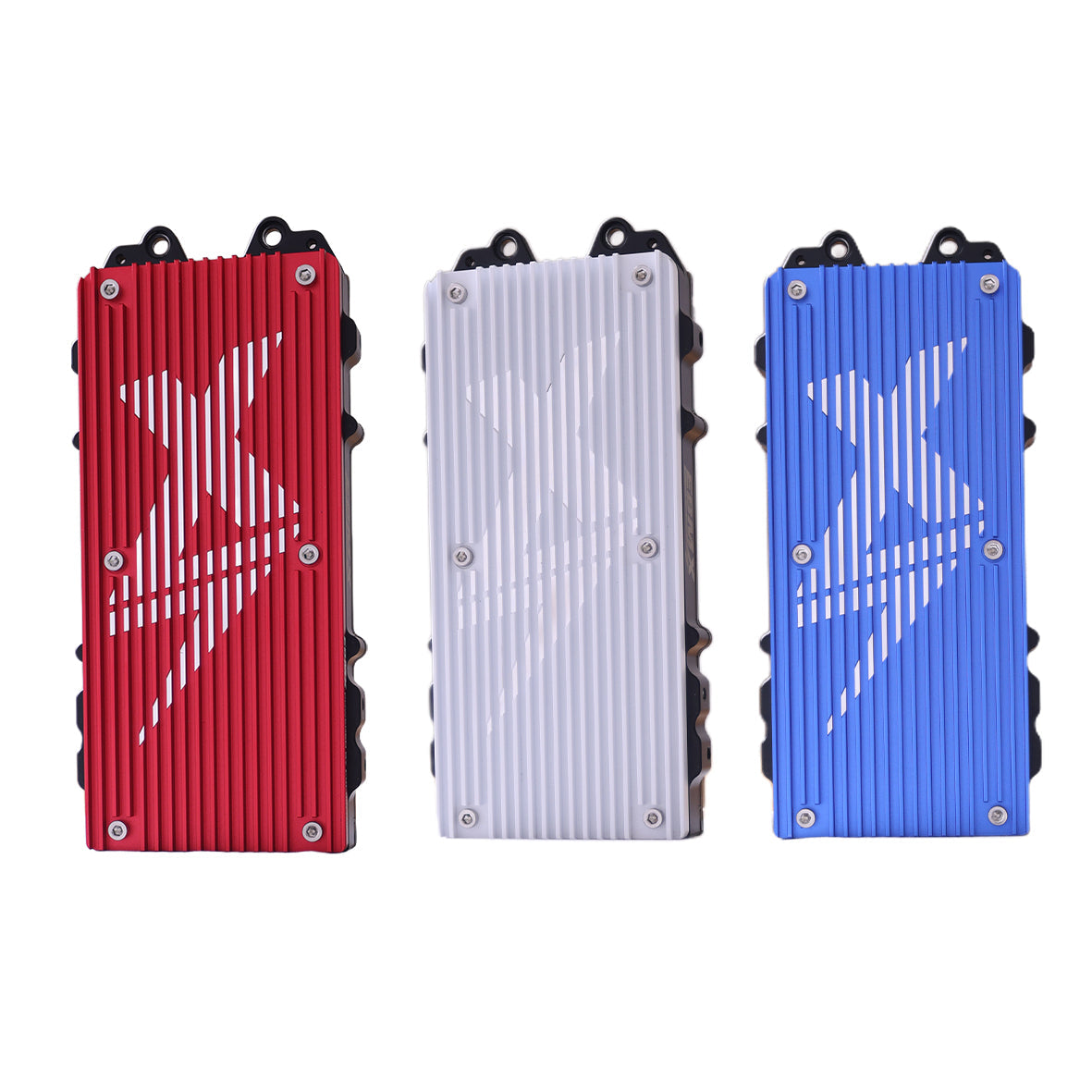

🎨 Colored heatsinks (Red, Blue, White, Purple, Gold)
🧊 Water-cooled upgrade option available for high-endurance race builds.


⚡ Compatible Motors (Preloaded Tunes):

  • OEM Sur Ron / Talaria / E-Ride Pro motors

  • EBMX XLB-60, XTA-60, XUB-80

  • KO RS & KO F Spec

  • QS138 70H / 90H

  • 30+ supported motor profiles out of the box


📦 Kit Contents:

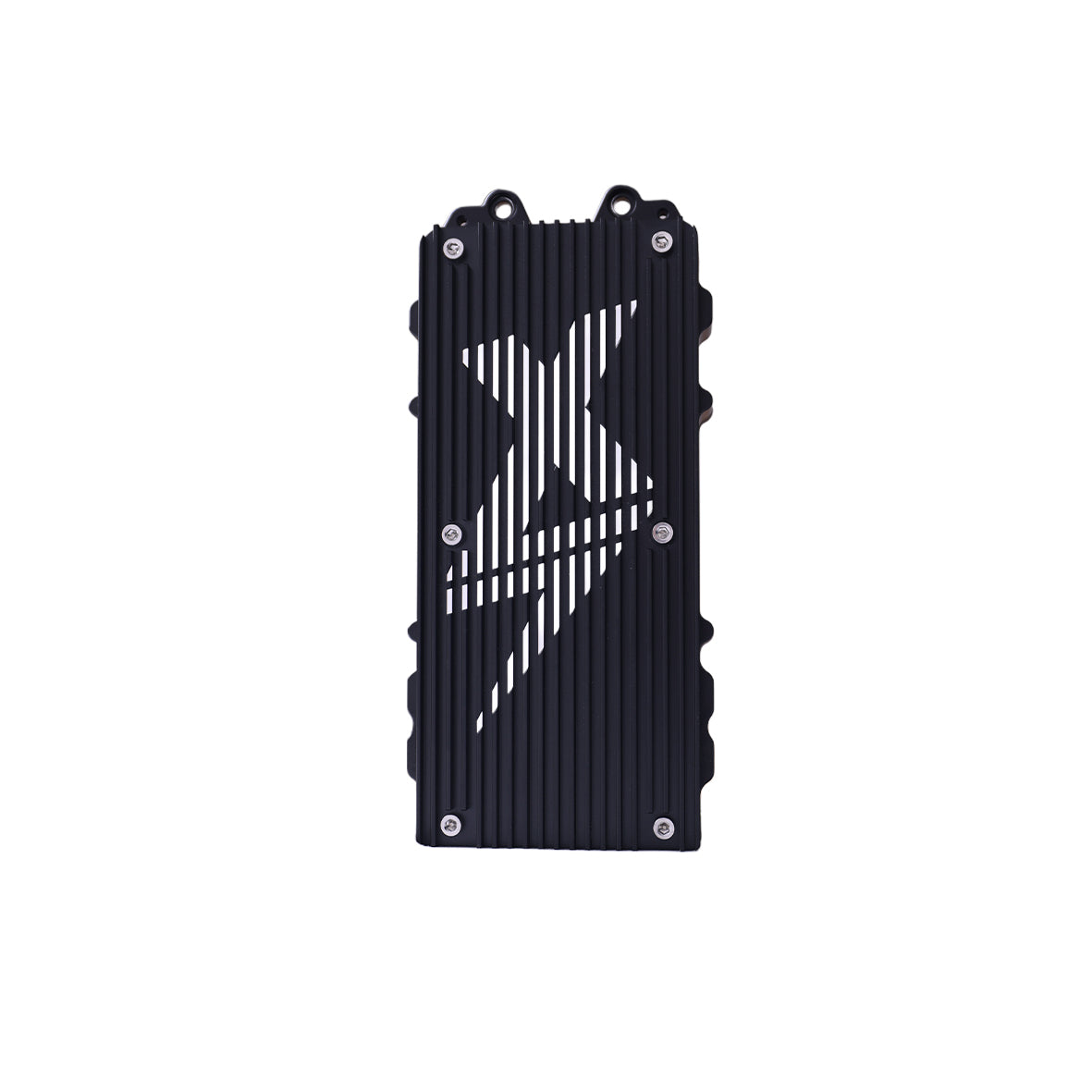

  • EBMX X-9000 V3 Controller

  • Air-Cooled Heatsink

  • SW102T Full-Color Display

  • Thumb Throttle

  • Bluetooth Module

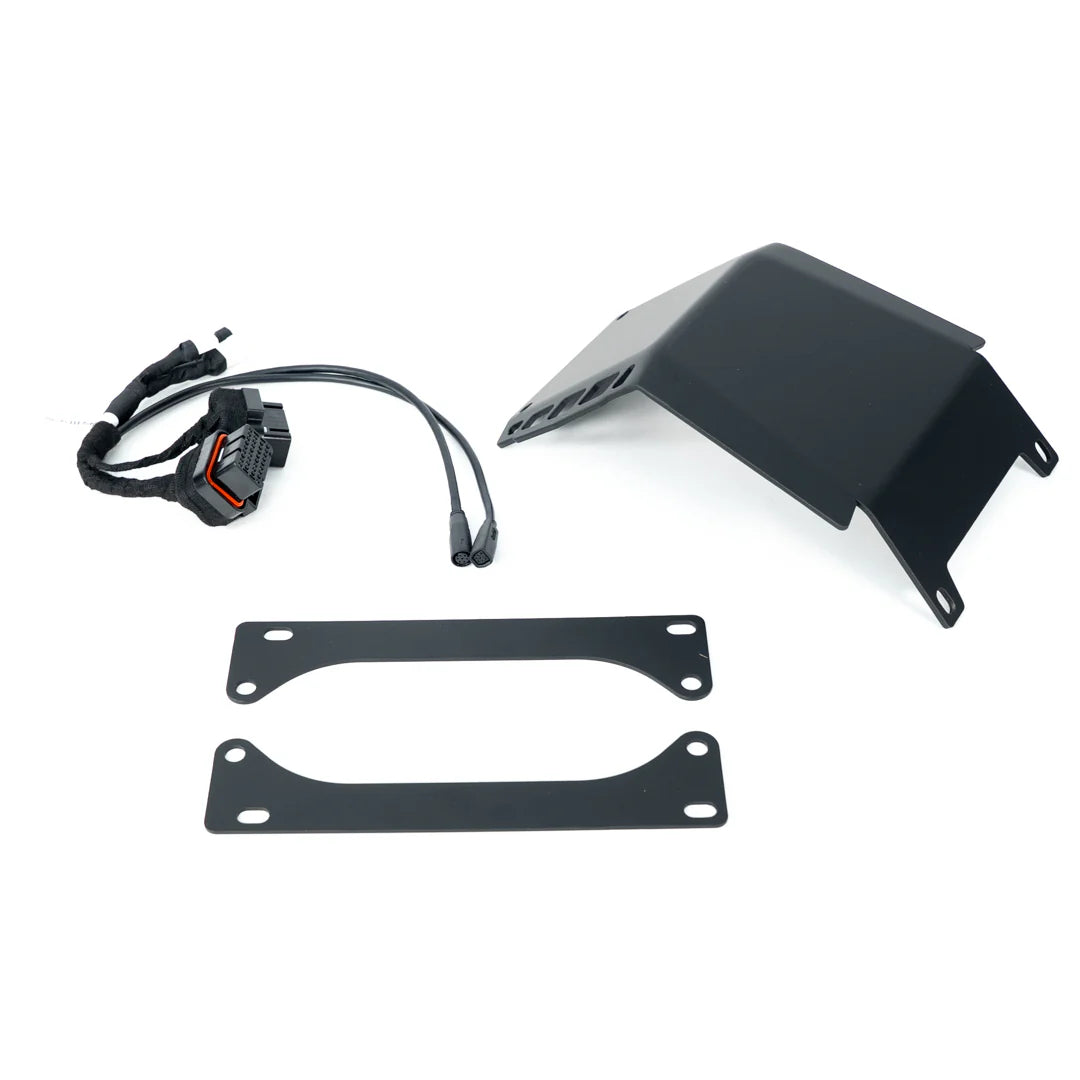

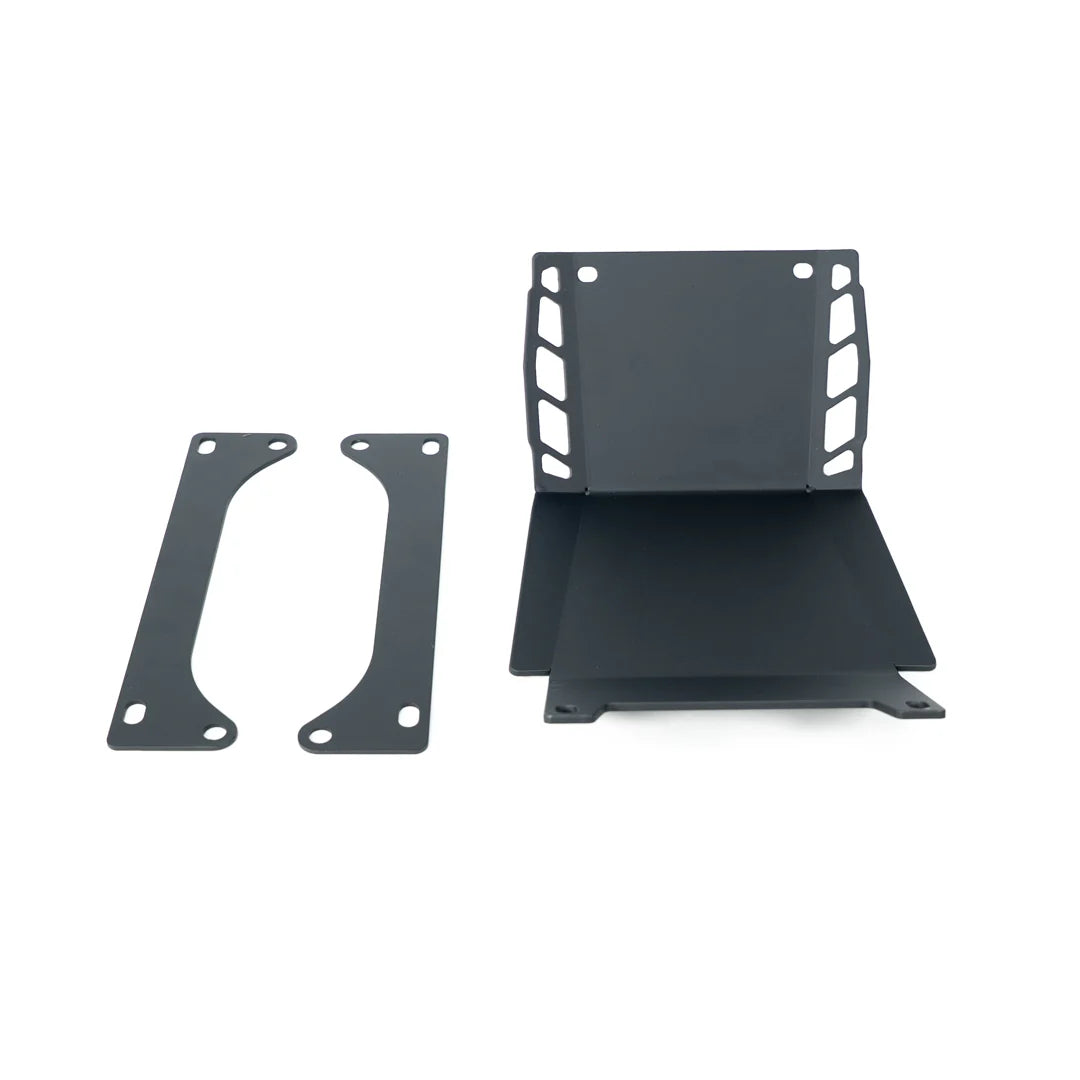

  • Mounting Brackets

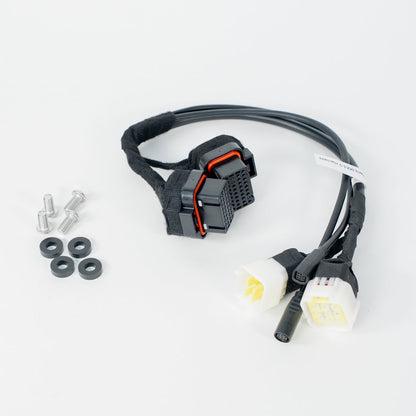

  • 1–2 Adapter Harness

  • IP67-Rated CNC Alloy Housing




🧪 Specs Overview:

Spec Detail
Rated Power 50kW Continuous / 60kW Peak
Voltage Up to 120V (48–110V Operating)
Phase Current 1000A Continuous / 1600A Burst
Control Protocol Field-Oriented Control (FOC) – VESC
Firmware Custom EBMX VESC
IMU Support Wheel Lift Assist & E-Clutch
Waterproofing IP67 Rated
Operating Temp -25°C to 80°C
Warranty 2 Years
Heat Sink Colors Black (included) / Red / White / Blue/ Purple / Gold

🛠️ Built for Riders Who Want:

  • 🔥 Maximum power + smooth throttle feel

  • 💡 Full adjustability from their phone

  • 🛡️ Reliable, thermally stable high-performance output

  • 🎯 Seamless tuning, no laptop required

  • 🧠 Safer wheel control with built-in IMU


Ready to build your dream setup?
