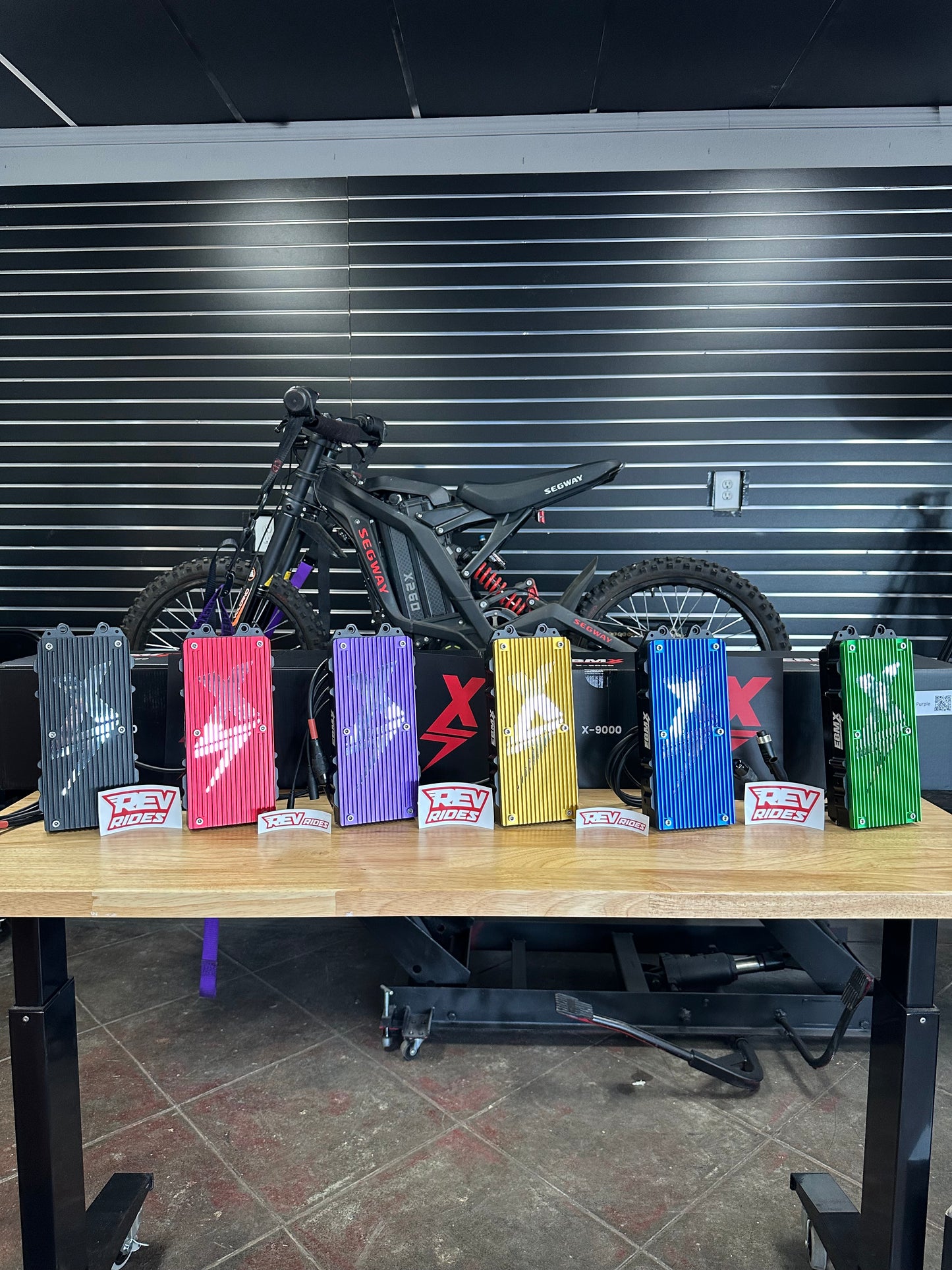

EBMX X-9000 V2 Controller Kit for Sur Ron, Segway & Talaria MX3 MX4 (Color) Black Red Blue Gold Purple

Product variants

Quantity

EBMX X9000 V2 Controller & Wiring Harness (Full Kit) for E Ride Pro, Sur-Ron, Talaria & Segway

FAST & FREE SHIPPING - 2-YR WARRANTY

The EBMX X9000 V2 upgraded controller & wiring harness kit is compatible with a range of electric dirt bikes and motors. The X9000 V2 pairs perfectly with EBMX high performance batteries and motors, if you're looking to build a top-performing electric dirt bike or e-moto. EBMX performance parts are built to high standards, and backed by a 2-year warranty that is handled directly through REV Rides. REV Rides is an authorized dealer for EBMX products.

EBMX has combined strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor Controller.

The X9000 V2 has been purpose-built with dirt bike riders and e-moto in mind, as is simple to install.

TALARIA MX5 Now availible!

EBMX X9000 V2 Compatibility Chart: (Plug & Play)

Sur Ron Light Bee
Sur Ron Ultra Bee
Talaria XXX
Talaria Sting MX3 / MX4/ MX5
Segway X260
Eride Pro SS
COMING SOON Rawrr Mantis, Talaria MX5 and more...

The high performance EBMX X9000 V2 controller that you purchase will contain all parts required to replace your OEM controller – with the EBMX X-9000 high performance controller. Be sure to check for compatibility and fitment below, before purchasing.

This kit is an easy to install, DIY bolt-on controller upgrade the Segway X260, Sur Ron Light Bee and Talaria Sting bikes. No drilling, no extra brackets required, no wires to extend, or additional parts needed (wiring harness adapter is included).

EBMX X-9000 V2 COMPATIBILITIY & FITMENT:

OEM SurRon Light Bee
OEM SurRon Ultra Bee
OEM Segway X260
OEM Talaria Sting MX3
OEM Talaria Sting R MX4
OEM Talaria Sting R MX5 (Coming soon)
OEM Talaria XXX
OEM E Ride Pro SS
OEM Rawwr Mantis, Mantis X (Coming soon)
EBMX XLB-60
EBMX XUB-80
KO RS SurRon
KO F Spec SurRon
KO F Spec Talaria
QS138 – 90H
QS138 – 70H

We are currently tuning the following Motors and will update the above list as each motor is fully tested and available to choose on the EBMX app.

Sotion FW01
Sotion Talaria
Apollo RFN
ME1803 water cooled
QS Braaap Moto E Hub Motor

Official EBMX Installation Video:

REV Rides' Detailed EBMX X9000 Installation Video with Tips & Tricks:

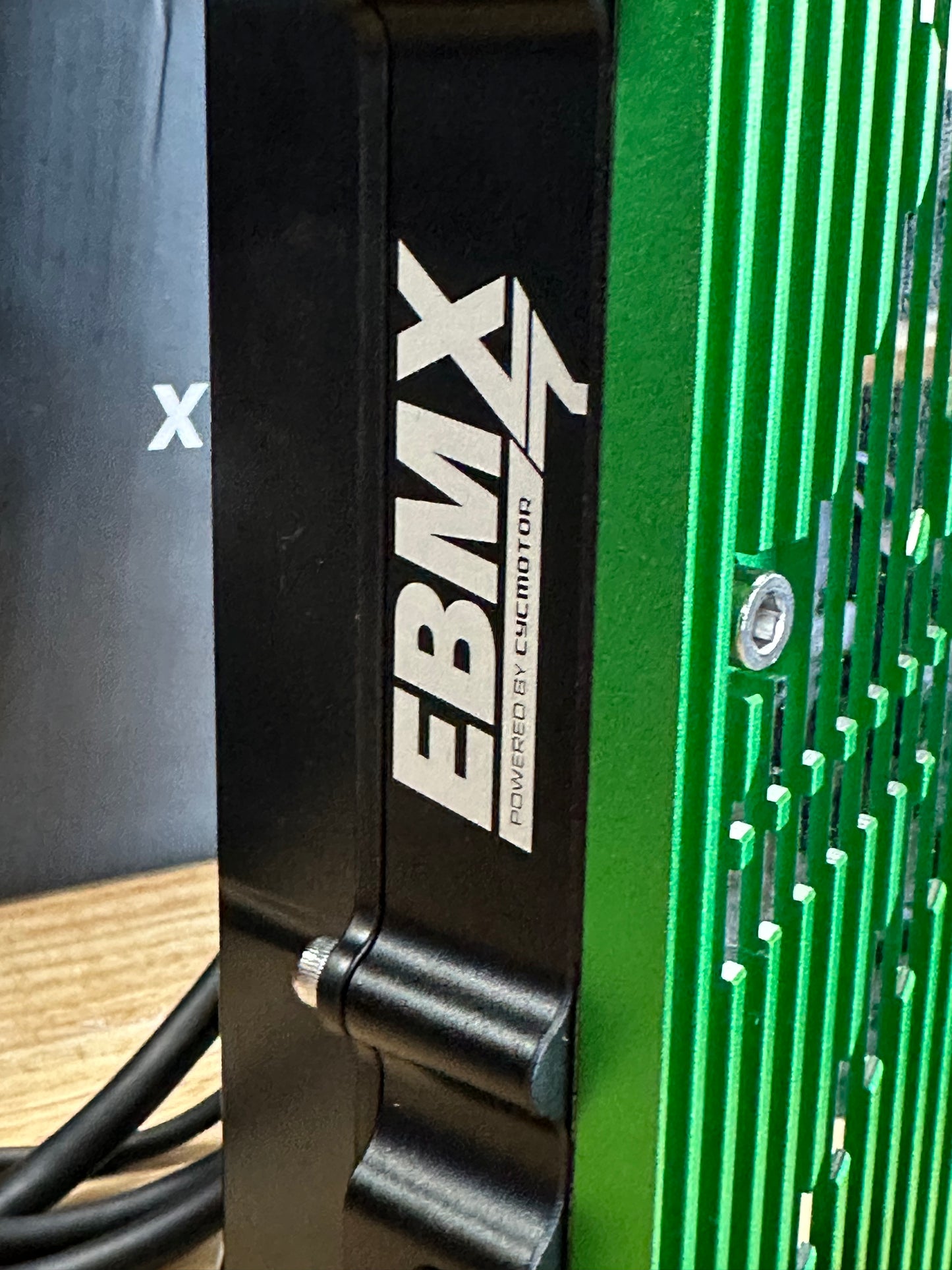

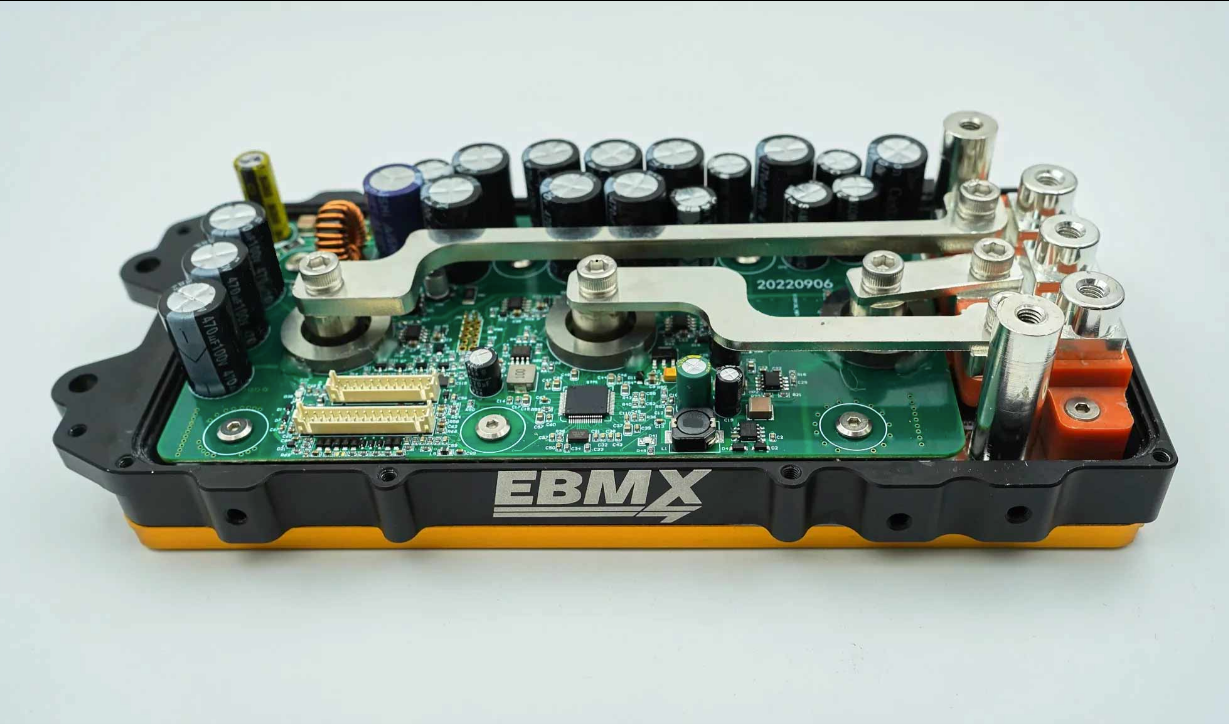

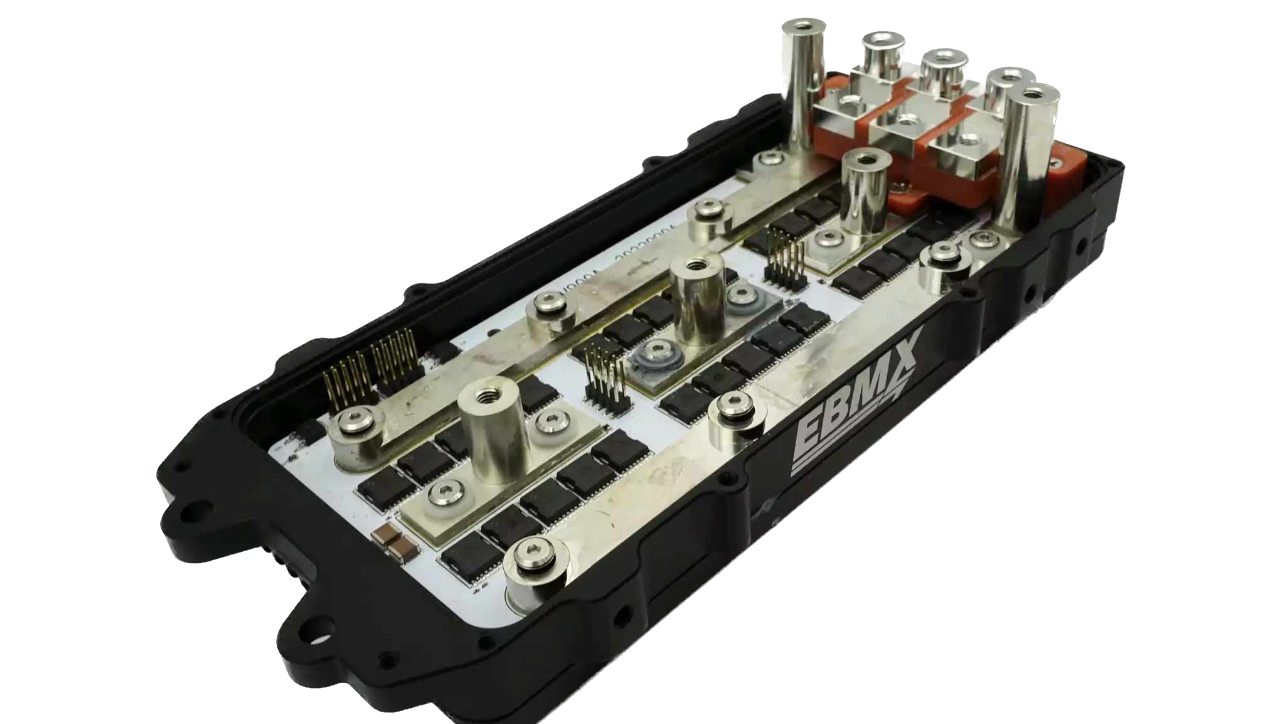

EBMX uses components sourced from reputable suppliers. Every part has been engineered for maximum performance. From the CNC machined internals, bus bars, and injection molded cover, to the fully waterproof construction.

Whether you are trying to nail a wheelie, riding hard enduro, competing in a race series, commuting to work, or just cruising the trails with your family – the X-9000 is built to give you ultimate freedom and control.

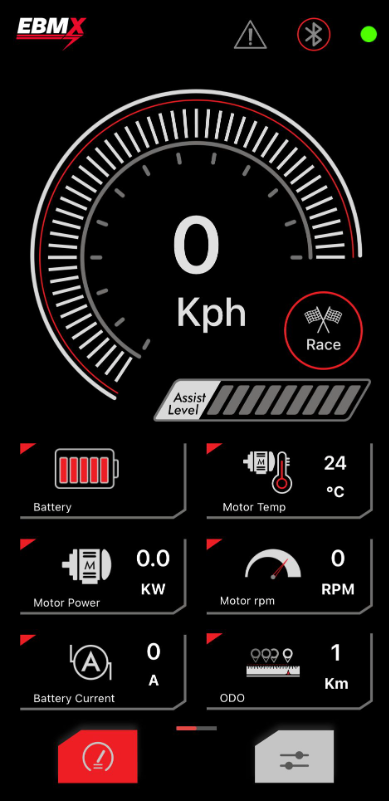

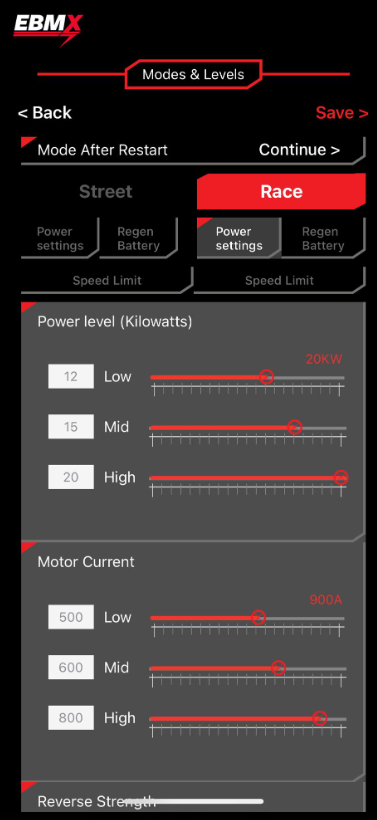

EBMX Mobile Application Overview

Custom EBMX App for tuning and full control (Available free in the App Store and Google Play Store)
- Multiple power modes and full adjustment in each mode
- Adjustable speed limits for different ride modes
- Customizable dashboard to set the display up how you want
Built-in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights, and other 12v accessories as required and controllable through the app.

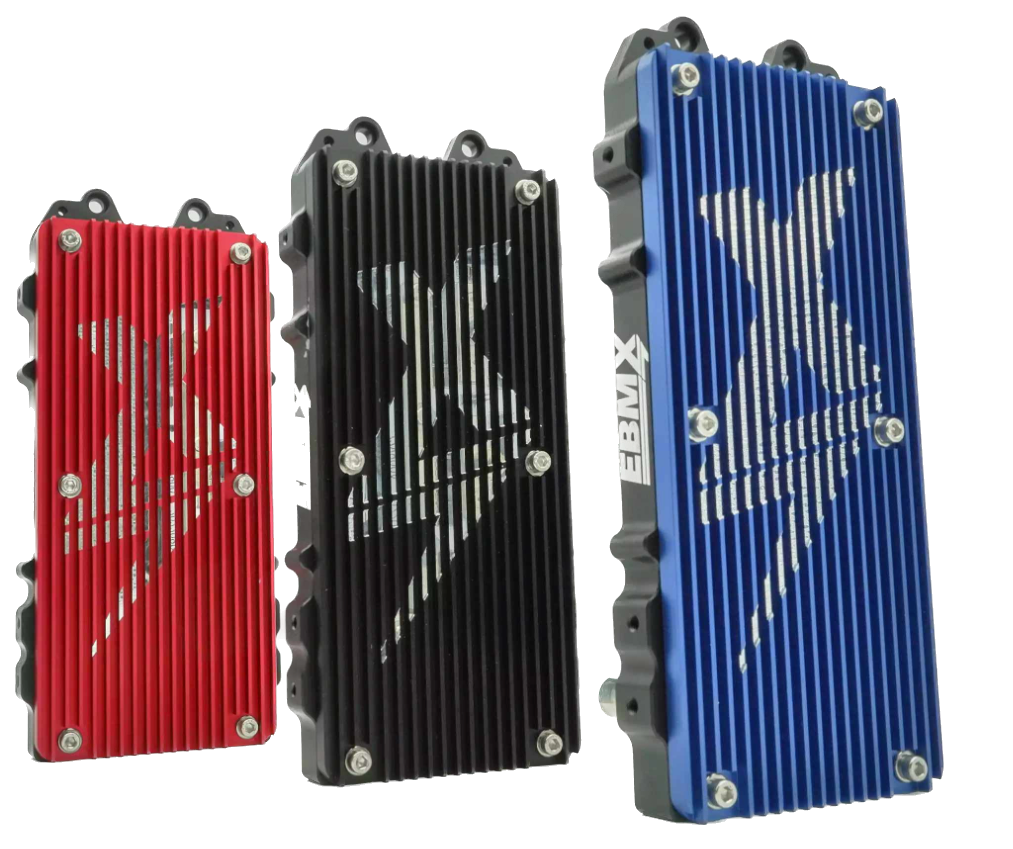

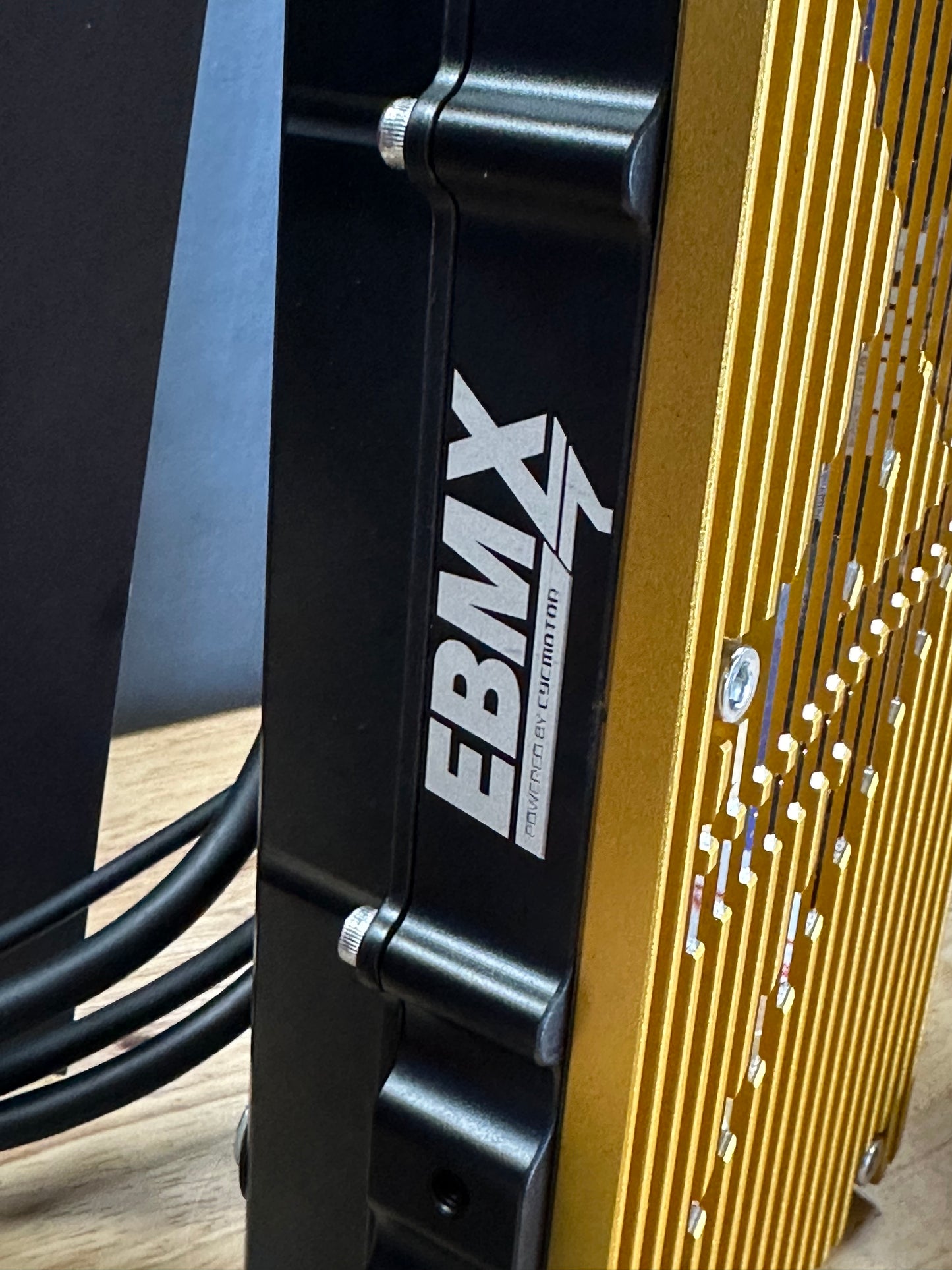

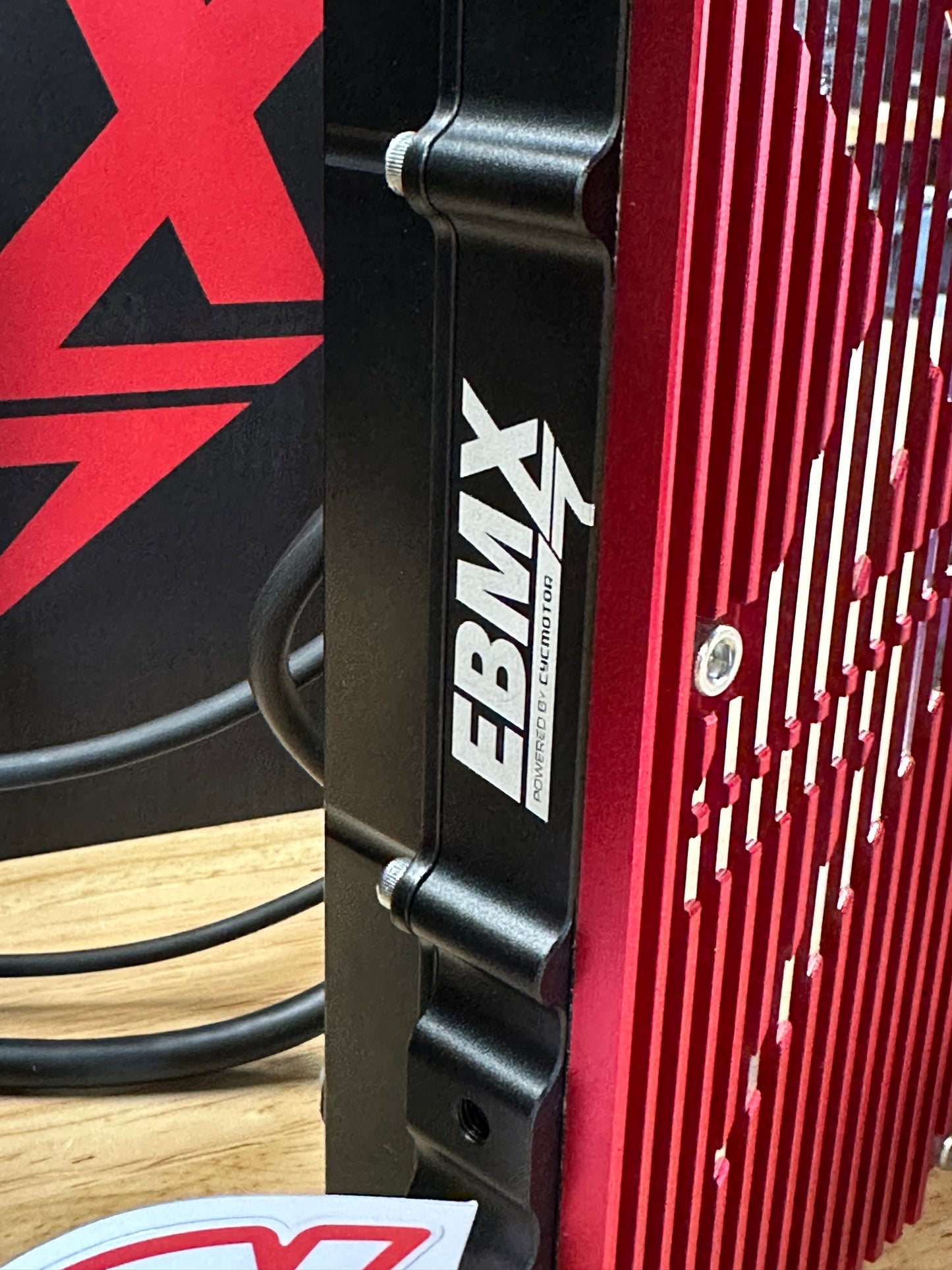

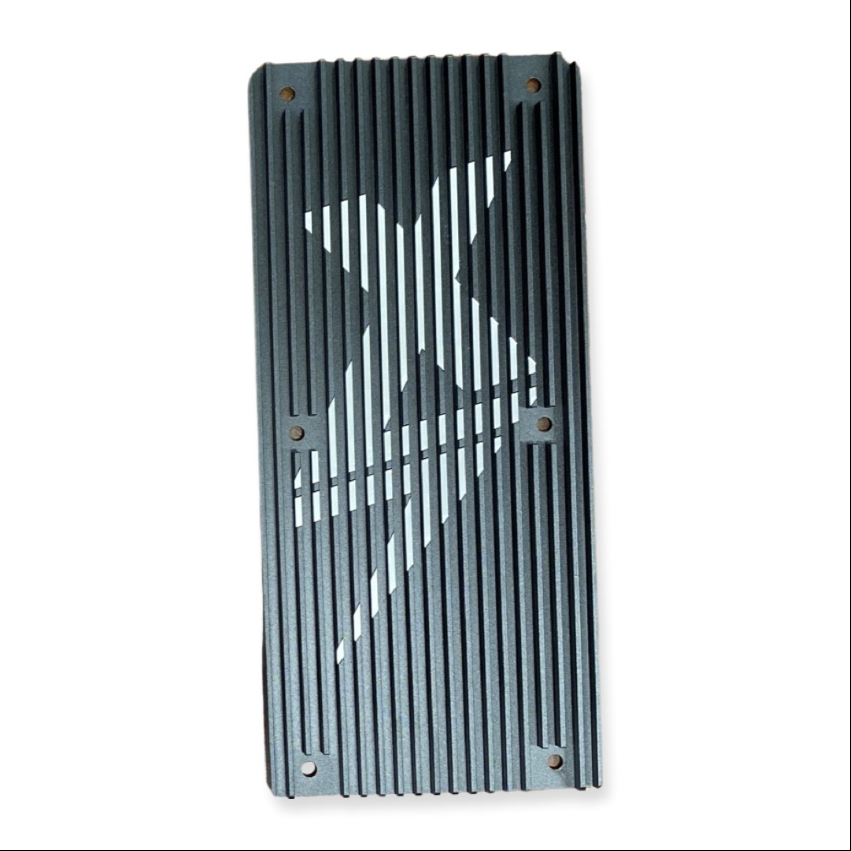

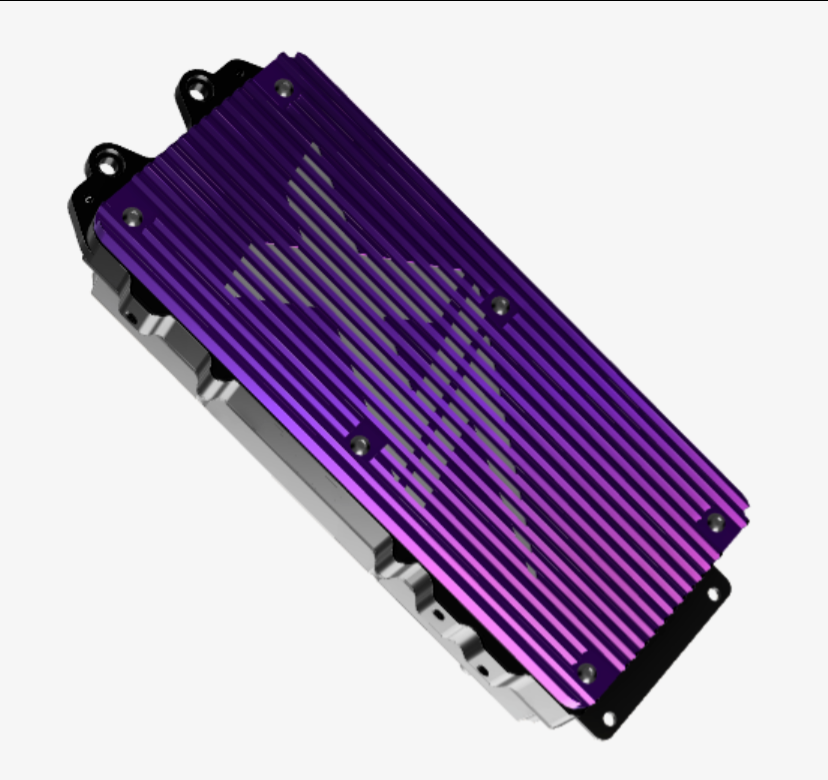

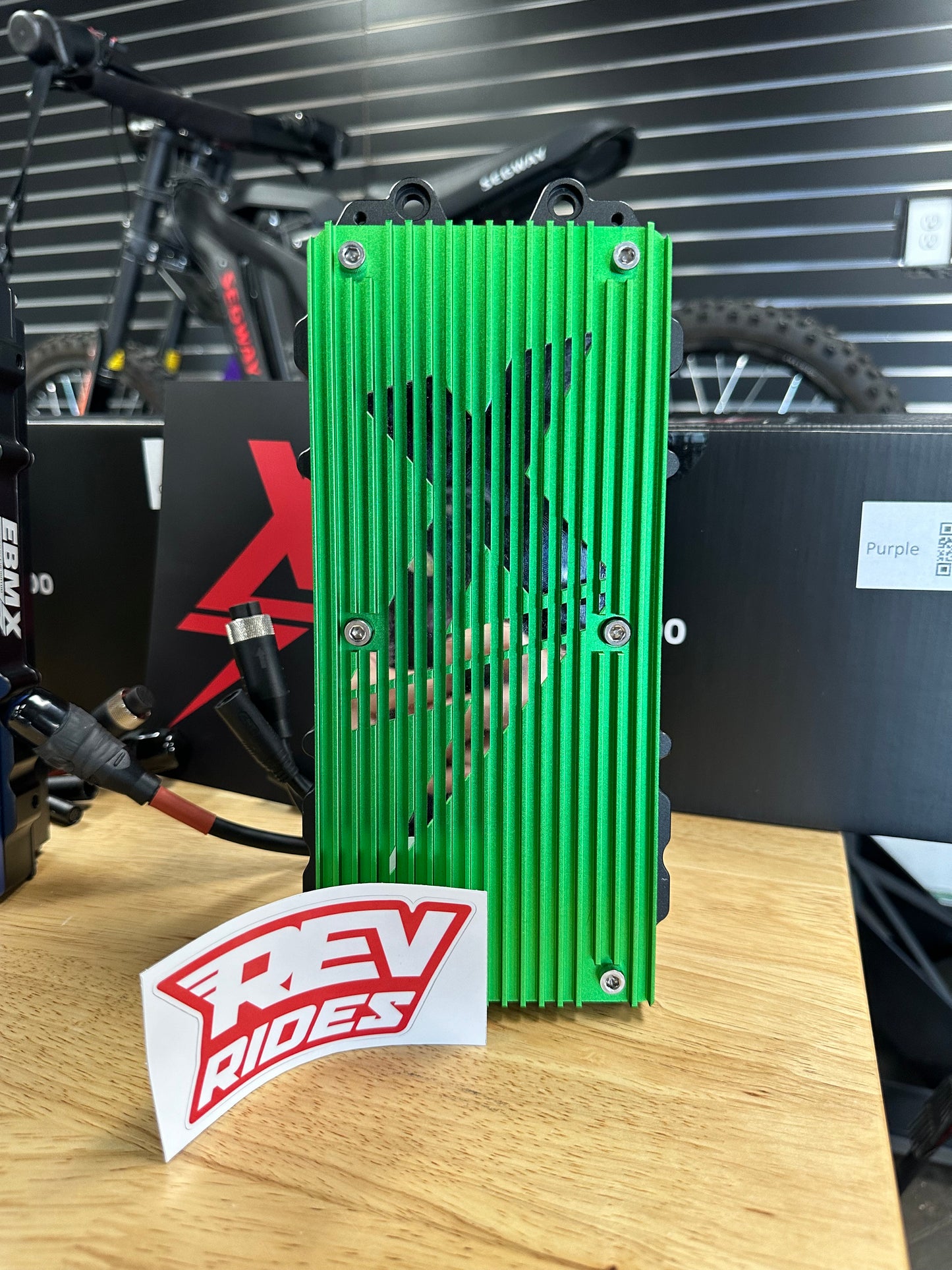

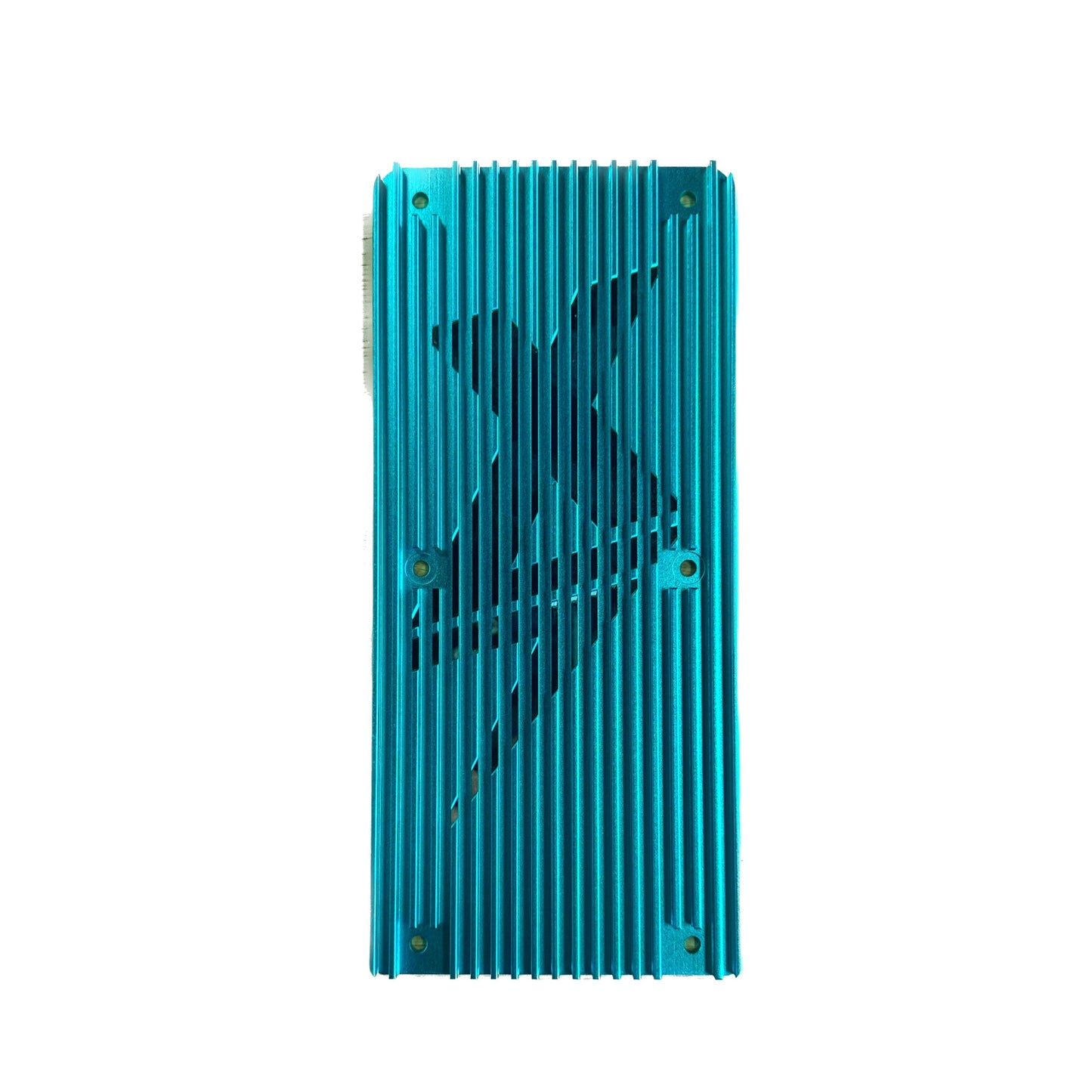

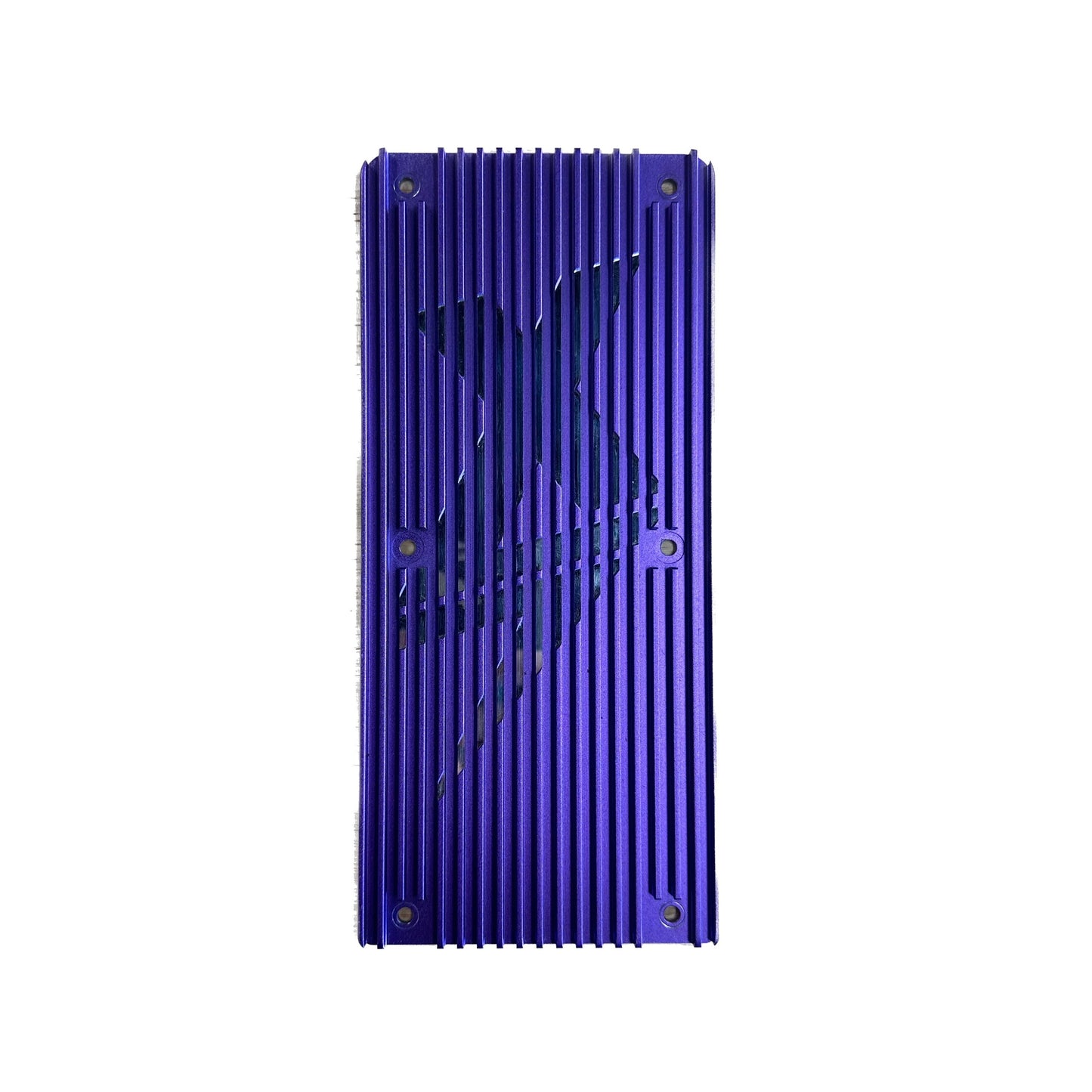

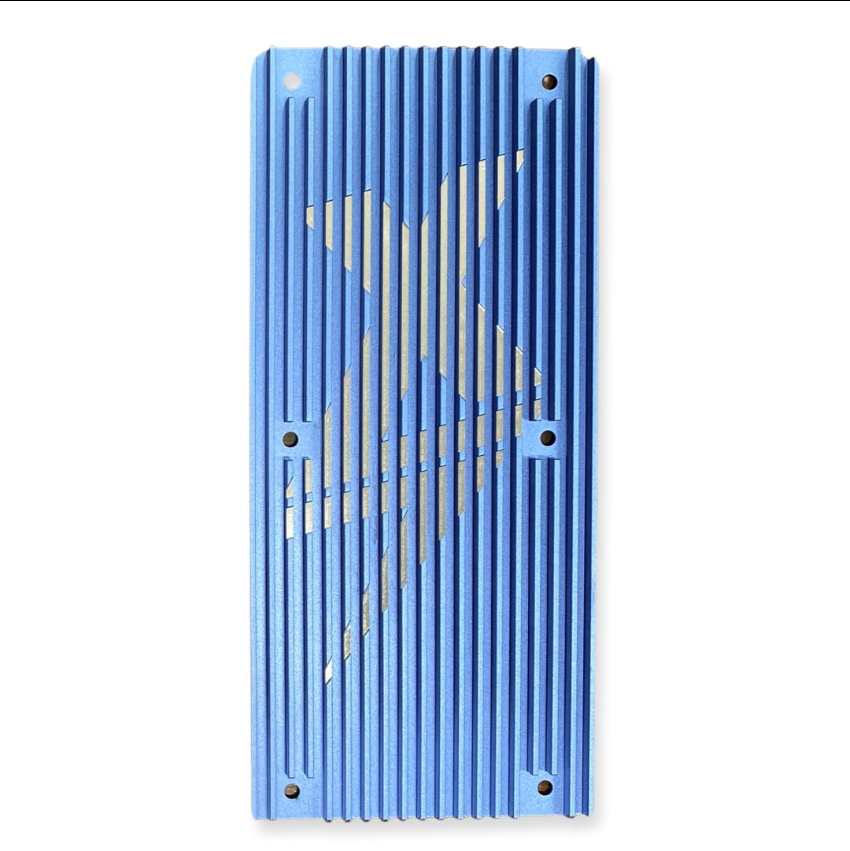

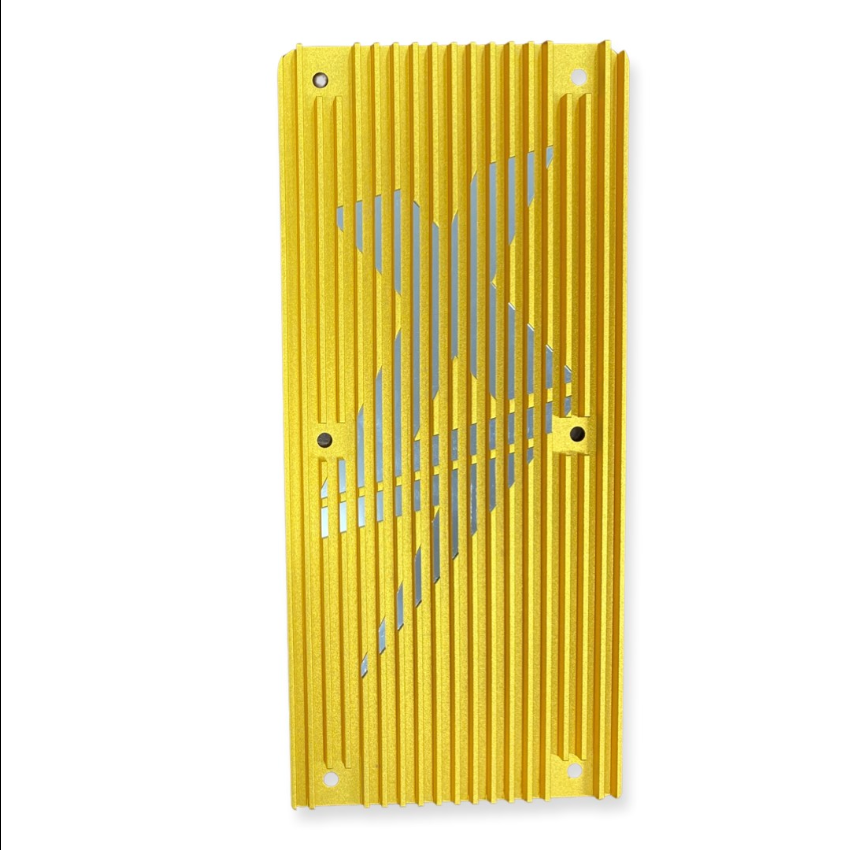

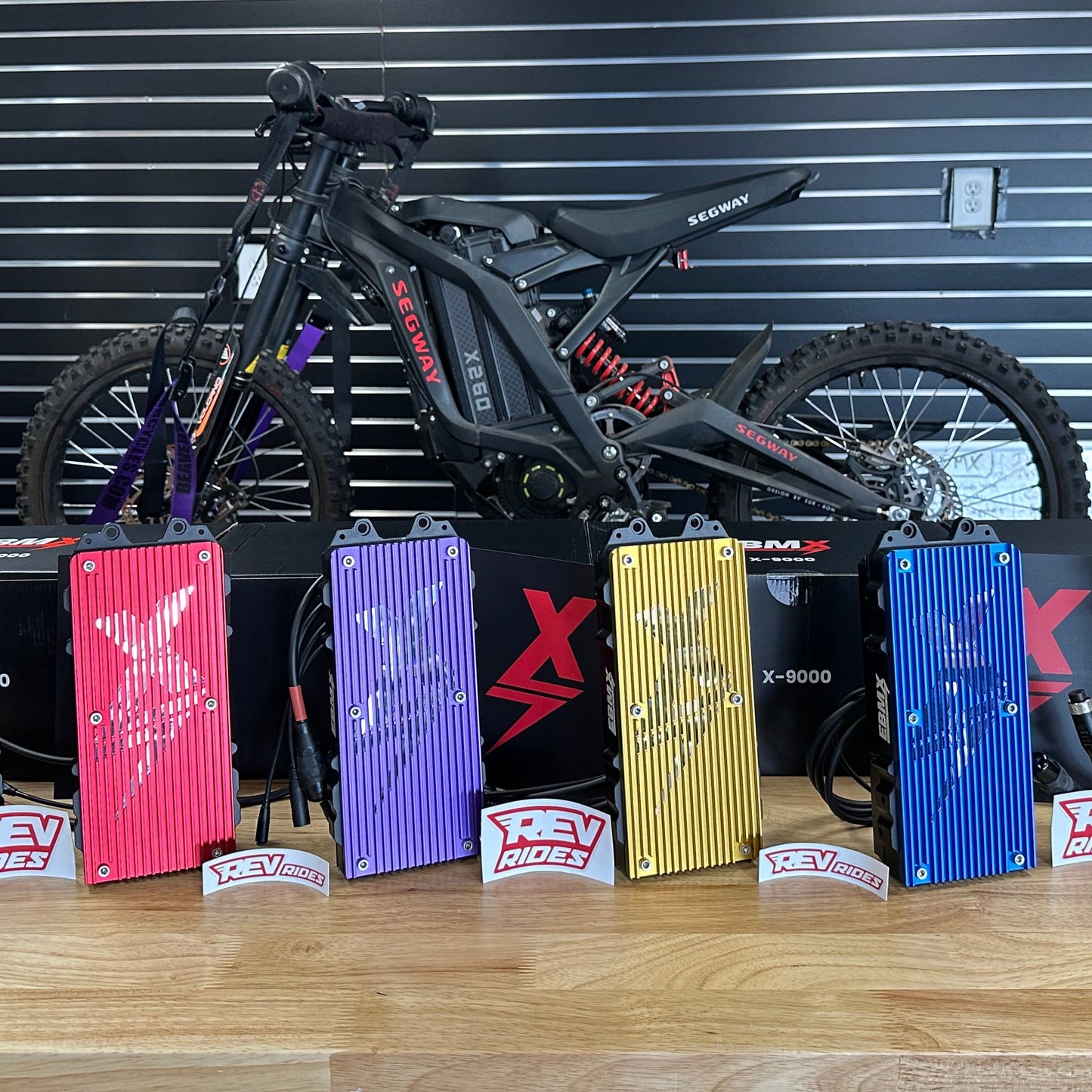

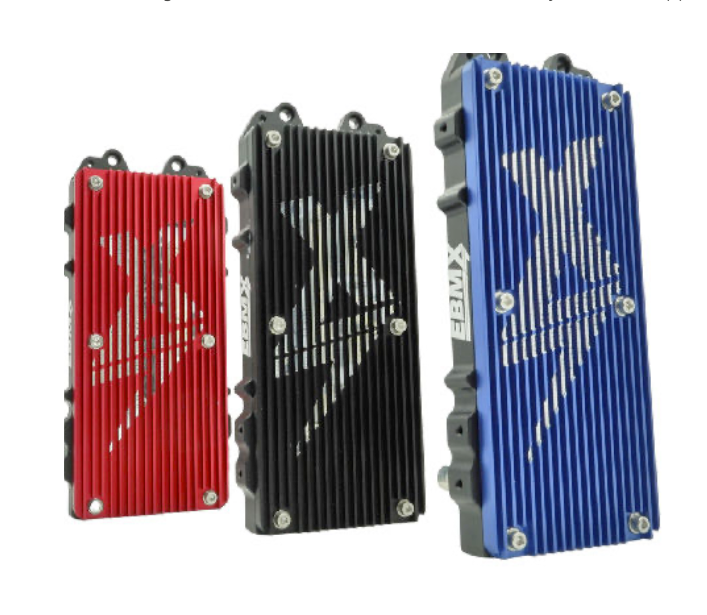

Air-cooled heatsink as standard (comes in black, blue, red, gold or purple).

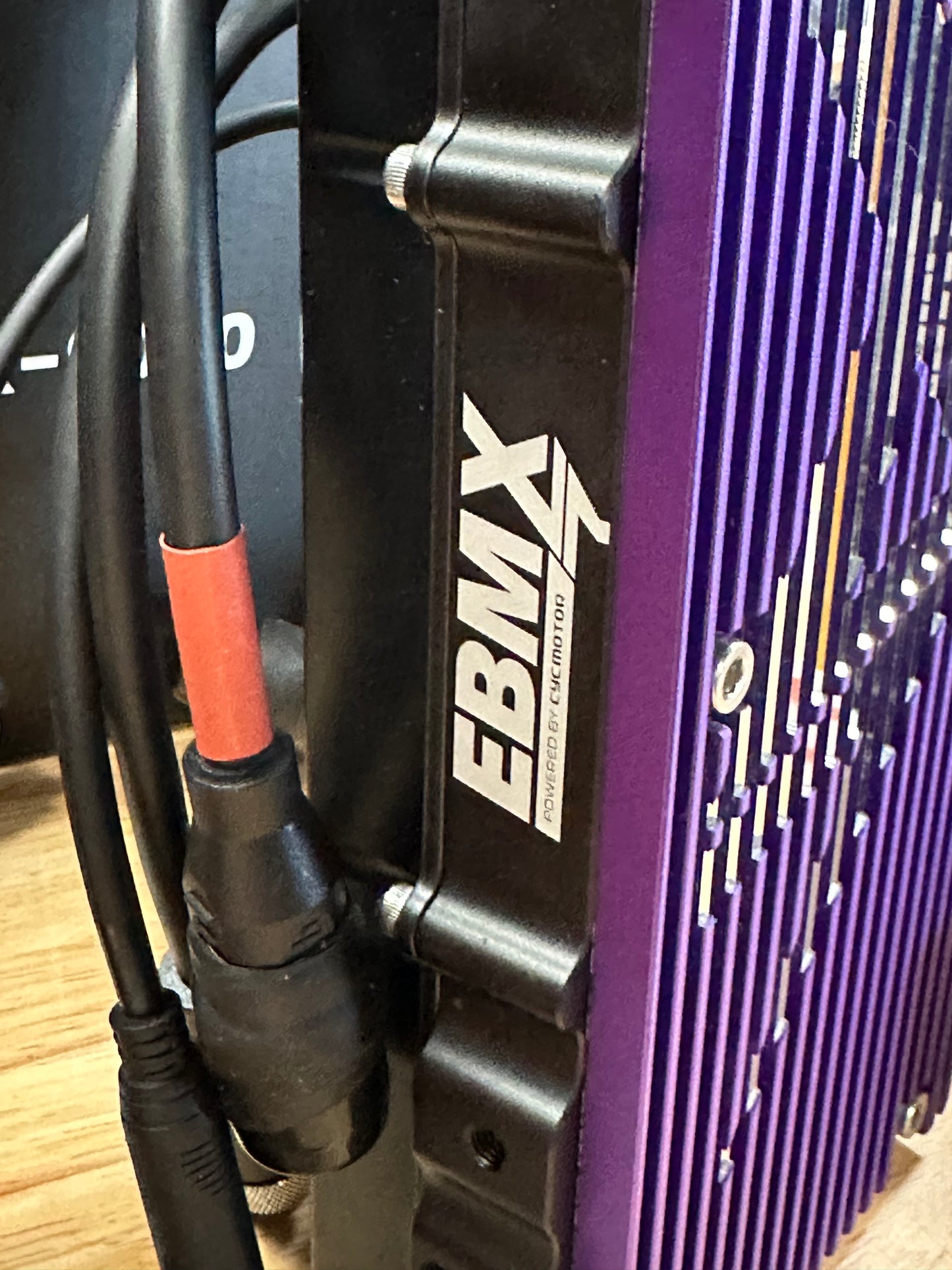

Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67-rated connectors for the harnesses.

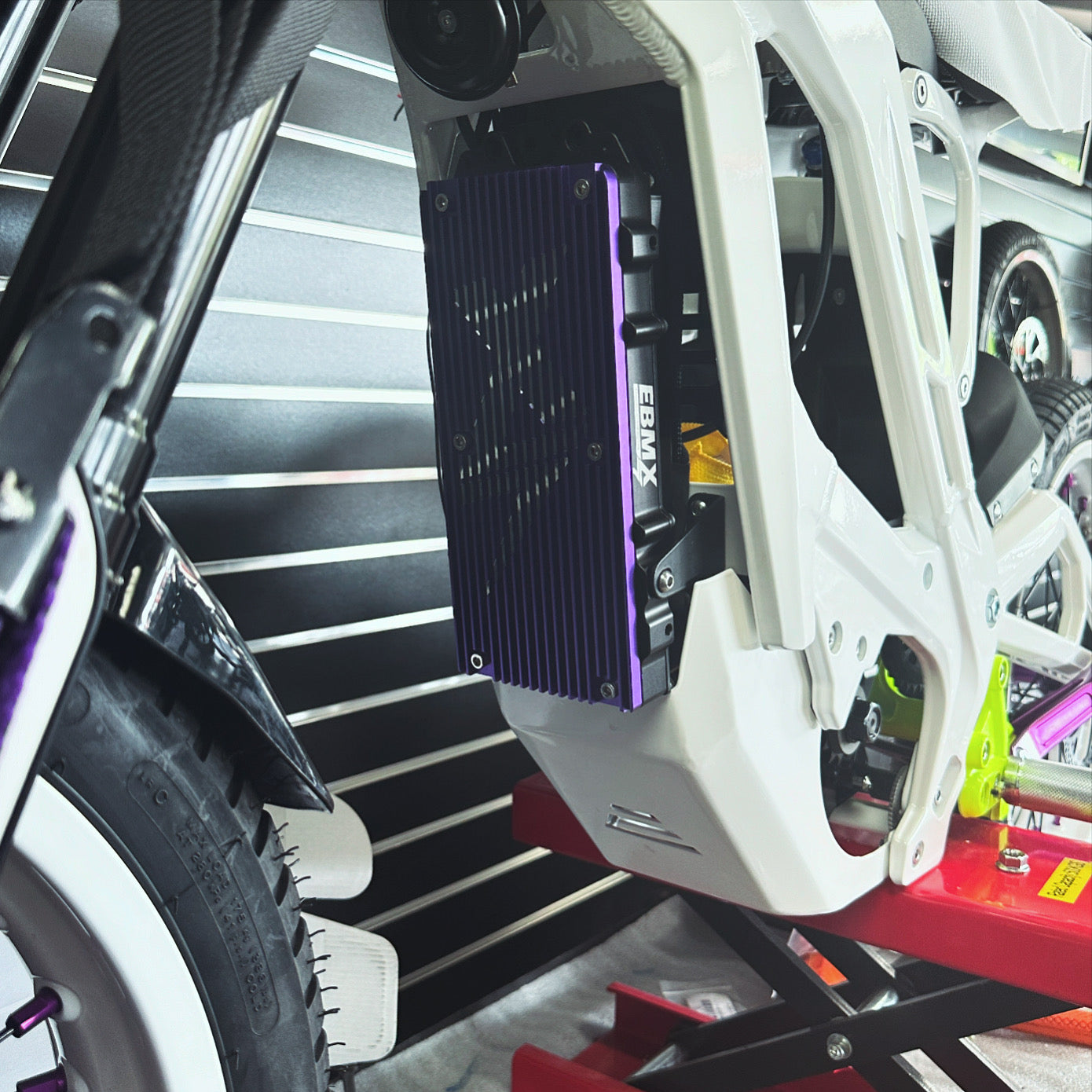

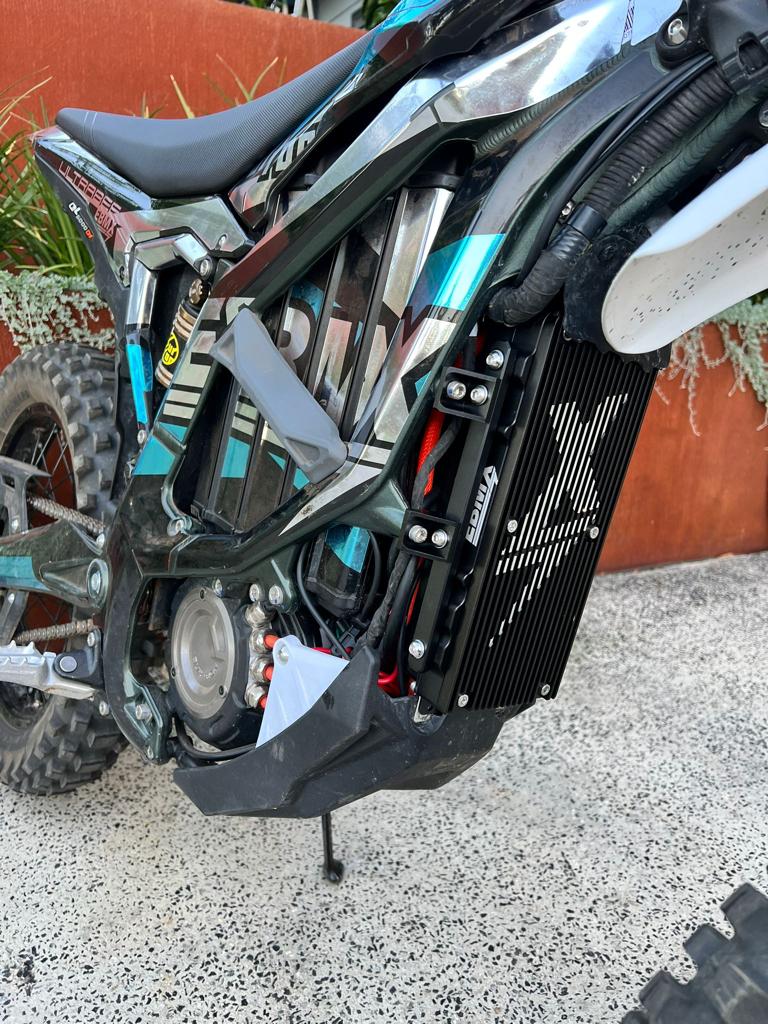

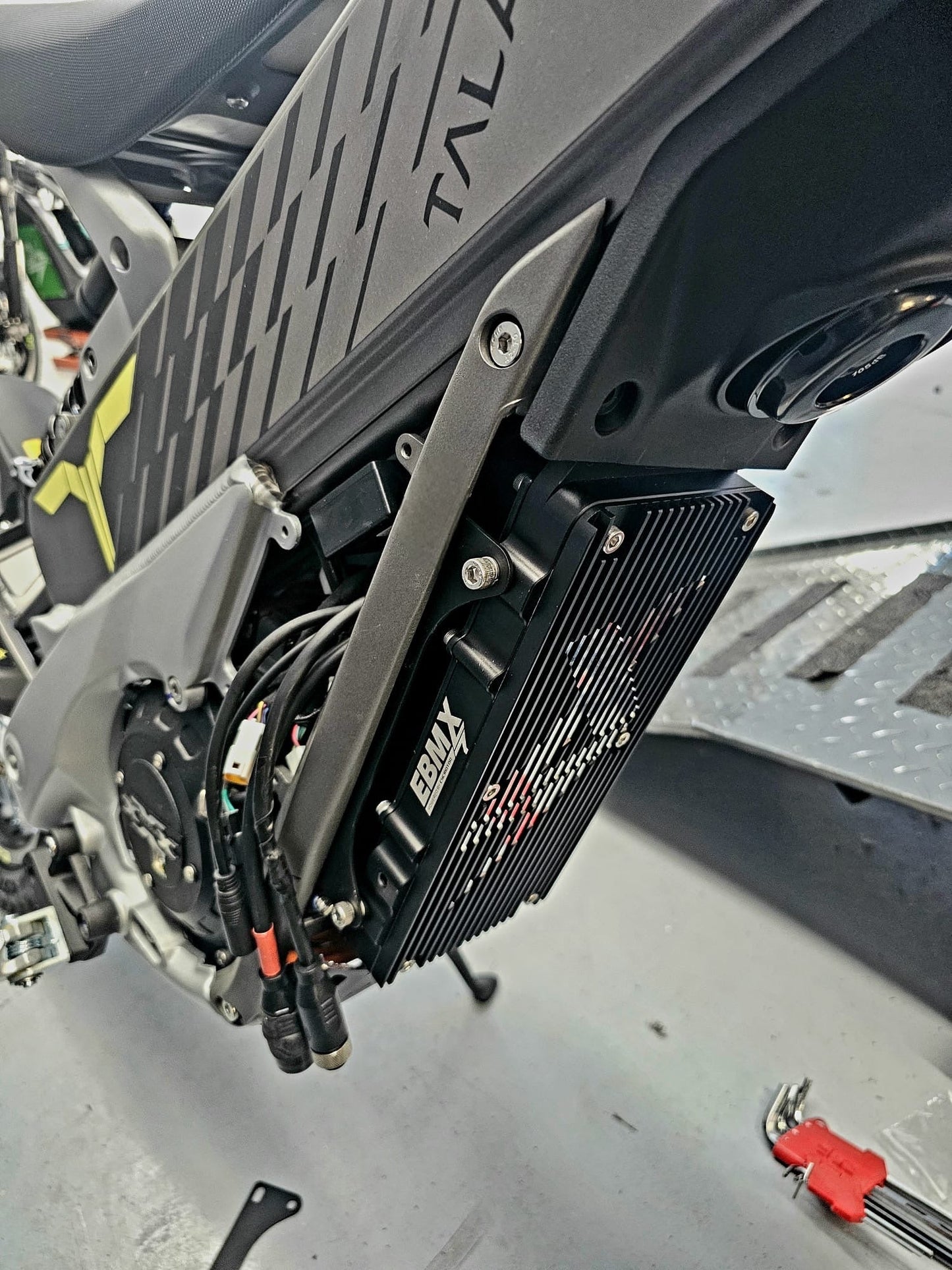

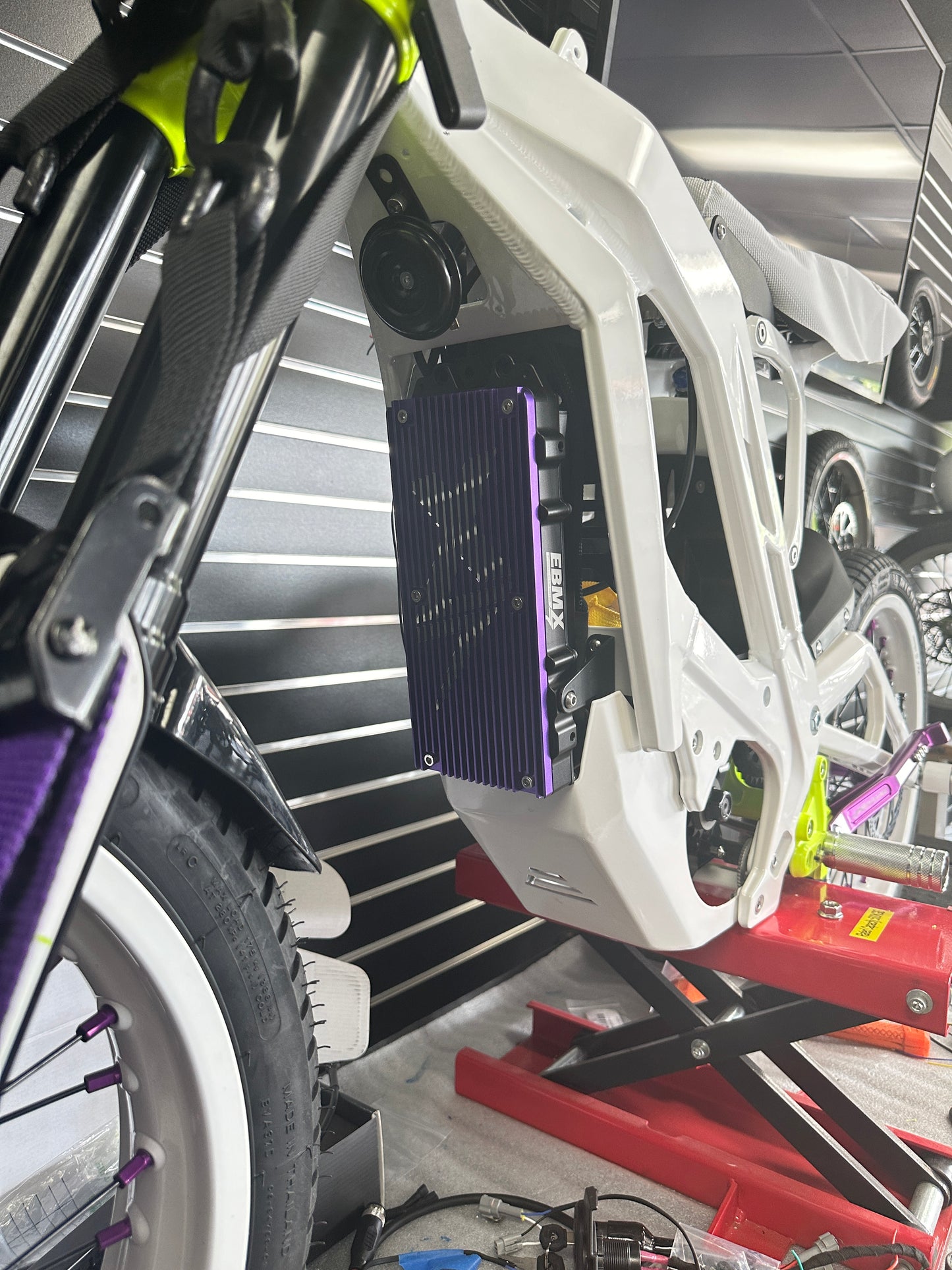

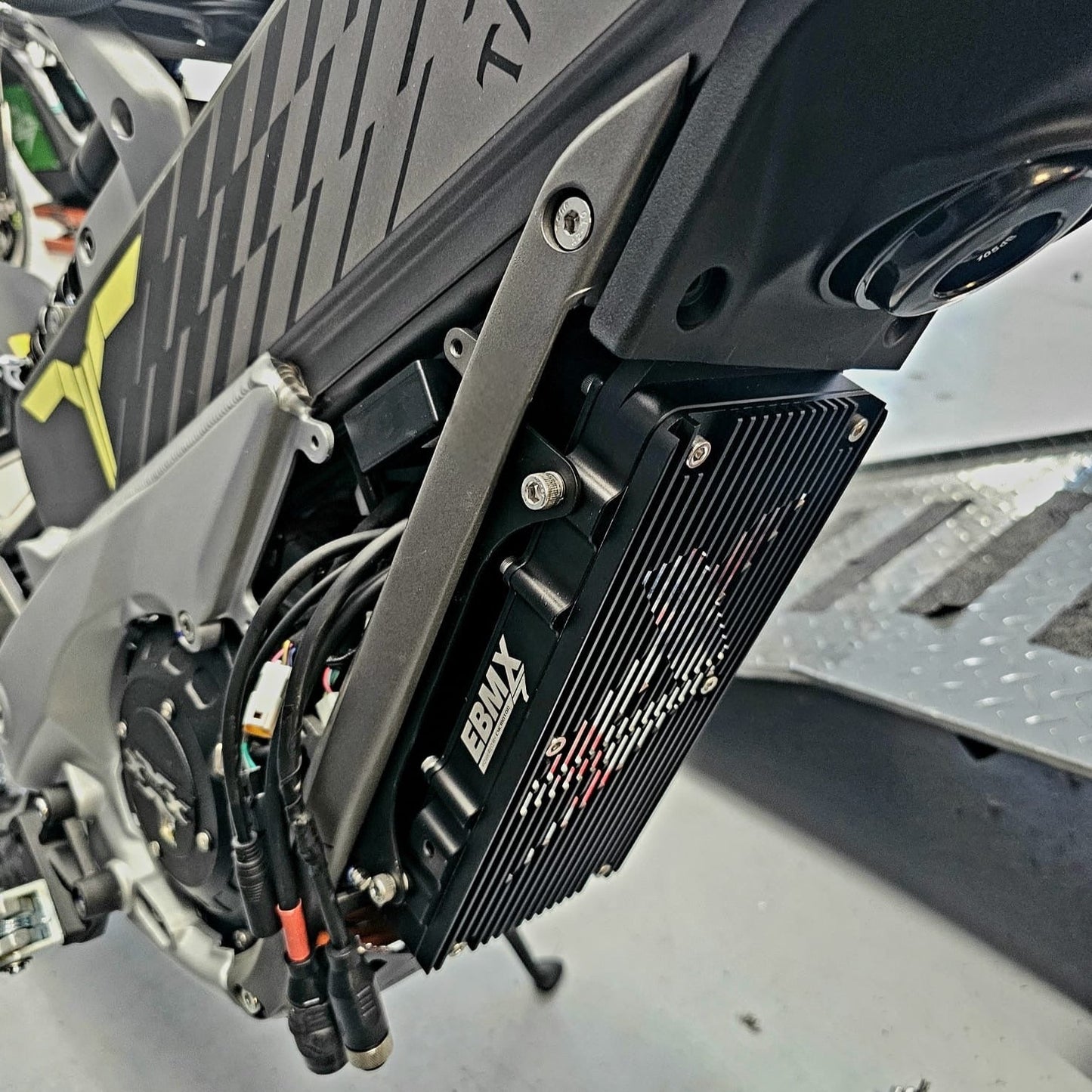

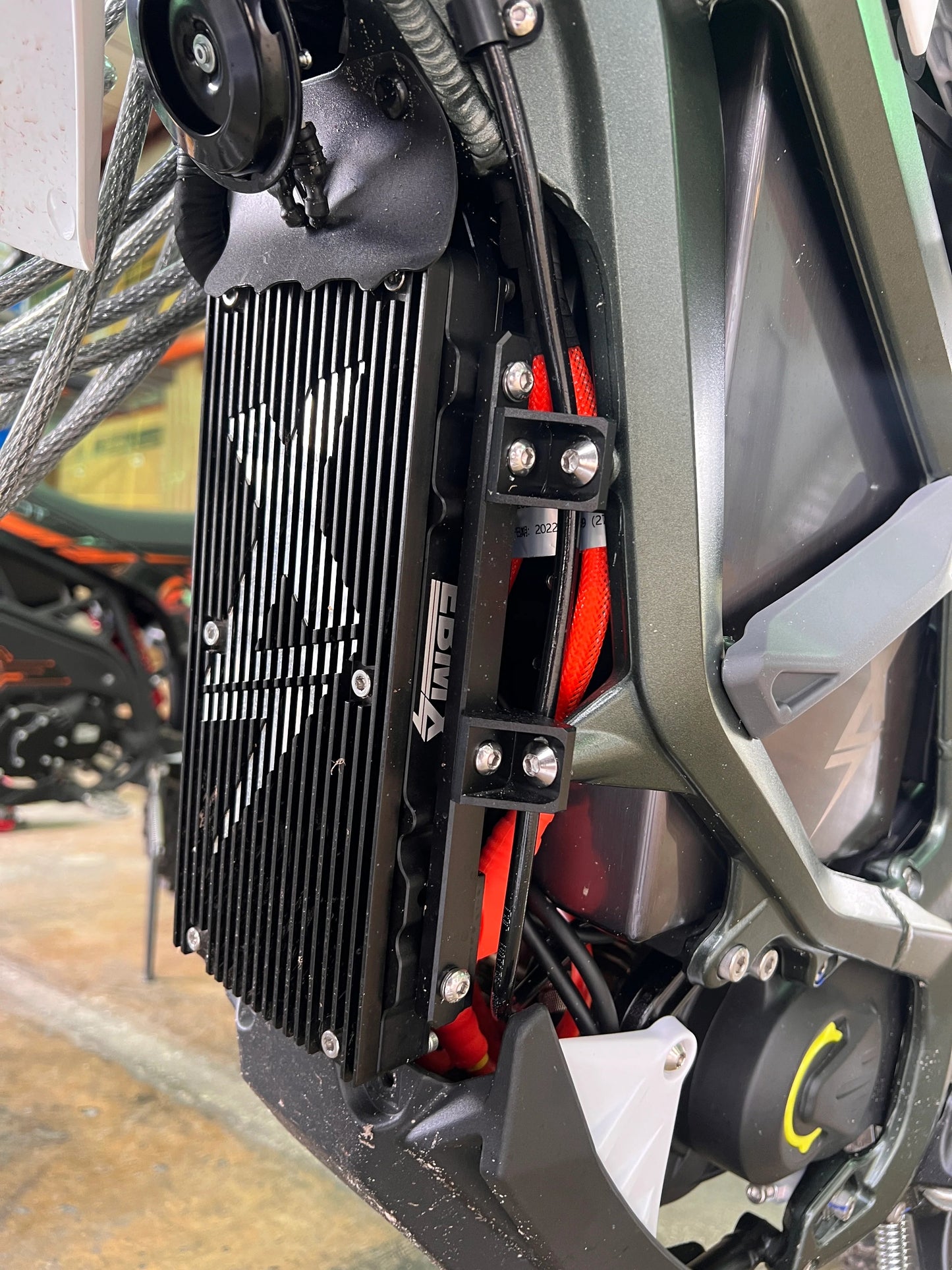

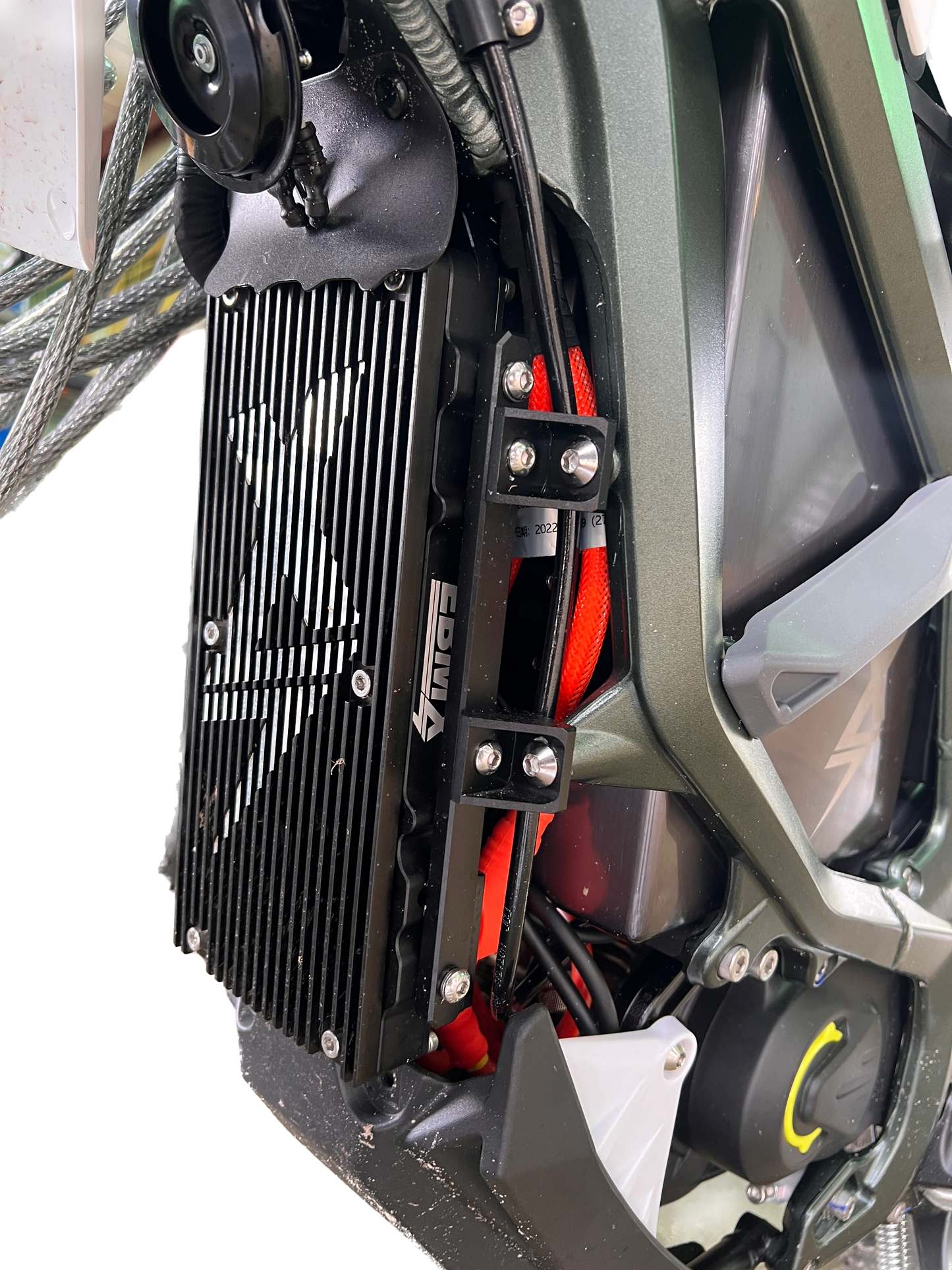

Direct bolt-in for the Sur Ron Light Bee and Talaria Sting bikes with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).
- Integration with both Sur Ron hall-based motors and Talaria encoder motors
SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all of the regular display info.
Can be setup with a smart phone for the display or to check info as desired
Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.

EBMX X9000 V2 CONTROLLER SPECIFICATIONS

EBMX X9000 v2 Controller	Description
Compatible with VESC Firmware	Yes
Custom EBMX Firmware and Tune Profiles	Yes
Control Method	FOC
Input Voltage Range	40v - 100v
Working Voltage Range	48v - 82v
Max Phase Current	1000A
Max Battery Current	500A
Peak Input Power	40kW
Peak Output Power	35kW*
Continuous Output Power (Water-Cooled)	20kW*
Continuous Output Power (Air-Cooled)	15kW*
Operating Temperature Range	-25 to 80 Degrees Celsius
Maximum Efficiency	>95%
Extra Beefy Internal CNC Machined Terminals and Connections	Yes

* To reach maximum performance and continuous output power levels you will need a high performance motor and battery capable of performing at this level.

**Controller Case Features**
Case Features	Description
CNC Air Cooled Heatsink Option	Available
CNC Water Cooled Heatsink Option	Available
Direct Factory Fit Mount	For Sur Ron LBX and Talaria Sting
Ingress Protection	IP67 Rated
16 Pin Communications Plug	Combines all types of bikes used
12 Pin 12v Plug	4 programmable outputs
In-Built Programmable DCDC Converter	12v-5A; to run coolant pump, lights, auxiliary features

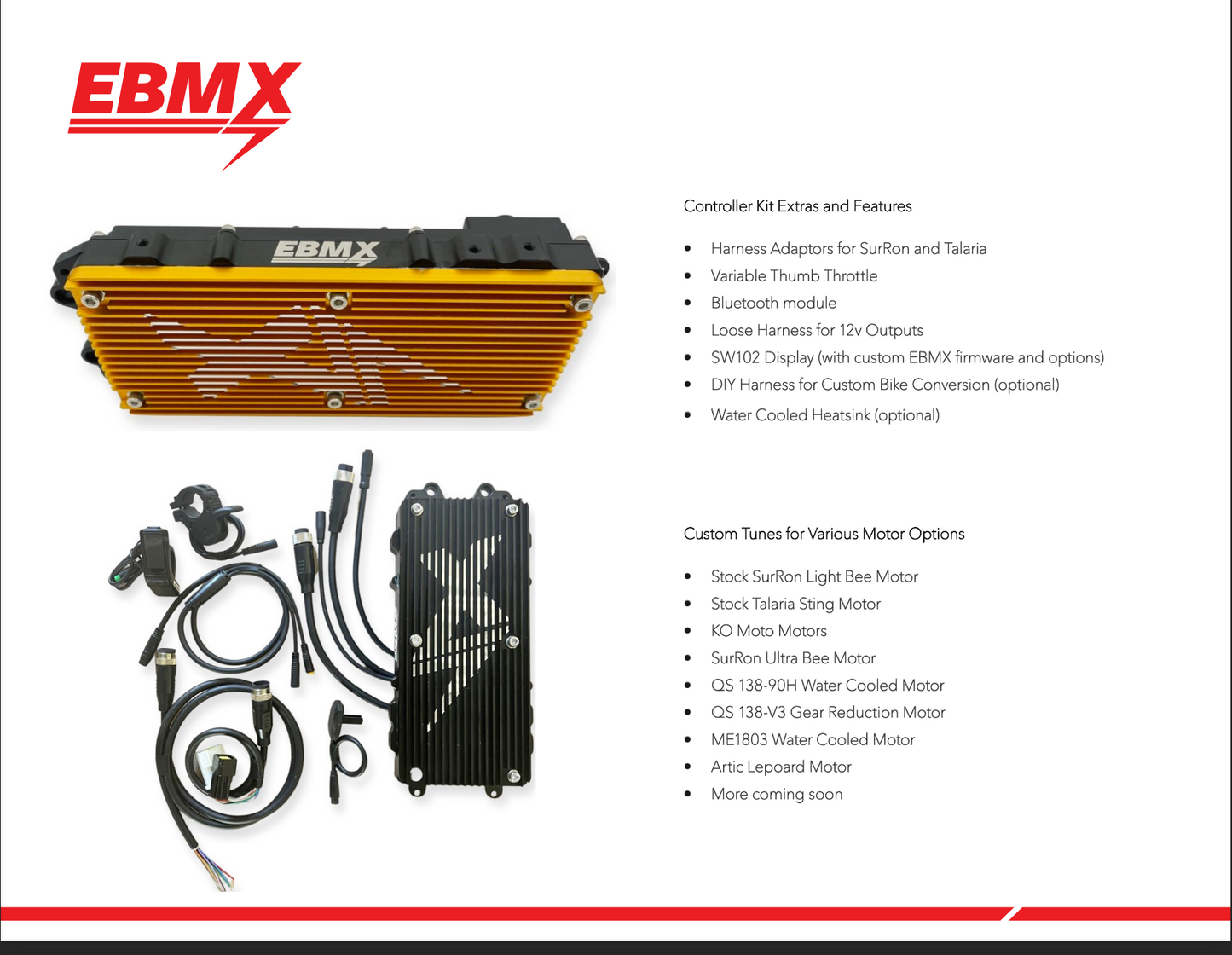

Controller Kit Extras and Features

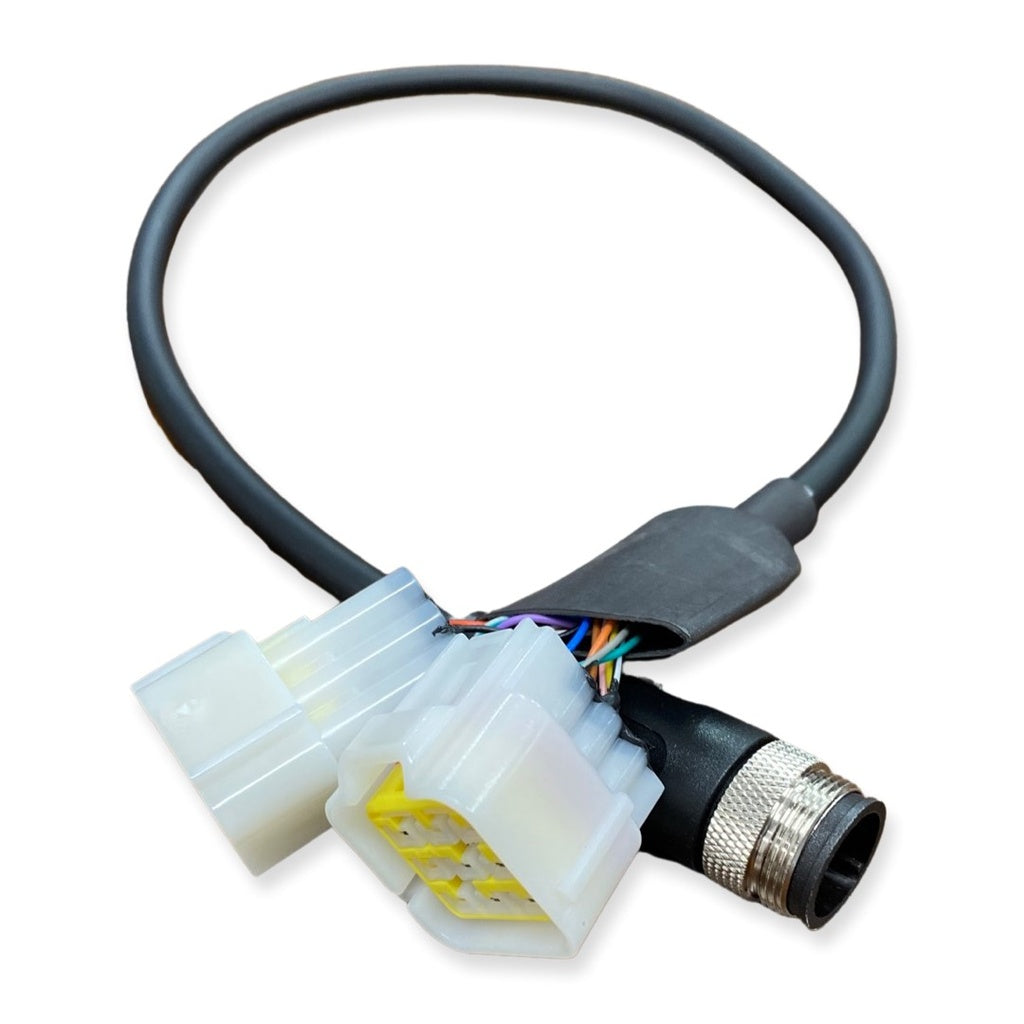

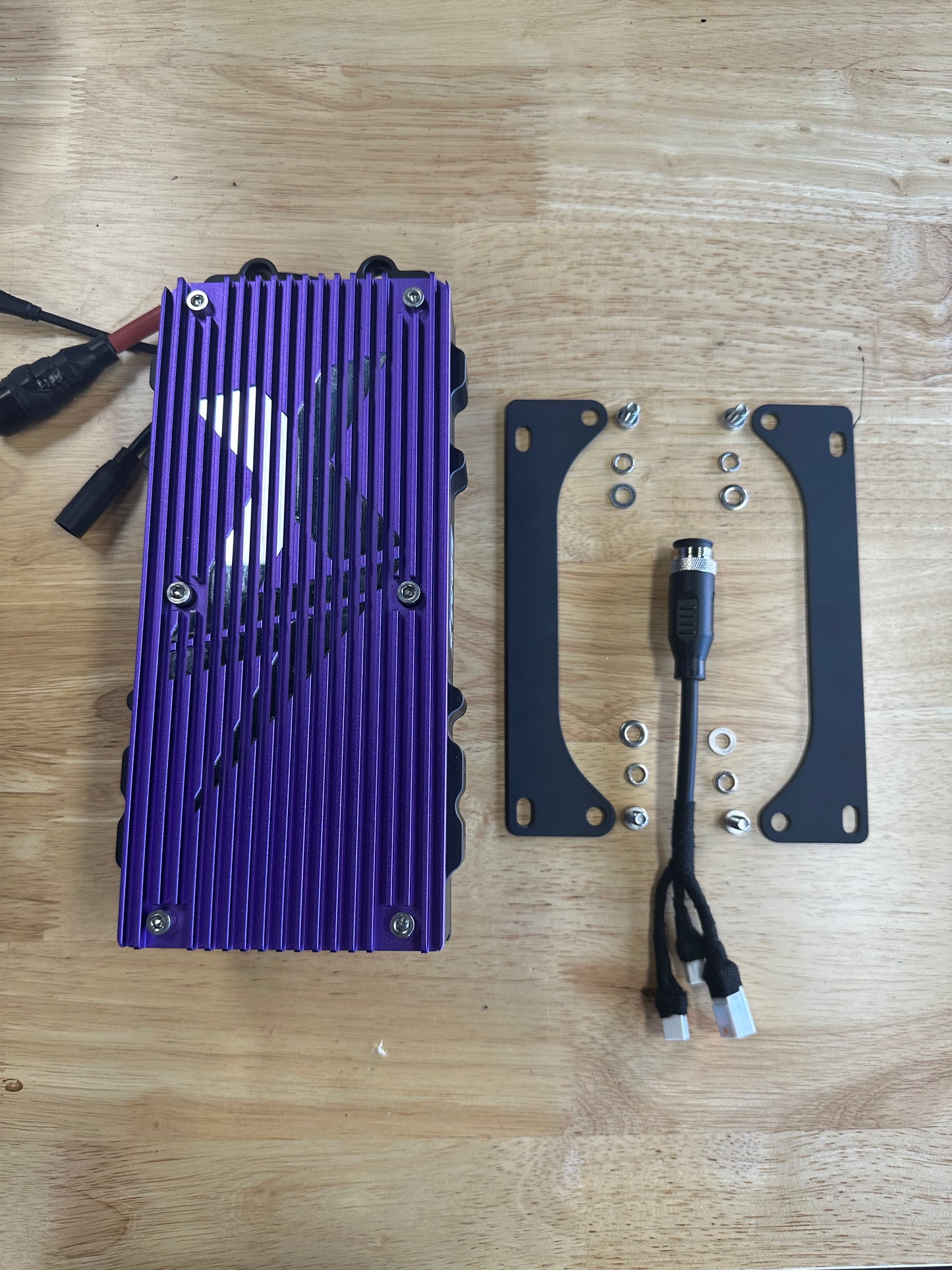

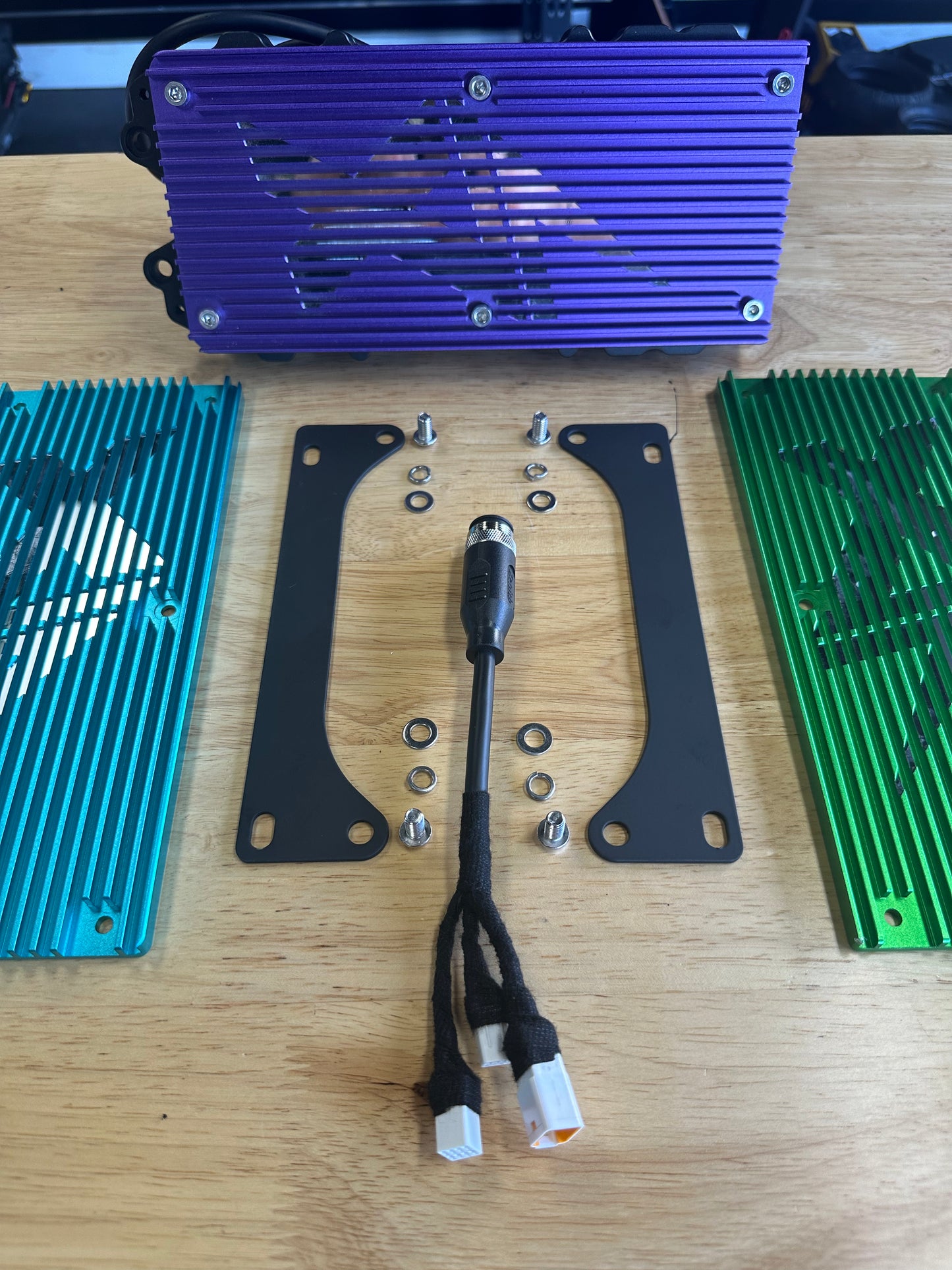

• Harness Adaptors for Sur Ron and Talaria
• Variable Thumb Throttle
• Bluetooth module

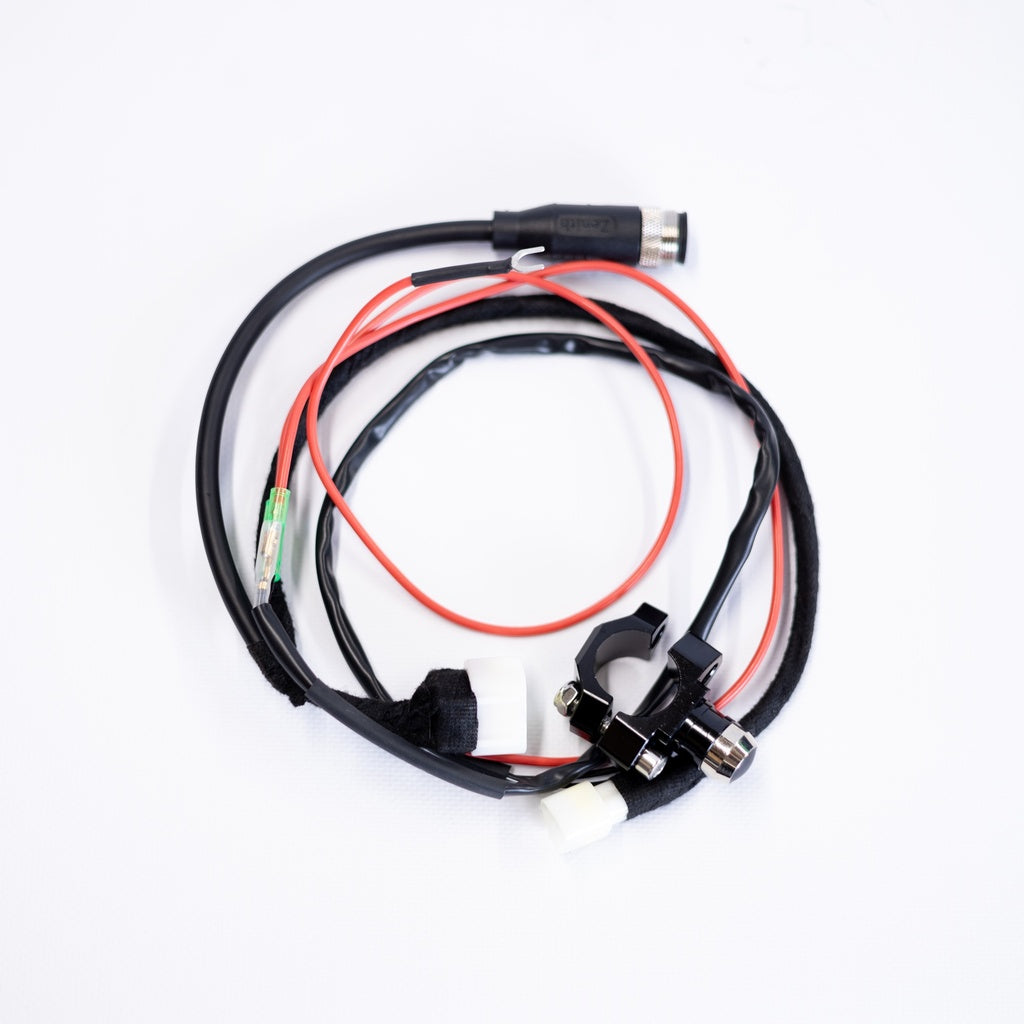

• Loose Harness for 12v Outputs
• SW102 Display (with custom EBMX firmware and options)
• DIY Harness for Custom Bike Conversion (optional)
• Water Cooled Heatsink (optional)

Custom Tunes for Various Motor Options

• Stock Sur Ron Light Bee Motor
• Stock Talaria Sting Motor
• KO Moto Motors
• Sur Ron Ultra Bee Motor
• QS 138-90H Water Cooled Motor
• QS 138-V3 Gear Reduction Motor
• ME1803 Water Cooled Motor
• Artic Leopard Motor
• More coming soon...EBMX

EBMX App Features BMX App Features

• Free to download
• Use as a Display with Full Dashboard (customizable)
• Street Mode (3 separate programmable power settings)
• Race Mode (3 separate programmable power settings)
• Speed Limit Settings peed Limit Settings
• Control 4 separate 12v outputs
• Power Adjustments (kW)
• Control options for thumb throttle
• Torque Adjustments (phase amps)
• Fully customizable regen settings
• Throttle Sensitivity (ramping and curve type)
• Throttle Calibration Wizard
• Motor Tune Selection
• Quick change from 48v up to 72v Battery
• Stock Tilt Sensor (on/off)
• Stock Stand Sensor (on/off)
• Gear Ratio Adjustments for accurate display speed

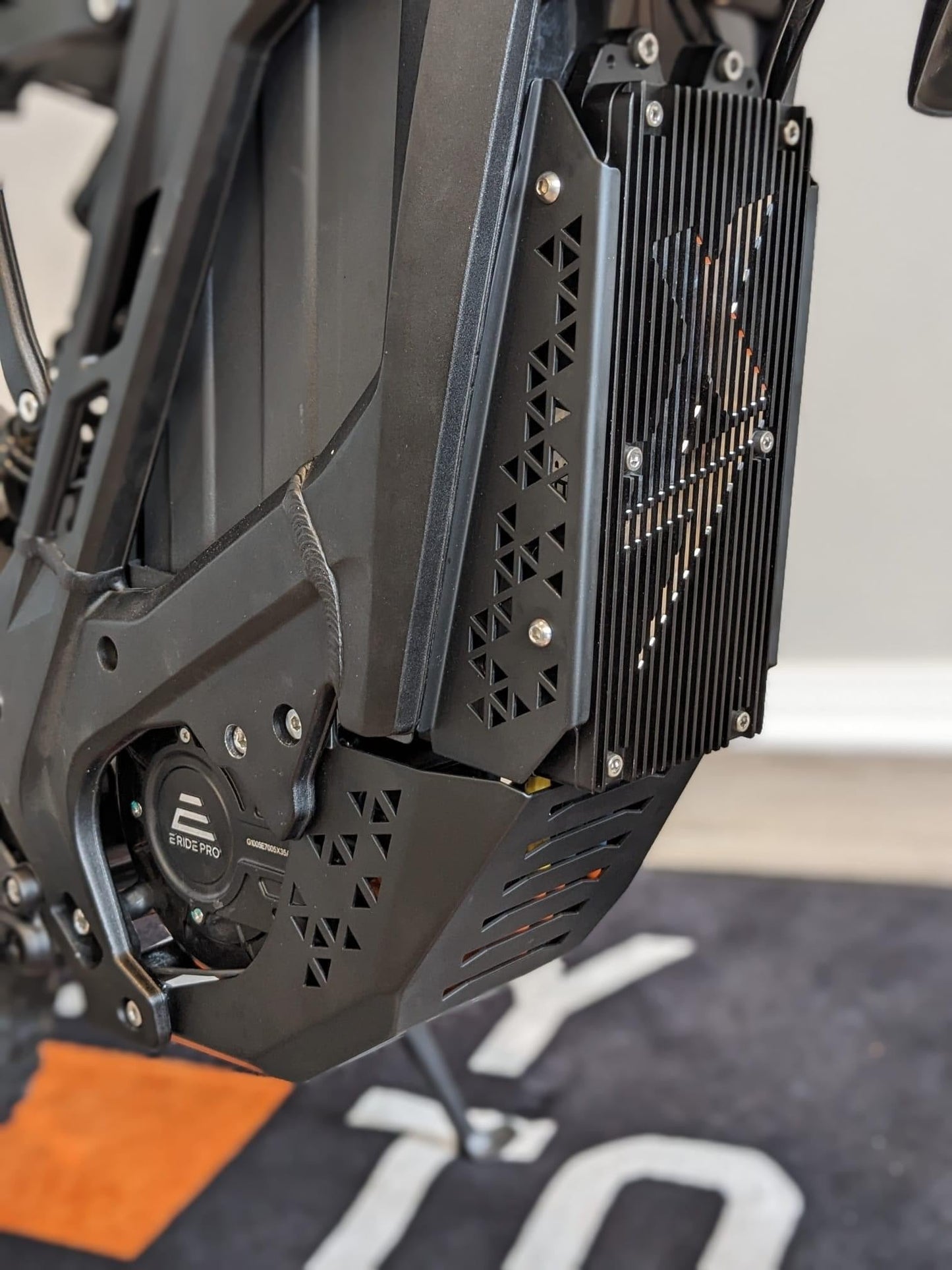

EBMX X-9000 V2 Install Video on E Ride Pro SS by Logan Taylor

Official EBMX Application Setup video

Talaria MX3 / MX4 Sting R App setup

Talaria XXX EBMX Official Installation video

SurRon Ultra Bee Installation video

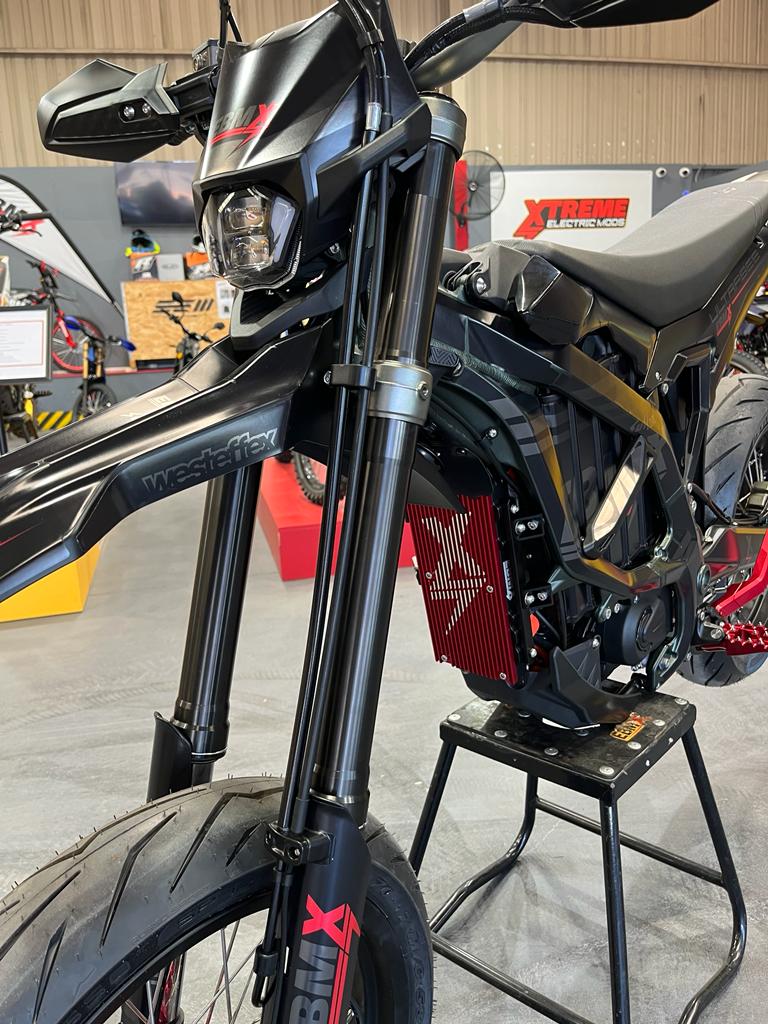

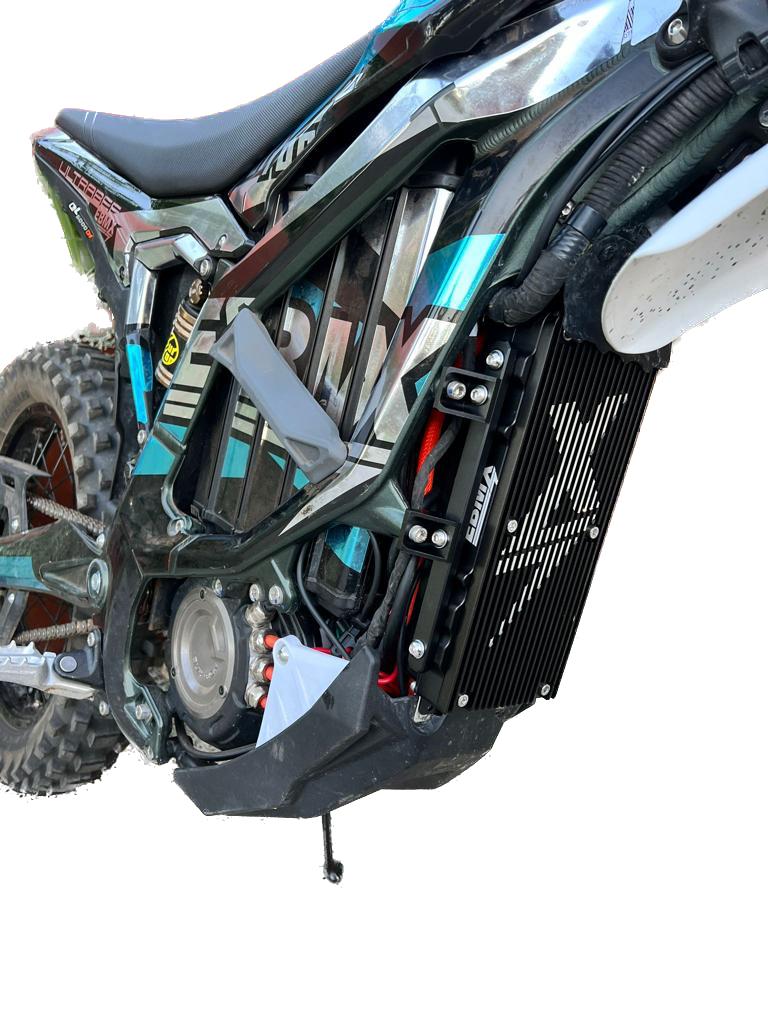

Upgrade your Sur-Ron Ultra Bee's speed and power with the EBMX X-9000 V2 Controller

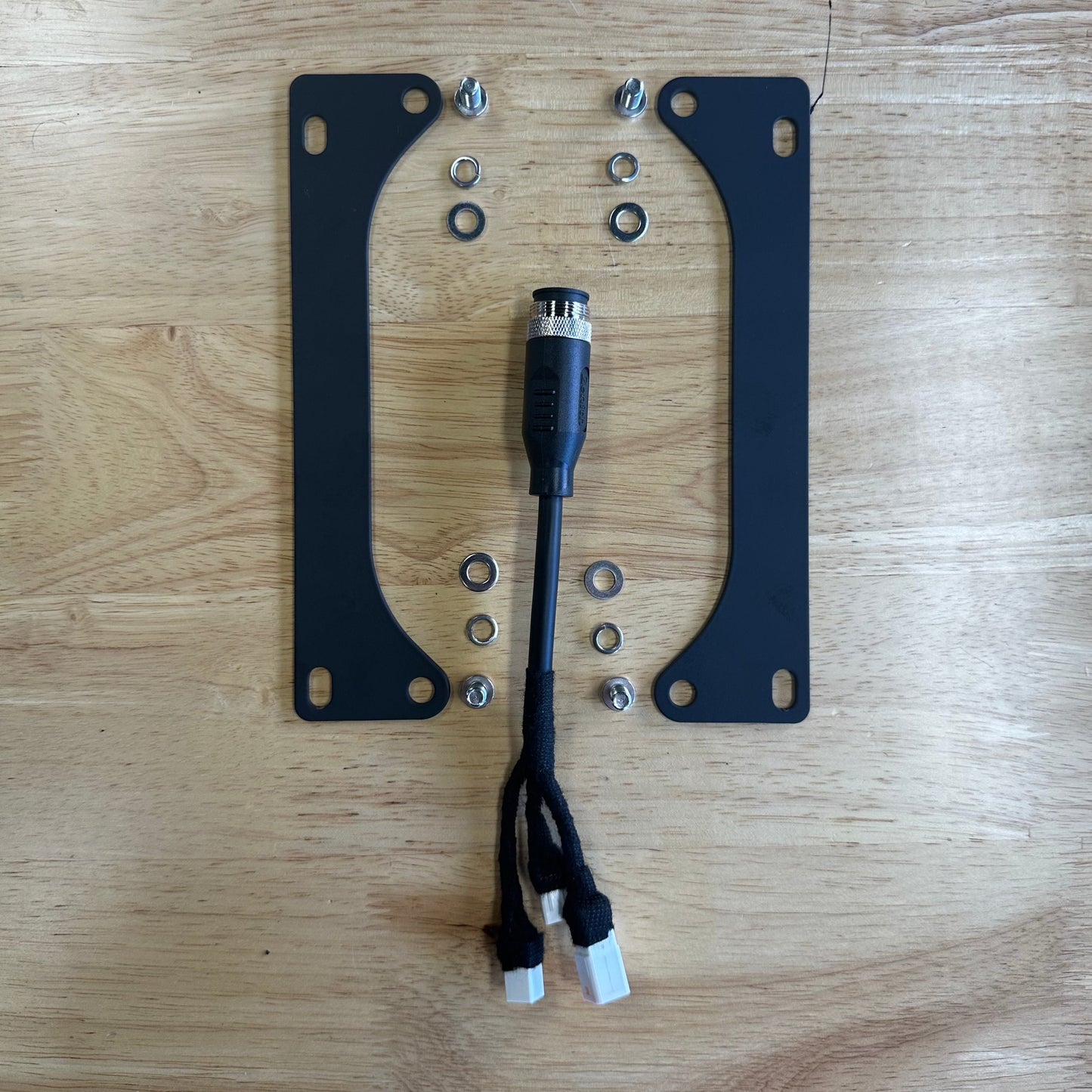

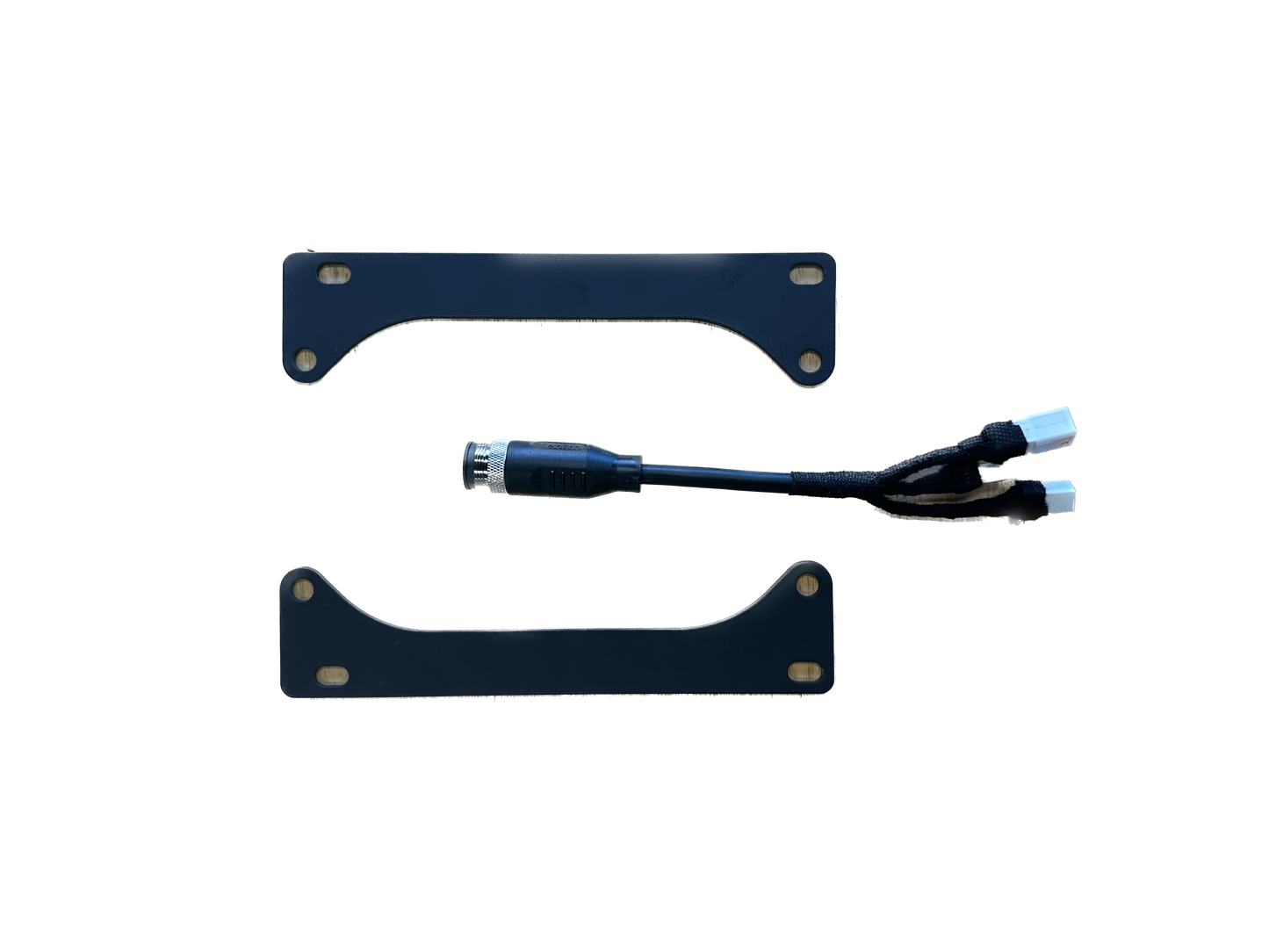

This Sur-Ron Ultra Bee Kit will contain all parts needed for an OEM Replacement with the X-9000, including custom harness and brackets. ( if you already have an X-9000 you will need to purchase the upgrade Kit brackets and harness only) listed HERE

The EBMX X-9000 Power Kit operated with the OEM Ultra Bee Battery will increase power on tap and take your ride to 17kW and 800 Phase Amps.

You can also choose to push the limits with the EBMX 80v Battery this tune will be maxed out at 29.5kW. Adding the XUB-80 Ultra Bee Motor to allow you to ride harder, longer and faster will also allow you to run up to 40kW.
