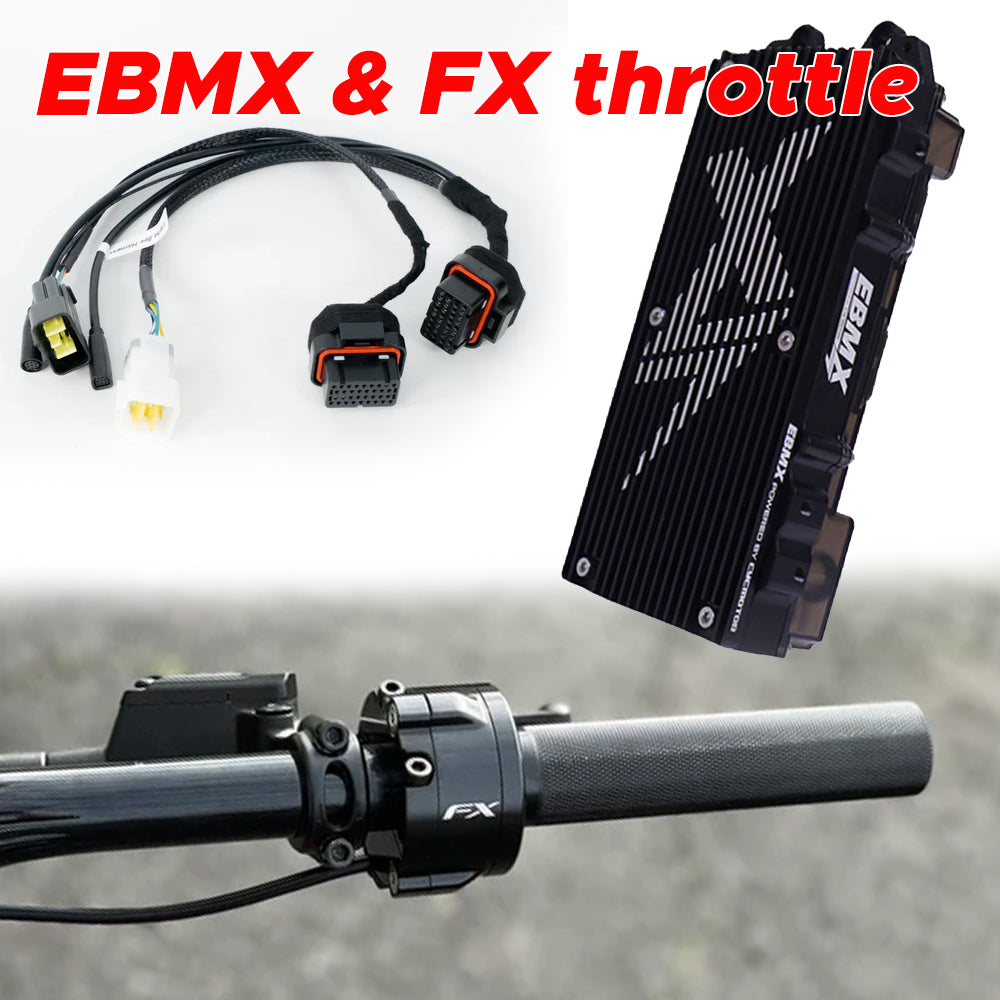

FX Twist Throttle + EBMX X-9000 V3 Controller  by EBMX & FX
for Sur Ron, Talaria, E-Ride Pro, Altis, and More

Next-Gen Performance, Built for Serious E-Moto Riders

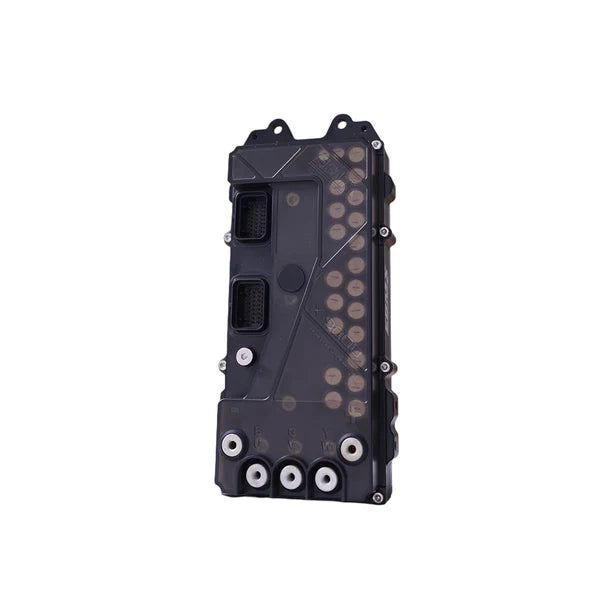

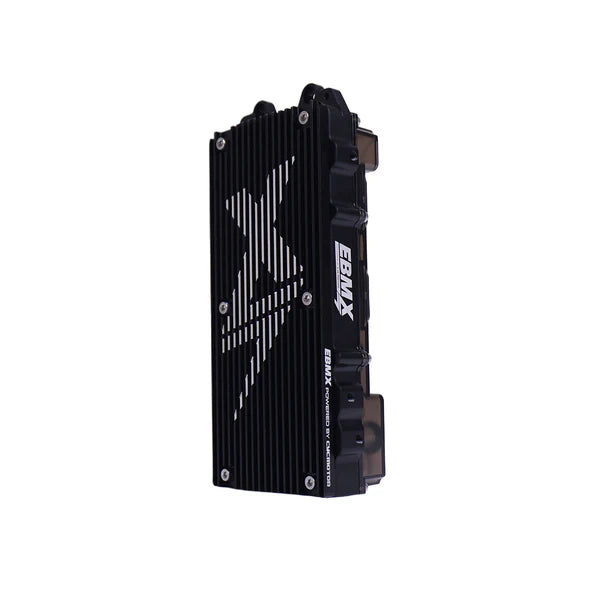

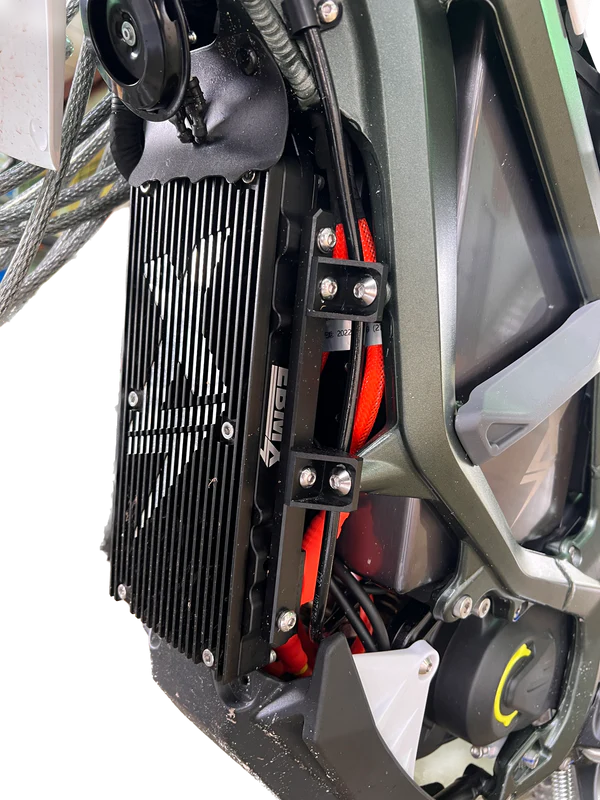

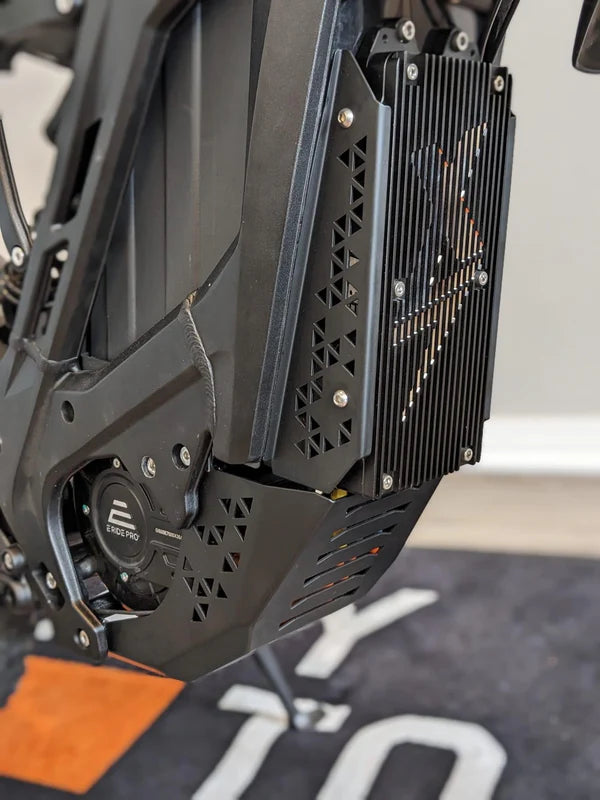

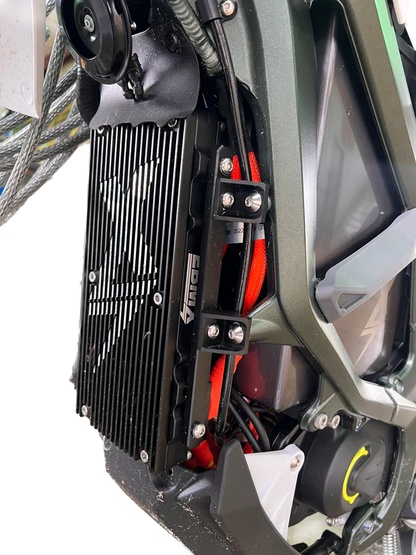

The EBMX X-9000 V3 Controller is here, a complete redesign of the popular V2 platform. With 18+ months of real-world testing, the V3 delivers unmatched power, thermal efficiency, and Bluetooth tuning in a slimmer, smarter, more capable package. Whether you're racing or just want full control from your phone, this system brings next-level adjustability and responsiveness to your ride.

This kit includes the EBMX X-9000 V3 controller, FX Twist Throttle, and display. Wiring harness sold separately.

What’s New in the X-9000 V3

• 30x Infineon MOSFETs  50kW continuous / 60kW peak

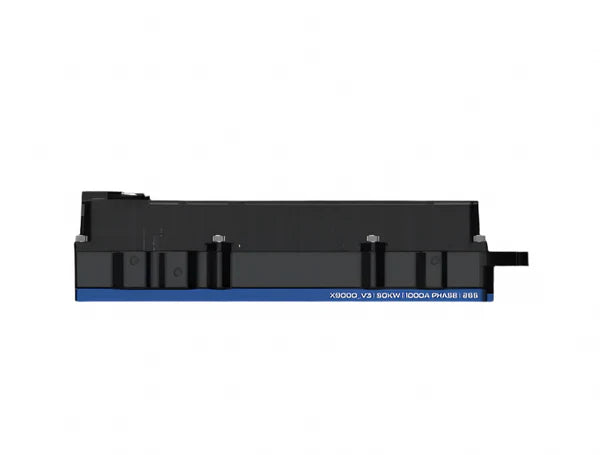

• 6-layer PCB & CNC copper busbars 30% cooler than V2
• Slimmer rear profile for better frame fitment
• Square-set plug system to prevent pin damage
• Detachable harness for easier service & swaps
• 120V support  no longer capped at 72V builds
• Built-in IMU: Wheel Lift Assist & E-Clutch
• Updated SW102T color display with live metrics
• Bluetooth tuning via EBMX X-Series app

App Features & Modes

• Live tuning: Regen, throttle curve, motor amps
• Load-and-Go presets: Configure by bike or battery
• Modes: Street / Race, plus 3-level assist
• Live data: RPM, temp, speed, output, regen, and more

Controller Compatibility

• Sur Ron Light Bee / Ultra Bee
• Talaria MX3 / MX4 / MX5 / XXX
• E-Ride Pro SS 2.0 / SS 3.0 / SR
• Altis Sigma (coming soon)
• ReRode R1
• 79 Bike Falcon S / Pro
• QS138 70H / 90H

* V2 harnesses are not compatible
** Colored heat sinks (red, blue, white) sold separately
*** Water-cooled option available for race use

Compatible Motors (Preloaded Tunes)

• OEM Sur Ron / Talaria / E-Ride Pro motors
• EBMX XLB-60, XTA-60, XUB-80
• KO RS & KO F Spec
• QS138 70H / 90H
• 30+ plug-and-play motor profiles

Kit Contents

• EBMX X-9000 V3 Controller

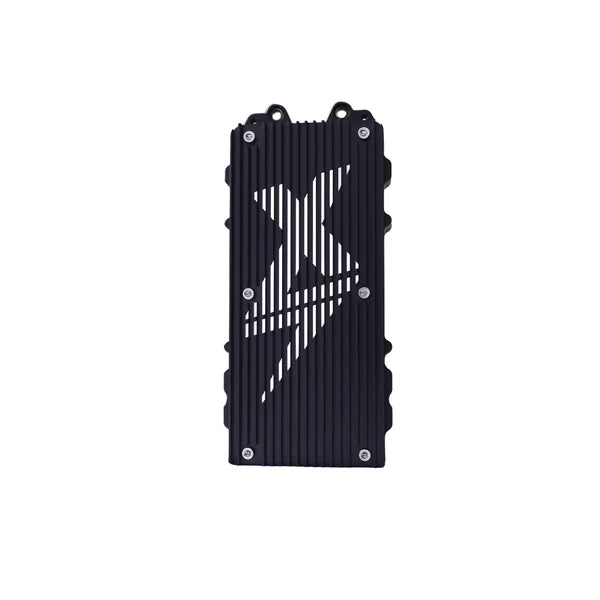

• Black air-cooled heatsink
• SW102T full-color display
• Bluetooth module
• Thumb throttle
• Mounting brackets
• 1–2 adapter harness
• IP67 CNC alloy housing

Note: Wiring harness not included. Must be purchased separately.

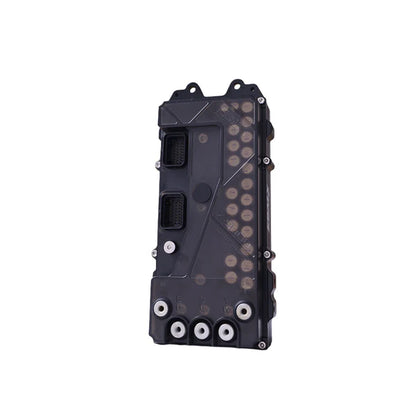

Controller Specifications

• Power: 50kW continuous / 60kW peak
• Voltage: 48V–120V (operating)
• Phase Current: 1000A continuous / 1600A burst
• Control: FOC (Field-Oriented Control), VESC based
• Firmware: EBMX custom VESC
• IMU: Wheel Lift Assist + E-Clutch
• Waterproof: IP67
• Operating Temp: -25°C to 80°C
• Warranty: 2 Years

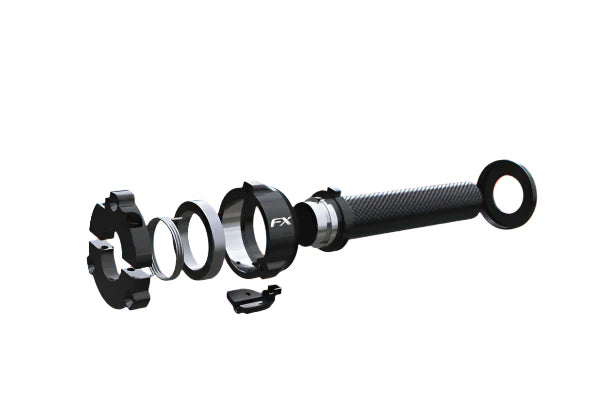

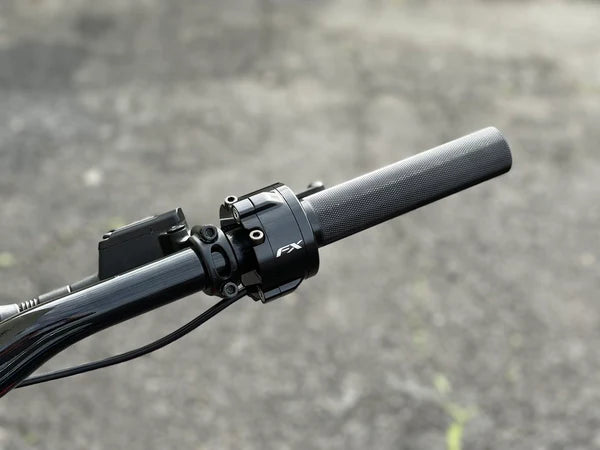

FX Twist Throttle – Precision, Durability, Feel

Built in California and engineered for top-tier E-Moto builds, the FX Twist Throttle uses a genuine Honeywell hall sensor, short 65° rotation, and CNC-machined aluminum body to deliver unmatched control and feel. This is the throttle of choice for elite riders who want absolute confidence in throttle response and construction.

Why FX?

• Genuine Honeywell sensor for smooth, linear response
• 65° rotation ⸻ instant response, zero lag
• Adjustable spring tension (3 levels)
• 6061-T6 CNC billet body with titanium hardware
• IP66-rated water & dust resistance

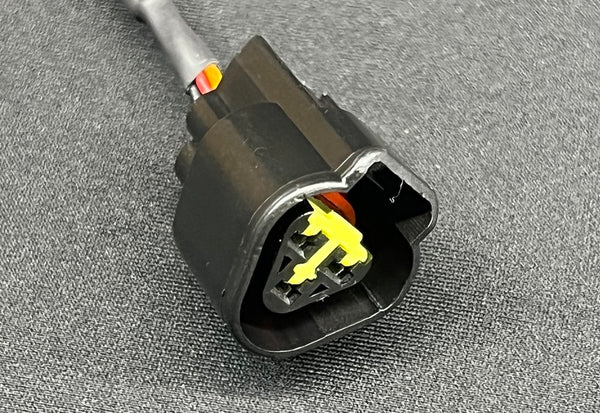

• Pre-wired 120mm cable (3-pin Surron or Altis variants)
• Available in anodized black, red, or blue

Sensor Options:
• Standard Hall Sensor (0.9–4.2V) — OEM compatible
• High-Res Sensor (0–4.9V) — For aftermarket tuning

Fitment:
Standard 7/8” handlebars
Sur Ron Light Bee, Ultra Bee, X160/X260
Altis Sigma, Super73, E-Ride Pro, VESC-based builds

Note: Next FX batch arrives early July. Pre-order or sign up for restock notifications.

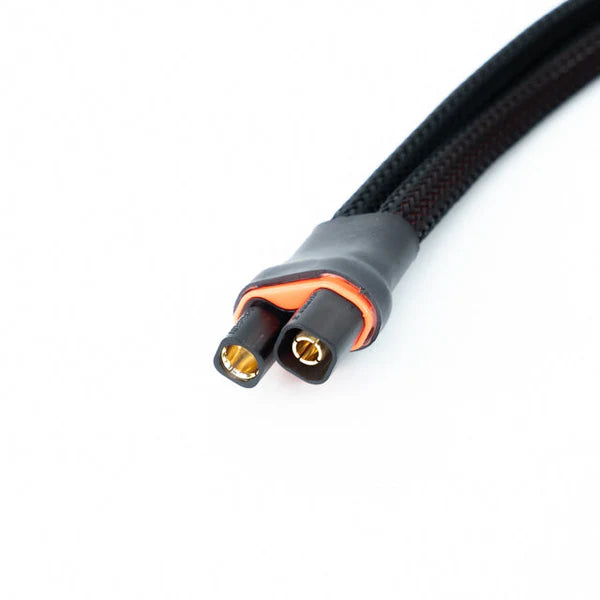

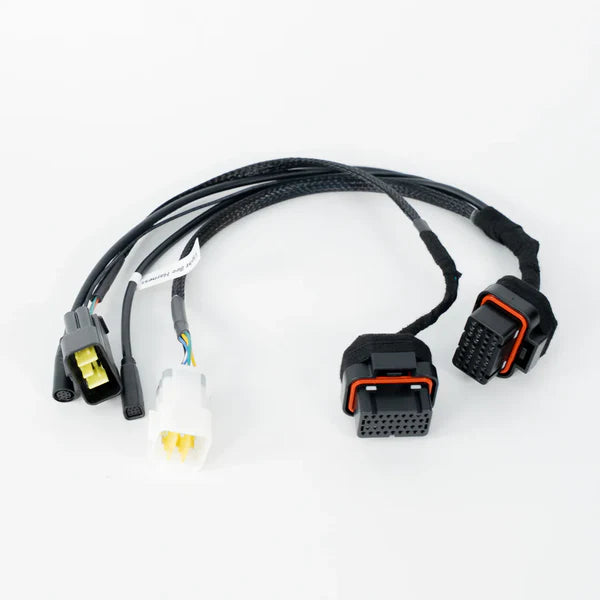

EBMX V3 Wiring Harness Kit

Each EBMX X-9000 V3 harness is purpose-built for a specific bike model or battery configuration — not universal. Choose the correct version to ensure clean fitment and proper function.

Available Fitments:

• Sur Ron Light Bee / Ultra Bee
• Talaria XXX / MX3 / MX4 / MX5
• E-Ride Pro SS (1.0 / 2.0 / 3.0) + SR
• ReRode R1, 79 Bike Falcon, QS138 builds
• Race Harness (custom builds)

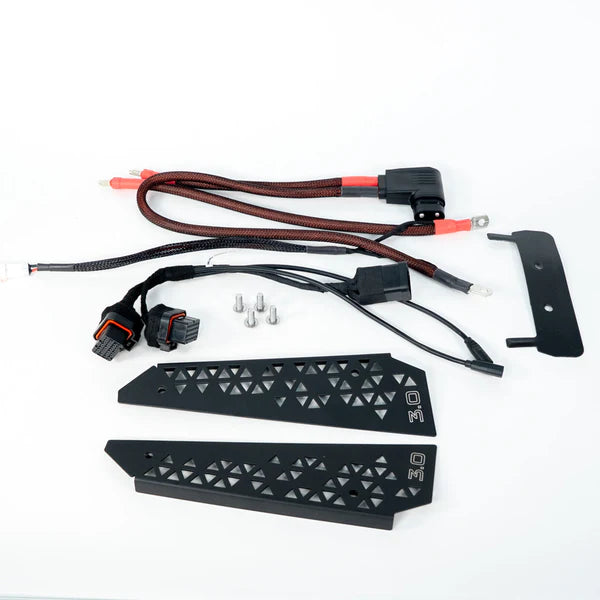

Includes:

• Bike-specific wiring harness
• Mounting brackets & hardware (if applicable)
• Metal guards (on select variants)

⚠️ Not compatible with EBMX V1 or V2 controllers

🛎 Need help choosing the right harness?
Reach out via REV Rides Contact Page and include your bike & controller details.
