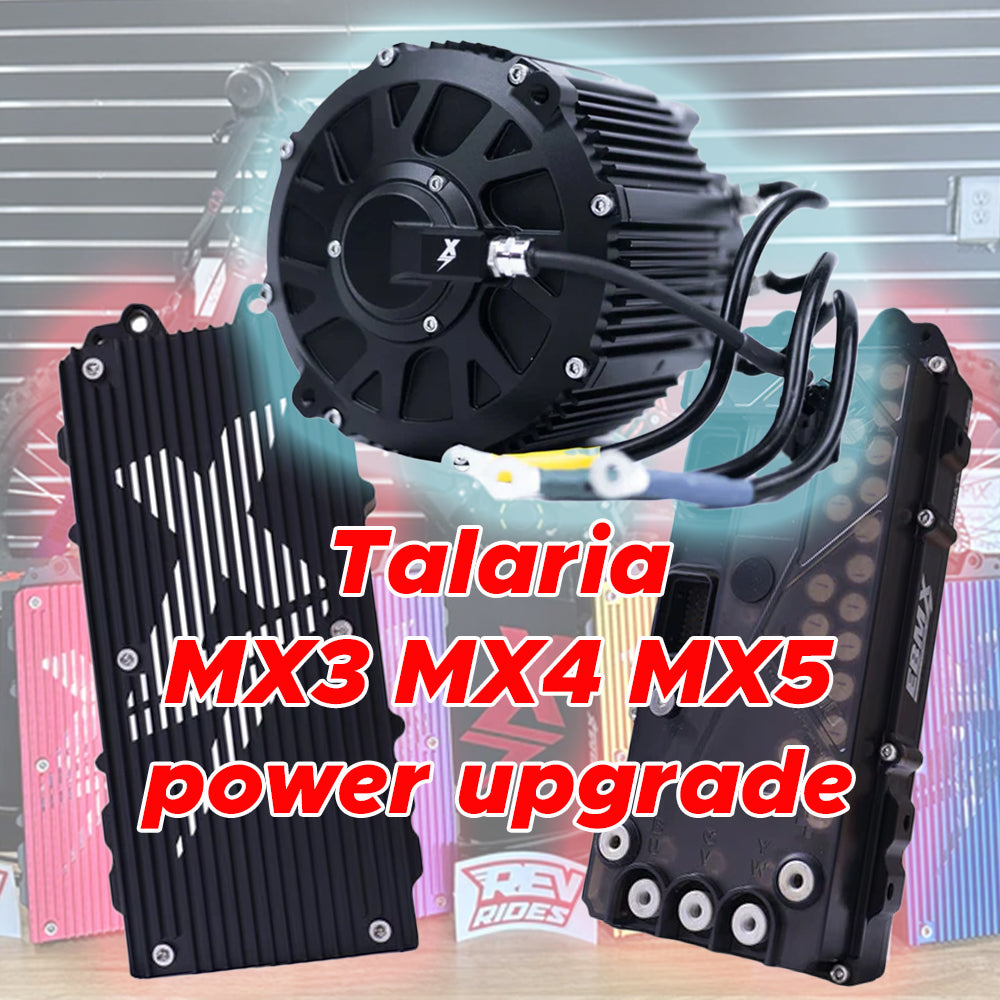

EBMX XTA-60 Core Motor + X-9000 V3 Controller Bundle
Talaria Sting MX3 / MX4 / MX5
Power Upgrade Package

Now Shipping — Complete EBMX Performance System for Talaria

Take your Talaria Sting to the next level with the ultimate power combo: the EBMX XTA-60 Core Motor paired with the all-new X-9000 V3 Controller. Built for serious riders, this system delivers explosive acceleration, precision control, and real-world durability — whether you're climbing steep technical lines or ripping flat-out at the track.

This is the same hardware trusted by top riders and tuners worldwide — and it's now available as a full upgrade package ready to drop into your MX3, MX4, or MX5 build.

XTA-60 Motor Highlights

• Peak Power: 41kW under load (90V @ 1100A)
• Real-World Output: 35kW (tested at 72V @ 1000A)
• Stator: High-efficiency 57mm stator with 115KV wind
• Torque Delivery: Smooth, snappy, and predictable
• Build Quality: Sealed, rugged internals for harsh riding conditions

X-9000 V3 Controller Features

• Continuous Power: 50kW (60kW peak)
• Phase Current: 1000A continuous / 1600A burst
• Voltage Range: 48V–110V (supports 120V builds)
• Thermal Performance: 30% cooler than V2 with CNC copper busbars
• Integrated IMU: Wheel Lift Assist & EBMX E-Clutch
• Bluetooth Tuning: App-based control of throttle, regen, motor profiles
• SW102T Color Display: Fully customizable live metrics

Bundle Includes

• EBMX XTA-60 Core Motor
• EBMX X-9000 V3 Controller (Air-Cooled, Black Heatsink)
• SW102T Full-Color Display
• Bluetooth Module
• Thumb Throttle
• Mounting Brackets
• 1–2 Adapter Harness

Note: Wiring Harness sold separately. Add the EBMX V3 Harness Kit for Talaria to complete your setup.

Motor Technical Specs

• Stator Size: 57mm
• Motor KV: 115KV
• Rated RPM: 12,000
• Rotor: EBMX IMP Rotor

Controller Technical Specs

• Control Protocol: FOC (VESC)
• Firmware: EBMX Custom VESC
• IMU: Yes – Integrated Wheel Lift & E-Clutch
• Waterproofing: IP67 Rated
• Operating Temp: -25°C to 80°C
• Warranty: 2 Years

Recommended Gearing

• 18" Wheels – 48T rear sprocket
• 16" Wheels – 42T rear sprocket

Fitment

• Talaria Sting MX3
• Talaria Sting MX4
• Talaria Sting MX5

Ready to build the ultimate Talaria? Reach out to the REV team if you need help dialing in your setup or choosing the right gear ratio. We’ve got you covered from install tips to track-ready tuning.

📩 Questions? Contact us anytime at REVRides.com/contact
