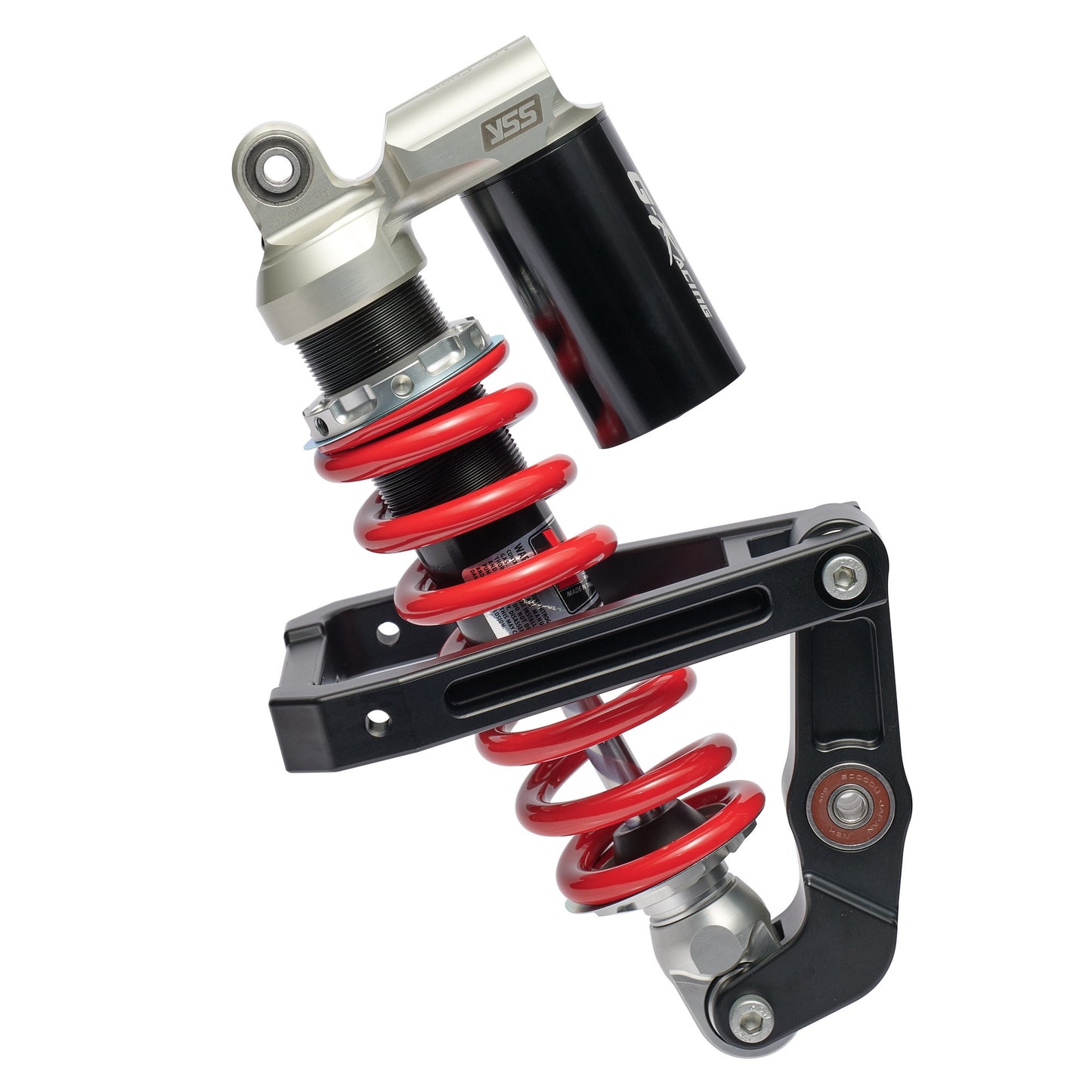

EBMX Rear Shock with upgraded Linkage and Triangle

EBMX Rear Shock with upgraded Linkage and Triangle

Regular price $1,198.00
Regular price $1,299.00 Sale price $1,198.00
Sale Sold out
Please contact us to price match. All orders over $100 ship free, otherwise shipping is calculated at checkout
Color
Spring size
More Financing Options

So, you've tried every mountain bike shock under the sun and they just aren't cutting it, why is that?

The fact is, it's all in the oil..... the physical size of a shock and how much oil it holds matters! As soon as things get hot, oil changes viscosity and cavitation occurs, this has a dramatic effect on both compression and rebound.

The bigger the shock the better the performance, especially if you ride hard for long periods, but quality dampening and spring rates matter too, that's why we went to the people at YSS. With EBMX driving the requirements we believe YSS have developed the best performing shock you can match to your SurRon Light Bee.

IN STOCK READY TO SHIP!

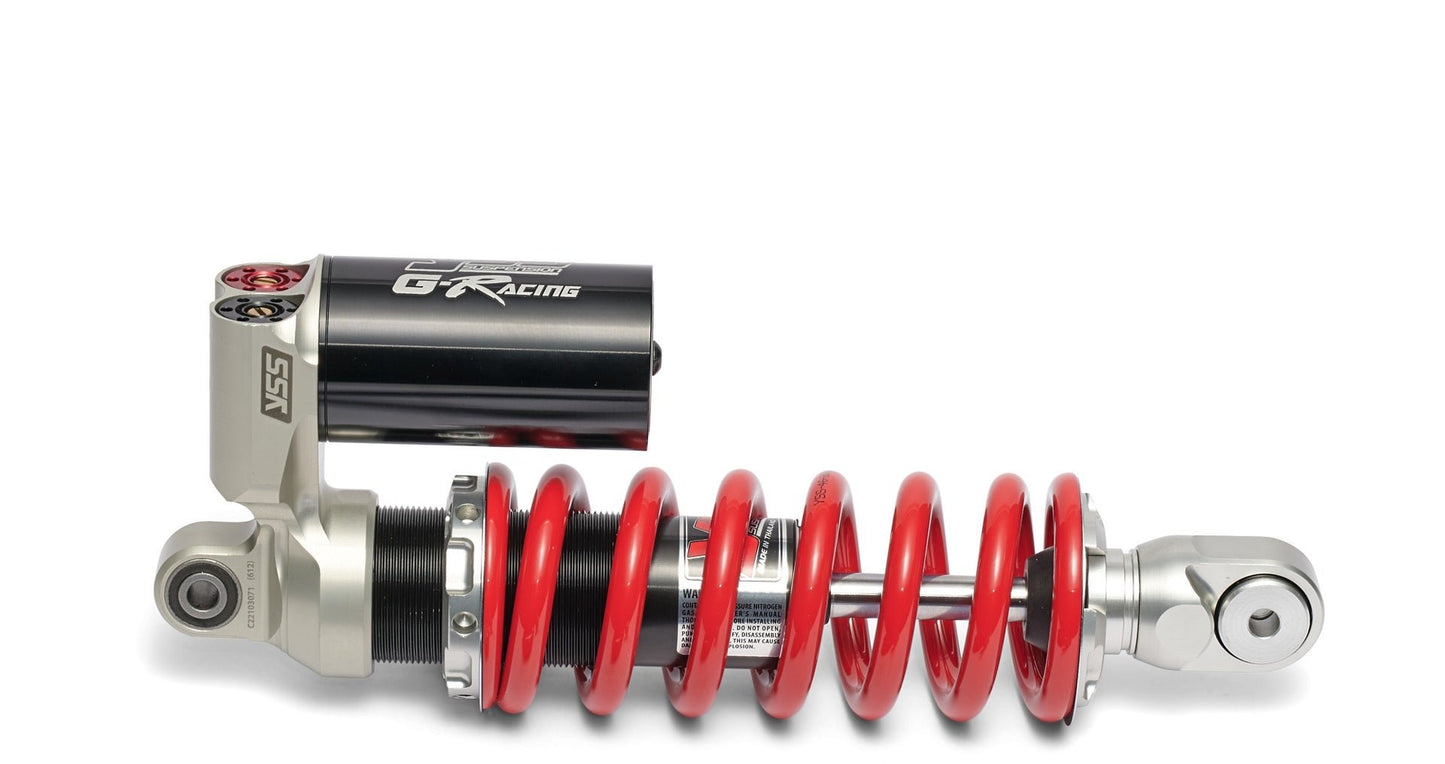

Key Product Info: EBMX / YSS Custom Shock

Weight:

Stock Rear Shock: 1.120kg

EBMX Custom Rear Shock: 2.105kg

Eye to Eye Length

Stock Rear Shock: 267mm

EBMX Rear Shock: 277mm

Stroke Length

Stock Rear Shock: 89mm

EBMX Rear Shock: 67mm

Other Key Features:

  • Plug and play (supplied with bushing kit) with the stock swing arm and linkage (also works very well with the upgraded EBMX Swing arm, remember to size up one spring weight if using the EBMX swing arm as there is more leverage with the longer arm)
  • High speed and low speed compression damping that actually work (unlike the stock shocks…)
  • Rebound adjustment clicker
  • Multiple spring weight options (see table below)
  • Designed for a motorbike, not a mountain bike (like the stock shock)
  • Huge oil reservoir keeps the shock cool even under hard riding
  • Less travel but you would never know, this shock is a massive improvement in every way over the stock shocks and any of the mountain bike shocks you can buy.
  • Extremely strong and good for jumping

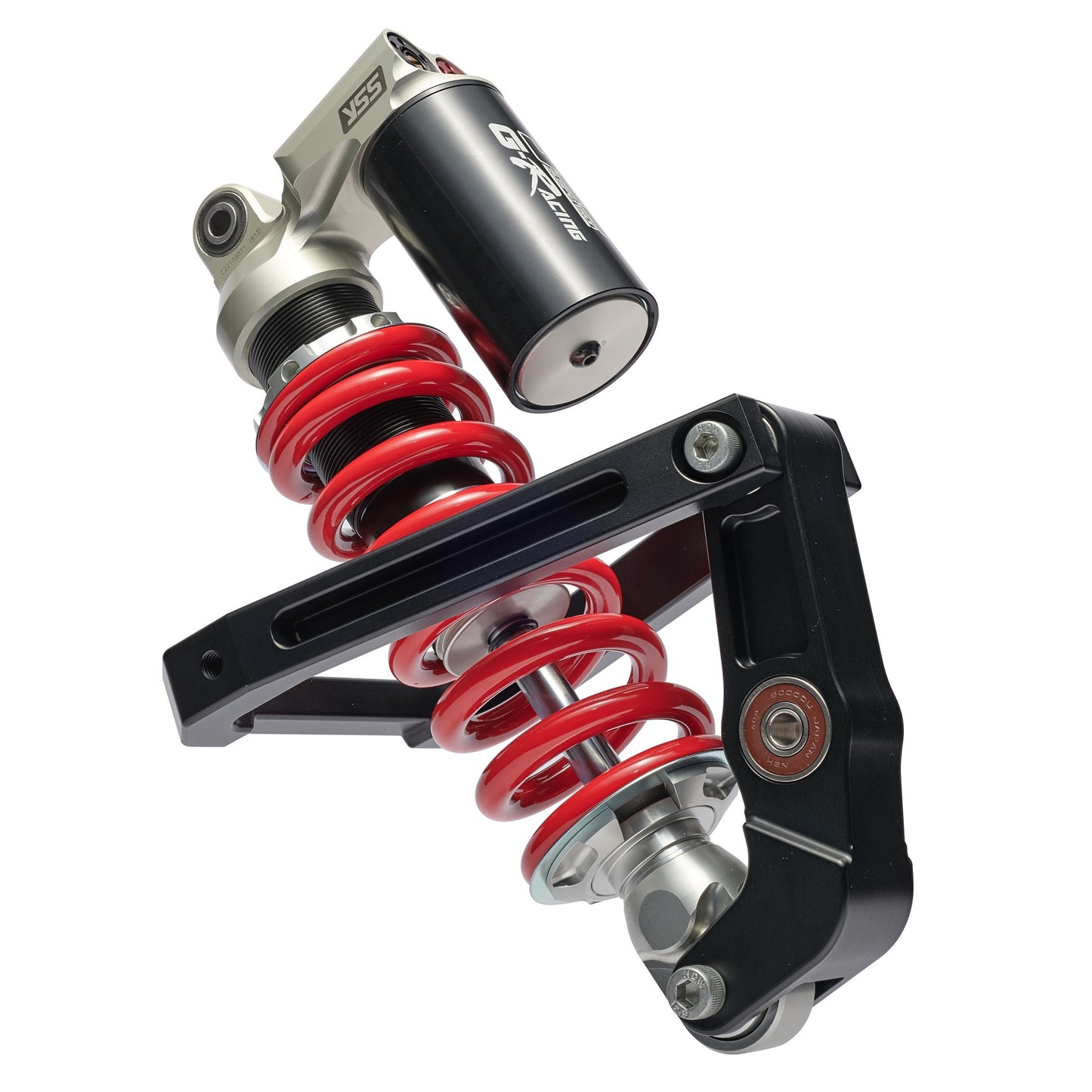

Key Product Info: EBMX Custom Rear Linkage and Triangle for Custom Shock Only

Included with all EBMX Custom Shocks purchased.

The EBMX shock is longer than the OEM shock and is not the same size eye to eye. This custom Rear Linkage and Triangle is set up to bring the EBMX shock in line with the travel of the stock shock, while reinforcing the structure of your bike.

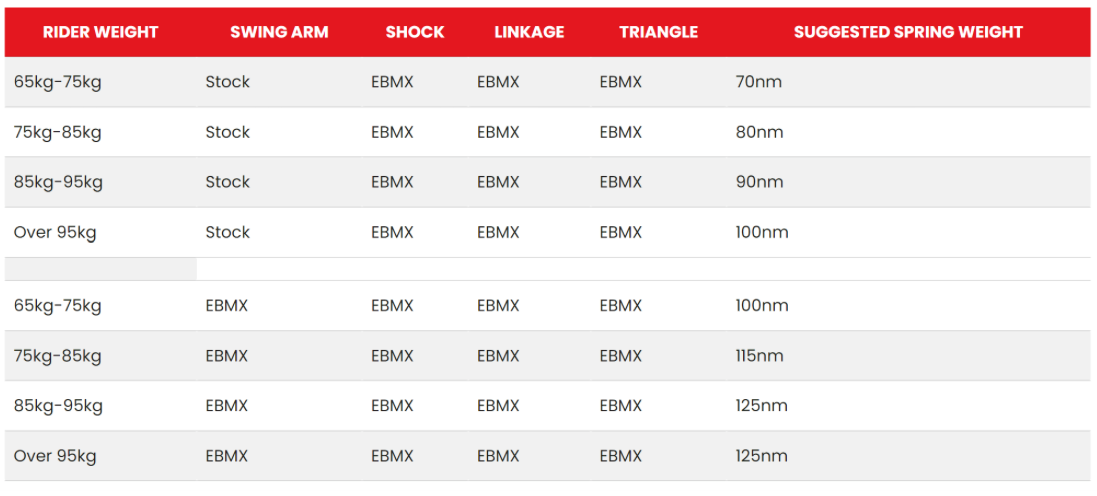

EBMX Shock Spring Sizing Chart

This table is to be used for determining the correct spring rate for riders using the EBMX rear shock, linkage and triangle. There are two different configurations depending on if you are using the stock swing arm or the EBMX extended Swing arm.

When using the stock swing arm, EBMX shock, EBMX linkage and triangle the rear wheel travel is 205mm.

When using the EBMX extended swing arm with EBMX shock, EBMX linkage and triangle the rear wheel travel is 220mm.

Weights of riders

Spring weight suggestions above are based on trail riding not extreme riding or jumping. If you plan to ride trails with large drops or do large jumps, please up size by 1 or 2 spring weights.






    Fitment

    • Surron Light Bee X
    • Segway X260
    • Segway X160
    • Eride Pro
    • 79bike Falcon-M
    • Eride pro SS
    • Eride pro SR
